SKU:

LC1D1156F5

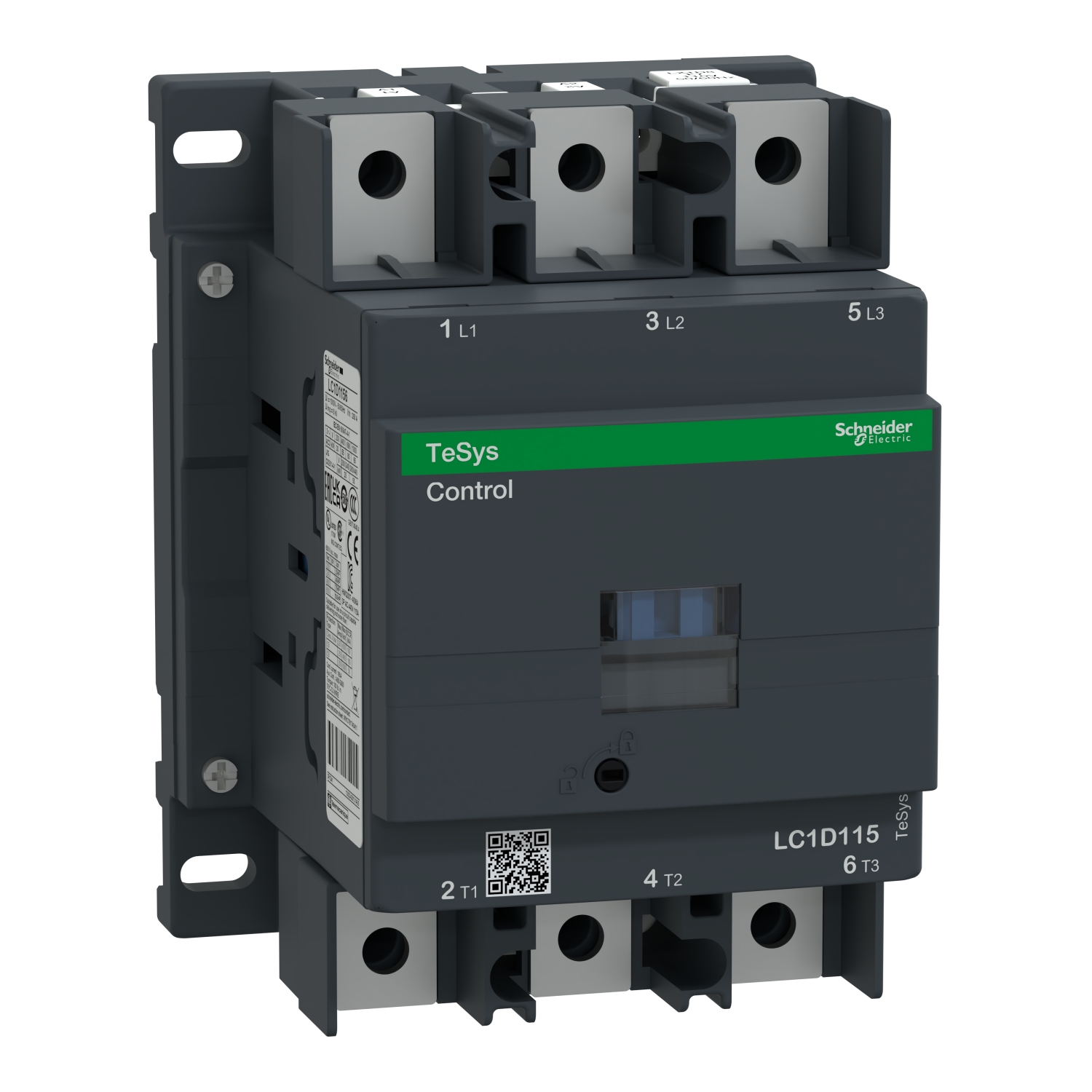

TeSys, Contactor, TeSys Deca, 3P(3NO), AC-3/AC-3e, <=440V, 115A, 110V AC 50Hz coil, lugs/bars terminals

$960.24

Qty:

Available for Shipping : 16-Dec-2024

Product Selector

TeSys, Contactor, TeSys Deca, 3P(3NO), AC-3/AC-3e, <=440V, 115A, 110V AC 50Hz coil, lugs/bars terminals

High durability: operating rates up to 2400 cycles/hour

High reliability: environments tolerance up to 60°C

Green Premium product

Multi sdandards certified makes it possible to wide application

Easy installation and maintenance with compact design

Be the first to review this product

Manufacturer: Schneider Electric

Catalogue

Instruction sheet

Product environmental

Declaration of conformity

End of life manual

Product Page Link

Product Data Sheet

TeSys Deca contactor, 3 poles (3NO), for motor control applications up to 115A/1000V AC-3 (55kW@400V). It provides a 110V 50Hz AC coil with transient suppressor module, 1NO+1NC built-in auxiliary contacts (NC mirrror contact), power connection for bars or lugs, control connection for lugs. For operating rates until 2400 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (120mm width), mounting on 2 DIN-rails or screw fixing. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).

Products specifications

Attribute name	Attribute value
Main
Device short name	LC1D
Range	TeSys
Range of product	TeSys Deca
Poles description	3P
[Ie] rated operational current	115 A (at <60 °C) at <= 440 V AC AC-3e for power circuit, 115 A (at <60 °C) at <= 440 V AC AC-3 for power circuit, 200 A (at <60 °C) at <= 440 V AC AC-1 for power circuit
Utilisation category	AC-3e, AC-3, AC-1, AC-4
Product or component type	contactor
Contactor application	motor control, resistive load
[Ue] rated operational voltage	power circuit: <= 300 V DC, power circuit: <= 1000 V AC 25...400 Hz
[Uc] control circuit voltage	110 V AC 50 Hz
Complementary
Heat dissipation	3-8 W at 50 Hz
[Icw] rated short-time withstand current	140 A - 100 ms for signalling circuit, 120 A - 500 ms for signalling circuit, 100 A - 1 s for signalling circuit, 1100 A 40 °C - 1 s for power circuit, 950 A 40 °C - 10 s for power circuit, 550 A 40 °C - 1 min for power circuit, 250 A 40 °C - 10 min for power circuit
Compatibility code	LC1D
Mechanical durability	8 Mcycles
Electrical durability	0.95 Mcycles 115 A AC-3e at Ue <= 440 V, 0.95 Mcycles 115 A AC-3 at Ue <= 440 V, 0.8 Mcycles 200 A AC-1 at Ue <= 440 V
Tightening torque	control circuit: 1.2 N.m - on lugs-ring terminals - with screwdriver pozidriv No 2 M3.5, power circuit: 12 N.m - on bars hexagonal screw head 13 mm M8, power circuit: 12 N.m - on lugs-ring terminals hexagonal screw head 13 mm M8, control circuit: 1.2 N.m - on lugs-ring terminals - with screwdriver Philips No 2 M3.5, control circuit: 1.2 N.m - on lugs-ring terminals - with screwdriver flat Ø 6 mm M3.5
Signalling circuit frequency	25...400 Hz
Minimum switching voltage	17 V for signalling circuit
Operating time	20...50 ms closing, 6...20 ms opening
Associated fuse rating	10 A gG for signalling circuit, 200 A gG at <= 690 V coordination type 2 for power circuit, 250 A gG at <= 690 V coordination type 1 for power circuit
Irms rated making capacity	250 A DC for signalling circuit conforming to IEC 60947-5-1, 140 A AC for signalling circuit conforming to IEC 60947-5-1, 1260 A at 440 V for power circuit conforming to IEC 60947
Rated breaking capacity	1100 A at 440 V for power circuit conforming to IEC 60947
Pollution degree	3
Safety reliability level	B10d = 10000000 cycles contactor with mechanical load conforming to EN/ISO 13849-1, B10d = 684932 cycles contactor with nominal load conforming to EN/ISO 13849-1
Control circuit type	AC at 50 Hz
Control circuit voltage limits	1...1.1 Uc (55-70 °C):operational AC 50 Hz, 0.85...1.1 Uc (-40-55 °C):operational AC 50 Hz, 0.3...0.6 Uc (-40-70 °C):drop-out AC 50 Hz
[Ith] conventional free air thermal current	200 A (at 60 °C) for power circuit
Protective cover	with
[Ui] rated insulation voltage	signalling circuit: 600 V UL certified, signalling circuit: 600 V CSA certified, signalling circuit: 690 V conforming to IEC 60947-1, power circuit: 1000 V conforming to IEC 60947-4-1, power circuit: 600 V UL certified, power circuit: 600 V CSA certified
Motor power hp	100 hp at 575/600 V AC 50/60 Hz for 3 phases motors, 75 hp at 460/480 V AC 50/60 Hz for 3 phases motors, 40 hp at 230/240 V AC 50/60 Hz for 3 phases motors, 30 hp at 200/208 V AC 50/60 Hz for 3 phases motors
Motor power kW	65 kW at 1000 V AC 50/60 Hz (AC-3e), 80 kW at 660...690 V AC 50/60 Hz (AC-3e), 75 kW at 500 V AC 50/60 Hz (AC-3e), 59 kW at 415...440 V AC 50/60 Hz (AC-3e), 55 kW at 380...400 V AC 50/60 Hz (AC-3e), 30 kW at 220...230 V AC 50/60 Hz (AC-3e), 18.5 kW at 400 V AC 50/60 Hz (AC-4), 65 kW at 1000 V AC 50/60 Hz (AC-3), 80 kW at 660...690 V AC 50/60 Hz (AC-3), 75 kW at 500 V AC 50/60 Hz (AC-3), 59 kW at 415...440 V AC 50/60 Hz (AC-3), 55 kW at 380...400 V AC 50/60 Hz (AC-3), 30 kW at 220...230 V AC 50/60 Hz (AC-3)
Overvoltage category	III
Hold-in power consumption in VA	22-22 VA 50 Hz cos phi 0.3 (at 20 °C)
Auxiliary contacts type	type mirror contact 1 NC conforming to IEC 60947-4-1, type mechanically linked 1 NO + 1 NC conforming to IEC 60947-5-1
Maximum operating rate	2400 cyc/h 60 °C
Coil technology	without built-in suppressor module
Connections - terminals	power circuit: bars 1 - busbar cross section: 5 x 25 mm, power circuit: lugs-ring terminals - external diameter: 25 mm, control circuit: lugs-ring terminals - external diameter: 8 mm
Pole contact composition	3 NO
[Uimp] rated impulse withstand voltage	8 kV conforming to IEC 60947
Inrush power in VA	300-300 VA 50 Hz cos phi 0.8 (at 20 °C)
Insulation resistance	> 10 MOhm for signalling circuit
Contact compatibility	M13
Mounting support	plate, rail
Auxiliary contact composition	1 NO + 1 NC
Average impedance	0.6 mOhm - Ith 200 A 50 Hz for power circuit
Power dissipation per pole	7.9 W AC-3e, 7.9 W AC-3, 24 W AC-1
Minimum switching current	5 mA for signalling circuit
Non-overlap time	1.5 ms on energisation between NC and NO contact, 1.5 ms on de-energisation between NC and NO contact
Environment
Fire resistance	850 °C conforming to IEC 60695-2-1
Mechanical robustness	shocks contactor open (6 Gn for 11 ms) , shocks contactor closed (15 Gn for 11 ms) , vibrations contactor closed (4 Gn, 5...300 Hz) , vibrations contactor open (2 Gn, 5...300 Hz)
IP degree of protection	IP20 front face conforming to IEC 60529
Protective treatment	TH conforming to IEC 60068-2-30
Climatic withstand	conforming to IEC 60947-1 Annex Q category D exposure to damp heat, conforming to IACS E10 exposure to damp heat
Standards	UL 508, IEC 60947-5-1, IEC 60947-4-1, EN 60947-5-1, EN 60947-4-1, CSA C22.2 No 14
Height	158 mm
Permissible ambient air temperature around the device	60-70 °C with derating, -40-60 °C
Depth	136 mm
Width	120 mm
Operating altitude	0...3000 m
Flame retardance	V1 conforming to UL 94
Net weight	2.5 kg
Product certifications	CE, UKCA, GL, BV, DNV, LROS (Lloyds register of shipping), RINA, UL, CSA, CCC, GOST
Packing Units
Unit Type of Package 1	1
Number of Units in Package 1	1
Package 1 Height	17.0 cm
Package 1 Width	19.0 cm
Package 1 Length	20.5 cm
Package 1 Weight	2.178 kg
