TeSys Deca, interface amplifier module, relay, 24V DC / 250V AC

$305.48

Qty:

Available for Shipping : 24-Nov-2024

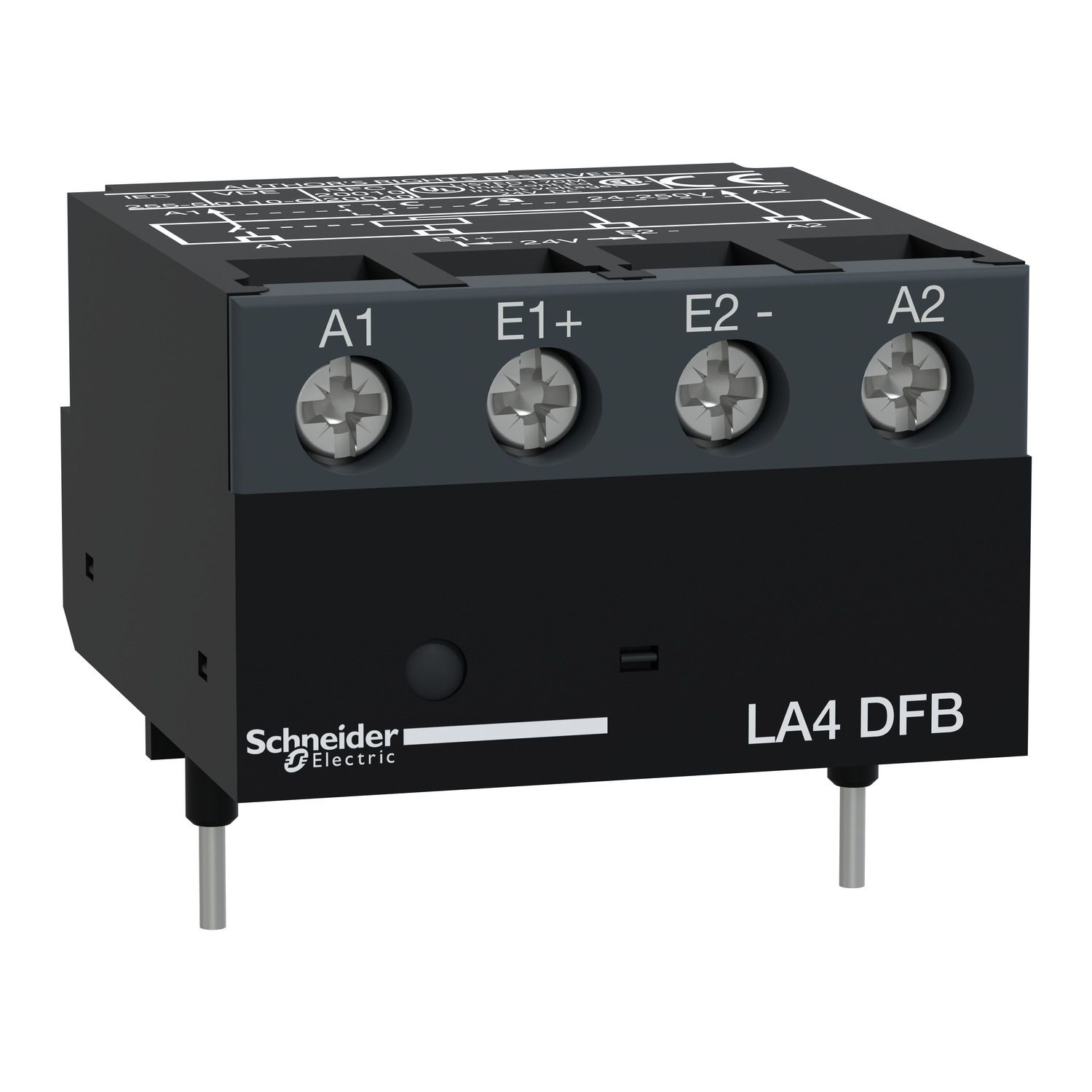

TeSys Deca, interface amplifier module, relay, 24V DC / 250V AC

Meet the need for transfer control voltage to DC 24V of TeSys Deca contactor and control relay

Interface amplifier module

Top mounted on device

Replacable

Be the first to review this product

Manufacturer: Schneider Electric

Catalogue

Product environmental

Product Page Link

Product Data Sheet

TeSys Deca low signal interface module, for control of contactors LC.D09-D115 (3P). Electromechanical relay interface controlled by a 24V DC input signal. To be used with contactors with 24-250V AC coils (B7 to U7). To be mounted on a coil wiring adapter LAD4BB for contactors LC.D09-D38, LAD4BB3 for contactors LC.D40A-D80A, and directly on contactors LC.D80-D115. Green Premium compliant (RoHS/REACh).

Products specifications

Attribute name	Attribute value
Main
Device short name	LA4D
Product compatibility	LC1D09...D150
Poles description	3P
Range	TeSys
Product or component type	interface module
Range of product	TeSys Deca
Complementary
Voltage state 1 guaranteed	17 V
[Us] rated supply voltage	24 V DC
Local signalling	LED indicator
Compatibility code	LA4D
Electrical durability	10 Mcycles at 240 V
[Ui] rated insulation voltage	250 V - for control circuit conforming to IEC 60947-5-1
Technology type	electromechanical
Mounting mode	top mounted
Connections - terminals	control circuit: connector 2 cable(s) 1-2.5 mm²solid without cable end, control circuit: connector 2 cable(s) 1-2.5 mm²solid with cable end, control circuit: connector 2 cable(s) 1-2.5 mm²flexible without cable end, control circuit: connector 2 cable(s) 1-2.5 mm²flexible with cable end, control circuit: connector 1 cable(s) 1-2.5 mm²solid without cable end, control circuit: connector 1 cable(s) 1-2.5 mm²solid with cable end, control circuit: connector 1 cable(s) 1-2.5 mm²flexible without cable end, control circuit: connector 1 cable(s) 1-2.5 mm²flexible with cable end
Current consumption	25 mA 20 °C
Voltage state 0 guaranteed	< 2.4 V
Net weight	0.05 kg
Current state 0 guaranteed	<= 2 mA
Control circuit voltage limits	17...30 V at 20 °C DC
Height	12 mm
[Ue] rated operational voltage	control circuit: 24...250 V AC
Environment
Heat dissipation	0.6-0.6 W for control circuit
Protection type	built-in by diode
Permissible ambient air temperature around the device	-25-70 °C
Ambient air temperature for storage	-40-80 °C
IP degree of protection	IP2X conforming to IEC 60529
Immunity to microbreaks	4 ms
Standards	IEC 60255-5
[Ith] conventional free air thermal current	8 A 50 °C
Ambient air temperature for operation	-25-55 °C
Product certifications	CSA, UL
Packing Units
Unit Type of Package 1	1
Number of Units in Package 1	1
Package 1 Height	4.000 cm
Package 1 Width	5.000 cm
Package 1 Length	5.000 cm
Package 1 Weight	49.000 g
Unit Type of Package 2	2
Number of Units in Package 2	70
Package 2 Height	15.000 cm
Package 2 Width	30.000 cm
Package 2 Length	40.000 cm
Package 2 Weight	3.767 kg
