SKU:

LA9G972

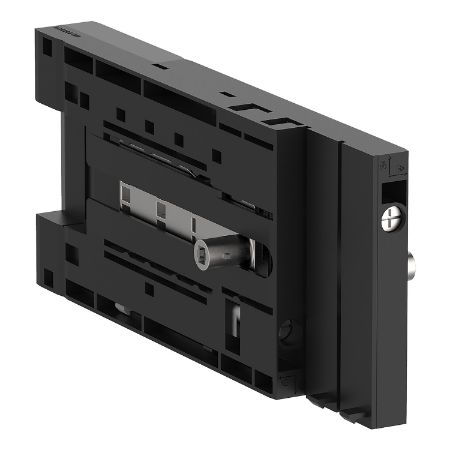

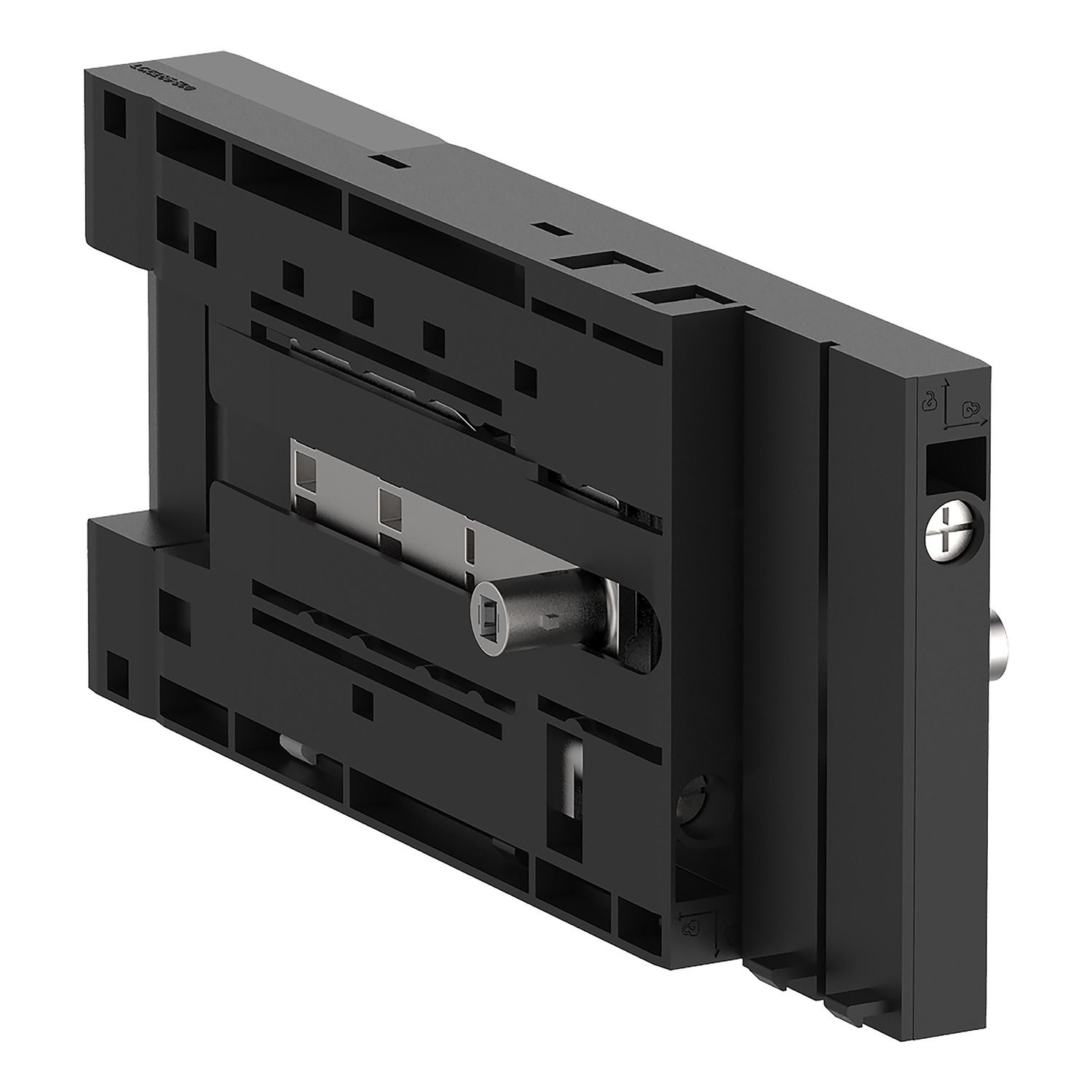

Mechanical interlock, for TeSys Giga contactor LC1G630-800 and LC1G265-500, IP20

$305.09
Available for Shipping : 17-Nov-2024
Mechanical interlock, for TeSys Giga contactor LC1G630-800 and LC1G265-500, IP20
  • Ergonomic design helps for easy and quickly assembly of contactors of same size or different sizes
  • Designed to meet needs of demanding applications built-in with advanced features and functionalities
  • Less number of references, simple to select, choose means less inventory
  • Simple and quick access of accessories and auxiliaries from the front, reduces total assembly and replacement time
  • Modularity design and compact size for easy maintenance, short down times and less installation space consumption
  • Unique QR code, quick access to complete product data, technical video, anti-fake checking and instruction sheet
Manufacturer: Schneider Electric
These accessories are mechanical interlock for TeSys Giga 630-800 and TeSys Giga 265-500 contactors. To be used for reversing and changeover assemblings. Without electrical interlocking. It can cover -25°C to 60°C operation ambient air temperature, No derating up to 3000m altitude. Green Premium compliant (RoHs/Reach).

Products specifications

Attribute name Attribute value
Main
Device short name LA9G
Product compatibility LC1G620, LC1G300...475, LC1G630...800, LC1G265...500
Range compatibility TeSys Giga
Electrical circuit type star-delta
Poles description 3P
Range TeSys
Product or component type mechanical interlock
Accessory / separate part category interlocking accessory
Range of product TeSys Giga
Interlocking type mechanical
Complementary
Net weight 0.225 kg
Environment
Operating altitude 5000 m with derating factor, 3000 m without derating
Ambient air temperature for storage -60-80 °C
Pollution degree 3 conforming to IEC 60947-1
IP degree of protection IP20 conforming to IEC 60529
Standards GB/T 14048.4, CSA C22.2 No 60947-4-1, UL 60947-4-1, EN/IEC 60947-4-1
Ambient air temperature for operation -25-60 °C
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 5.7 cm
Package 1 Width 9.0 cm
Package 1 Length 18.2 cm
Package 1 Weight 205.0 g
Unit Type of Package 2 2
Number of Units in Package 2 12
Package 2 Height 15 cm
Package 2 Width 30 cm
Package 2 Length 40 cm
Package 2 Weight 2.843 kg
