SKU:

LC1G265KUEN

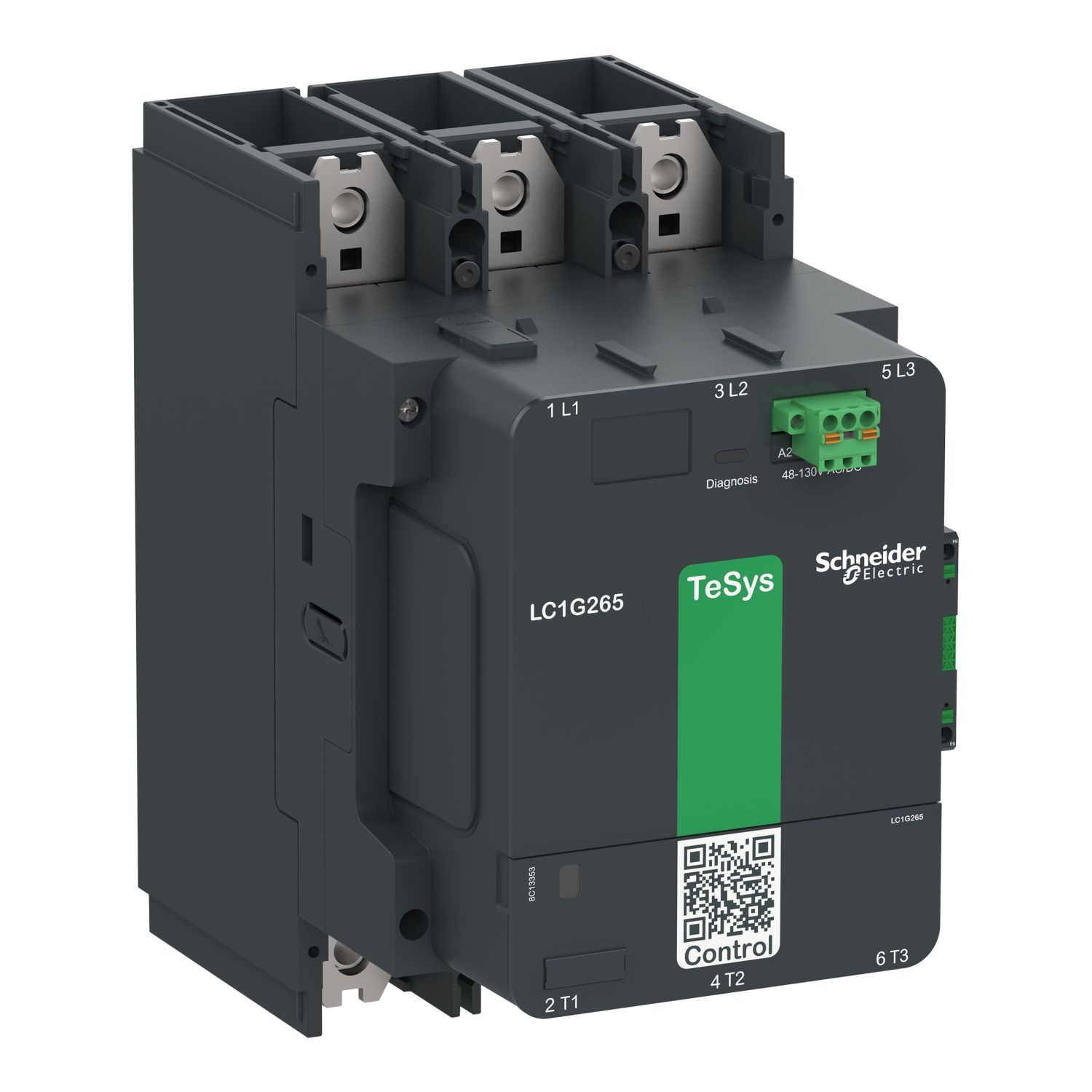

High power contactor, TeSys Giga, 3 pole (3NO), AC-3 <=440V 265A, standard version, 100…250V wide band AC/DC coil

$2,870.90

Qty:

Available for Shipping : 24-Nov-2024

Product Selector

High power contactor, TeSys Giga, 3 pole (3NO), AC-3 <=440V 265A, standard version, 100…250V wide band AC/DC coil

Designed to meet needs of demanding applications built-in with advanced features and functionalities

Less number of references, simple to select, choose means less inventory

Cable memory kit, saves downtime and improves productivity by performing quick maintenance

Overload relay built in ground fault protection, phase imbalance/failure protection and protection of single phase loads

Coil designed for less energy consumption and wider voltage band-width

Auxiliary contacts is highly reliable and suitable for 17V 1mA to address more challenging specific control applications

Advanced Local & Remote Contact Wear Diagnostic feature for predictive maintenance

Modularity design and compact size for easy maintenance, short down times and less installation space consumption

Robust control solutions for AC-3 applications up to 800 A (450kW) and AC-1 applications up to 1050 A

Unique QR code, quick access to complete product data, technical video, anti-fake checking

Be the first to review this product

Manufacturer: Schneider Electric

Product environmental

Instruction sheet

Catalogue

End of life manual

User guide

Product Page Link

Product Data Sheet

TeSys Giga high power contactor, 3 poles (3 NO) for category AC-3 applications up to 265A 160kW@440V. It provides a 100-250V AC/DC wide band low consumption electronic coil and embedded highly reliability 1NO+1NC auxiliary contact block (17V 1mA). Designed for demanding applications with maximum operating rates up to 600 cycles per hour and environments until 60°C. It procures high reliability and durability with 5 Mcycles mechanical durability. Local Contact Wear Diagnosis (CWD) as standard function, continuous monitoring with healthy and alarm indicators. It is possibility to replace switching module (main contacts), enhancement contactor life. Contactor can be fixed in all quadrants, maintenance without removing cables/busbars, and OLR could be directly mounted below contactor. To be used with power connection by bolted connection and control connections by spring terminals, accessible from front for easy and quick replacement. It provides IP2x protection in Front face with shrouds conforming to IEC 60529 and VDE 0106. It can cover -25°C to 60°C operation ambient air temperature and directly mounted on plate, No derating up to 3000m altitude. The dimension is 290mm x 140mm x 209mm (H x W x D), compact size enables panel space savings. Multi standards certified(CE,CB,CCC,cULus,EAC,KC,RCM,Marine) and Green Premium compliant (RoHs/Reach). Unique QR code provides quick access to complete product data.
