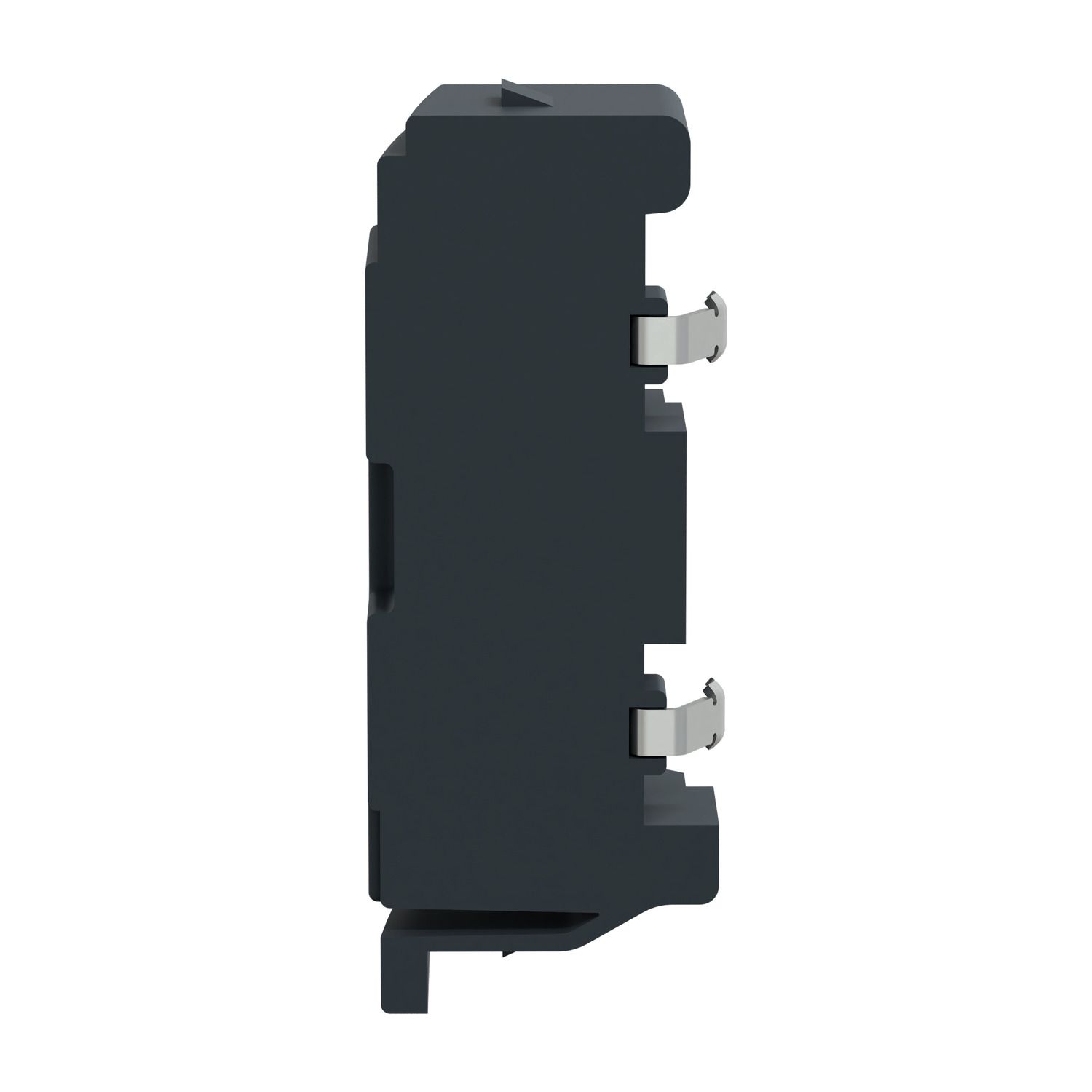

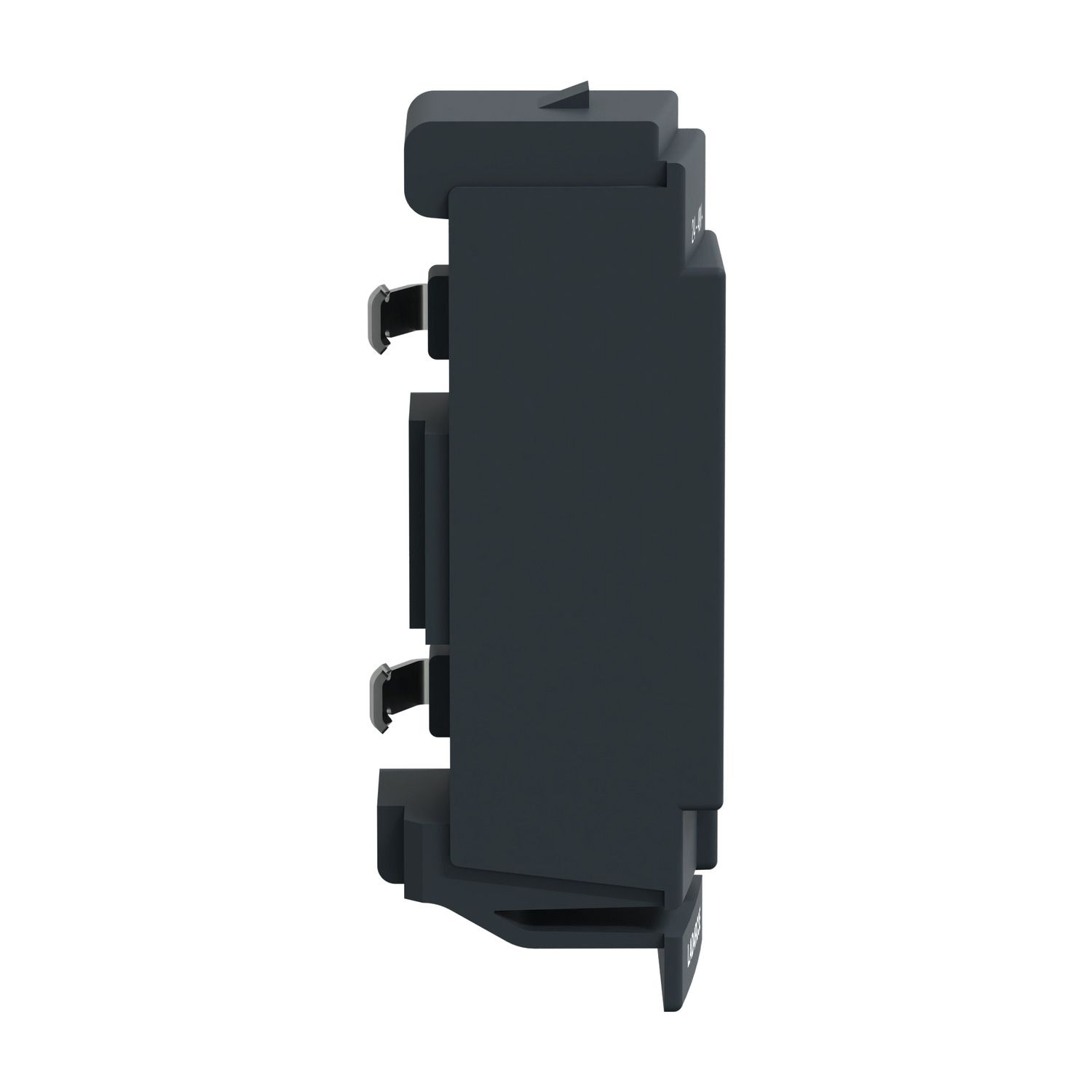

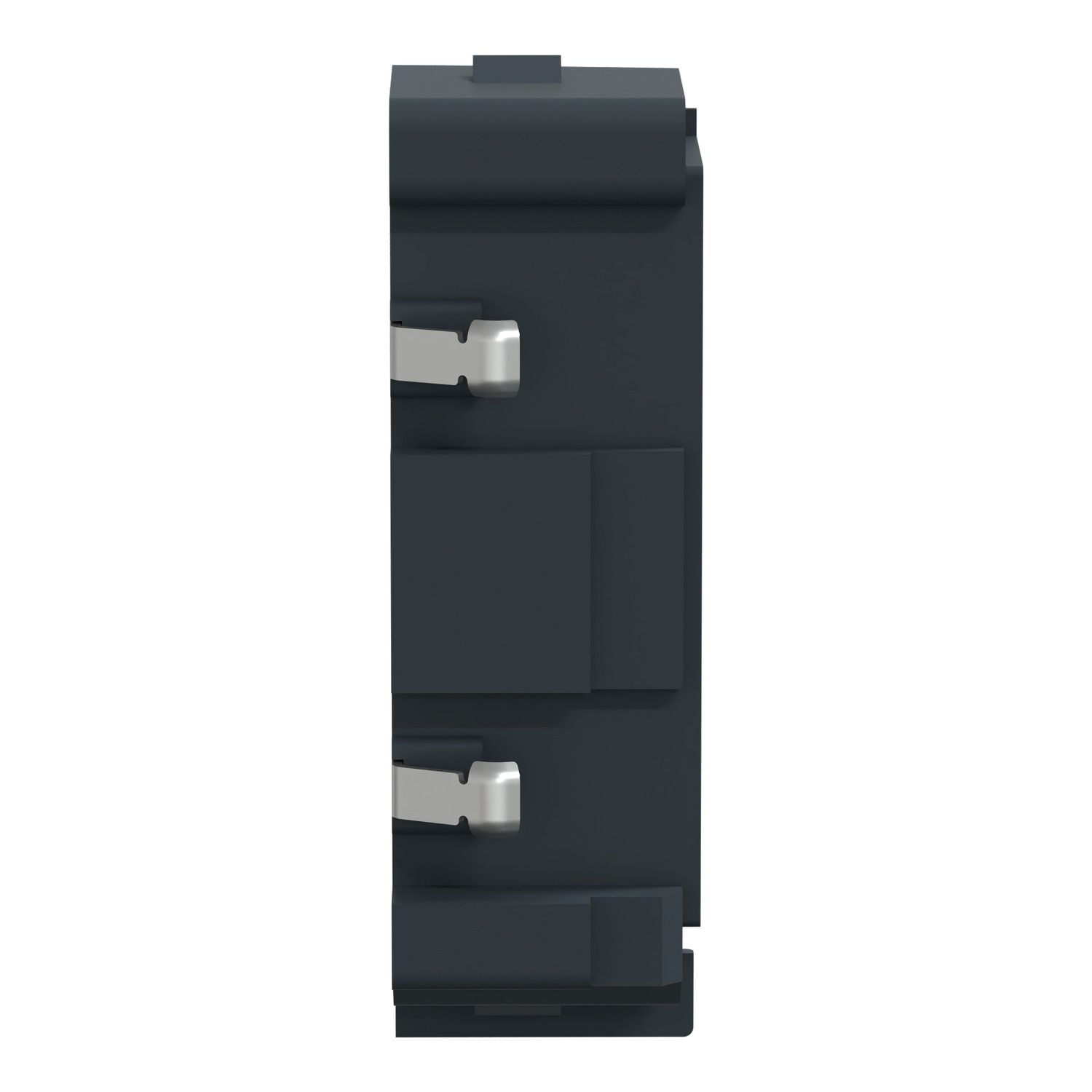

Picture of TeSys; TeSys Deca, Varistor Suppressor module ,TeSys Deca, 24...48V AC/DC,for D40A…D65A/DT60A…DT80A
Picture of TeSys; TeSys Deca, Varistor Suppressor module ,TeSys Deca, 24...48V AC/DC,for D40A…D65A/DT60A…DT80A
Picture of TeSys; TeSys Deca, Varistor Suppressor module ,TeSys Deca, 24...48V AC/DC,for D40A…D65A/DT60A…DT80A
Picture of TeSys; TeSys Deca, Varistor Suppressor module ,TeSys Deca, 24...48V AC/DC,for D40A…D65A/DT60A…DT80A
Picture of TeSys; TeSys Deca, Varistor Suppressor module ,TeSys Deca, 24...48V AC/DC,for D40A…D65A/DT60A…DT80A
Picture of TeSys; TeSys Deca, Varistor Suppressor module ,TeSys Deca, 24...48V AC/DC,for D40A…D65A/DT60A…DT80A
SKU:

LAD4RC3E

TeSys; TeSys Deca, Varistor Suppressor module ,TeSys Deca, 24...48V AC/DC,for D40A…D65A/DT60A…DT80A

$69.28
TeSys; TeSys Deca, Varistor Suppressor module ,TeSys Deca, 24...48V AC/DC,for D40A…D65A/DT60A…DT80A
  • Ultra low consumption coil for maximized energy efficiency to meet sustainability needs
  • Designed to meet the requirements of industrial and HVAC applications
  • Easier to install and operate with multi-standard screws
  • With IEC60335-1 compliance, improved fire resistance, and dustproof auxiliaries
  • Digital customer experience for technical documents
  • Maintenance guide via EcoStruxureTM Facility Expect
Be the first to review this product
Manufacturer: Schneider Electric
Estimated Delivery Date: 18-Oct-2024
CAD
Image of product
Instruction sheet
Product environmental
Image of product
Image of product
Catalogue
Image of product
Product Page Link
Product Data Sheet
TeSys D suppressor module, for LC1D40A-D80A, LC1DT60A-DT80A contactors. To be used with 24-48V AC control circuit voltage, it provides a RC protection limiting the transient voltage to 3 Uc max. Clip-on front mounting, overall size of the contactor is unchanged. Green Premium compliant (RoHS/REACh).

Products specifications

Attribute nameAttribute value
Main
Device short nameLAD4
Product compatibility4P LC1DT60A...DT80A, 3P LC1D40A...D80A
RangeTeSys Deca, TeSys
Product or component typesuppressor module
Range of productTeSys Deca
Complementary
Suppressor technologyRC circuit
Colourdark grey
Compatibility codeLAD4
Mounting modeby clips
Maximum peak voltage3 Uc
Mounting locationfront
Net weight0.02 kg
[Uc] control circuit voltage24...48 V AC
Environment
Ambient air temperature for storage-40-80 °C
IP degree of protectionIP2X conforming to IEC 60529
StandardsGB/T 14048.5, UL 60947-5-1, CSA C22.2 No 60947-5-1, EN 60947-5-1, IEC 60947-5-1
Ambient air temperature for operation-25-55 °C
Product certificationsCSA, UL
Packing Units
Unit Type of Package 11
Number of Units in Package 11
Package 1 Height1.500 cm
Package 1 Width2.000 cm
Package 1 Length5.000 cm
Package 1 Weight16.000 g
Unit Type of Package 22
Number of Units in Package 210
Package 2 Height6.300 cm
Package 2 Width7.300 cm
Package 2 Length12.200 cm
Package 2 Weight184.000 g
Unit Type of Package 33
Number of Units in Package 3100
Package 3 Height15.000 cm
Package 3 Width15.000 cm
Package 3 Length40.000 cm
Package 3 Weight2.063 kg

Related products

Picture of TeSys; TeSys Deca, Contactor, 3P(3 NO), AC-3/AC-3e, 0 to 440V, 65A, 24VAC 50/60Hz coil

TeSys; TeSys Deca, Contactor, 3P(3 NO), AC-3/AC-3e, 0 to 440V, 65A, 24VAC 50/60Hz coil

LC1D65AB7
$551.28
View Detail
Picture of TeSys; TeSys Deca, Contactor, 3P(3 NO), AC-3/AC-3e, 0 to 440V, 65A, 42VAC 50/60Hz coil

TeSys; TeSys Deca, Contactor, 3P(3 NO), AC-3/AC-3e, 0 to 440V, 65A, 42VAC 50/60Hz coil

LC1D65AD7
$523.39
View Detail
Picture of TeSys; TeSys Deca, Contactor, 3P(3 NO), AC-3/AC-3e, 0 to 440V, 65A, 48VAC 50/60Hz coil

TeSys; TeSys Deca, Contactor, 3P(3 NO), AC-3/AC-3e, 0 to 440V, 65A, 48VAC 50/60Hz coil

LC1D65AE7
$614.26
View Detail
Picture of Contactor, TeSys Deca, 3P(3 NO), AC-3/AC-3e, <=400V, 40A, 24V AC 50/60Hz coil, spring terminals

Contactor, TeSys Deca, 3P(3 NO), AC-3/AC-3e, <=400V, 40A, 24V AC 50/60Hz coil, spring terminals

LC1D40A3B7
$304.67
View Detail
Picture of Contactor, TeSys Deca, 3P(3 NO), AC-3/AC-3e, <=400V, 40A, 48V AC 50/60Hz coil, spring terminals

Contactor, TeSys Deca, 3P(3 NO), AC-3/AC-3e, <=400V, 40A, 48V AC 50/60Hz coil, spring terminals

LC1D40A3E7
$304.67
View Detail
Picture of Contactor, TeSys Deca, 3P(3 NO), AC-3/AC-3e, <=400V, 40A, 24V AC 50/60Hz coil, lugs-ring terminals

Contactor, TeSys Deca, 3P(3 NO), AC-3/AC-3e, <=400V, 40A, 24V AC 50/60Hz coil, lugs-ring terminals

LC1D40A6B7
$304.67
View Detail

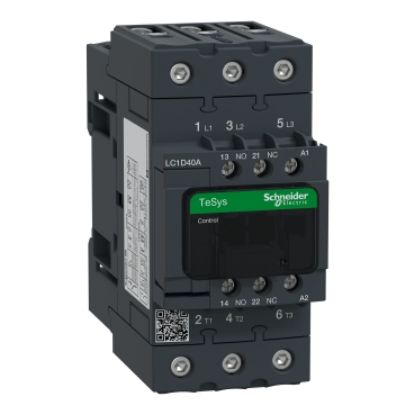

Picture of TeSys; TeSys Deca, Contactor, 3P(3 NO), AC-3/AC-3e, 0 to 440V, 40A, 24VAC 50/60Hz coil

TeSys; TeSys Deca, Contactor, 3P(3 NO), AC-3/AC-3e, 0 to 440V, 40A, 24VAC 50/60Hz coil

LC1D40AB7
$366.01
View Detail

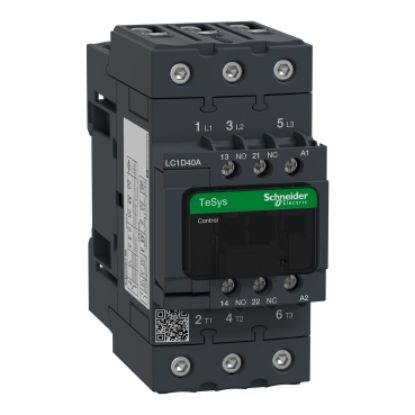

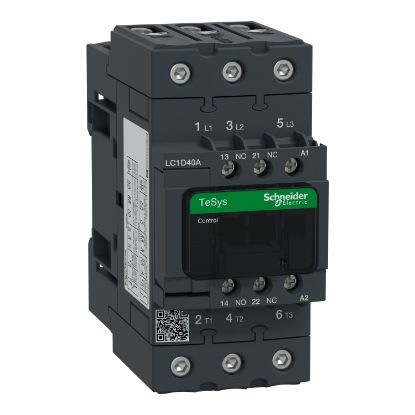

Picture of TeSys; TeSys Deca, Contactor, 3P(3 NO), AC-3/AC-3e, 0 to 440V, 40A, 32VAC 50/60Hz coil
