SKU:

LC1D40A3E7

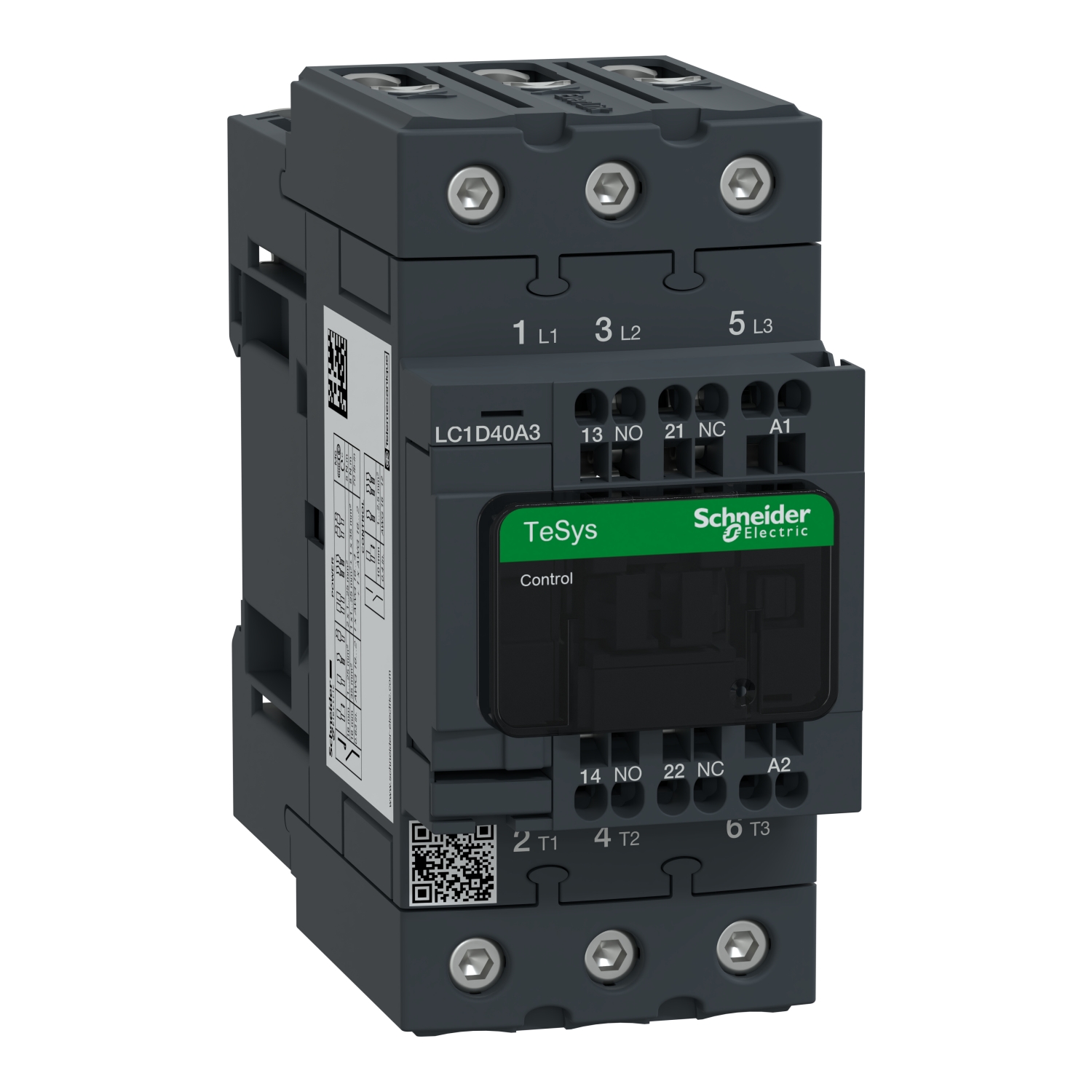

Contactor, TeSys Deca, 3P(3 NO), AC-3/AC-3e, <=400V, 40A, 48V AC 50/60Hz coil, spring terminals

$304.67

Qty:

Product Selector

Contactor, TeSys Deca, 3P(3 NO), AC-3/AC-3e, <=400V, 40A, 48V AC 50/60Hz coil, spring terminals

New modern look & feel of all machines

Designed to meet the requirements of Electro domestic and HVAC applications

Easier to install and operate with multi-standard screws

With IEC60335-1 compliance, improved fire resistance, and dustproof auxiliaries

Digital customer experience for technical documents

Maintenance guide via EcoStruxureTM Facility Expect

Be the first to review this product

Manufacturer: Schneider Electric

Estimated Delivery Date: 25-Oct-2024

Catalogue

Instruction sheet

End of life manual

Product environmental

CAD

Product Page Link

Product Data Sheet

TeSys D contactor, 3 poles (3NO), for motor control applications up to 40A/440V AC-3/3e (18.5kW@400V). It provides a 48V 50/60Hz AC coil, 1NO+1NC built-in auxiliary contacts (NC mirror certified), power connection by EverLink BTR screw connectors, control connection by spring terminals. For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (55mm width), DIN-rail mounting or screw fixing. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).

Products specifications

Attribute name	Attribute value
Main
[Ie] rated operational current	40 A (at <60 °C) at <= 440 V AC AC-3e for power circuit, 40 A (at <60 °C) at <= 440 V AC AC-3 for power circuit, 60 A (at <60 °C) at <= 440 V AC AC-1 for power circuit
Utilisation category	AC-3e, AC-3, AC-1, AC-4
[Uc] control circuit voltage	48 V AC 50/60 Hz
Device short name	LC1D
Range	TeSys Deca, TeSys
Range of product	TeSys Deca
Poles description	3P
Product or component type	contactor
Contactor application	motor control, resistive load
[Ue] rated operational voltage	power circuit: <= 300 V DC, power circuit: <= 690 V AC 25...400 Hz
Complementary
Compatibility code	LC1D
Electrical durability	1.5 Mcycles 40 A AC-3e at Ue <= 440 V, 1.5 Mcycles 40 A AC-3 at Ue <= 440 V, 1.4 Mcycles 60 A AC-1 at Ue <= 440 V
Signalling circuit frequency	25...400 Hz
Associated fuse rating	80 A gG at <= 690 V coordination type 2 for power circuit, 80 A gG at <= 690 V coordination type 1 for power circuit, 10 A gG for signalling circuit conforming to IEC 60947-5-1
Control circuit type	AC at 50/60 Hz
Protective cover	with
[Ui] rated insulation voltage	power circuit: 690 V conforming to IEC 60947-4-1, signalling circuit: 600 V UL certified, signalling circuit: 600 V CSA certified, signalling circuit: 690 V conforming to IEC 60947-1, power circuit: 600 V UL certified, power circuit: 600 V CSA certified
Overvoltage category	III
Auxiliary contacts type	type mirror contact 1 NC conforming to IEC 60947-4-1, type mechanically linked 1 NO + 1 NC conforming to IEC 60947-5-1
Coil technology	without built-in suppressor module
Inrush power in VA	160-160 VA 50 Hz cos phi 0.75 (at 20 °C), 140-140 VA 60 Hz cos phi 0.75 (at 20 °C)
Auxiliary contact composition	1 NO + 1 NC
Average impedance	1.5 mOhm - Ith 60 A 50 Hz for power circuit
Power dissipation per pole	2.4 W AC-3e, 5.4 W AC-1, 2.4 W AC-3
Minimum switching current	5 mA for signalling circuit
Non-overlap time	1.5 ms on energisation between NC and NO contact, 1.5 ms on de-energisation between NC and NO contact
Heat dissipation	4-5 W at 50/60 Hz
[Icw] rated short-time withstand current	140 A - 100 ms for signalling circuit, 120 A - 500 ms for signalling circuit, 100 A - 1 s for signalling circuit, 165 A 40 °C - 1 min for power circuit, 72 A 40 °C - 10 min for power circuit, 720 A 40 °C - 1 s for power circuit, 320 A 40 °C - 10 s for power circuit
Mechanical durability	6 Mcycles
Tightening torque	power circuit: 2.5 N.m - on screw clamp terminals - with screwdriver pozidriv No 2, control circuit: 1.7 N.m - on screw clamp terminals - with screwdriver pozidriv No 2, power circuit: 5 N.m - on EverLink BTR screw connectors - cable 0.75-25 mm² hexagonal screw head 4 mm, power circuit: 8 N.m - on EverLink BTR screw connectors - cable 25-35 mm² hexagonal screw head 4 mm
Minimum switching voltage	17 V for signalling circuit
Operating time	12...26 ms closing, 4...19 ms opening
Irms rated making capacity	800 A at 440 V for power circuit conforming to IEC 60947, 250 A DC for signalling circuit conforming to IEC 60947-5-1, 140 A AC for signalling circuit conforming to IEC 60947-5-1
Rated breaking capacity	800 A at 440 V for power circuit conforming to IEC 60947
Pollution degree	3
Safety reliability level	B10d = 20000000 cycles contactor with mechanical load conforming to EN/ISO 13849-1, B10d = 1369863 cycles contactor with nominal load conforming to EN/ISO 13849-1
Control circuit voltage limits	1...1.1 Uc (60-70 °C):operational AC 50/60 Hz, 0.85...1.1 Uc (-40-60 °C):operational AC 60 Hz, 0.8...1.1 Uc (-40-60 °C):operational AC 50 Hz, 0.3...0.6 Uc (-40-70 °C):drop-out AC 50/60 Hz
[Ith] conventional free air thermal current	60 A (at 60 °C) for power circuit, 10 A (at 60 °C) for signalling circuit
Motor power hp	30 hp at 460/480 V AC 50/60 Hz for 3 phases motors, 3 hp at 115 V AC 50/60 Hz for 1 phase motors, 10 hp at 200/208 V AC 50/60 Hz for 3 phases motors, 30 hp at 575/600 V AC 50/60 Hz for 3 phases motors, 10 hp at 230/240 V AC 50/60 Hz for 3 phases motors, 5 hp at 230/240 V AC 50/60 Hz for 1 phase motors
Motor power kW	30 kW at 660...690 V AC 50/60 Hz (AC-3e), 22 kW at 500 V AC 50/60 Hz (AC-3e), 22 kW at 415...440 V AC 50/60 Hz (AC-3e), 11 kW at 220...230 V AC 50/60 Hz (AC-3e), 18.5 kW at 380...400 V AC 50/60 Hz (AC-3e), 9 kW at 400 V AC 50/60 Hz (AC-4), 30 kW at 660...690 V AC 50/60 Hz (AC-3), 22 kW at 500 V AC 50/60 Hz (AC-3), 22 kW at 415...440 V AC 50/60 Hz (AC-3), 11 kW at 220...230 V AC 50/60 Hz (AC-3), 18.5 kW at 380...400 V AC 50/60 Hz (AC-3)
Hold-in power consumption in VA	15-15 VA 50 Hz cos phi 0.3 (at 20 °C), 13-13 VA 60 Hz cos phi 0.3 (at 20 °C)
Maximum operating rate	3600 cyc/h 60 °C
Connections - terminals	power circuit: EverLink BTR screw connectors 2 1-25 mm² - cable stiffness: solid without cable end, power circuit: EverLink BTR screw connectors 1 1-35 mm² - cable stiffness: solid without cable end, power circuit: EverLink BTR screw connectors 2 1-25 mm² - cable stiffness: flexible with cable end, power circuit: EverLink BTR screw connectors 1 1-35 mm² - cable stiffness: flexible with cable end, power circuit: EverLink BTR screw connectors 2 1-25 mm² - cable stiffness: flexible without cable end, power circuit: EverLink BTR screw connectors 1 1-35 mm² - cable stiffness: flexible without cable end, control circuit: spring terminals 2 0.75-2.5 mm² - cable stiffness: flexible without cable end, control circuit: spring terminals 1 0.75-2.5 mm² - cable stiffness: flexible without cable end
Pole contact composition	3 NO
[Uimp] rated impulse withstand voltage	6 kV conforming to IEC 60947
Insulation resistance	> 10 MOhm for signalling circuit
Contact compatibility	M2
Mounting support	plate, rail
Environment
Fire resistance	850 °C conforming to IEC 60695-2-1
Mechanical robustness	shocks contactor open (10 Gn for 11 ms) , shocks contactor closed (15 Gn for 11 ms) , vibrations contactor closed (4 Gn, 5...300 Hz) , vibrations contactor open (2 Gn, 5...300 Hz)
Climatic withstand	conforming to IEC 60947-1 Annex Q category D exposure to damp heat, conforming to IACS E10 exposure to damp heat
Standards	IEC 60335-1, UL 508, IEC 60947-5-1, IEC 60947-4-1, EN 60947-5-1, EN 60947-4-1, CSA C22.2 No 14
Height	122 mm
Permissible ambient air temperature around the device	60-70 °C with derating, -40-60 °C
Operating altitude	0...3000 m
Net weight	0.85 kg
Product certifications	UL, GOST, CCC, CSA
IP degree of protection	IP20 front face conforming to IEC 60529
Protective treatment	TH conforming to IEC 60068-2-30
Depth	120 mm
Width	55 mm
Flame retardance	V1 conforming to UL 94
Packing Units
Unit Type of Package 1	1
Number of Units in Package 1	1
Package 1 Height	6.3 cm
Package 1 Width	13.7 cm
Package 1 Length	15.2 cm
Package 1 Weight	929.0 g
Unit Type of Package 2	2
Number of Units in Package 2	10
Package 2 Height	15.0 cm
Package 2 Width	30.0 cm
Package 2 Length	40.0 cm
Package 2 Weight	9.526 kg
