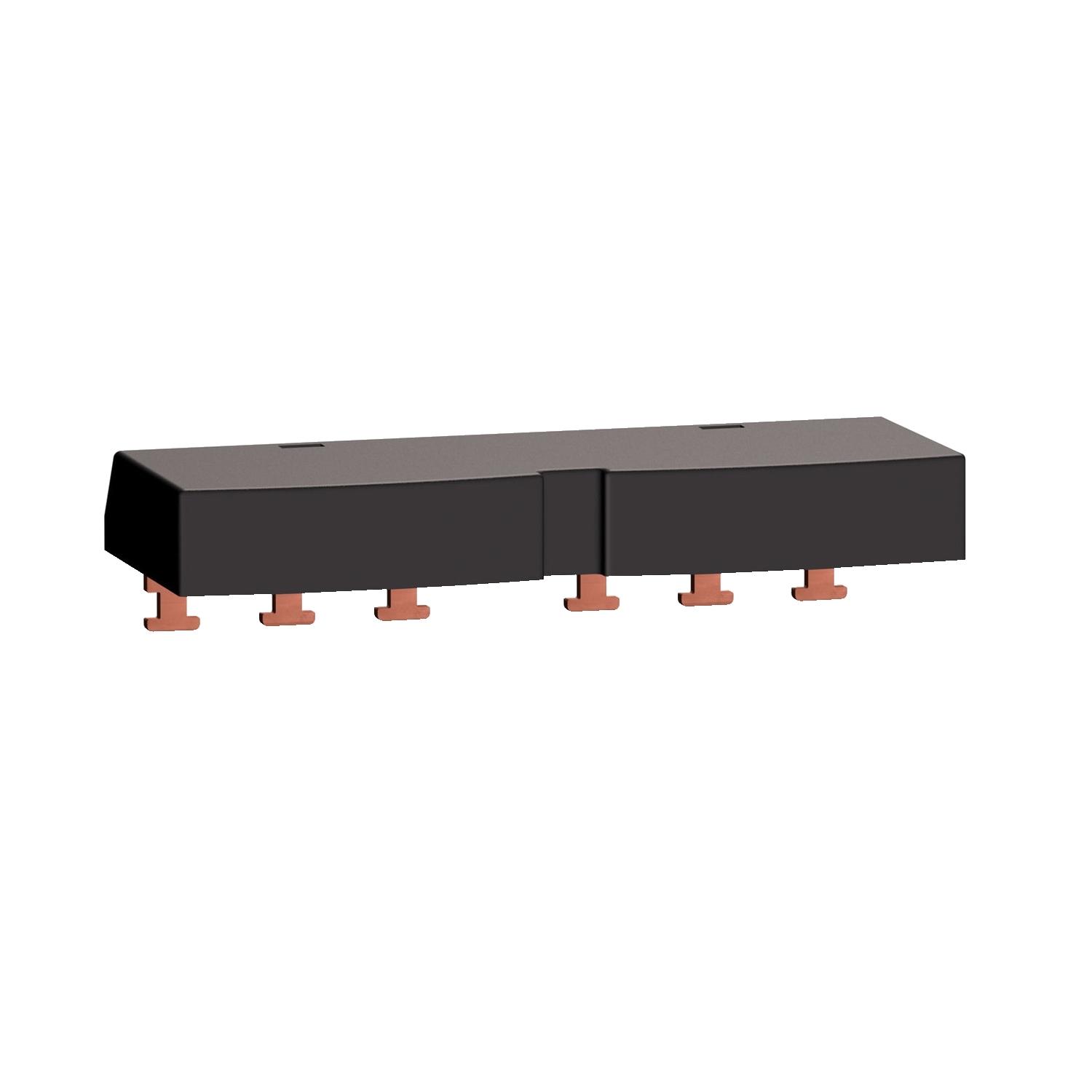

Picture of Linergy, Linergy FT, Comb busbar for parallelling 2 contactors
SKU:

GV3G264

Linergy, Linergy FT, Comb busbar for parallelling 2 contactors

$59.29
Available for Shipping : 03-Dec-2024
Linergy, Linergy FT, Comb busbar for parallelling 2 contactors
  • Simple wiring kits for GV
  • New modern look & feel of all machines
  • Easier to install.
  • Digital customer experience for technical documents
Be the first to review this product
Manufacturer: Schneider Electric
Catalogue
Product environmental
End of life manual
Product Page Link
Product Data Sheet
TeSys GV busbar set, 3 phases, 115A/690V, for the upstream parallel wiring of groups of motor starters composed of GV3 motor circuit breakers. For use with Everlink BTR screw terminals devices, it is composed of 2 tap-off outlets for the paralleling of 2 devices with a pitch of 64mm. Green Premium compliant (RoHS/REACh).

Products specifications

Attribute name Attribute value
Main
Device short name GV3G
Product compatibility GV3L, LC1D40A...D65A, GV3P
Range compatibility TeSys GV3, TeSys U, TeSys K, TeSys Deca
Number of tap-offs 2
Poles description 3P
Range Linergy
Product name FT
[Ith] conventional free air thermal current 115 A
Product or component type comb busbar
Accessory / separate part category connection accessory
Range of product TeSys Deca, TeSys GV3, TeSys K, TeSys U
Connection pitch 64 mm
Complementary
Compatibility code GV3G
Mounting location on terminal
Net weight 0.15 kg
[Ui] rated insulation voltage 690 V
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 3.0 cm
Package 1 Width 5.0 cm
Package 1 Length 12.0 cm
Package 1 Weight 154.0 g
Unit Type of Package 2 2
Number of Units in Package 2 30
Package 2 Height 15.0 cm
Package 2 Width 15.0 cm
Package 2 Length 40.0 cm
Package 2 Weight 4.836 kg

Related products

Motor circuit breaker,TeSys Deca frame 3,3P,73A,magnetic,rotary handle,EverLink terminals

GV3L73
$635.52
View Detail

Motor circuit breaker,TeSys Deca frame 3,3P,80A,magnetic,rotary handle,EverLink terminals

GV3L80
$748.39
View Detail

Motor circuit breaker,TeSys Deca frame 3,3P,62-73A,thermal magnetic,EverLink terminals

GV3P73
$714.05
View Detail

Motor circuit breaker,TeSys Deca frame 3,3P,25A,magnetic,rotary handle,EverLink terminals

GV3L25
$388.09
View Detail

Motor circuit breaker,TeSys Deca frame 3,3P,32A,magnetic,rotary handle,EverLink terminals

GV3L32
$438.41
View Detail

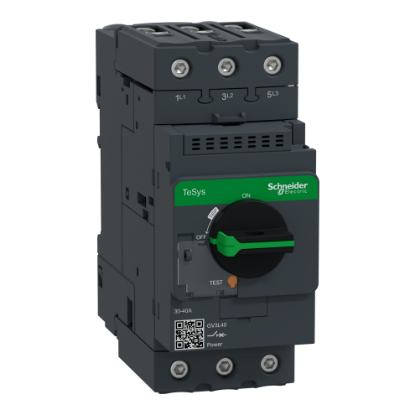

Picture of Motor circuit breaker,TeSys Deca frame 3,3P,40A,magnetic,rotary handle,EverLink terminals
