GV3P73

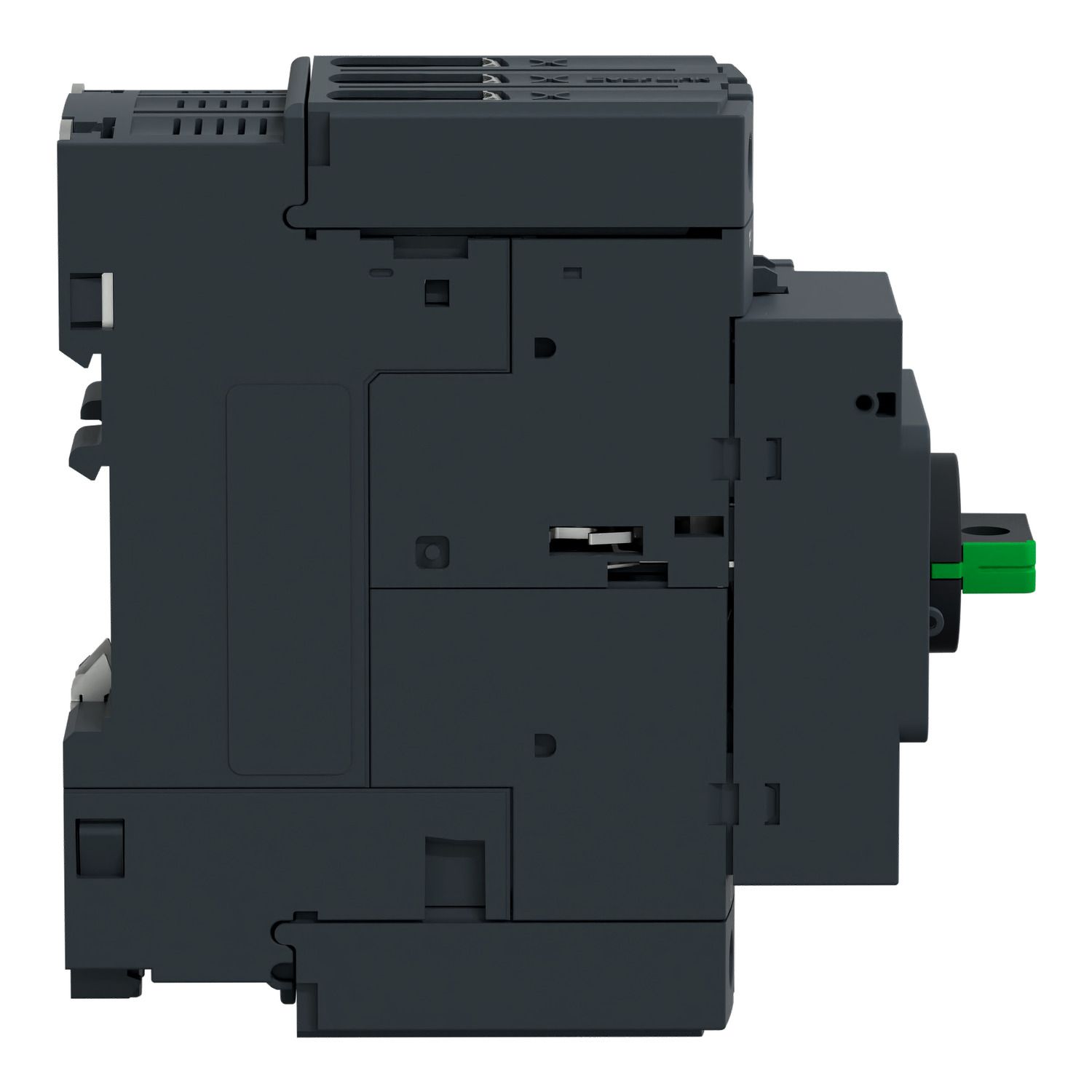

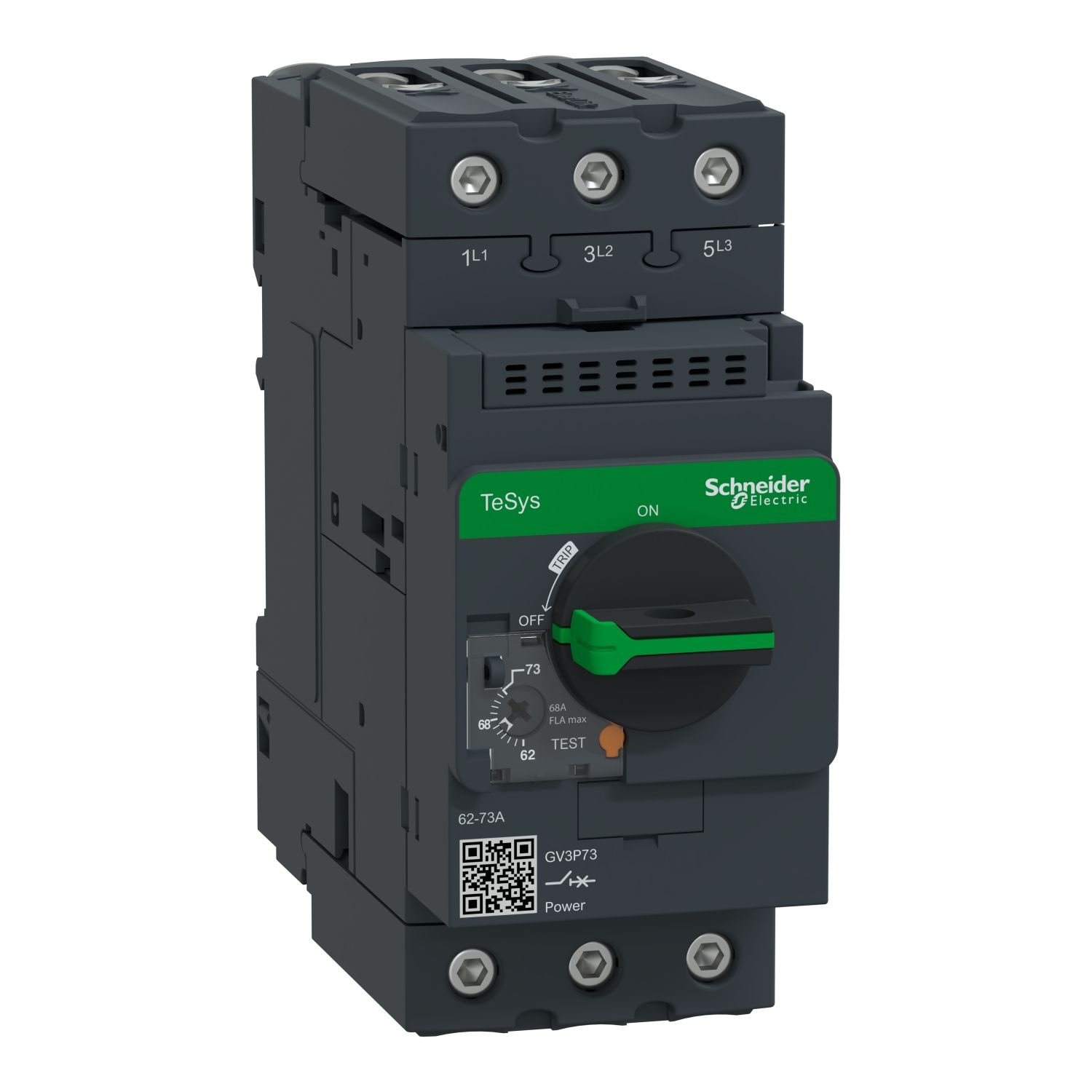

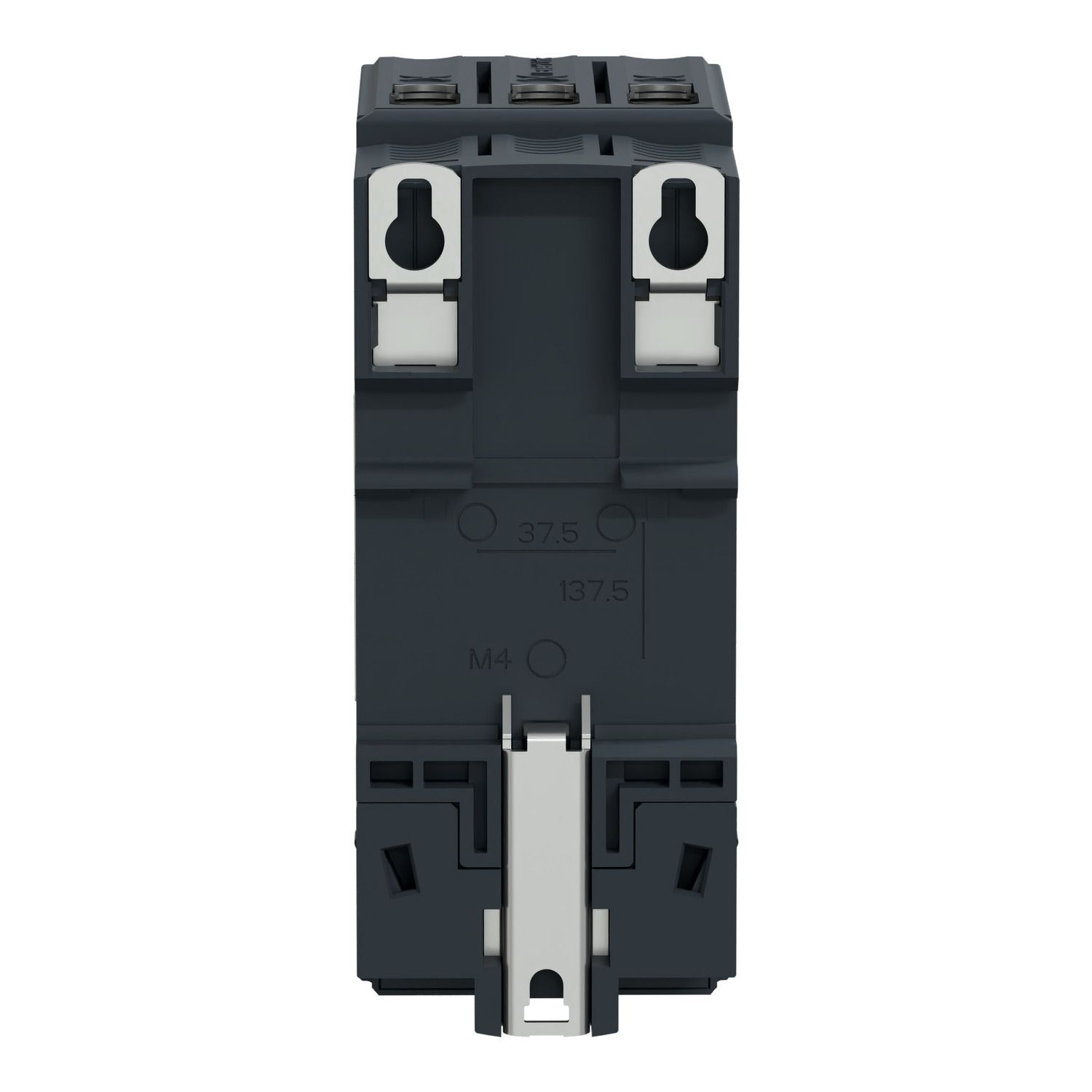

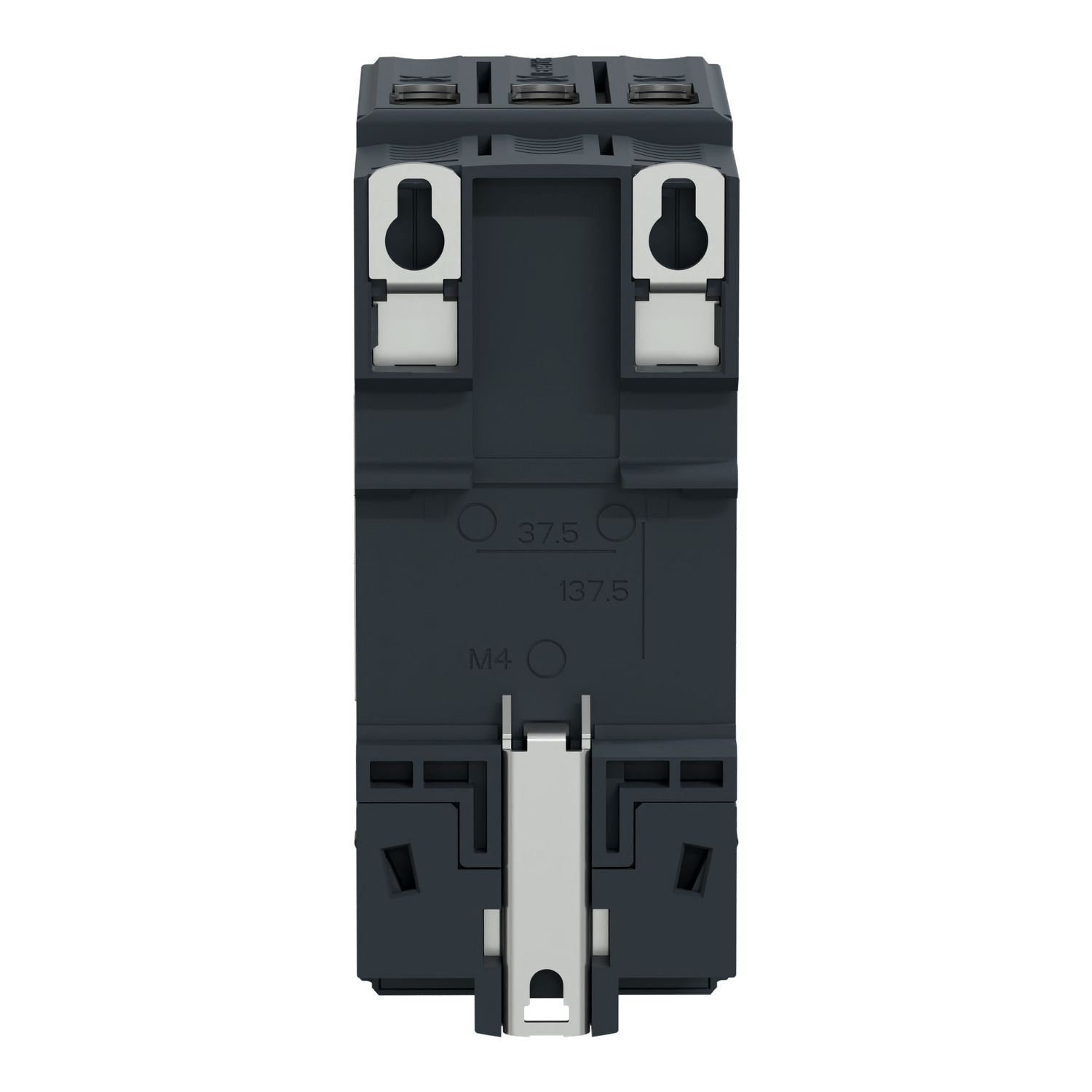

Motor circuit breaker,TeSys Deca frame 3,3P,62-73A,thermal magnetic,EverLink terminals

$714.05
Available for Shipping : 24-Nov-2024
Product Selector
Motor circuit breaker,TeSys Deca frame 3,3P,62-73A,thermal magnetic,EverLink terminals
  • New modern look & feel of all machines
  • Wide range of GVs: Magnetic, thermal magnetic, different sizes (GV2,GV3,GV4)
  • Easier to install and operate with multi-standard screws
  • Safe and long-lasting power connection with EverLink terminals
  • Digital customer experience for technical documents
  • Maintenance guide via EcoStruxureTM Facility Expect
Be the first to review this product
Manufacturer: Schneider Electric
Catalogue
End of life manual
Instruction sheet
Product environmental
User guide
Product Page Link
Product Data Sheet
TeSys GV motor circuit breaker, 3 poles (3P), 73A/690V, for 3-phase motor applications 37kW@400V. It provides a thermal-magnetic protection with a thermal setting range 62-73A, magnetic tripping at 15xIn, high breaking capacity Icu 50kA@400V. Connection by Everlink BTR screw terminals. Start-stop control by rotary knob guaranteed for 20 000 cycles AC-3. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine, ATEX), Green Premium compliant (RoHS/REACh).

Products specifications

Attribute name Attribute value
Main
Device application motor protection
Trip unit technology thermal-magnetic
Device short name GV3P
Range TeSys Deca
Range of product TeSys GV3
Product name TeSys Deca, TeSys GV3
Product or component type motor circuit breaker
Complementary
Compatibility code GV3P
Suitability for isolation yes conforming to IEC 60947-1
Electrical durability 20000 cycles for AC-3 at 415 V In
Power dissipation per pole 8 W
[Ics] rated service short-circuit breaking capacity 50 % at 690 V AC 50/60 Hz, 50 % at 500 V AC 50/60 Hz, 60 % at 440 V AC 50/60 Hz, 60 % at 400/415 V AC 50/60 Hz, 100 % at 230/240 V AC 50/60 Hz
Height 132 mm
Thermal protection adjustment range 62-73 A conforming to IEC 60947-4-1
[Ui] rated insulation voltage 690 V AC 50/60 Hz conforming to IEC 60947-2
Net weight 0.96 kg
[Ith] conventional free air thermal current 73 A conforming to IEC 60947-4-1
Network type AC
Rated duty continuous conforming to IEC 60947-4-1
Colour dark grey
Mechanical durability 50000 cycles
Tightening torque 5 N.m - on screw clamp terminal
Breaking capacity 6 kA Icu at 690 V AC 50/60 Hz, 12 kA Icu at 500 V AC 50/60 Hz, 50 kA Icu at 440 V AC 50/60 Hz, 50 kA Icu at 400/415 V AC 50/60 Hz, 65 kA Icu at 230/240 V AC 50/60 Hz
Control type rotary handle
Fixing mode panel: screwed (with 3 x M4 screws), 35 mm symmetrical DIN rail: clipped
Maximum operating rate 25 cyc/h
Magnetic tripping current 1120-1120 A
Phase failure sensitivity yes conforming to IEC 60947-4-1
Network frequency 50/60 Hz
Depth 136 mm
Width 55 mm
Poles description 3P
Direct connector without
[Uimp] rated impulse withstand voltage 6 kV conforming to IEC 60947-2
Utilisation category AC-3 conforming to IEC 60947-4-1
Motor power kW 55-55 kW at 690 V AC 50/60 Hz, 45-45 kW at 500 V AC 50/60 Hz, 37-37 kW at 400/415 V AC 50/60 Hz
[Ue] rated operational voltage 690 V AC 50/60 Hz
[In] rated current 73 A
Environment
Fire resistance 960 °C conforming to IEC 60695-2-11
Ambient air temperature for storage -40-80 °C
Climatic withstand conforming to IACS E10
Ambient air temperature for operation -20-60 °C
Operating altitude 3000 m
Product certifications UKCA, DNV-GL, ABS, BV, LROS (Lloyds register of shipping), ATEX, EAC, CSA, UL, CCC
IP degree of protection IP20 conforming to IEC 60529
Mechanical robustness vibrations: 4 Gn, 5...300 Hz, shocks: 30 Gn for 11 ms contactor closed, shocks: 5 Gn for 11 ms contactor open
IK degree of protection IK09 enclosure
Standards CSA C22.2 No 60947-4-1, UL 60947-4-1, EN/IEC 60947-4-1, EN/IEC 60947-2
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 6.800 cm
Package 1 Width 14.800 cm
Package 1 Length 16.000 cm
Package 1 Weight 1.007 kg
Unit Type of Package 2 2
Number of Units in Package 2 120
Package 2 Height 75.000 cm
Package 2 Width 60.000 cm
Package 2 Length 80.000 cm
Package 2 Weight 130.480 kg
