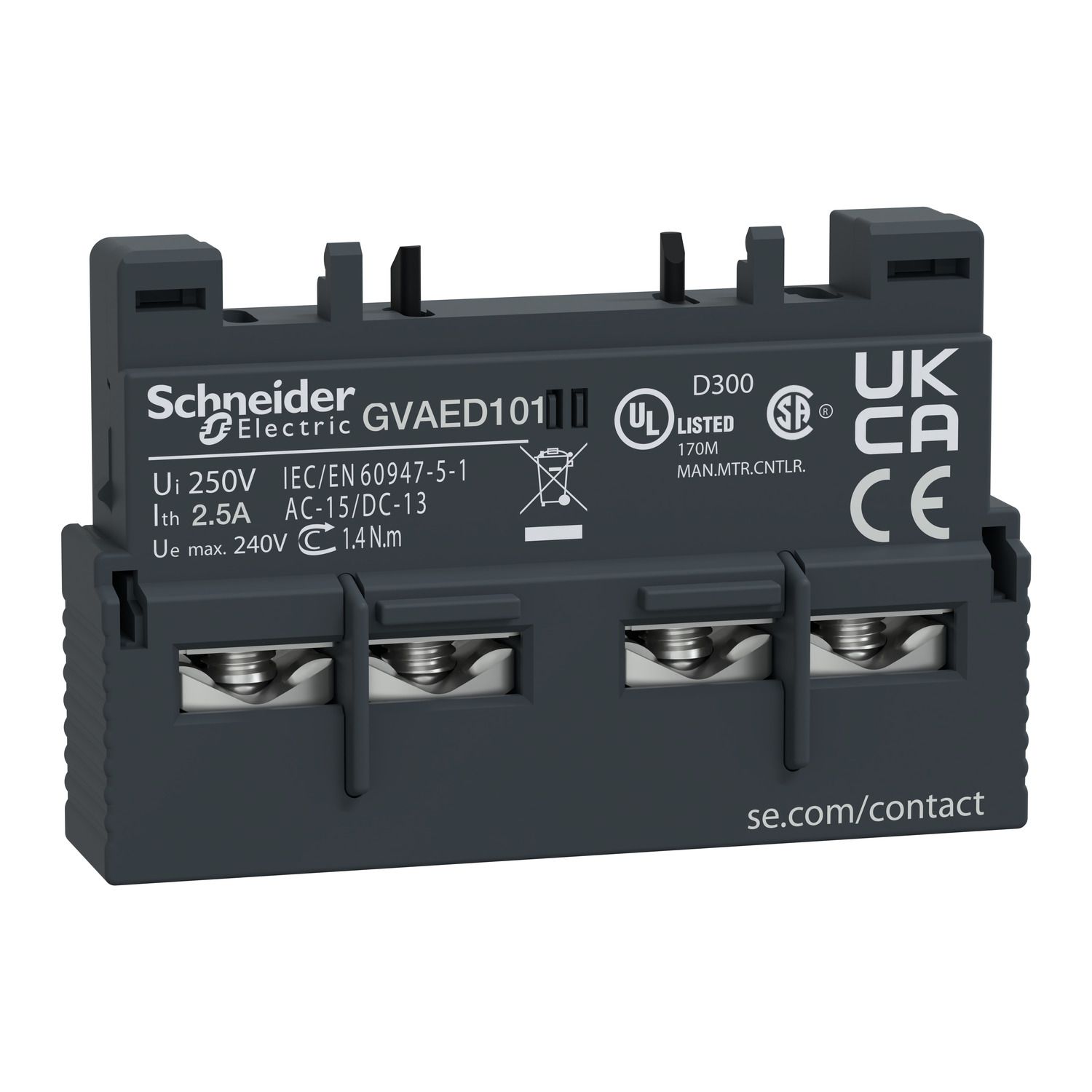

Picture of Auxiliary contact block,TeSys Deca,1NO(fault)+1NO,front mounting,for GV2/GV3P/GV3L

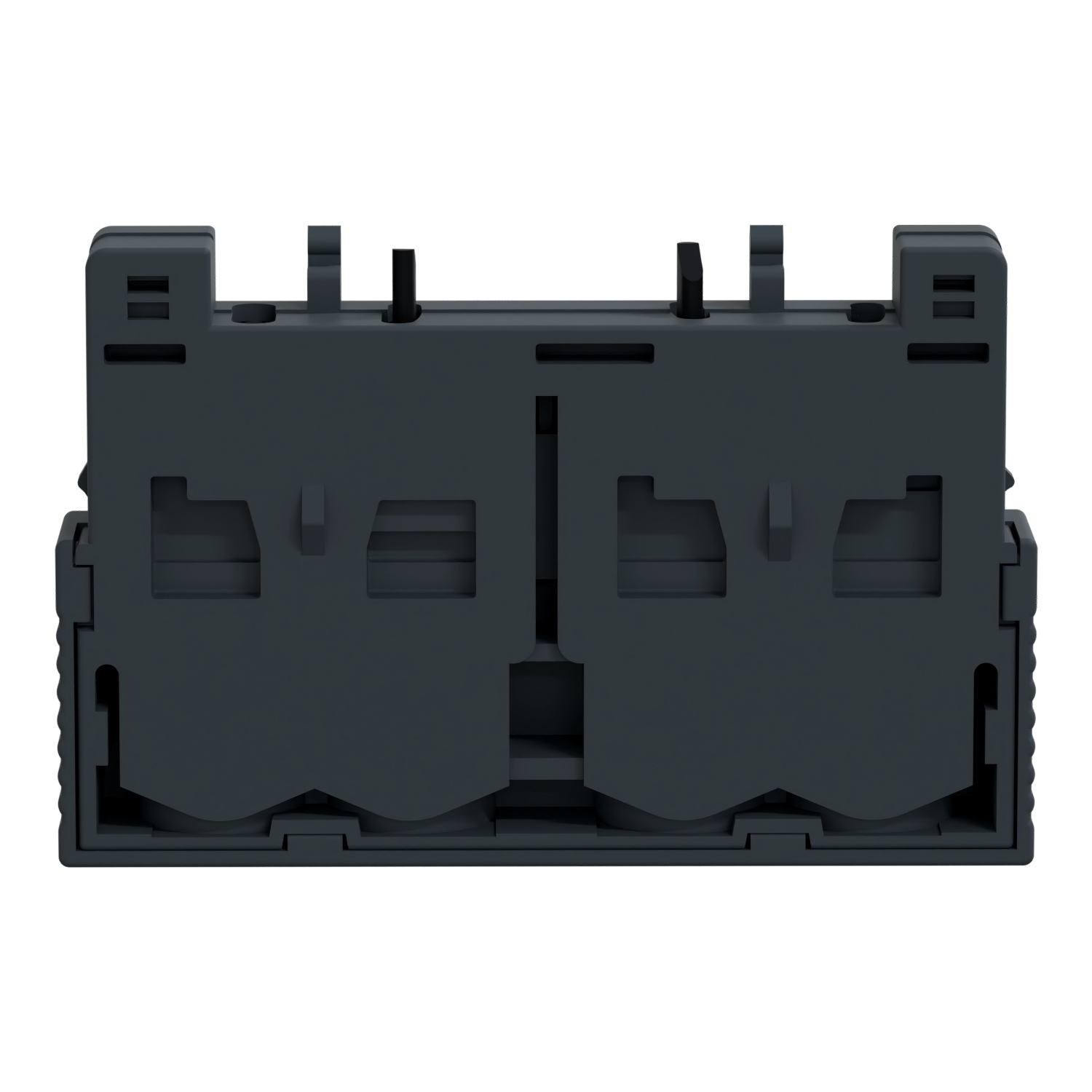

Picture of Auxiliary contact block,TeSys Deca,1NO(fault)+1NO,front mounting,for GV2/GV3P/GV3L

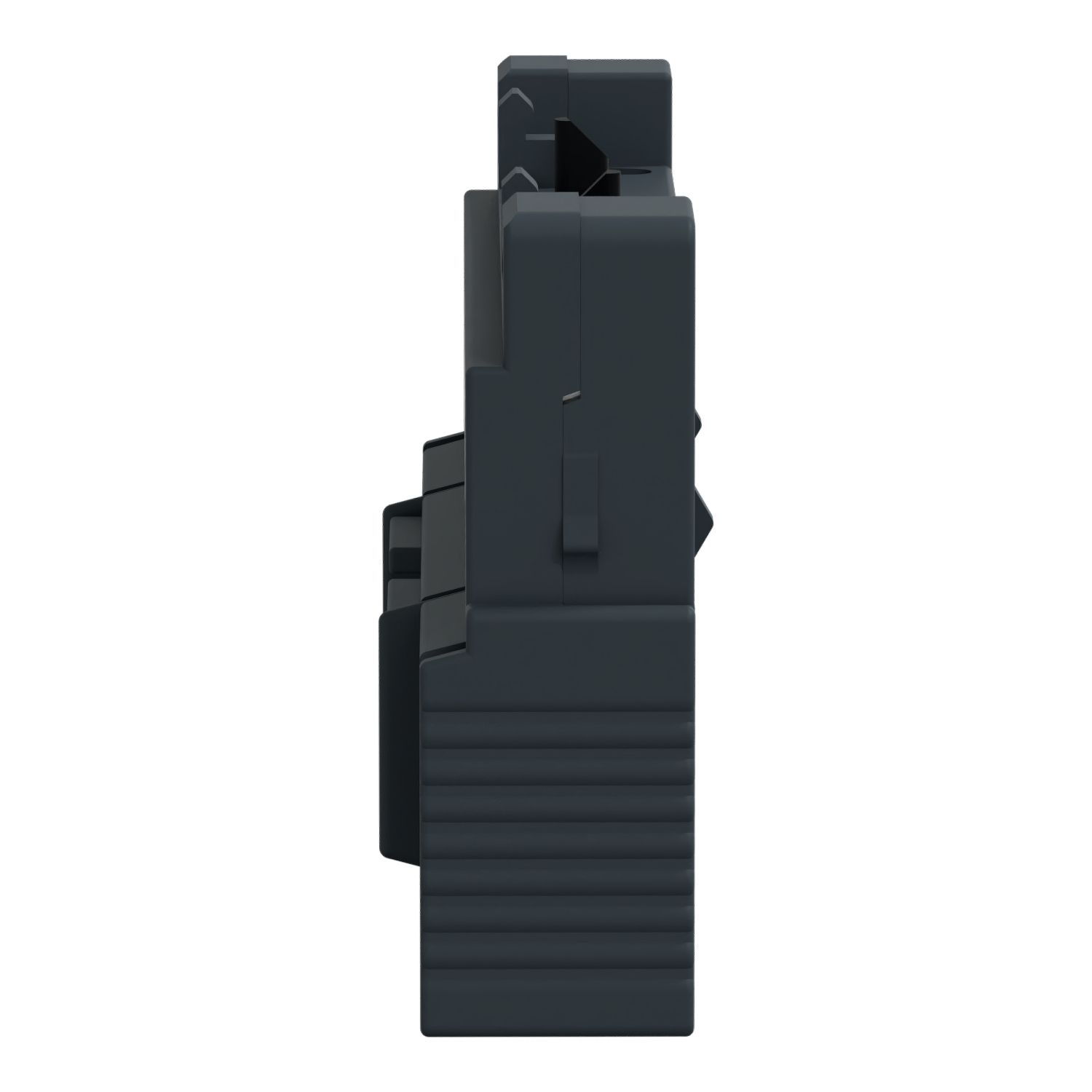

Picture of Auxiliary contact block,TeSys Deca,1NO(fault)+1NO,front mounting,for GV2/GV3P/GV3L

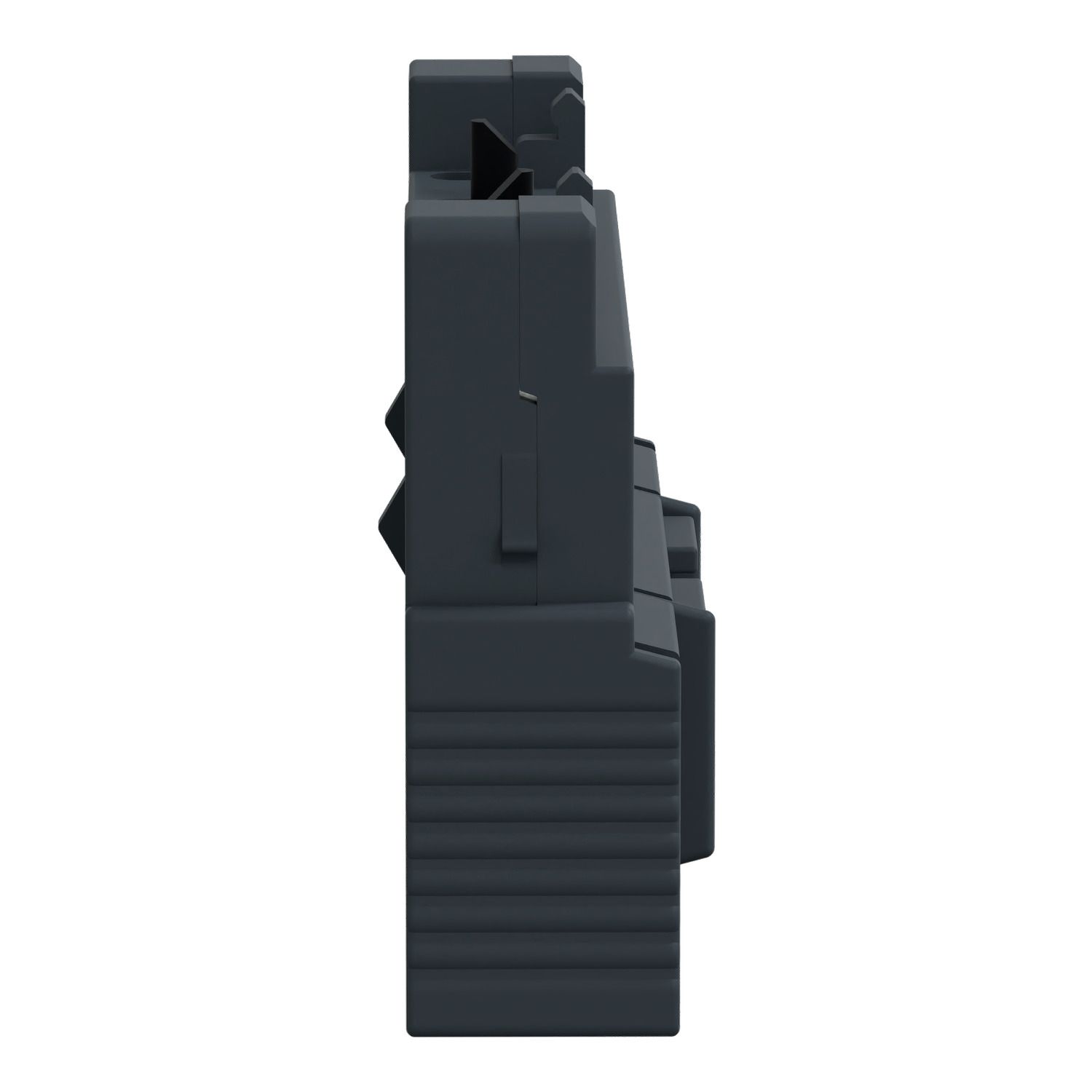

Picture of Auxiliary contact block,TeSys Deca,1NO(fault)+1NO,front mounting,for GV2/GV3P/GV3L

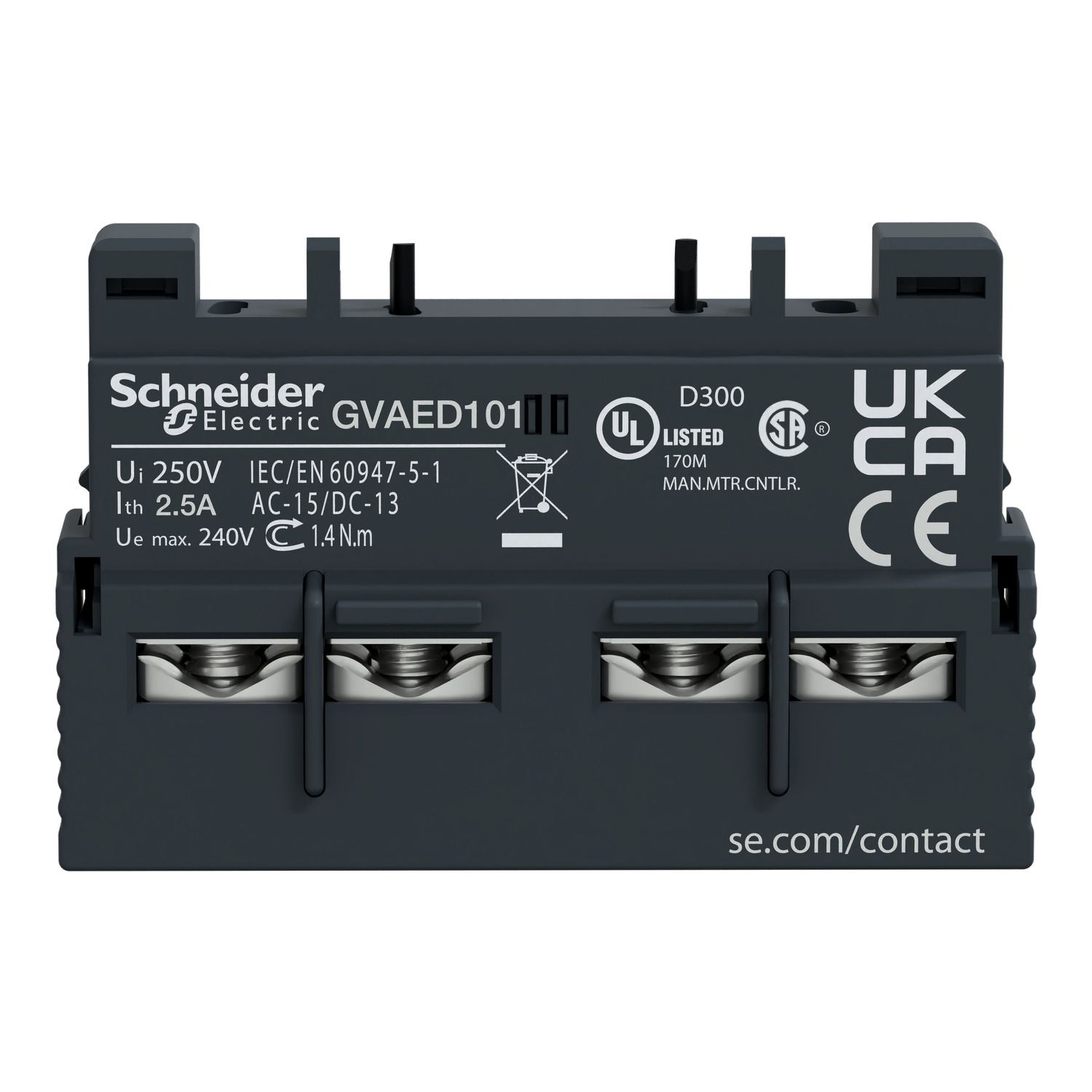

Picture of Auxiliary contact block,TeSys Deca,1NO(fault)+1NO,front mounting,for GV2/GV3P/GV3L
Picture of Auxiliary contact block,TeSys Deca,1NO(fault)+1NO,front mounting,for GV2/GV3P/GV3L
SKU:

GVAED101

Auxiliary contact block,TeSys Deca,1NO(fault)+1NO,front mounting,for GV2/GV3P/GV3L

$50.05
Auxiliary contact block,TeSys Deca,1NO(fault)+1NO,front mounting,for GV2/GV3P/GV3L
  • New modern look & feel of all machines
  • Designed to meet the requirements of Electro domestic and HVAC applications
  • Easier to install and operate with multi-standard screws
  • With IEC60335-1 compliance, improved fire resistance, and dustproof auxiliaries
  • Digital customer experience for technical documents
  • Maintenance guide via EcoStruxureTM Facility Expect
Be the first to review this product
Manufacturer: Schneider Electric
Estimated Delivery Date: 26-Sep-2024
Product environmental
End of life manual
Image of product
Instruction sheet
Image of product
Catalogue
Image of product
CAD
Image of product
Product Page Link
Product Data Sheet
TeSys Deca auxiliary contact block, for contactors LC1D, LC1F and control relays CAD. It provides 2NO contacts rated up to 10A 690V AC, On-delay setting range 10-180s Clip-on front mounting, it procures high reliability and durability. Multi standards certified (IEC, UL, CSA, CCC, EAC), Green Premium compliant (RoHs/Reach).

Products specifications

Attribute nameAttribute value
Main
Device short nameGVAED
Auxiliary contacts operationfault signal 1 NO
Product compatibilityGV3L, GV3P
Quantity per setset of 1
Pole contact composition2 NO
Mounting locationfront side
RangeTeSys Deca, TeSys
Product or component typeauxiliary contact block
Range of productTeSys Deca, TeSys GV3
Complementary
Rated operational power in W240 W at 48 V DC-13 - electrical durability: 100000 cycles, 180 W at 60 V DC-13 - electrical durability: 100000 cycles, 140 W at 24 V DC-13 - electrical durability: 100000 cycles, 140 W at 110 V DC-13 - electrical durability: 100000 cycles, 120 W at 240 V DC-13 - electrical durability: 100000 cycles
Depth29 mm
Width45 mm
Compatibility codeGVAED
Mechanical durability100000 cycles
Rated operational power in VA850 VA at 380-415 V AC-15 - electrical durability: 100000 cycles, 720 VA at 230-240 V AC-15 - electrical durability: 100000 cycles, 650 VA at 440-440 V AC-15 - electrical durability: 100000 cycles, 500 VA at 500-500 V AC-15 - electrical durability: 100000 cycles, 500 VA at 110-127 V AC-15 - electrical durability: 100000 cycles, 400 VA at 690-690 V AC-15 - electrical durability: 100000 cycles, 300 VA at 48-48 V AC-15 - electrical durability: 100000 cycles
Tightening torque1.4 N.m - on screw clamp terminals
Minimum switching voltage17 V
[Ui] rated insulation voltage600 V conforming to CSA C22.2 No 14, 690 V conforming to IEC 60947-1, 600 V conforming to UL 508
Net weight0.05 kg
Protection typegG fuse 10 A, GB2CB... circuit breaker
[Ue] rated operational voltage24...60 V DC, 24...240 V AC
[Ith] conventional free air thermal current2.5 A
Height11 mm
Minimum switching current5 mA
Environment
Environmental characteristicnormal environment
Product certificationsUKCA
Packing Units
Unit Type of Package 11
Number of Units in Package 11
Package 1 Height1.2 cm
Package 1 Width5.0 cm
Package 1 Length6.0 cm
Package 1 Weight18.0 g
Unit Type of Package 22
Number of Units in Package 210
Package 2 Height3.0 cm
Package 2 Width15.0 cm
Package 2 Length16.0 cm
Package 2 Weight186.0 g
Unit Type of Package 33
Number of Units in Package 3220
Package 3 Height15.0 cm
Package 3 Width30.0 cm
Package 3 Length40.0 cm
Package 3 Weight4.395 kg
