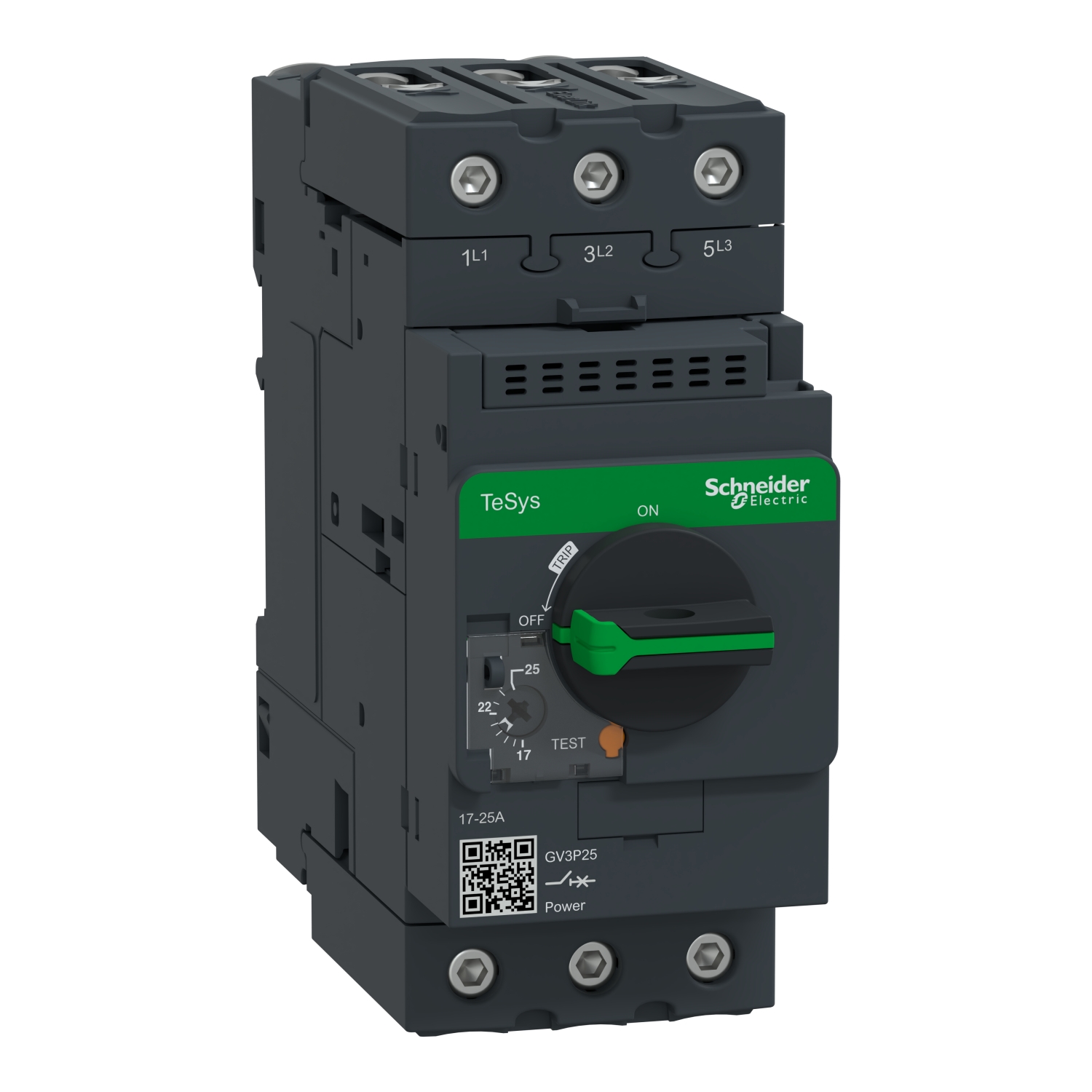

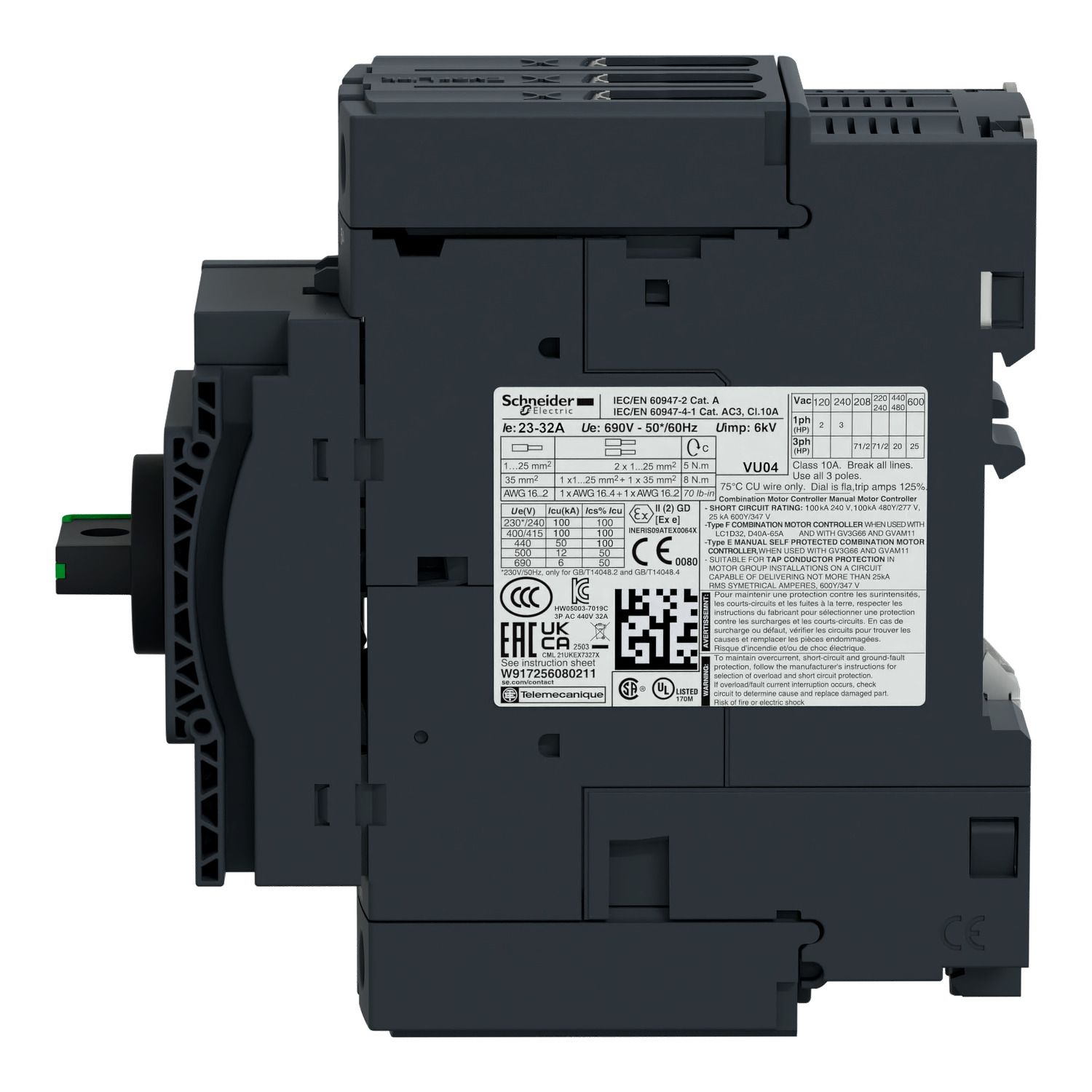

Picture of Motor circuit breaker,TeSys Deca frame 3,3P,17-25A,thermal magnetic,EverLink terminals

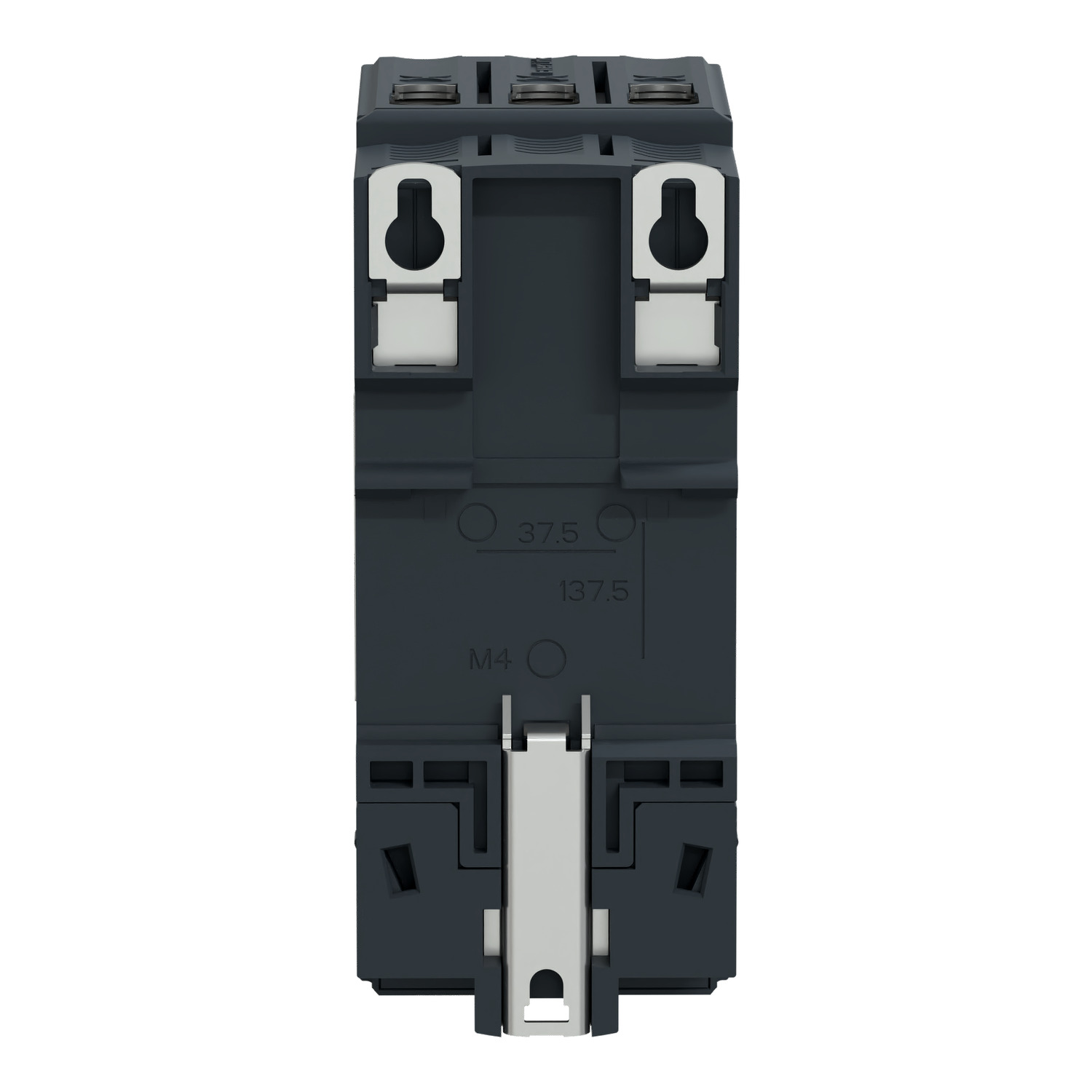

Picture of Motor circuit breaker,TeSys Deca frame 3,3P,17-25A,thermal magnetic,EverLink terminals

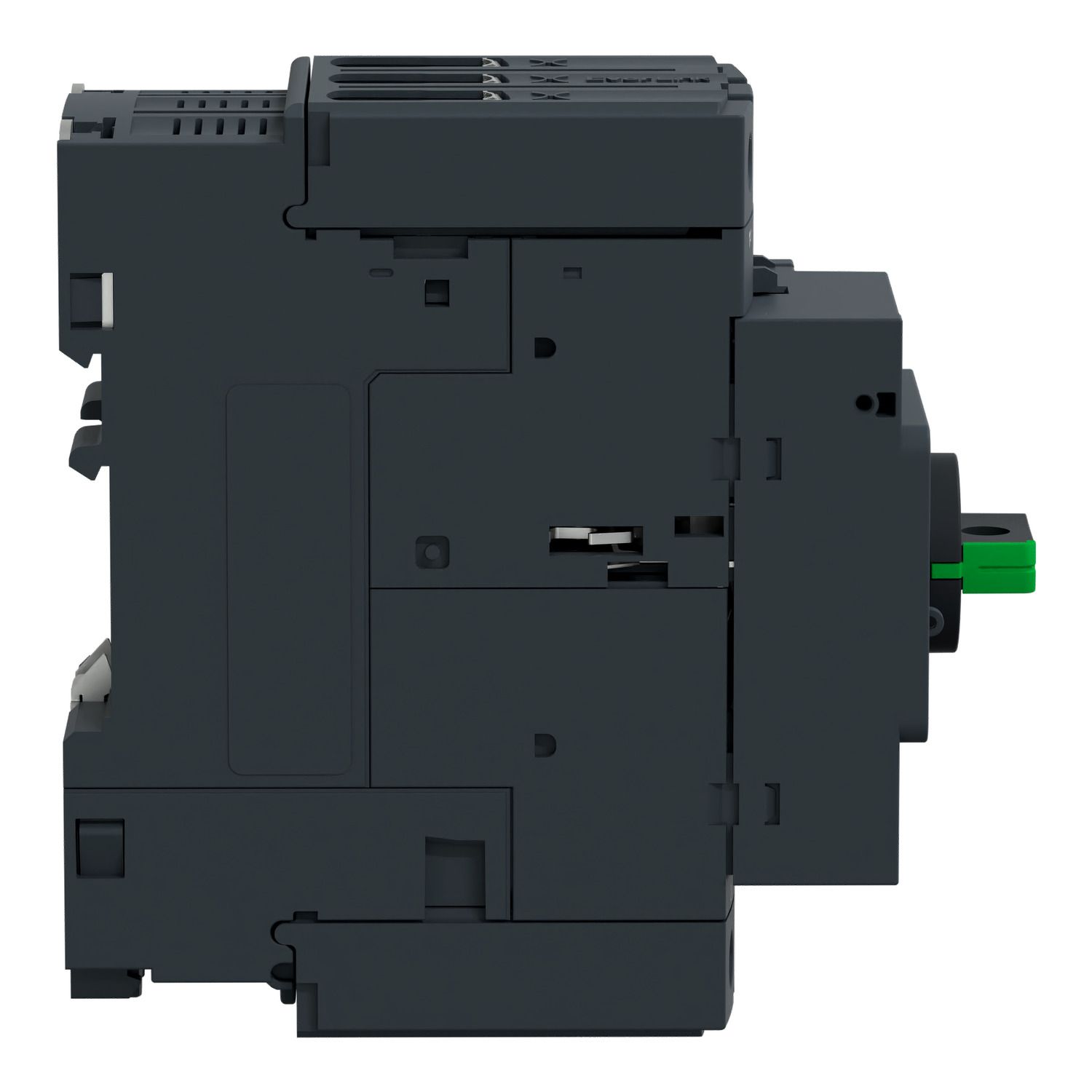

Picture of Motor circuit breaker,TeSys Deca frame 3,3P,17-25A,thermal magnetic,EverLink terminals
Picture of Motor circuit breaker,TeSys Deca frame 3,3P,17-25A,thermal magnetic,EverLink terminals

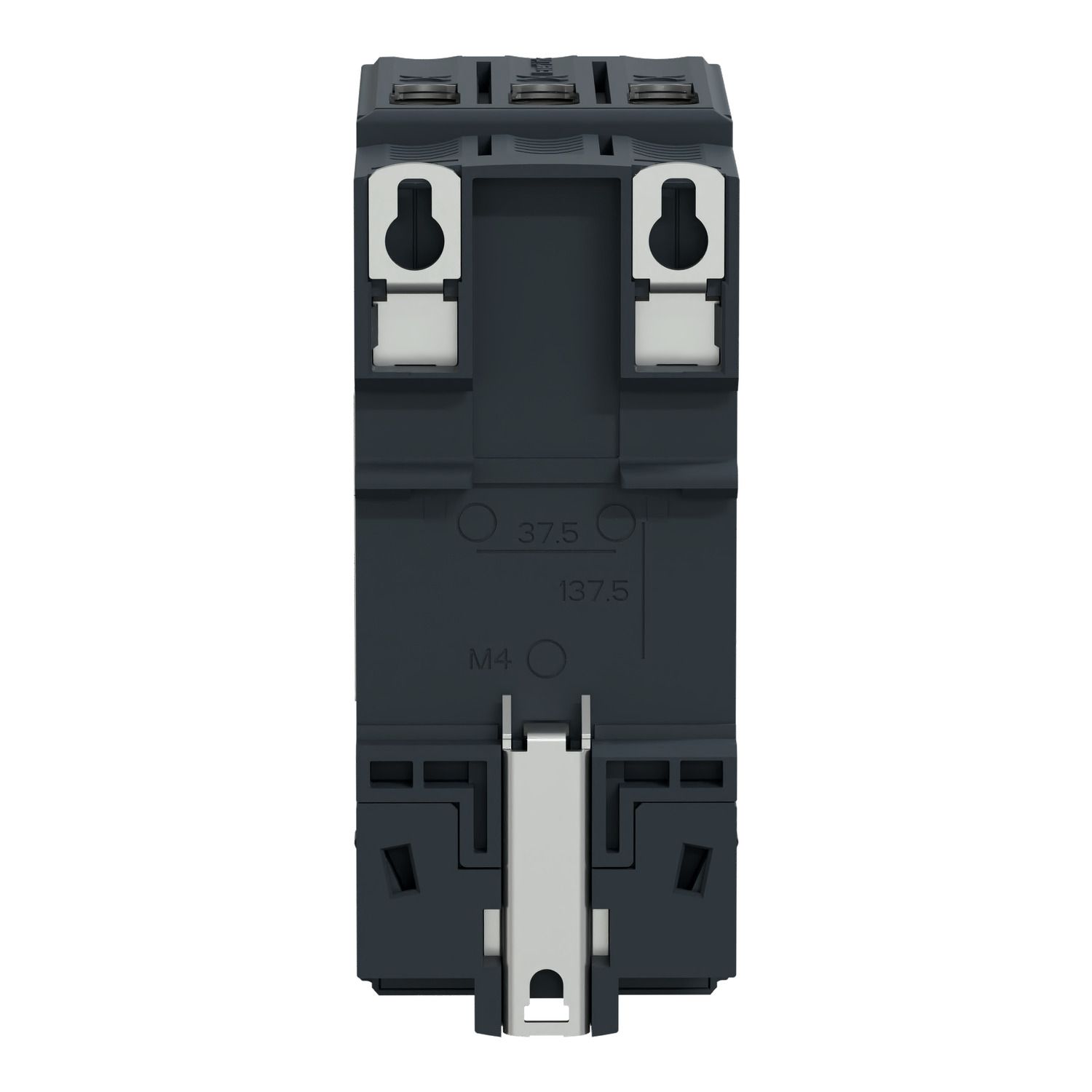

Picture of Motor circuit breaker,TeSys Deca frame 3,3P,17-25A,thermal magnetic,EverLink terminals
SKU:

GV3P25

Motor circuit breaker,TeSys Deca frame 3,3P,17-25A,thermal magnetic,EverLink terminals

$404.87
Product Selector
Motor circuit breaker,TeSys Deca frame 3,3P,17-25A,thermal magnetic,EverLink terminals
  • New modern look & feel of all machines
  • Wide range of GVs: Magnetic, thermal magnetic, different sizes (GV2,GV3,GV4)
  • Easier to install and operate with multi-standard screws
  • Safe and long-lasting power connection with EverLink terminals
  • Digital customer experience for technical documents
  • Maintenance guide via EcoStruxureTM Facility Expect
Be the first to review this product
Manufacturer: Schneider Electric
Estimated Delivery Date: 16-Nov-2024
Catalogue
End of life manual
Image of product
Instruction sheet
Image of product
Product environmental
Image of product
User guide
Product Page Link
Product Data Sheet
TeSys GV motor circuit breaker, 3 poles (3P), 25A/690V, for 3-phase motor applications 11kW@400V. It provides a thermal-magnetic protection with a thermal setting range 17-25A, magnetic tripping at 14xIn, high breaking capacity Icu 100kA@400V. Connection by Everlink BTR screw terminals. Start-stop control by rotary knob guaranteed for 50 000 cycles AC-3. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine, ATEX), Green Premium compliant (RoHS/REACh).

Products specifications

Attribute nameAttribute value
Main
Device applicationmotor protection
Trip unit technologythermal-magnetic
Device short nameGV3P
RangeTeSys Deca
Range of productTeSys GV3
Product nameTeSys Deca, TeSys GV3
Product or component typemotor circuit breaker
Complementary
Compatibility codeGV3P
Suitability for isolationyes conforming to IEC 60947-1
Electrical durability50000 cycles for AC-3 at 415 V In
Power dissipation per pole8 W
[Ics] rated service short-circuit breaking capacity50 % at 690 V AC 50/60 Hz conforming to IEC 60947-2, 50 % at 500 V AC 50/60 Hz conforming to IEC 60947-2, 100 % at 440 V AC 50/60 Hz conforming to IEC 60947-2, 100 % at 400/415 V AC 50/60 Hz conforming to IEC 60947-2, 100 % at 230/240 V AC 50/60 Hz conforming to IEC 60947-2
Height132 mm
Thermal protection adjustment range17-25 A conforming to IEC 60947-4-1
[Ui] rated insulation voltage690 V AC 50/60 Hz conforming to IEC 60947-2
Net weight0.96 kg
[Ith] conventional free air thermal current25 A conforming to IEC 60947-4-1
Network typeAC
Rated dutycontinuous conforming to IEC 60947-4-1
Colourdark grey
Mechanical durability50000 cycles
Tightening torque5 N.m - on screw clamp terminal
Breaking capacity6 kA Icu at 690 V AC 50/60 Hz conforming to IEC 60947-2, 12 kA Icu at 500 V AC 50/60 Hz conforming to IEC 60947-2, 50 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2, 100 kA Icu at 400/415 V AC 50/60 Hz conforming to IEC 60947-2, 100 kA Icu at 230/240 V AC 50/60 Hz conforming to IEC 60947-2
Control typerotary handle
Fixing modepanel: screwed (with 3 x M4 screws), 35 mm symmetrical DIN rail: clipped
Maximum operating rate25 cyc/h
Magnetic tripping current350-350 A
Phase failure sensitivityyes conforming to IEC 60947-4-1
Network frequency50/60 Hz conforming to IEC 60947-4-1
Depth136 mm
Width55 mm
Poles description3P
Direct connectorwithout
[Uimp] rated impulse withstand voltage6 kV conforming to IEC 60947-2
Utilisation categoryAC-3 conforming to IEC 60947-4-1
Motor power kW18.5-18.5 kW at 690 V AC 50/60 Hz, 15-15 kW at 500 V AC 50/60 Hz, 11-11 kW at 400/415 V AC 50/60 Hz
[Ue] rated operational voltage690 V AC 50/60 Hz conforming to IEC 60947-2
[In] rated current25 A
Environment
Fire resistance960 °C conforming to IEC 60695-2-11
Ambient air temperature for storage-40-80 °C
Climatic withstandconforming to IACS E10
Ambient air temperature for operation-20-60 °C
Operating altitude3000 m
Product certificationsUKCA, DNV-GL, ABS, BV, LROS (Lloyds register of shipping), ATEX, EAC, CSA, UL, CCC
IP degree of protectionIP20 conforming to IEC 60529
Mechanical robustnessvibrations: 4 Gn, 5...300 Hz, shocks: 30 Gn for 11 ms contactor closed, shocks: 15 Gn for 11 ms contactor open
IK degree of protectionIK09 enclosure
StandardsCSA C22.2 No 60947-4-1, UL 60947-4-1, EN/IEC 60947-4-1, EN/IEC 60947-2
Packing Units
Unit Type of Package 11
Number of Units in Package 11
Package 1 Height6.500 cm
Package 1 Width16.000 cm
Package 1 Length14.500 cm
Package 1 Weight993.000 g
Unit Type of Package 22
Number of Units in Package 2120
Package 2 Height75.000 cm
Package 2 Width60.000 cm
Package 2 Length80.000 cm
Package 2 Weight132.160 kg
