GV3L73

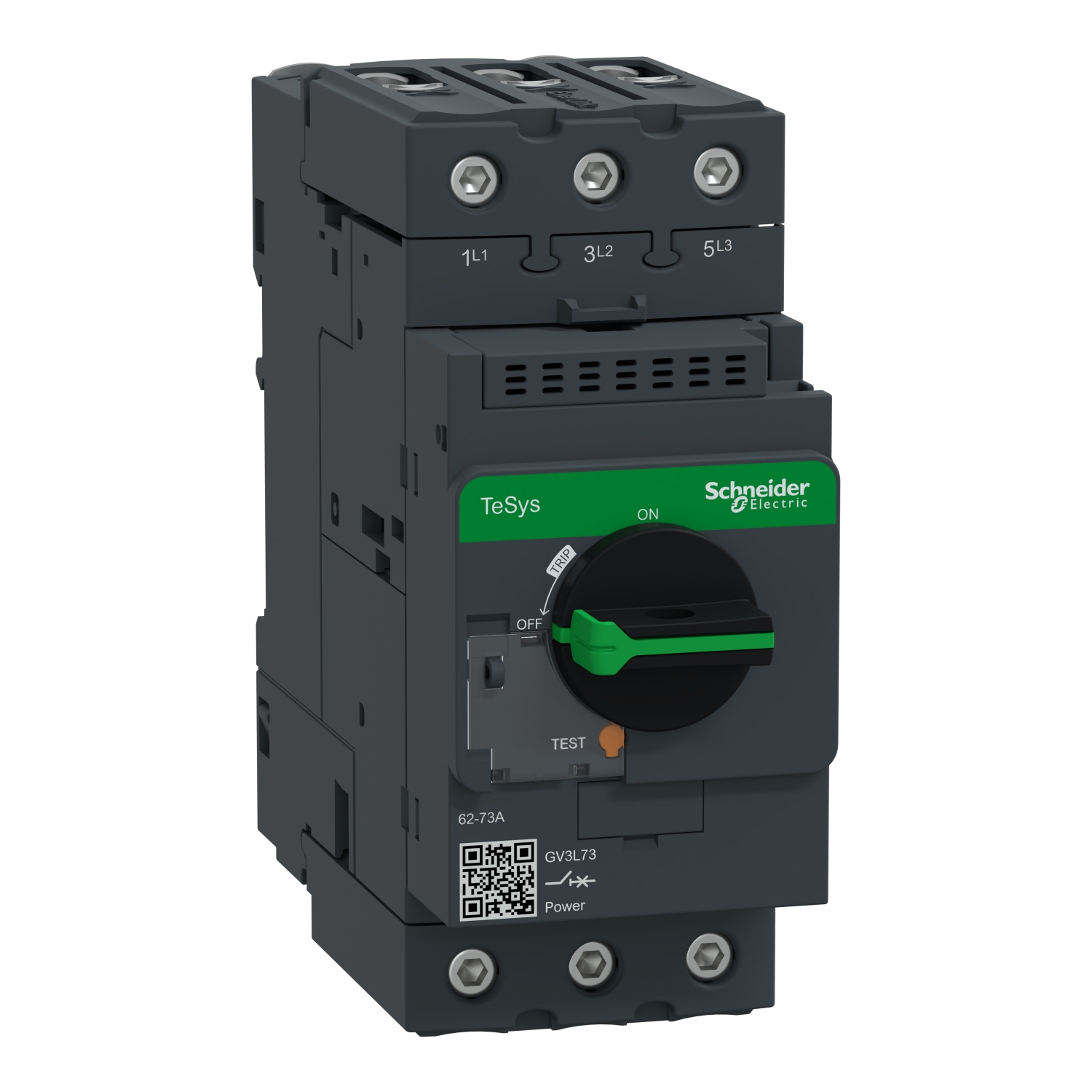

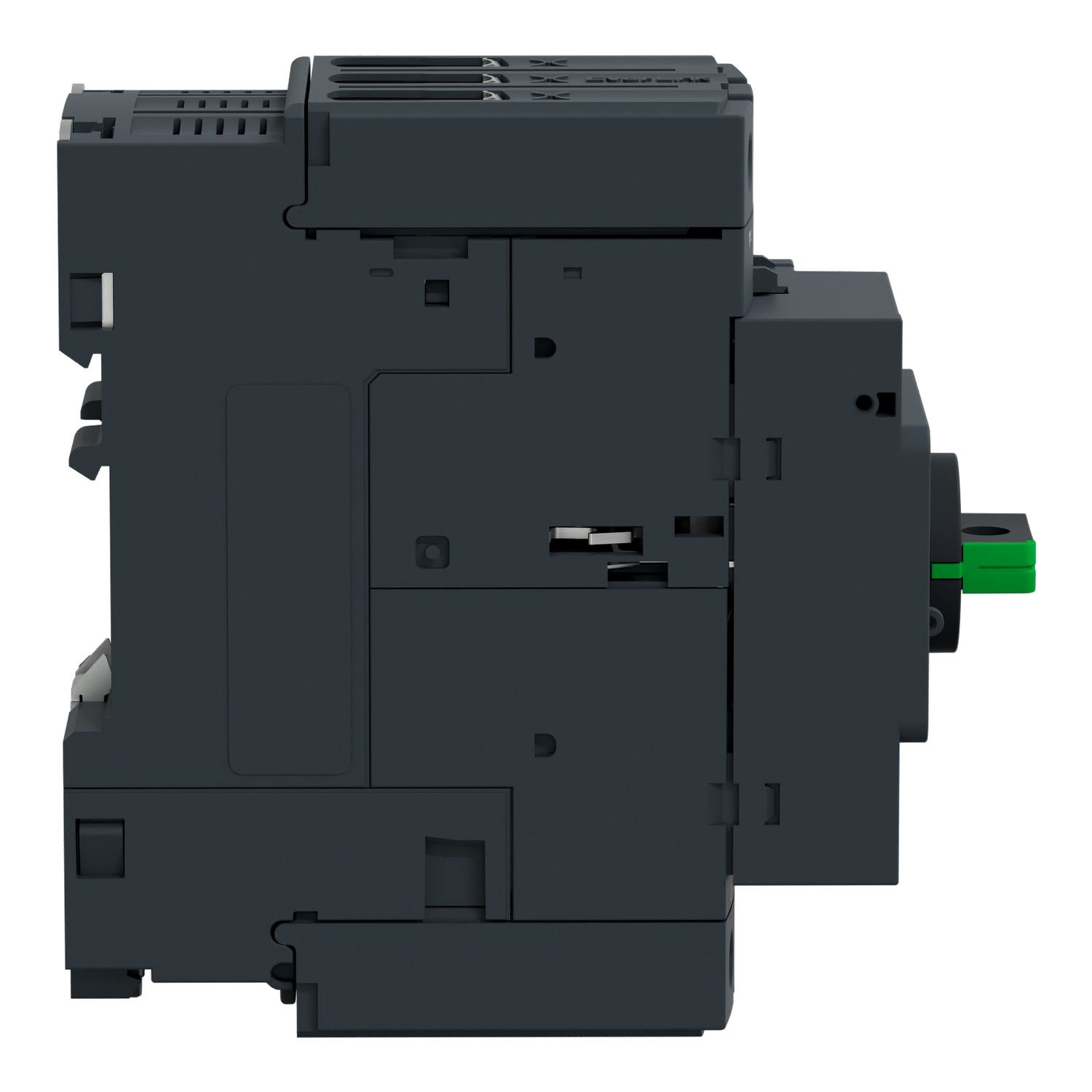

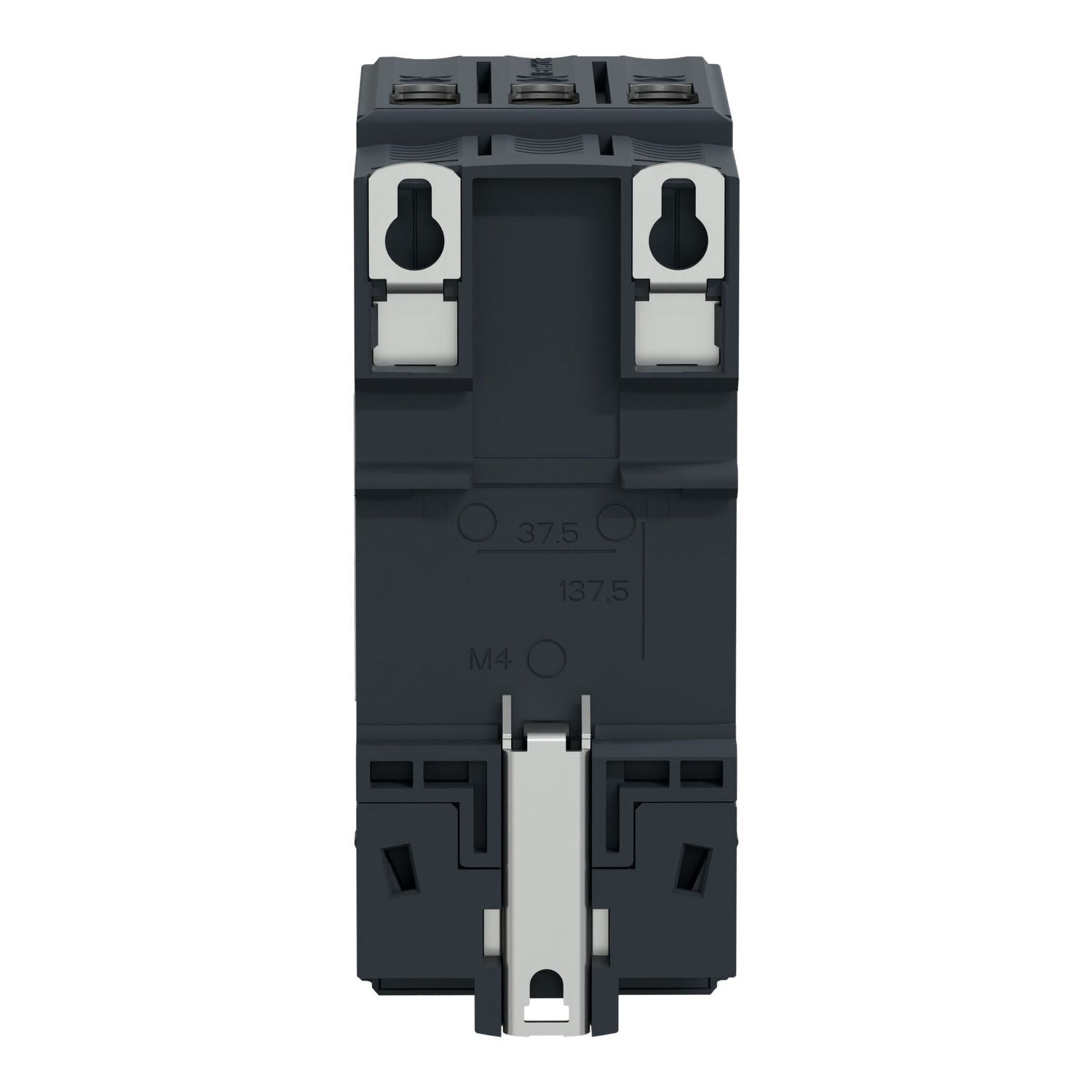

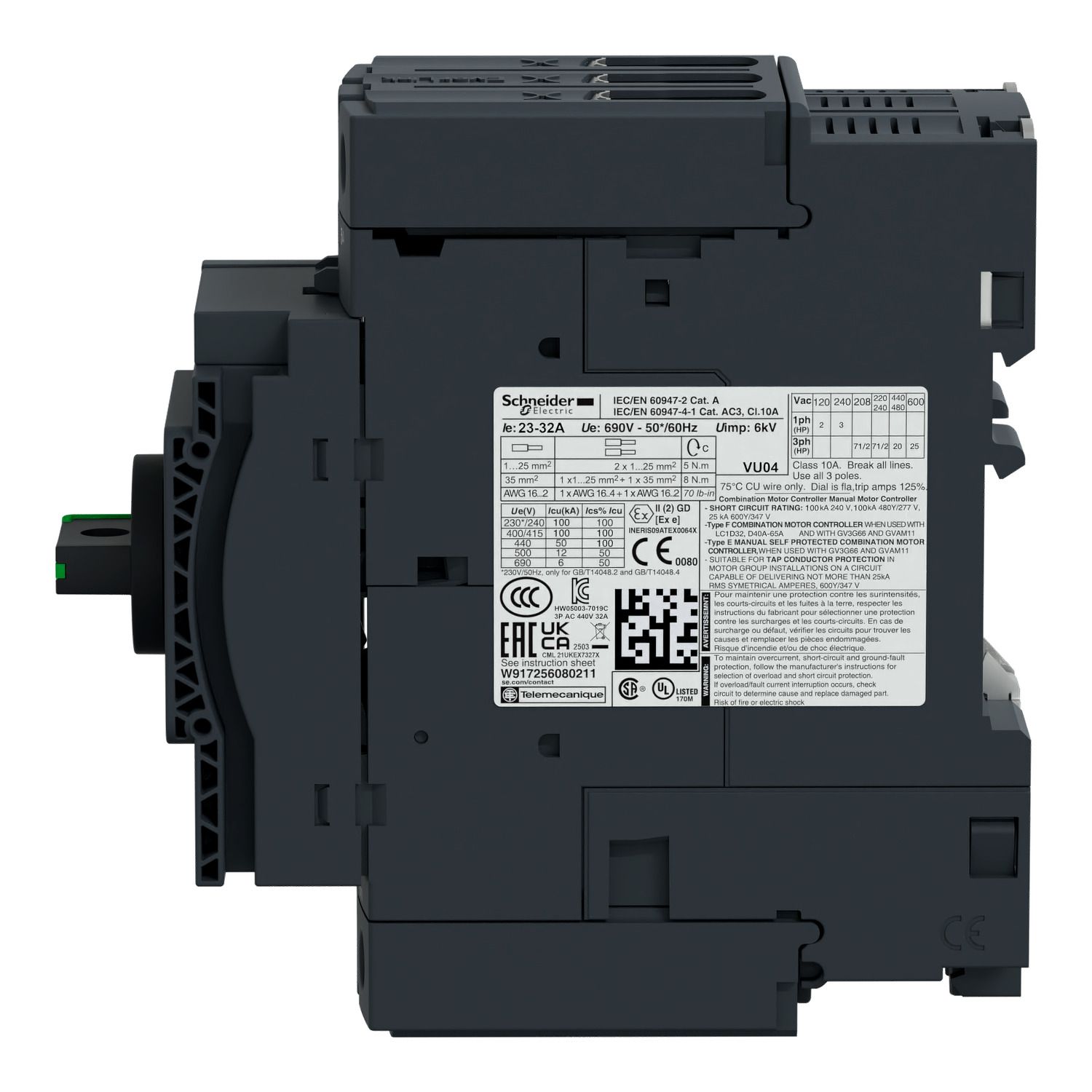

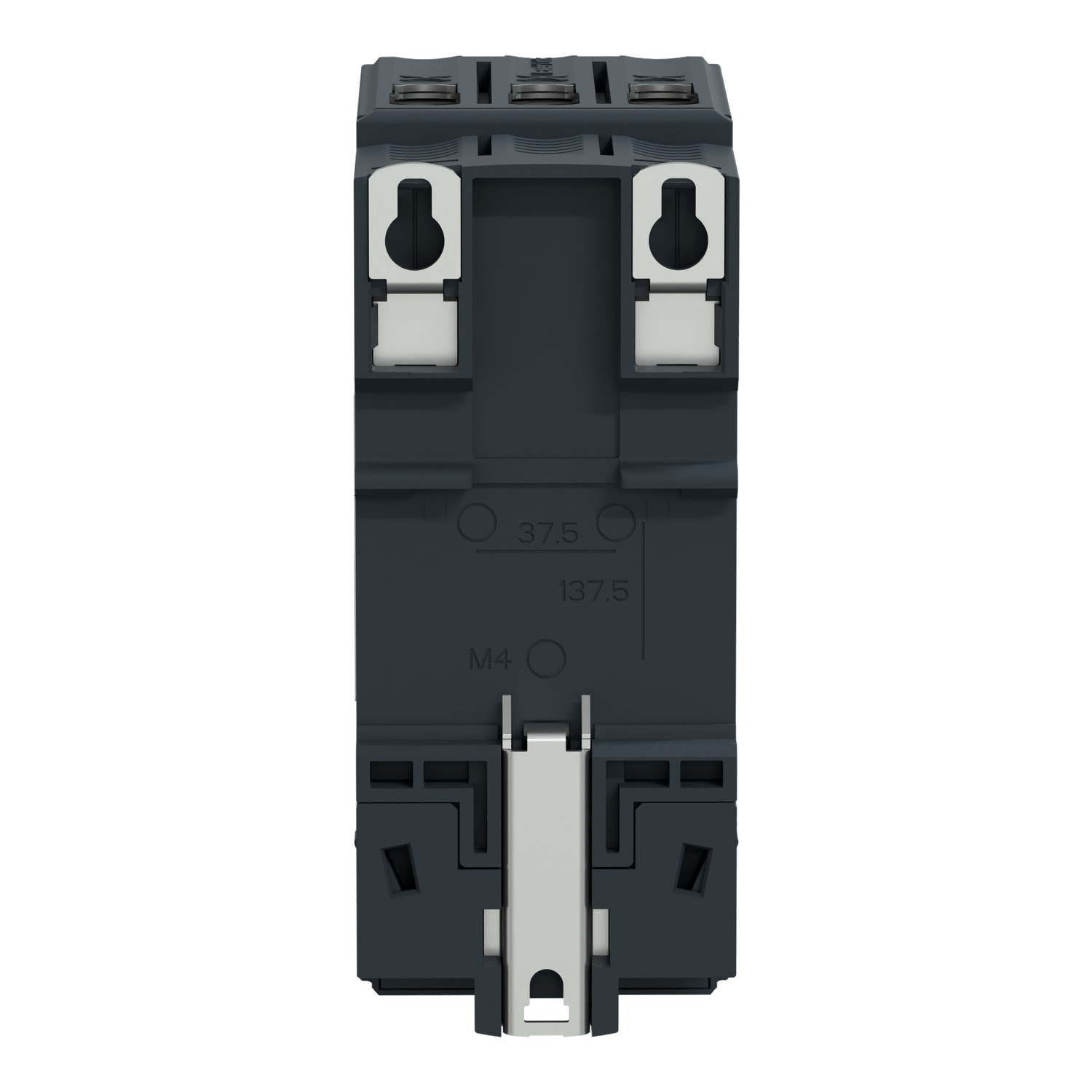

Motor circuit breaker,TeSys Deca frame 3,3P,73A,magnetic,rotary handle,EverLink terminals

$635.52
Product Selector
Motor circuit breaker,TeSys Deca frame 3,3P,73A,magnetic,rotary handle,EverLink terminals
  • New modern look & feel of all machines
  • Wide range of GVs: Magnetic, thermal magnetic, different sizes (GV2,GV3,GV4)
  • Easier to install and operate with multi-standard screws
  • Safe and long-lasting power connection with EverLink terminals
  • Digital customer experience for technical documents
  • Maintenance guide via EcoStruxureTM Facility Expect
Be the first to review this product
Manufacturer: Schneider Electric
Estimated Delivery Date: 29-Nov-2024
Instruction sheet
Catalogue
Image of product
End of life manual
Image of product
Product environmental
Image of product
User guide
Product Page Link
Product Data Sheet
TeSys GV motor circuit breaker, 3 poles (3P), 73A/690V, for 3-phase motor applications 37kW@400V. It provides a magnetic protection with a tripping level at 15xIn, high breaking capacity Icu 50kA@400V. Connection by Everlink BTR screw terminals. Start-stop control by rotary handle guaranteed for 20 000 cycles AC-3. To complete motor protection, use it in association with a thermal overload relay LRD380 (to be ordered separately). Multi standards certified (IEC, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).

Products specifications

Attribute nameAttribute value
Main
Device short nameGV3L
Device applicationmotor protection
RangeTeSys Deca
Range of productTeSys Deca, TeSys GV3
Trip unit technologymagnetic
Product nameTeSys Deca, TeSys GV3
Product or component typemotor circuit breaker
Complementary
Colourdark grey
Compatibility codeGV3L
Mechanical durability50000 cycles
Tightening torque5 N.m - on screw clamp terminal
Suitability for isolationyes conforming to IEC 60947-1
Breaking capacity6 kA Icu at 690 V AC 50/60 Hz, 12 kA Icu at 500 V AC 50/60 Hz, 50 kA Icu at 440 V AC 50/60 Hz, 50 kA Icu at 400/415 V AC 50/60 Hz, 65 kA Icu at 230/240 V AC 50/60 Hz
Electrical durability20000 cycles for AC-3 at 415 V In
Power dissipation per pole8 W
Control typerotary handle
[Ics] rated service short-circuit breaking capacity50 % at 690 V AC 50/60 Hz, 50 % at 500 V AC 50/60 Hz, 60 % at 440 V AC 50/60 Hz, 60 % at 400/415 V AC 50/60 Hz, 100 % at 230/240 V AC 50/60 Hz
Fixing modepanel: screwed (with 3 x M4 screws), 35 mm symmetrical DIN rail: clipped
Maximum operating rate25 cyc/h
Magnetic tripping current1120-1120 A
Height132 mm
Network frequency50/60 Hz
Depth136 mm
Width55 mm
Poles description3P
Direct connectorwithout
[Ui] rated insulation voltage690 V AC 50/60 Hz conforming to IEC 60947-2
[Uimp] rated impulse withstand voltage6 kV conforming to IEC 60947-2
Net weight0.96 kg
Utilisation categorycategory A conforming to IEC 60947-2
Motor power kW55-55 kW at 690 V AC 50/60 Hz, 45-45 kW at 500 V AC 50/60 Hz, 37-37 kW at 400/415 V AC 50/60 Hz
Network typeAC
[Ue] rated operational voltage690 V AC 50/60 Hz conforming to IEC 60947-2
[In] rated current73 A
Environment
Fire resistance960 °C conforming to IEC 60695-2-11
IP degree of protectionIP20 conforming to IEC 60529
Ambient air temperature for storage-40-80 °C
Climatic withstandconforming to IACS E10
Ambient air temperature for operation-20-60 °C
Mechanical robustnessvibrations: 4 Gn, 5...300 Hz, shocks: 30 Gn for 11 ms contactor closed, shocks: 5 Gn for 11 ms contactor open
Operating altitude3000 m
StandardsCSA C22.2 No 60947-4-1, UL 60947-4-1, EN/IEC 60947-4-1, EN/IEC 60947-2
Product certificationsUKCA, DNV-GL, ABS, BV, LROS (Lloyds register of shipping), EAC, CSA, UL, CCC
Packing Units
Unit Type of Package 11
Number of Units in Package 11
Package 1 Height6.3 cm
Package 1 Width14.6 cm
Package 1 Length16.0 cm
Package 1 Weight1.017 kg
