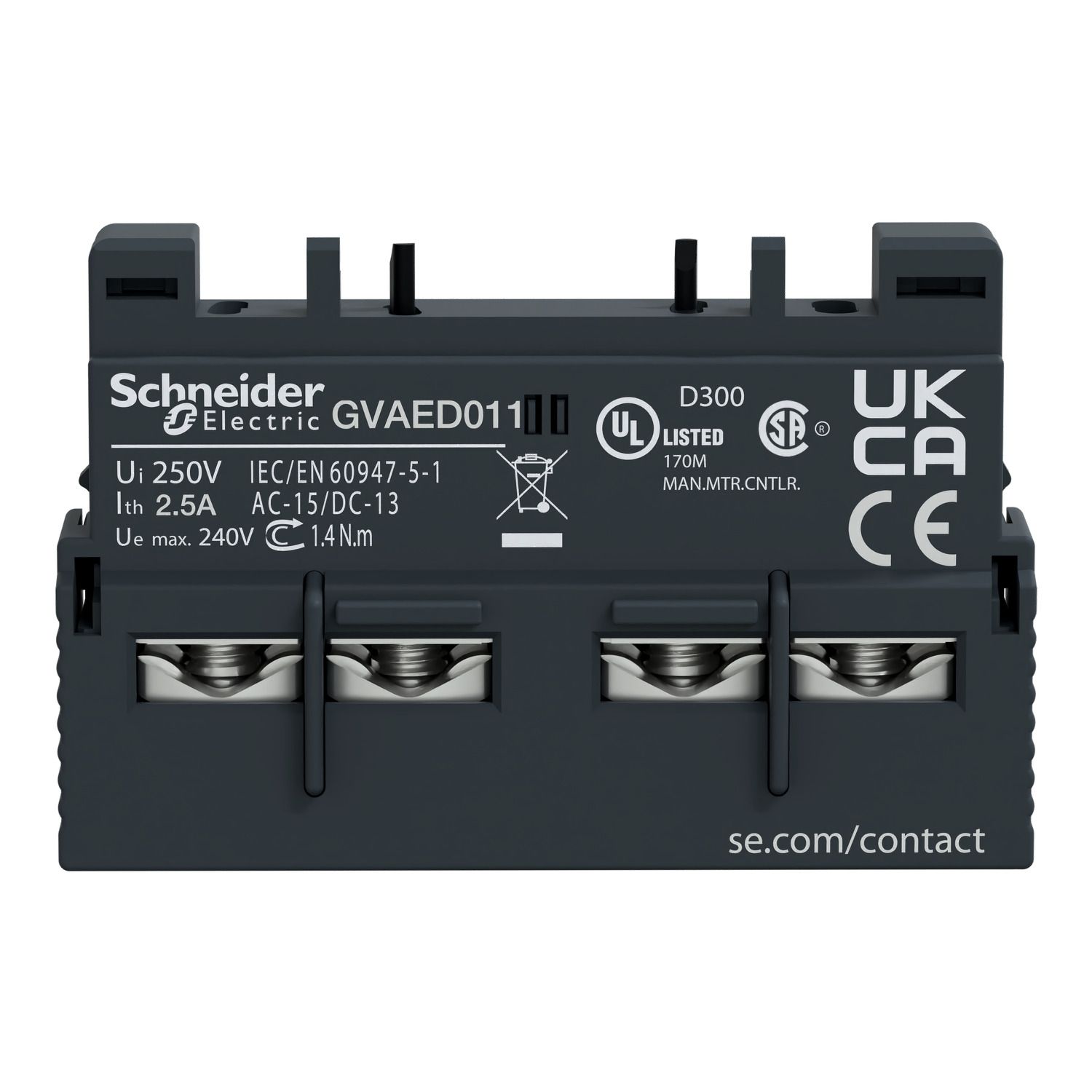

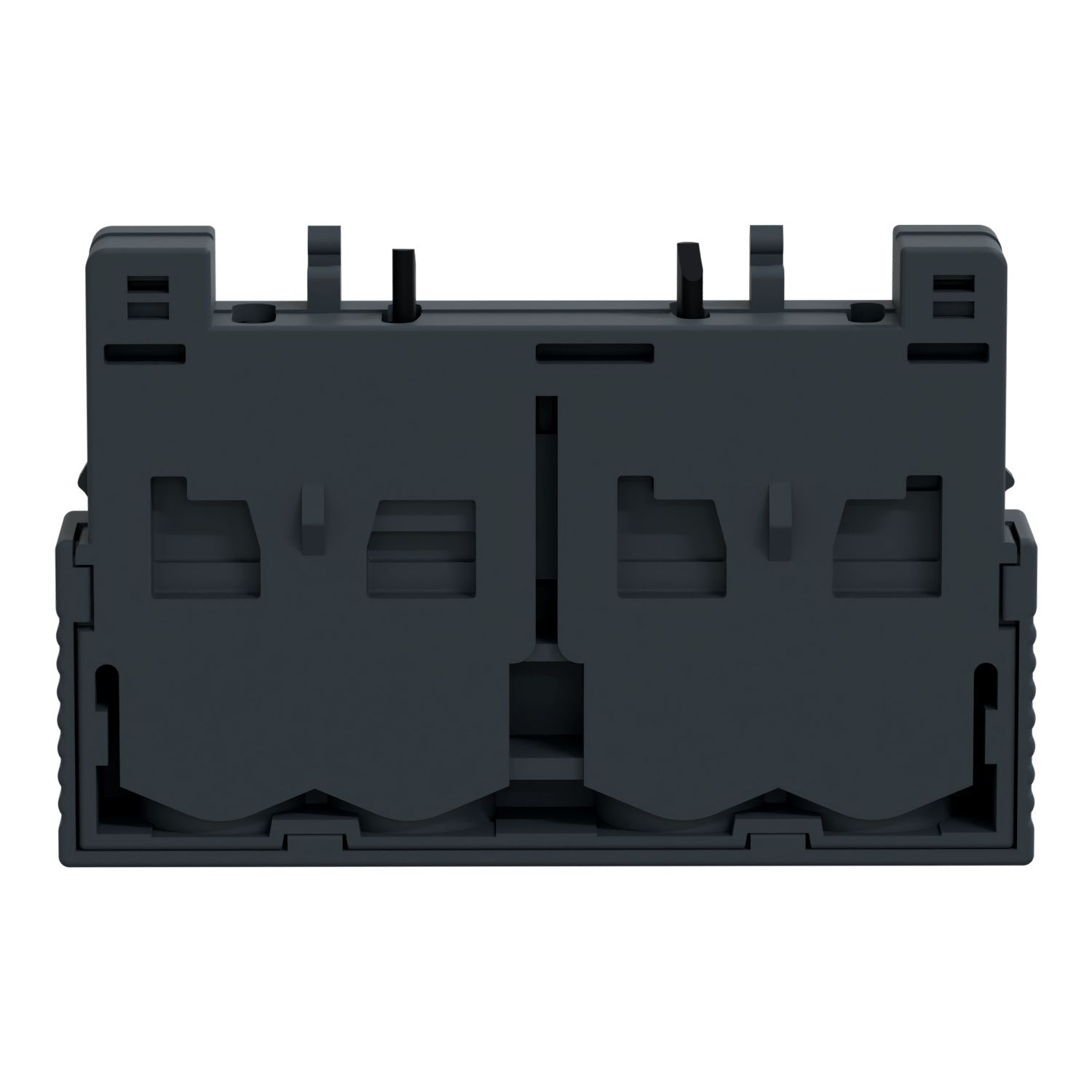

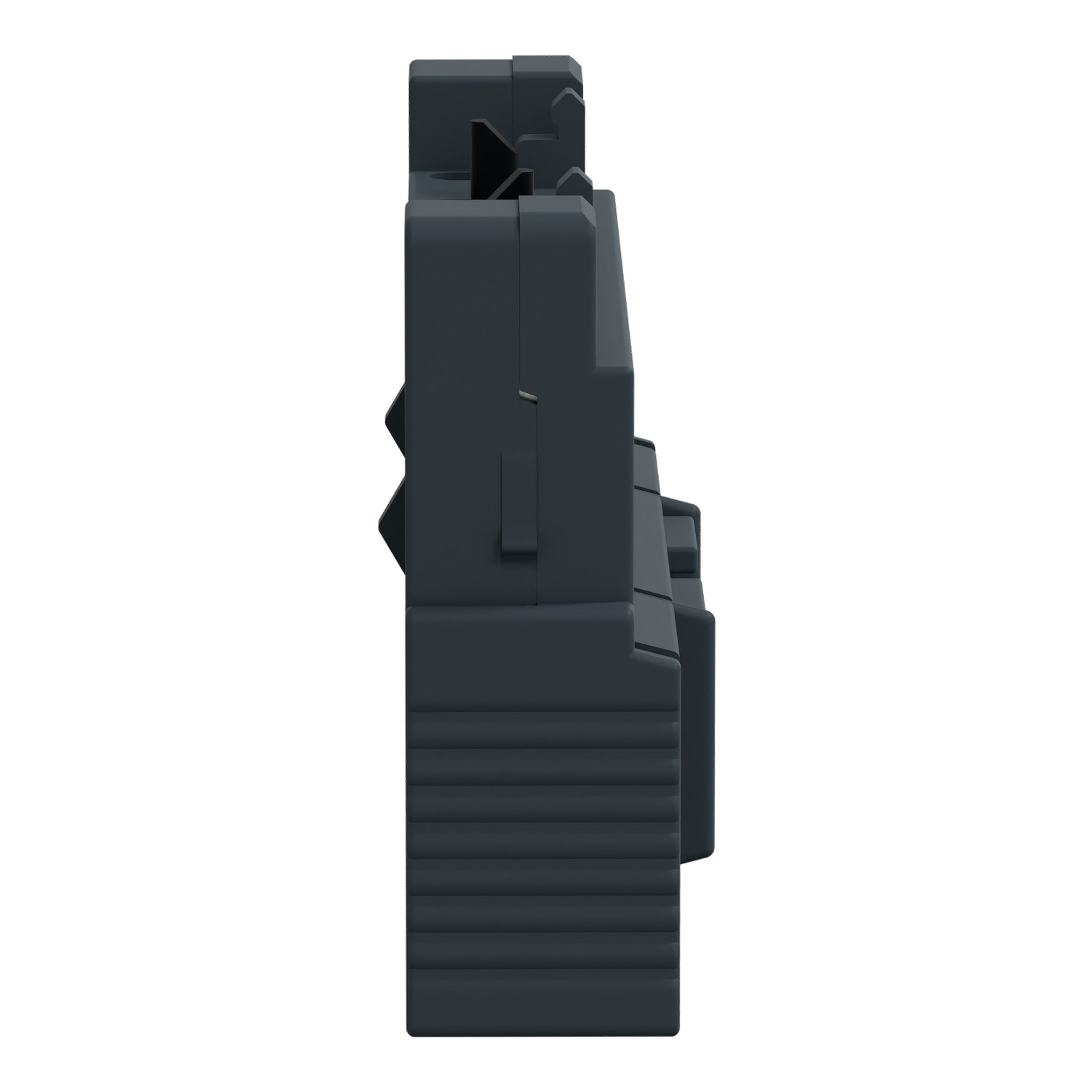

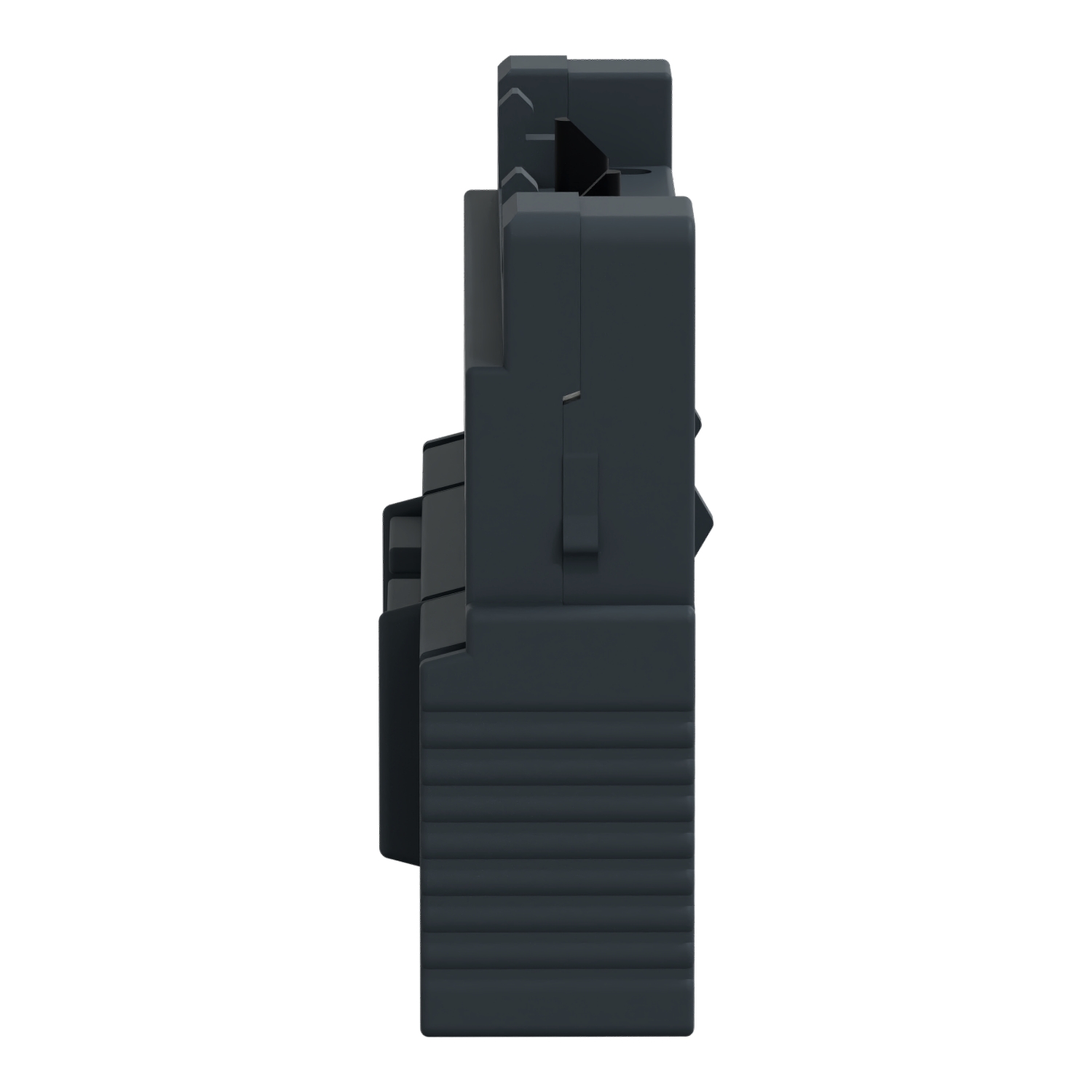

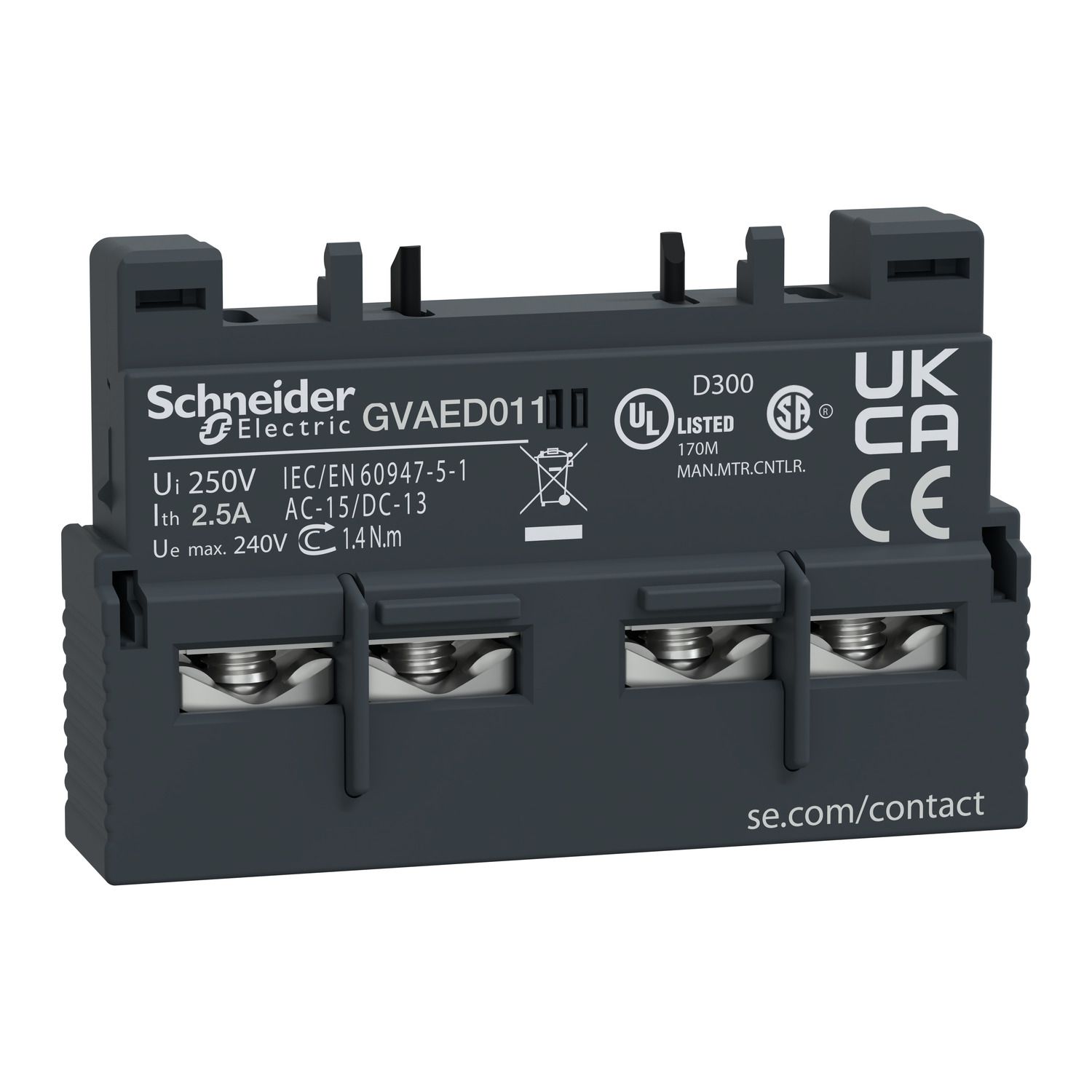

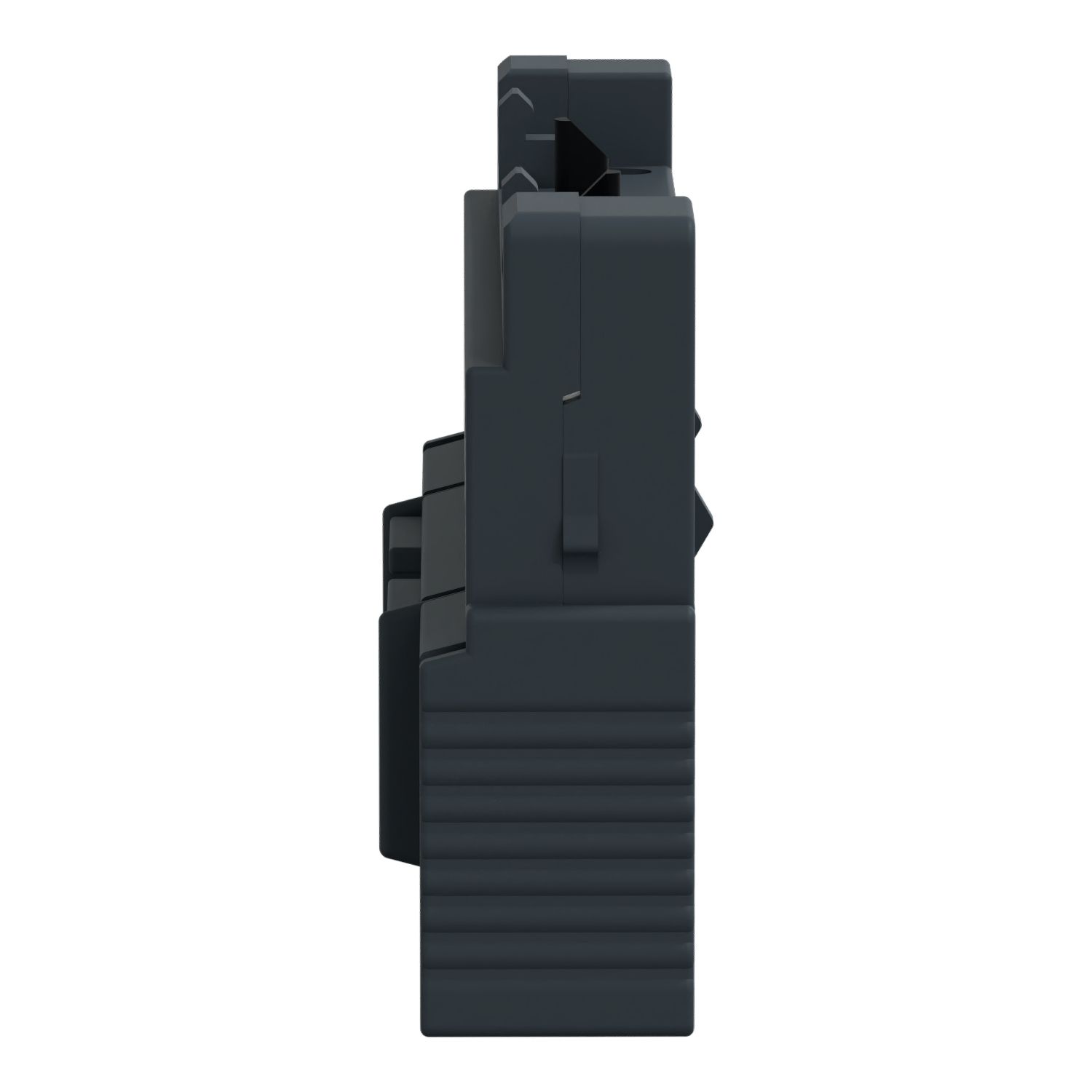

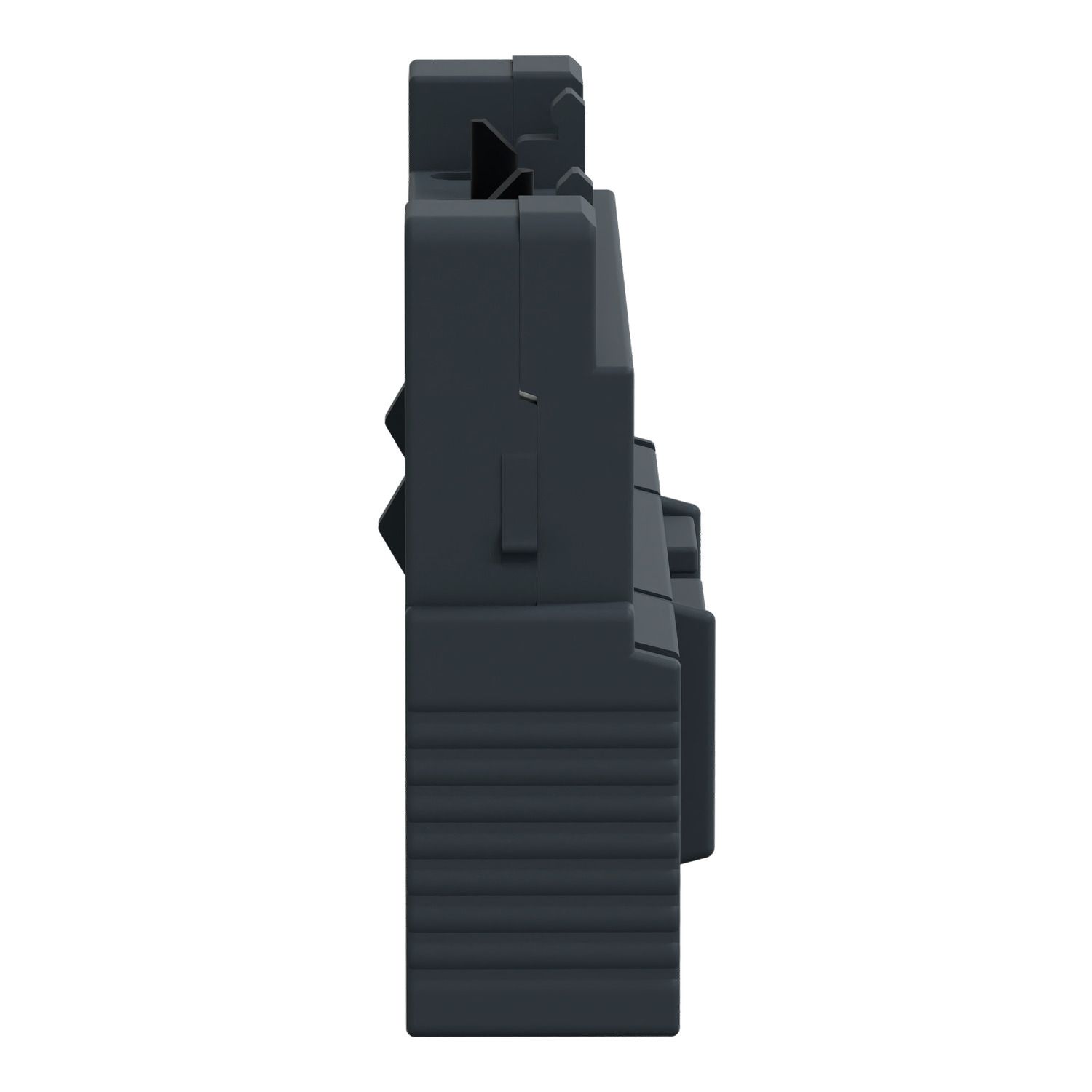

Picture of Add-on contact block,TeSys Deca Frame 2/3,1NC+1NO(fault),front,for GV2/GV3(except GV3ME)
Picture of Add-on contact block,TeSys Deca Frame 2/3,1NC+1NO(fault),front,for GV2/GV3(except GV3ME)
Picture of Add-on contact block,TeSys Deca Frame 2/3,1NC+1NO(fault),front,for GV2/GV3(except GV3ME)
Picture of Add-on contact block,TeSys Deca Frame 2/3,1NC+1NO(fault),front,for GV2/GV3(except GV3ME)
Picture of Add-on contact block,TeSys Deca Frame 2/3,1NC+1NO(fault),front,for GV2/GV3(except GV3ME)
Picture of Add-on contact block,TeSys Deca Frame 2/3,1NC+1NO(fault),front,for GV2/GV3(except GV3ME)
SKU:

GVAED011

Add-on contact block,TeSys Deca Frame 2/3,1NC+1NO(fault),front,for GV2/GV3(except GV3ME)

$49.00
Available for Shipping : 17-Nov-2024
Add-on contact block,TeSys Deca Frame 2/3,1NC+1NO(fault),front,for GV2/GV3(except GV3ME)
  • New modern look & feel of all machines
  • Designed to meet the requirements of Electro domestic and HVAC applications
  • Easier to install and operate with multi-standard screws
  • With IEC60335-1 compliance, improved fire resistance, and dustproof auxiliaries
  • Digital customer experience for technical documents
  • Maintenance guide via EcoStruxureTM Facility Expect
Be the first to review this product
Manufacturer: Schneider Electric
Product environmental
End of life manual
Instruction sheet
Catalogue
CAD
Product Page Link
Product Data Sheet
TeSys Deca auxiliary contact block, for contactors LC1D, LC1F and control relays CAD. It provides 1NO+1NC contacts rated up to 10A 690V AC, On-delay setting range 10-180s Clip-on front mounting, it procures high reliability and durability. Multi standards certified (IEC, UL, CSA, CCC, EAC), Green Premium compliant (RoHs/Reach).

Products specifications

Attribute name Attribute value
Main
Device short name GVAED
Auxiliary contacts operation fault signal 1 NO
Product compatibility GV3L, GV3P
Quantity per set set of 1
Pole contact composition 1 NO + 1 NC
Mounting location front side
Range TeSys Deca, TeSys
Product or component type auxiliary contact block
Range of product TeSys Deca, TeSys GV3
Complementary
Rated operational power in W 240 W at 48 V DC-13 - electrical durability: 100000 cycles, 180 W at 60 V DC-13 - electrical durability: 100000 cycles, 140 W at 24 V DC-13 - electrical durability: 100000 cycles, 140 W at 110 V DC-13 - electrical durability: 100000 cycles, 120 W at 240 V DC-13 - electrical durability: 100000 cycles
Depth 29 mm
Width 45 mm
Compatibility code GVAED
Mechanical durability 100000 cycles
Rated operational power in VA 850 VA at 380-415 V AC-15 - electrical durability: 100000 cycles, 720 VA at 230-240 V AC-15 - electrical durability: 100000 cycles, 650 VA at 440-440 V AC-15 - electrical durability: 100000 cycles, 500 VA at 500-500 V AC-15 - electrical durability: 100000 cycles, 500 VA at 110-127 V AC-15 - electrical durability: 100000 cycles, 400 VA at 690-690 V AC-15 - electrical durability: 100000 cycles, 300 VA at 48-48 V AC-15 - electrical durability: 100000 cycles
Tightening torque 1.4 N.m - on screw clamp terminals
Minimum switching voltage 17 V
[Ui] rated insulation voltage 600 V conforming to CSA C22.2 No 14, 690 V conforming to IEC 60947-1, 600 V conforming to UL 508
Net weight 0.05 kg
Protection type gG fuse 10 A, GB2CB... circuit breaker
[Ue] rated operational voltage 24...60 V DC, 24...240 V AC
[Ith] conventional free air thermal current 2.5 A
Height 11 mm
Minimum switching current 5 mA
Environment
Environmental characteristic normal environment
Product certifications UKCA
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 1.000 cm
Package 1 Width 3.000 cm
Package 1 Length 4.500 cm
Package 1 Weight 17.000 g
Unit Type of Package 2 2
Number of Units in Package 2 10
Package 2 Height 3.500 cm
Package 2 Width 10.000 cm
Package 2 Length 15.000 cm
Package 2 Weight 174.000 g
Unit Type of Package 3 3
Number of Units in Package 3 220
Package 3 Height 15.000 cm
Package 3 Width 30.000 cm
Package 3 Length 40.000 cm
Package 3 Weight 4.128 kg
