SKU:

GV3L80

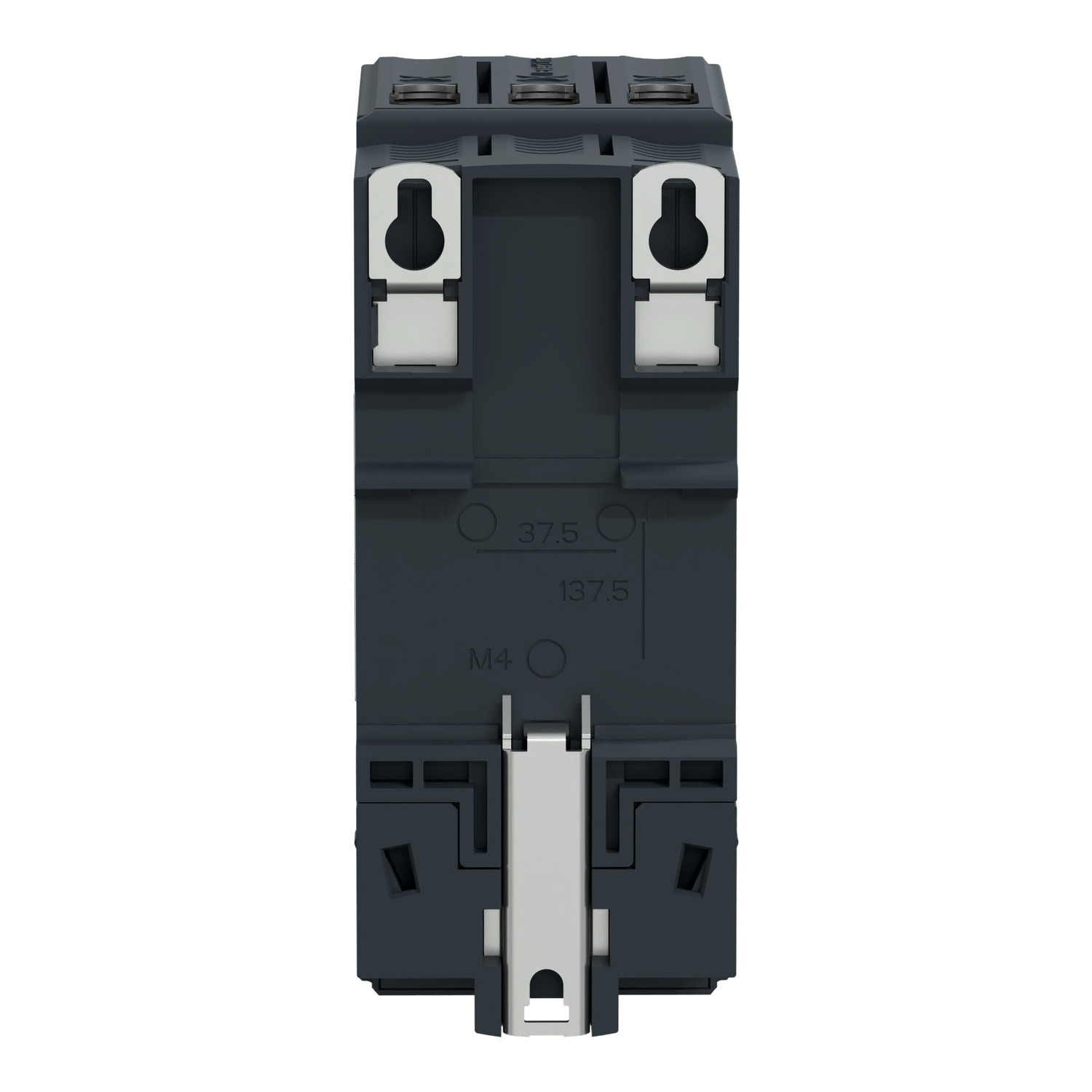

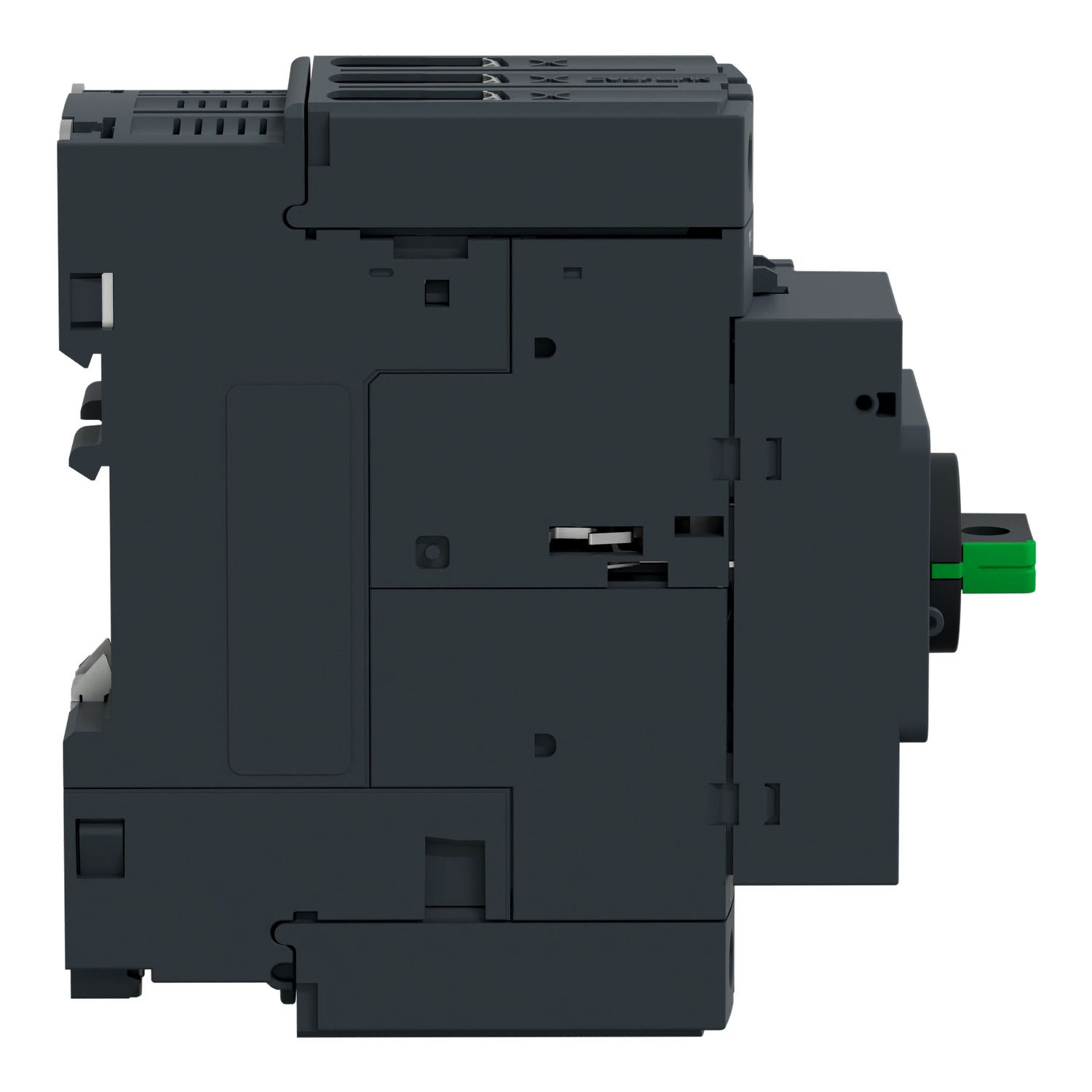

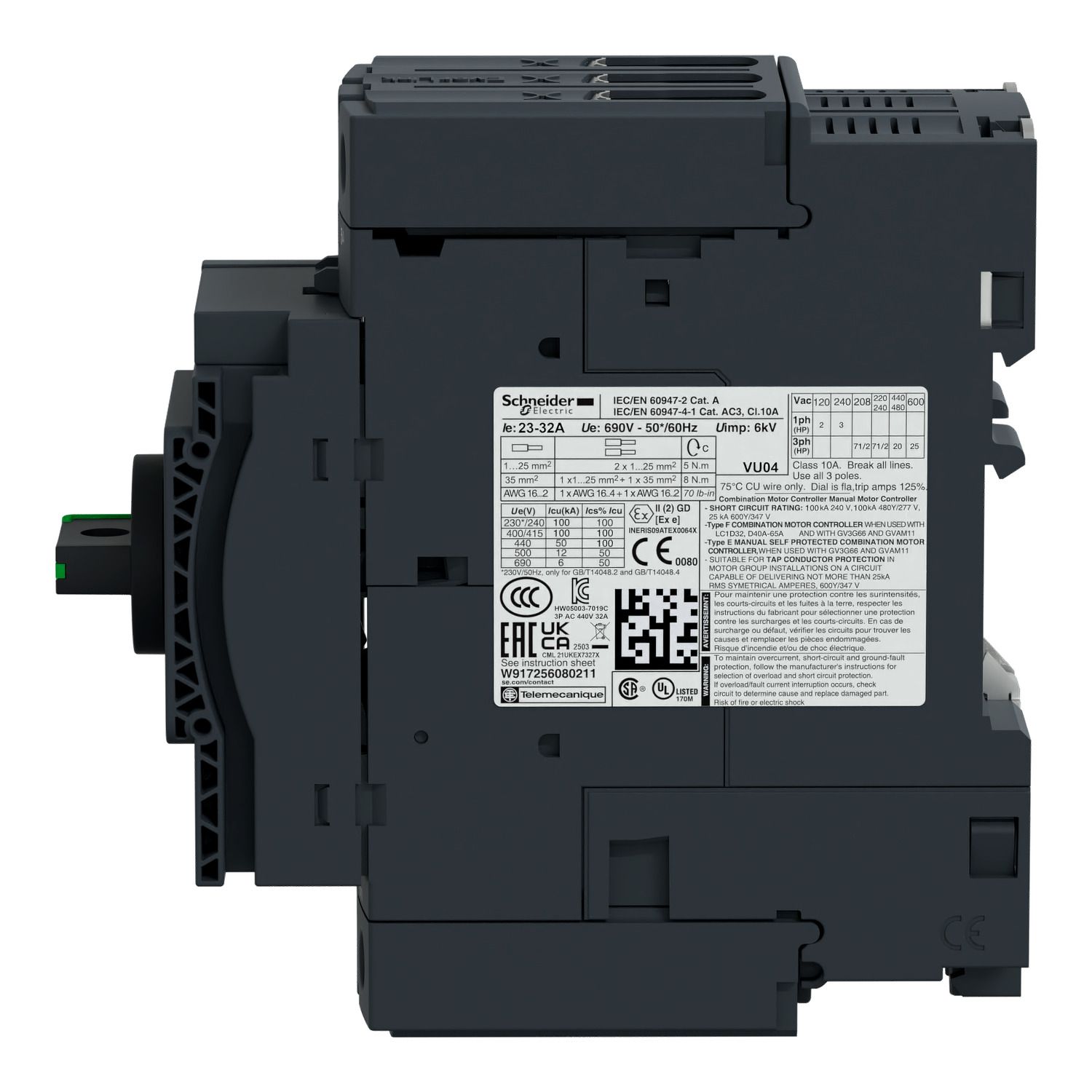

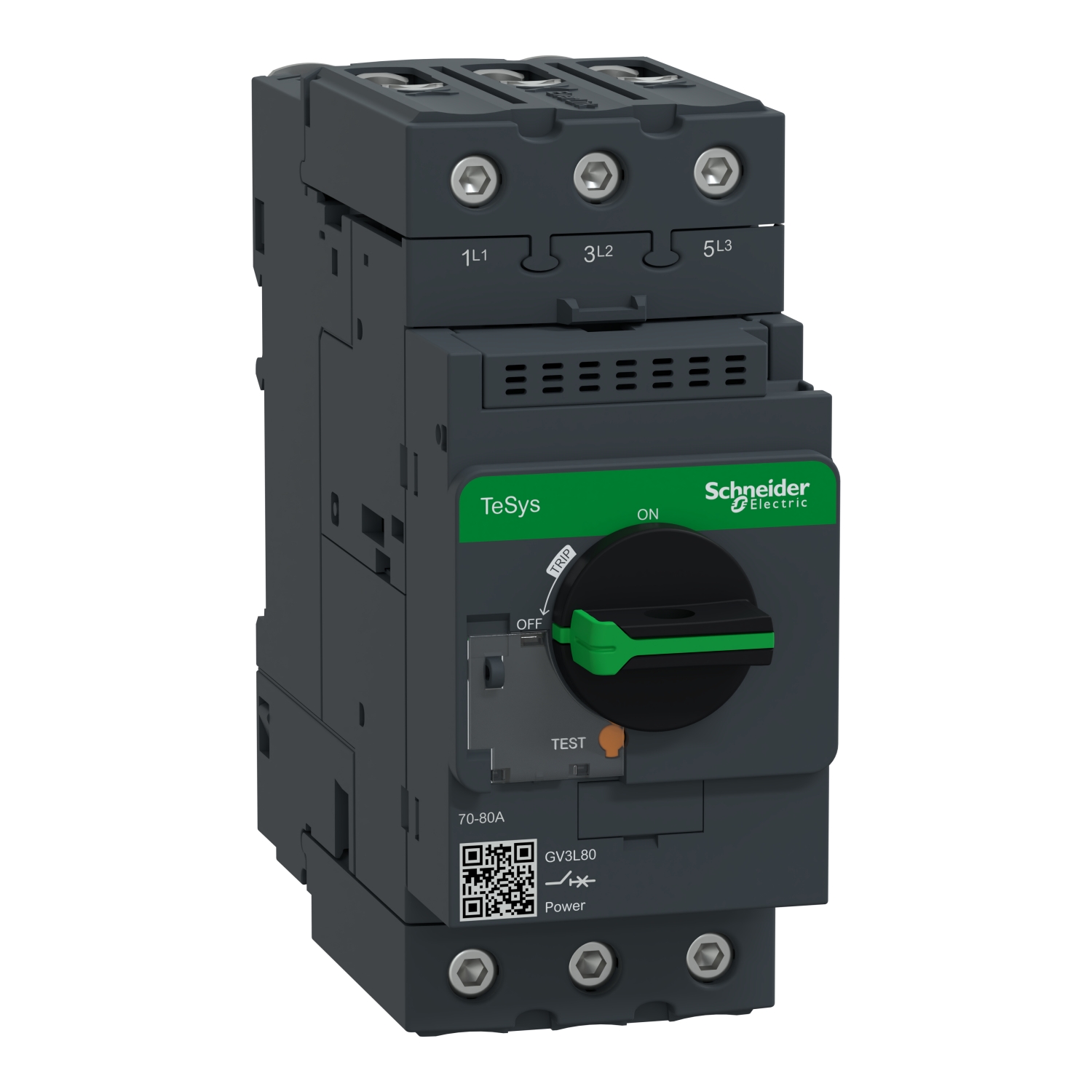

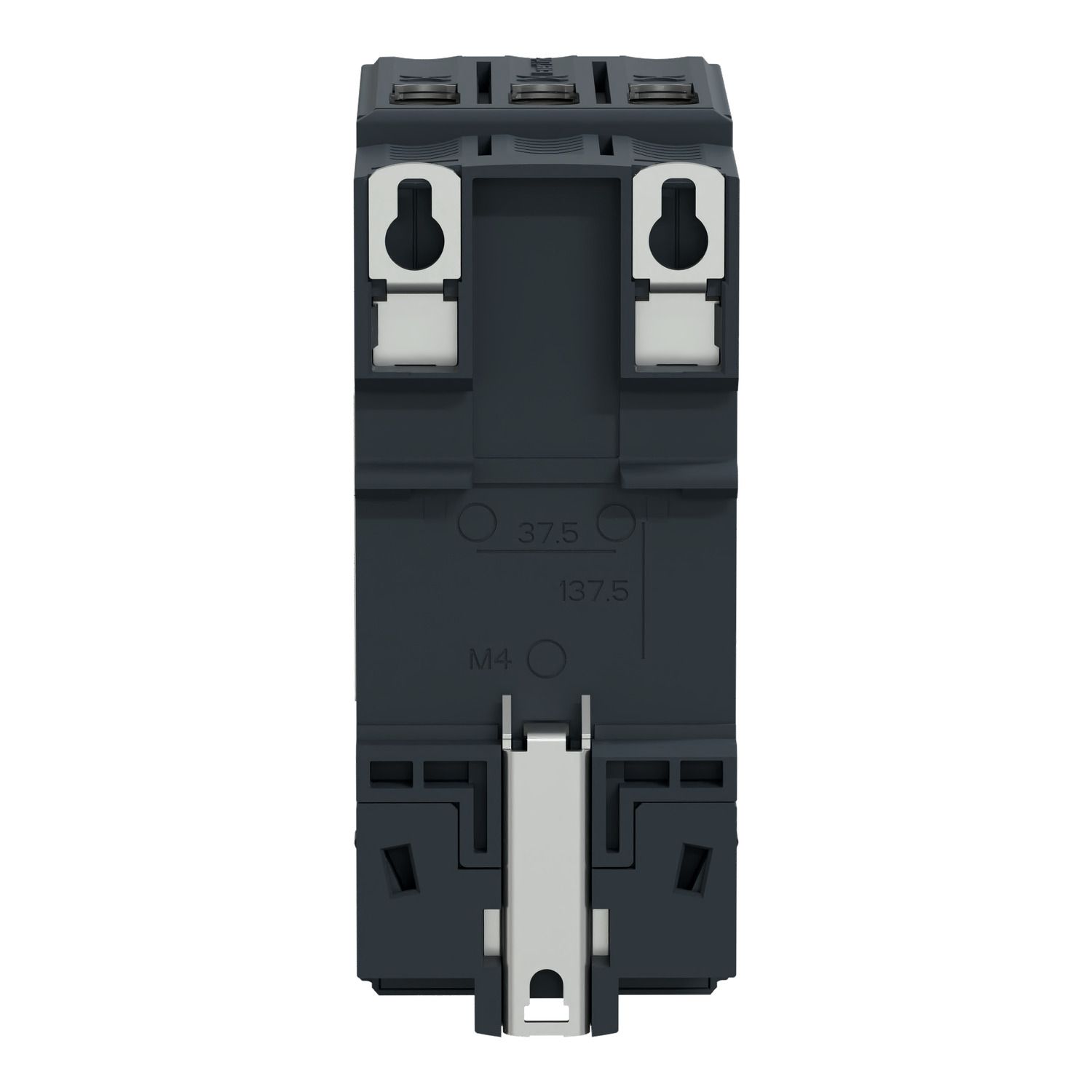

Motor circuit breaker,TeSys Deca frame 3,3P,80A,magnetic,rotary handle,EverLink terminals

$748.39
Available for Shipping : 25-Nov-2024
Product Selector
Motor circuit breaker,TeSys Deca frame 3,3P,80A,magnetic,rotary handle,EverLink terminals
  • New modern look & feel of all machines
  • Wide range of GVs: Magnetic, thermal magnetic, different sizes (GV2,GV3,GV4)
  • Easier to install and operate with multi-standard screws
  • Safe and long-lasting power connection with EverLink terminals
  • Digital customer experience for technical documents
  • Maintenance guide via EcoStruxureTM Facility Expect
Be the first to review this product
Manufacturer: Schneider Electric
Catalogue
Instruction sheet
End of life manual
Product environmental
User guide
Product Page Link
Product Data Sheet
TeSys GV motor circuit breaker, 3 poles (3P), 80A/690V, for 3-phase motor applications 45kW@400V. It provides a magnetic protection with a tripping level at 14xIn, high breaking capacity Icu 50kA@400V. Connection by Everlink BTR screw terminals. Start-stop control by rotary handle guaranteed for 20 000 cycles AC-3. To complete motor protection, use it in association with a thermal overload relay LRD380 (to be ordered separately). Multi standards certified (IEC, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).

Products specifications

Attribute name Attribute value
Main
Device application motor protection
Trip unit technology magnetic
Device short name GV3L
Range TeSys Deca
Range of product TeSys Deca, TeSys GV3
Product name TeSys Deca, TeSys GV3
Product or component type motor circuit breaker
Complementary
Compatibility code GV3L
Suitability for isolation yes conforming to IEC 60947-1
Electrical durability 20000 cycles for AC-3 at 415 V In
Power dissipation per pole 8 W
[Ics] rated service short-circuit breaking capacity 50 % at 690 V AC 50/60 Hz, 50 % at 500 V AC 50/60 Hz, 60 % at 440 V AC 50/60 Hz, 60 % at 400/415 V AC 50/60 Hz, 100 % at 230/240 V AC 50/60 Hz
Height 132 mm
[Ui] rated insulation voltage 690 V AC 50/60 Hz conforming to IEC 60947-2
Net weight 0.96 kg
Network type AC
Colour dark grey
Mechanical durability 50000 cycles
Tightening torque 5 N.m - on screw clamp terminal
Breaking capacity 6 kA Icu at 690 V AC 50/60 Hz, 12 kA Icu at 500 V AC 50/60 Hz, 50 kA Icu at 440 V AC 50/60 Hz, 50 kA Icu at 400/415 V AC 50/60 Hz, 65 kA Icu at 230/240 V AC 50/60 Hz
Control type rotary handle
Fixing mode panel: screwed (with 3 x M4 screws), 35 mm symmetrical DIN rail: clipped
Maximum operating rate 25 cyc/h
Magnetic tripping current 1120-1120 A
Network frequency 50/60 Hz
Depth 136 mm
Width 55 mm
Poles description 3P
Direct connector without
[Uimp] rated impulse withstand voltage 6 kV conforming to IEC 60947-2
Utilisation category category A conforming to IEC 60947-2
Motor power kW 55-55 kW at 690 V AC 50/60 Hz maximum peak current 750 A, 45-45 kW at 500 V AC 50/60 Hz maximum peak current 750 A, 45-45 kW at 400/415 V AC 50/60 Hz maximum peak current 750 A
[Ue] rated operational voltage 690 V AC 50/60 Hz conforming to IEC 60947-2
[In] rated current 80 A
Environment
Fire resistance 960 °C conforming to IEC 60695-2-11
Ambient air temperature for storage -40-80 °C
Climatic withstand conforming to IACS E10
Ambient air temperature for operation -20-60 °C
Operating altitude 3000 m
Product certifications UKCA, DNV-GL, ABS, BV, LROS (Lloyds register of shipping), EAC, CSA, CCC
IP degree of protection IP20 conforming to IEC 60529
Mechanical robustness vibrations: 4 Gn, 5...300 Hz, shocks: 30 Gn for 11 ms contactor closed, shocks: 5 Gn for 11 ms contactor open
Standards CSA C22.2 No 60947-4-1, EN/IEC 60947-4-1, EN/IEC 60947-2
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 15.800 cm
Package 1 Width 6.500 cm
Package 1 Length 14.600 cm
Package 1 Weight 1.334 kg
Unit Type of Package 2 2
Number of Units in Package 2 8
Package 2 Height 15.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 8.414 kg
Unit Type of Package 3 3
Number of Units in Package 3 120
Package 3 Height 73.500 cm
Package 3 Width 80.000 cm
Package 3 Length 60.000 cm
Package 3 Weight 136.720 kg

Related products

Picture of TeSys; TeSys Deca, - auxiliary contact block - 2 NO

TeSys; TeSys Deca, - auxiliary contact block - 2 NO

GVAN20
$56.84
View Detail
Picture of TeSys; TeSys Deca, - auxiliary contact - 1 NO + 1 NO (fault)

TeSys; TeSys Deca, - auxiliary contact - 1 NO + 1 NO (fault)

GVAD1010
$109.28
View Detail
Picture of Add-on contact block,TeSys Deca Frame 2/3,1NO(fault)+1NC,side,for GV2/GV3(except GV3ME)

Add-on contact block,TeSys Deca Frame 2/3,1NO(fault)+1NC,side,for GV2/GV3(except GV3ME)

GVAD1001
$112.38
View Detail

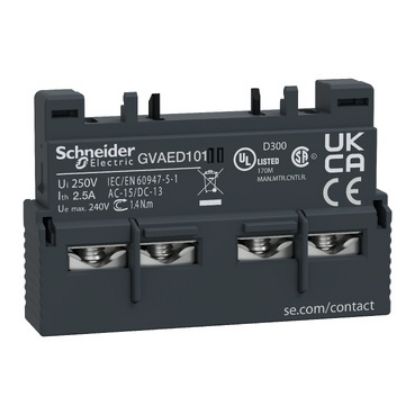

Auxiliary contact block,TeSys Deca,1NO(fault)+1NO,front mounting,for GV2/GV3P/GV3L
