SKU:

LAD9R1

TeSys; Linergy, Kit for assembling 3P reversing contactors, LC1D09-D38 with screw clamp terminals, without electrical interlock

$55.30
Available for Shipping : 24-Nov-2024
TeSys; Linergy, Kit for assembling 3P reversing contactors, LC1D09-D38 with screw clamp terminals, without electrical interlock
  • Simple wiring kits for Tesys Deca contactor group
  • New modern look & feel of all machines
  • Easier to install.
  • Digital customer experience for technical documents
Manufacturer: Schneider Electric

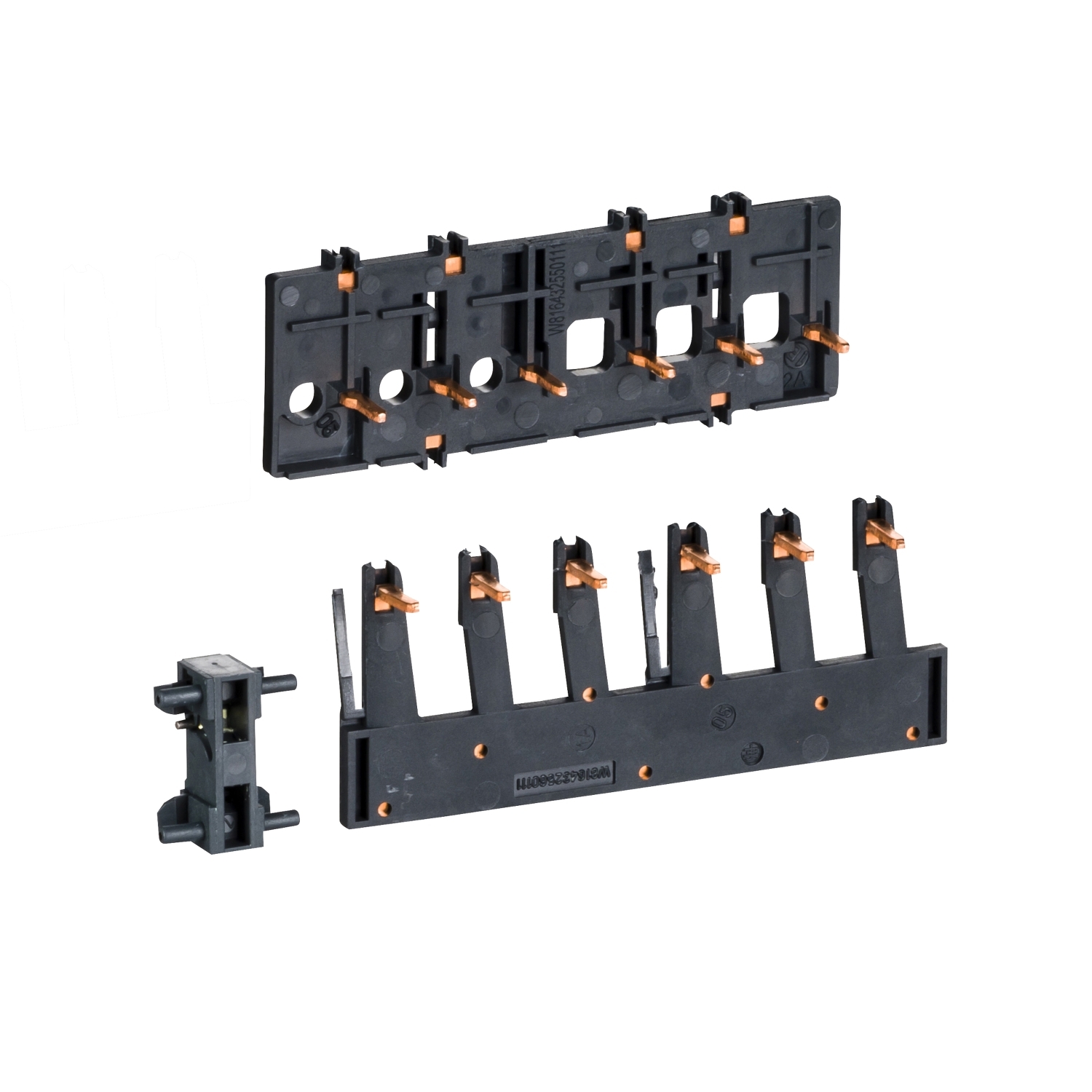

TeSys D kit for reversing contactors assembly, for 3-pole contactors LC1D09-D38. For assembling 2 identical contactors horizontally mounted, connection by screw clamp terminals. It contains a mechanical interlock LAD9V2 (without electrical interlocking), a set of 3 parallel bars LAD9V5, a set of 3 reverser bars LAD9V6. It conforms to RoHS/REACh regulation.

Products specifications

Attribute name Attribute value
Main
Device short name LAD9
Product compatibility LC1D38, LC1D32, LC1D25, LC1D18, LC1D12, LC1D09
Poles description 3P
Range Linergy, TeSys
Product or component type kits for reversing contactor
Range compatibility TeSys TeSys Deca, TeSys TeSys D contactor
Range of product TeSys Deca
Complementary
Kit composition set of power connection, mechanical interlock
Compatibility code LAD9
Net weight 0.045 kg
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 1.712 cm
Package 1 Width 6.500 cm
Package 1 Length 14.000 cm
Package 1 Weight 61.000 g
Unit Type of Package 2 2
Number of Units in Package 2 10
Package 2 Height 9.400 cm
Package 2 Width 10.000 cm
Package 2 Length 15.000 cm
Package 2 Weight 651.000 g
Unit Type of Package 3 3
Number of Units in Package 3 140
Package 3 Height 30.000 cm
Package 3 Width 30.000 cm
Package 3 Length 40.000 cm
Package 3 Weight 9.469 kg
Unit Type of Package 4 4
Number of Units in Package 4 1120
Package 4 Height 77.000 cm
Package 4 Width 80.000 cm
Package 4 Length 60.000 cm
Package 4 Weight 81.752 kg
