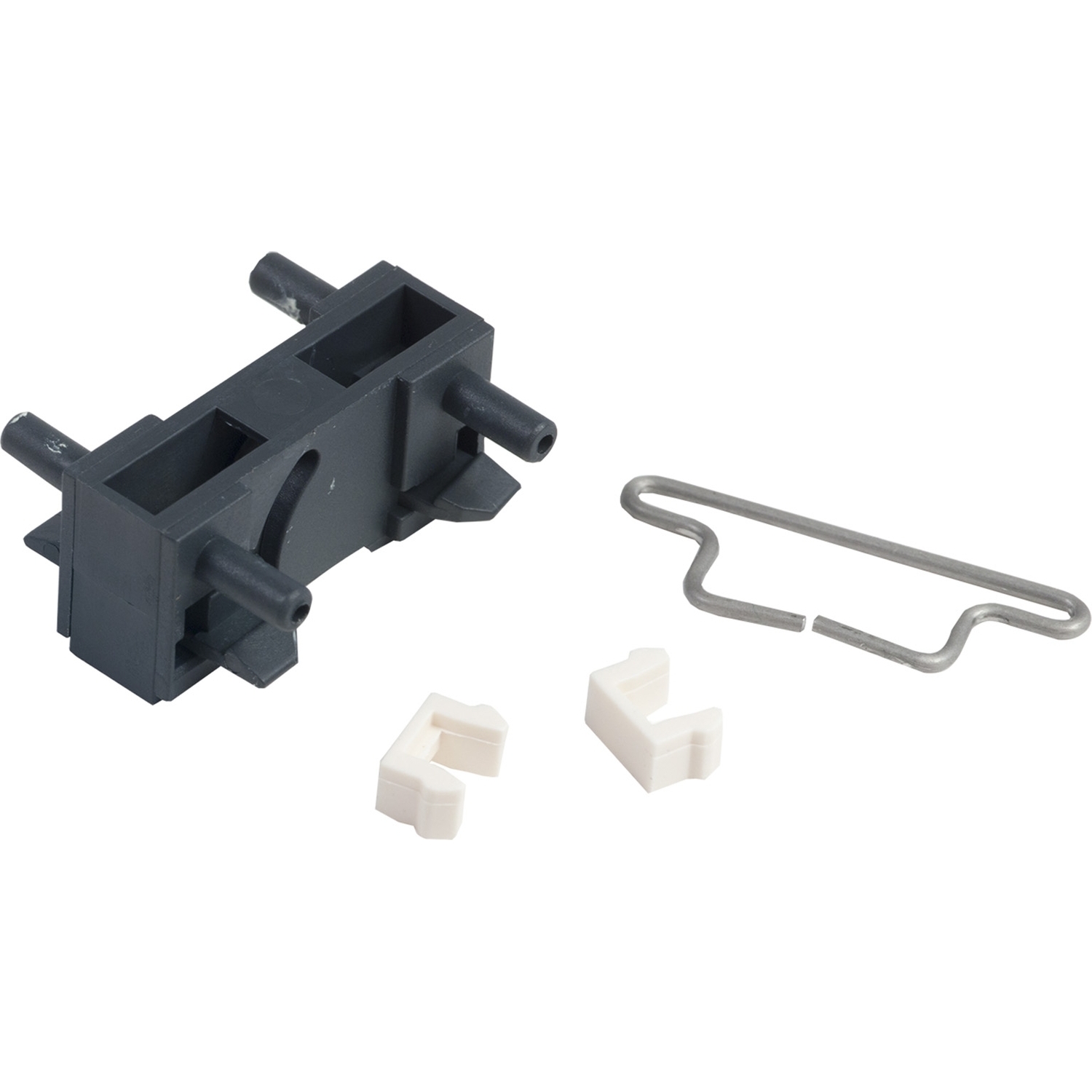

Picture of TeSys, Mechanical interlock, TeSys Deca contactors LC1D09-D38 LC1DT20-DT40
SKU:

LAD9V2

TeSys, Mechanical interlock, TeSys Deca contactors LC1D09-D38 LC1DT20-DT40

$53.00
Available for Shipping : 17-Nov-2024
Product Selector
TeSys, Mechanical interlock, TeSys Deca contactors LC1D09-D38 LC1DT20-DT40
  • Simple wring kits for Tesys Deca
  • New modern look & feel of all machines
  • Easier to install.
  • Digital customer experience for technical documents
Be the first to review this product
Manufacturer: Schneider Electric
Catalogue
Instruction sheet
Product Page Link
Product Data Sheet
TeSys D mechanical interlock, for contactors LC1D09-D38 and LC1DT20-DT40. To be used for reversing and changeover assemblings. Without electrical interlocking. Green Premium compliant (RoHS/REACh).

Products specifications

Attribute name Attribute value
Main
Device short name LAD9
Product compatibility LC1DT40, LC1DT32, LC1DT25, LC1DT20, LC1D38, LC1D32, LC1D25, LC1D18, LC1D12, LC1D09
Electrical circuit type changeover, reversing
Poles description 4P, 3P
Range TeSys
Product or component type mechanical interlock
Accessory / separate part category interlocking accessory
Range compatibility TeSys TeSys D contactor
Range of product TeSys Deca
Interlocking type mechanical
Complementary
Compatibility code LAD9
Net weight 0.04 kg
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 2 cm
Package 1 Width 8 cm
Package 1 Length 11.1 cm
Package 1 Weight 10 g
Unit Type of Package 2 2
Number of Units in Package 2 10
Package 2 Height 9.5 cm
Package 2 Width 10 cm
Package 2 Length 15.2 cm
Package 2 Weight 138 g
Unit Type of Package 3 3
Number of Units in Package 3 140
Package 3 Height 30 cm
Package 3 Width 30 cm
Package 3 Length 40 cm
Package 3 Weight 2.359 kg
Unit Type of Package 4 4
Number of Units in Package 4 1120
Package 4 Height 77 cm
Package 4 Width 80 cm
Package 4 Length 60 cm
Package 4 Weight 27.372 kg

Related products

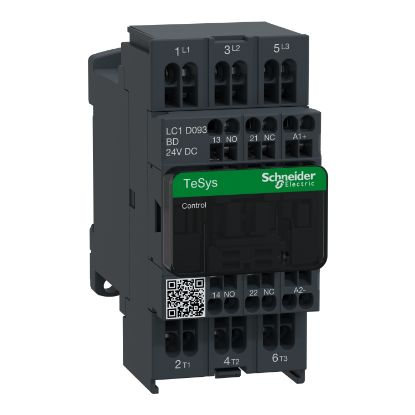

Contactor, TeSys Deca, 3P(3NO), AC-3/AC-3e, <=440V, 9A, 24V DC coil, spring terminals

LC1D093BD
$140.52
View Detail

Contactor, TeSys Deca, 3P(3NO), AC-3/AC-3e, <=440V, 9A, 24V DC low consumption coil, spring terminals

LC1D093BL
$121.87
View Detail

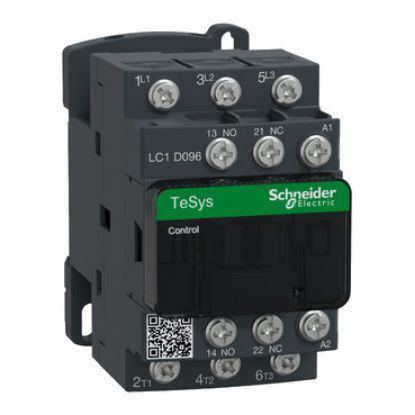

Contactor, TeSys Deca, 3P(3NO), AC-3/AC-3e, <=440V, 9A, 220V AC 50/60Hz coil, lugs-ring terminals

LC1D096M7
$88.50
View Detail

TeSys D, Contactor, 3P(3 NO), AC-3/AC-3e, 0 to 440V, 9A, 24VAC 50/60Hz coil

LC1D09B7
$42.85
View Detail
Picture of Contactor, TeSys Deca, 3P(3 NO), AC-3/AC-3e, 0 to 440V, 9A, 24VAC 50/60Hz coil, bulk qty

Contactor, TeSys Deca, 3P(3 NO), AC-3/AC-3e, 0 to 440V, 9A, 24VAC 50/60Hz coil, bulk qty

LC1D09B7TQ
$69.20
View Detail

TeSys D, Contactor, 3P(3 NO), AC-3/AC-3e, 0 to 440V, 9A, 24VDC coil

LC1D09BD
$136.43
View Detail

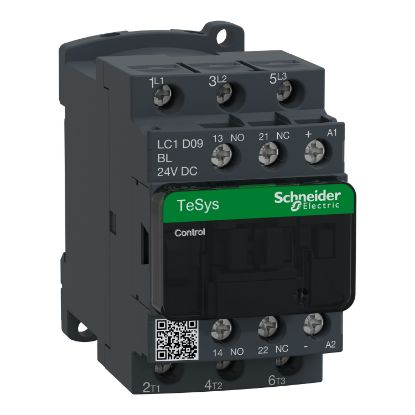

TeSys D, Contactor, 3P(3 NO), AC-3/AC-3e, 0 to 440V, 9A, 24VDC low consumption coil

LC1D09BL
$131.52
View Detail

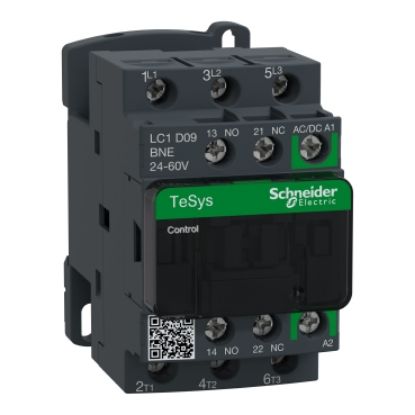

TeSys; TeSys Deca, Contactor, 3P(3 NO), AC-3/AC-3e, 0 to 440V, 9A, 24-60VAC/DC coil
