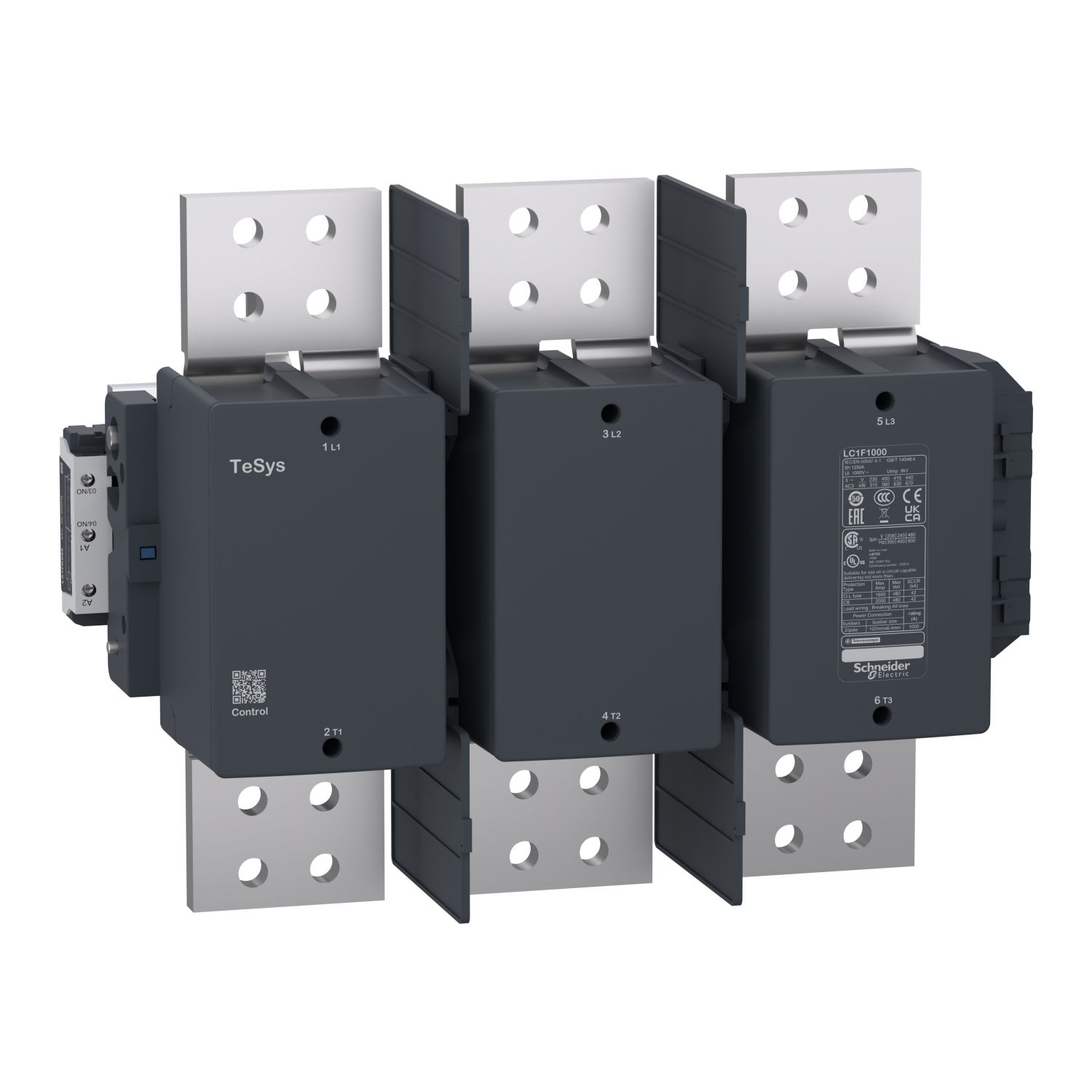

Picture of contactor, TeSys F, 3P(3NO), AC-3, <=440V 1000A, coil 110V AC
SKU:

LC1F1000F7

contactor, TeSys F, 3P(3NO), AC-3, <=440V 1000A, coil 110V AC

$24,488.52
Available for Shipping : 29-Jan-2025
Product Selector
contactor, TeSys F, 3P(3NO), AC-3, <=440V 1000A, coil 110V AC
  • High durability: 600 cycles/hour for operating rate
  • High reliability: environments tolerance up to 55°C
  • Easy installation and maintenance thanks to its drawer-mounted coil and a large choice of add-on blocks
  • Various fields of application with multiple standards certifications
  • Green Premium product
Be the first to review this product
Manufacturer: Schneider Electric
Declaration of conformity
Catalogue
Brochure
Product environmental
End of life manual
Instruction sheet
Product Page Link
Product Data Sheet

Products specifications

Attribute name Attribute value
Main
Device short name LC1F
Poles description 3P
[Ie] rated operational current 1000 A (at <55 °C) at <= 440 V AC AC-3, 1250 A (at <40 °C) at <= 440 V AC AC-1
Utilisation category AC-1, AC-3
Range TeSys
Product or component type contactor
Contactor application resistive load, motor control
[Ue] rated operational voltage <= 440 V AC 50/60 Hz
Range of product TeSys F
[Uc] control circuit voltage 110 V AC 40...400 Hz
Complementary
[Icw] rated short-time withstand current 3000 A 40 °C - 10 min, 4200 A 40 °C - 3 min, 5500 A 40 °C - 1 min, 7500 A 40 °C - 30 s, 10000 A 40 °C - 10 s
[Ui] rated insulation voltage 1500 V conforming to VDE 0110 group C, 1000 V conforming to IEC 60947-4-1
Overvoltage category III
Compatibility code LC1F
Tightening torque power circuit: 58 N.m, control circuit: 1.2 N.m
Maximum operating rate 600 cyc/h 55 °C
Operating time 100...200 ms opening, 40...80 ms closing
Motor starter type direct on-line contactor
Pole contact composition 3 NO
Connections - terminals power circuit: bar 4 cable(s) , power circuit: bar 3 cable(s) , control circuit: screw clamp terminals 2 cable(s) 1-4 mm²solid without cable end, control circuit: screw clamp terminals 1 cable(s) 1-4 mm²solid without cable end, control circuit: screw clamp terminals 2 cable(s) 1-2.5 mm²flexible with cable end, control circuit: screw clamp terminals 1 cable(s) 1-4 mm²flexible with cable end, control circuit: screw clamp terminals 2 cable(s) 1-4 mm²flexible without cable end, control circuit: screw clamp terminals 1 cable(s) 1-4 mm²flexible without cable end
[Uimp] rated impulse withstand voltage 8 kV
Power range 670-670 kW at 440-440 V 3 phases, 630-630 kW at 415-415 V 3 phases, 560-560 kW at 380-400 V 3 phases, 315-315 kW at 220-230 V 3 phases
Associated fuse rating 2000 A gG at <= 440 V
Rated breaking capacity 8 kA conforming to IEC 60947-4-1
Contactor coil voltage 110 V AC standard
Control circuit type AC at 40...400 Hz
Mounting support plate
Standards EN 60947-4-1, EN 60947-1, IEC 60947-1, IEC 60947-4-1
[Ith] conventional free air thermal current 1250 A (at 40 °C)
Average impedance 0.1 mOhm - Ith 1250 A 50 Hz
Power dissipation per pole 200 W AC-1
Product certifications UKCA, CSA, CCC, CB
Environment
Permissible ambient air temperature around the device -40-60 °C
Depth 238.6 mm
Width 438 mm
Operating altitude 3000 m without derating
IP degree of protection IP20 front face with shrouds conforming to VDE 0106, IP20 front face with shrouds conforming to IEC 60529
Protective treatment TH
Ambient air temperature for storage -60-80 °C
Net weight 31 kg
Ambient air temperature for operation -5-40 °C
Height 332 mm
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 38.000 cm
Package 1 Width 49.000 cm
Package 1 Length 60.000 cm
Package 1 Weight 33.541 kg
