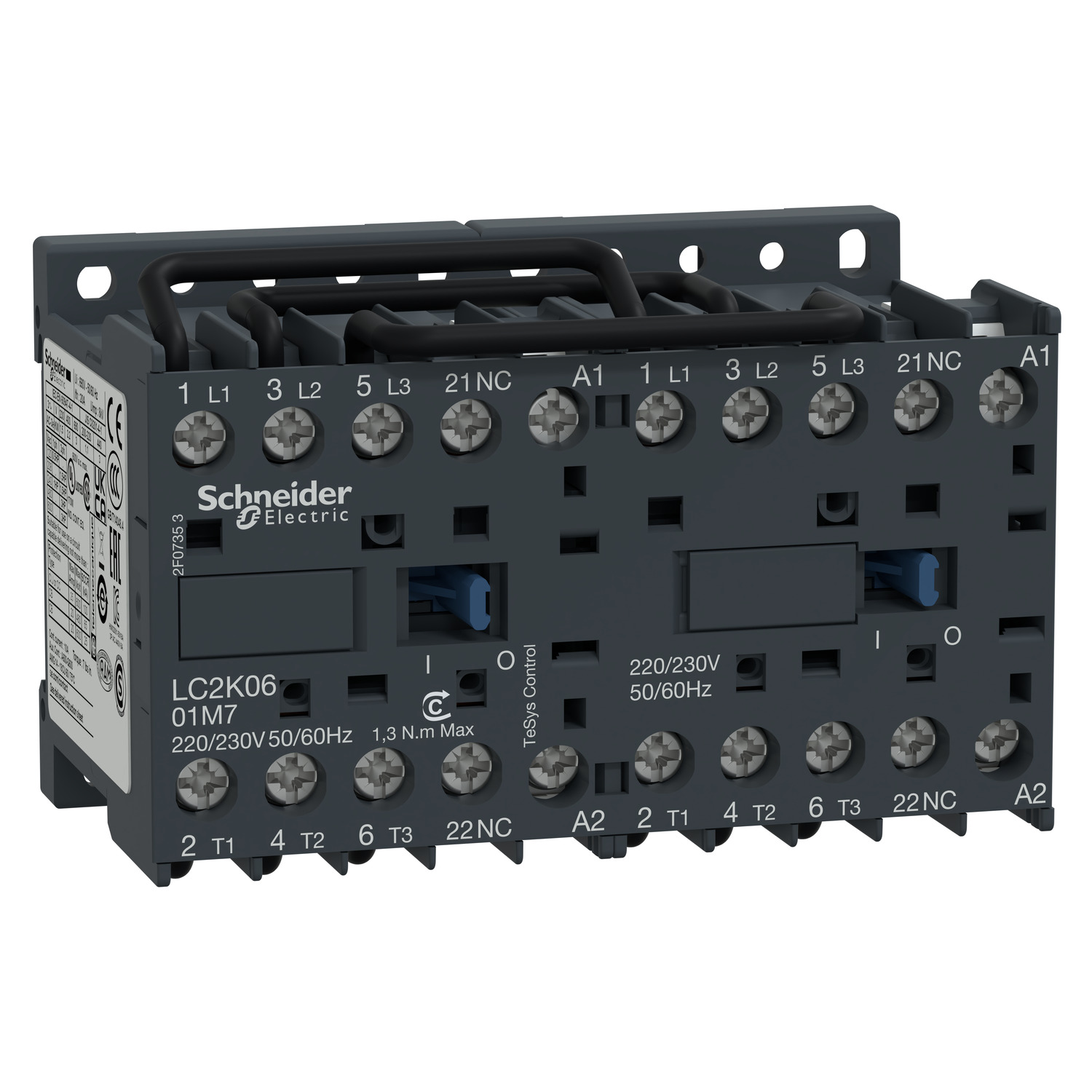

Picture of reversing Contactor, TeSys K, 3P, AC-3/AC-3e,440V 6A, 1NC, 220...230VAC coil, screw clamp terminals
SKU:

LC2K0601M7

reversing Contactor, TeSys K, 3P, AC-3/AC-3e,440V 6A, 1NC, 220...230VAC coil, screw clamp terminals

$216.74
Product Selector
reversing Contactor, TeSys K, 3P, AC-3/AC-3e,440V 6A, 1NC, 220...230VAC coil, screw clamp terminals
  • Pre-wired power circuit connections as standard on screw clamp versions.
  • TeSys K is a compact contactor range with a wide variety of coil voltage and terminal connection options
  • The offer features specific versions for railway (TeSys S207) and electrodomestic (TeSys S335) applications.
  • One of the smallest contactor offerings in the market.
  • The range delivers strong performance for its compact size and promises seamless integration in all applications.
  • Widely used for industry, infrastructure and building applications.
  • Designed for simple control systems
Be the first to review this product
Manufacturer: Schneider Electric
Estimated Delivery Date: 18-Oct-2024
Product environmental
Catalogue
CAD
End of life manual
Declaration of conformity
Instruction sheet
Product Page Link
Product Data Sheet
TeSys K reversing contactor, 3 poles (3NO), for motor control applications up to 6A/690V AC-3 (2.2kW@400V). It provides 220V 50/60Hz AC coils, 2NC built-in auxiliary contacts, connection by screw clamp terminals. For operating rates until 600 cycles/hour in AC-3 and environments until 50°C, it procures reliability and durability to standard applications. Compact (90mm width), DIN-rail mounting or screw fixing. With pre-wired reversing power connections, mechanical interlock (without electrical interlocking). Multi standards certified (IEC, UL, CSA, CCC, EAC), Green Premium compliant (RoHS/REACh).

Products specifications

Attribute nameAttribute value
Main
[Icw] rated short-time withstand current110 A - 100 ms for signalling circuit, 90 A - 500 ms for signalling circuit, 80 A - 1 s for signalling circuit, 20 A 50 °C - >= 15 min for power circuit, 40 A 50 °C - 3 min for power circuit, 45 A 50 °C - 1 min for power circuit, 60 A 50 °C - 30 s for power circuit, 80 A 50 °C - 10 s for power circuit, 85 A 50 °C - 5 s for power circuit, 90 A 50 °C - 1 s for power circuit
Device short nameLC2K
Device applicationcontrol
Tightening torque0.8-1.3 N.m - on screw clamp terminals pozidriv No 2, 0.8-1.3 N.m - on screw clamp terminals flat Ø 6 mm, 0.8-1.3 N.m - on screw clamp terminals Philips No 2
Mechanical durability5 Mcycles
Electrical durability0.05 Mcycles 36 A AC-4 at Ue <= 440 V, 1.3 Mcycles 6 A AC-3e at Ue <= 440 V, 1.3 Mcycles 6 A AC-3 at Ue <= 440 V
Device presentationpreassembled with reversing power busbar
RangeTeSys
Connections - terminalsscrew clamp terminals 2 cable(s) 0.34-1.5 mm²flexible with cable end, screw clamp terminals 2 cable(s) 0.75-4 mm²flexible without cable end, screw clamp terminals 2 cable(s) 1.5-4 mm²solid, screw clamp terminals 1 cable(s) 0.34-2.5 mm²flexible with cable end, screw clamp terminals 1 cable(s) 0.75-4 mm²flexible without cable end, screw clamp terminals 1 cable(s) 1.5-4 mm²solid
Associated fuse rating10 A gG for signalling circuit conforming to VDE 0660, 10 A gG for signalling circuit conforming to IEC 60947, 25 A aM for power circuit, 25 A gG at <= 440 V for power circuit
Irms rated making capacity110 A AC for signalling circuit conforming to IEC 60947, 110 A AC for power circuit conforming to IEC 60947
Rated breaking capacity70 A at 660...690 V conforming to IEC 60947, 80 A at 500 V conforming to IEC 60947, 110 A at 440 V conforming to IEC 60947, 110 A at 415 V conforming to IEC 60947, 110 A at 380...400 V conforming to IEC 60947, 110 A at 220...230 V conforming to IEC 60947
Safety reliability levelB10d = 20000000 cycles contactor with mechanical load conforming to EN/ISO 13849-1, B10d = 1369863 cycles contactor with nominal load conforming to EN/ISO 13849-1
Control circuit typeAC at 50/60 Hz
[Ith] conventional free air thermal current10 A (at 50 °C) for signalling circuit, 20 A (at 60 °C) for power circuit
Range of productTeSys K
Interlocking typemechanical
[Ui] rated insulation voltagesignalling circuit: 600 V conforming to CSA C22.2 No 14, power circuit: 600 V conforming to CSA C22.2 No 14, signalling circuit: 600 V conforming to UL 508, signalling circuit: 690 V conforming to IEC 60947-5-1, signalling circuit: 690 V conforming to IEC 60947-4-1, power circuit: 690 V conforming to IEC 60947-4-1, power circuit: 600 V conforming to UL 508
Motor power kW3 kW at 440/690 V AC 50/60 Hz, 2.2 kW at 380...415 V AC 50/60 Hz, 1.5 kW at 220...230 V AC 50/60 Hz
Overvoltage categoryIII
Operating time10...20 ms coil de-energisation and NO opening, 10...20 ms coil energisation and NO closing
Poles description3P
Maximum operating rate3600 cyc/h
[Ie] rated operational current6 A (at <60 °C) at <= 440 V AC AC-3e for power circuit, 6 A (at <60 °C) at <= 440 V AC AC-3 for power circuit
Utilisation categoryAC-4, AC-3e, AC-3
Pole contact composition3 NO
[Uimp] rated impulse withstand voltage8 kV
Product nameTeSys K
Product or component typereversing contactor
Contactor applicationmotor control
Mounting supportrail, plate
StandardsJIS C8201-4-1, CSA C22.2 No 60947-4-1, UL 60947-4-1, GB/T 14048.4, EN/IEC 60947-4-1
Auxiliary contact composition1 NC
Average impedance3 mOhm - Ith 20 A 50 Hz for power circuit
[Ue] rated operational voltagesignalling circuit: <= 690 V AC 50/60 Hz, power circuit: 690 V AC 50/60 Hz
[Uc] control circuit voltage220...230 V AC 50/60 Hz
Product certificationsUKCA, CE, EAC, CSA, UL, CCC, CB Scheme
Complementary
Heat dissipation1.3-1.3 W
Compatibility codeLC2K
Signalling circuit frequency<= 400 Hz
Minimum switching voltage17 V for signalling circuit
Motor starter typereversing contactor
Control circuit voltage limitsdrop-out: 0.2...0.75 Uc (at <50 °C), operational: 0.8...1.15 Uc (at <50 °C)
Hold-in power consumption in VA4.5-4.5 VA (at 20 °C)
Auxiliary contacts typetype instantaneous 1 NC
Inrush power in VA30-30 VA (at 20 °C)
Power range2.2-3 kW at 480-500 V 3 phases, 1.1-2 kW at 480-500 V 3 phases, 0.55-1 kW at 480-500 V 3 phases, 0-0.5 kW at 480-500 V 3 phases, 2.2-3 kW at 380-440 V 3 phases, 1.1-2 kW at 380-440 V 3 phases, 0.55-1 kW at 380-440 V 3 phases, 0-0.5 kW at 380-440 V 3 phases, 1.1-2 kW at 200-240 V 3 phases, 0.55-1 kW at 200-240 V 3 phases, 0-0.5 kW at 200-240 V 3 phases
Insulation resistance> 10 MOhm for signalling circuit
Contactor coil voltage220 V AC standard, 230 V AC standard
Non overlap distance0.5 mm
Minimum switching current5 mA for signalling circuit
Environment
IP degree of protectionIP20 conforming to VDE 0106
Protective treatmentTC conforming to DIN 50016, TC conforming to IEC 60068
Ambient air temperature for storage-50-80 °C
Ambient air temperature for operation-25-50 °C
Height58 mm
Mechanical robustnessvibrations contactor opened: 2 Gn, 5...300 Hz conforming to IEC 60068-2-6, vibrations contactor closed: 4 Gn, 5...300 Hz conforming to IEC 60068-2-6, shocks contactor opened, on Z axis: 10 Gn for 11 ms conforming to IEC 60068-2-27, shocks contactor opened, on Y axis: 10 Gn for 11 ms conforming to IEC 60068-2-27, shocks contactor opened, on X axis: 6 Gn for 11 ms conforming to IEC 60068-2-27, shocks contactor closed, on Z axis: 15 Gn for 11 ms conforming to IEC 60068-2-27, shocks contactor closed, on Y axis: 15 Gn for 11 ms conforming to IEC 60068-2-27, shocks contactor closed, on X axis: 10 Gn for 11 ms conforming to IEC 60068-2-27
Depth57 mm
Width90 mm
Operating altitude2000 m without derating
Flame retardancerequirement 2 conforming to NF F 16-102, requirement 2 conforming to NF F 16-101, V1 conforming to UL 94
Net weight0.39 kg
Packing Units
Unit Type of Package 11
Number of Units in Package 11
Package 1 Height6.5 cm
Package 1 Width6.0 cm
Package 1 Length9.2 cm
Package 1 Weight363.0 g
Unit Type of Package 22
Number of Units in Package 225
Package 2 Height15.0 cm
Package 2 Width30.0 cm
Package 2 Length40.0 cm
Package 2 Weight9.417 kg
