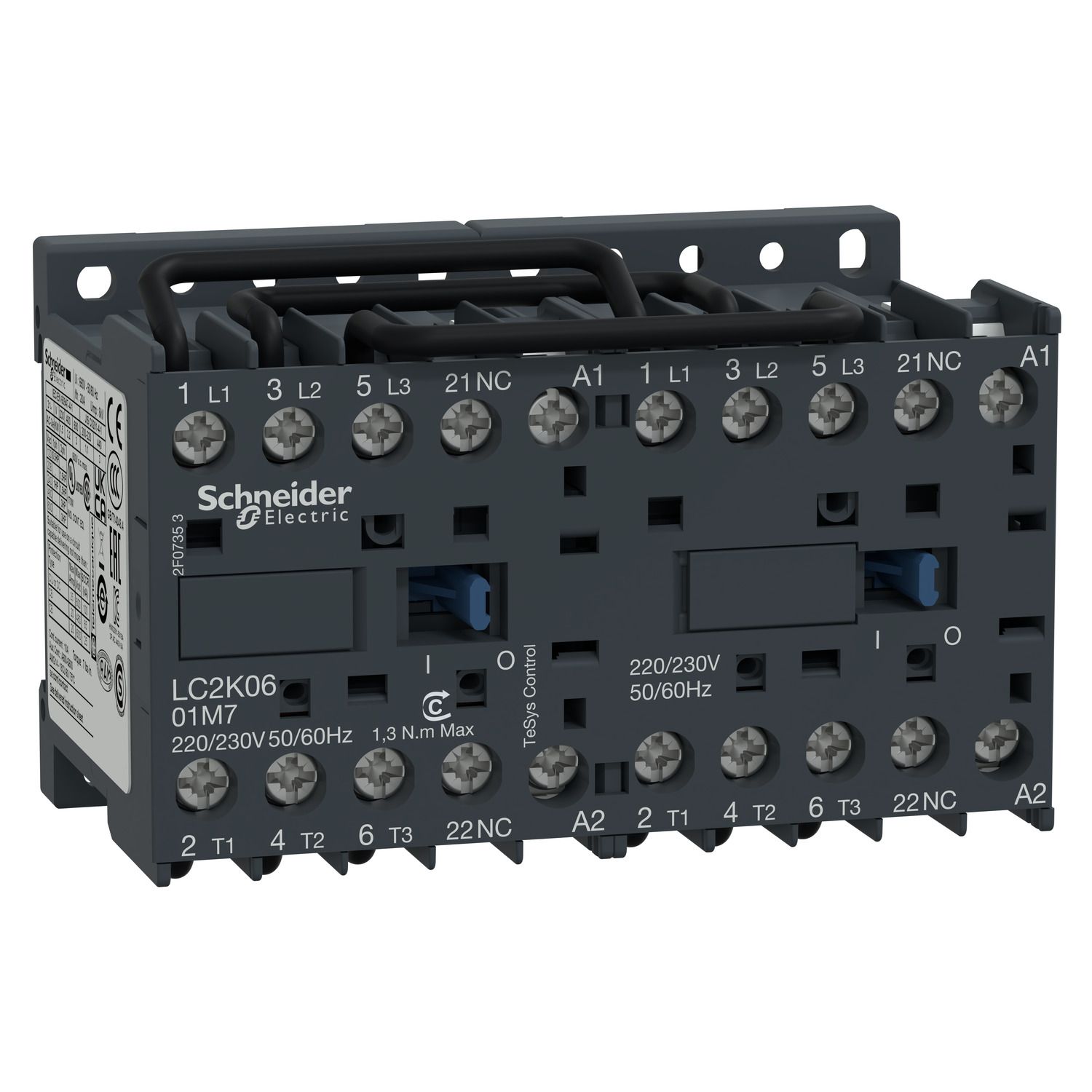

Picture of reversing Contactor, TeSys K, 3P, AC-3/AC-3e, <=440V 6A, 1NC , 230...240VAC coil
SKU:

LC2K0601U7

reversing Contactor, TeSys K, 3P, AC-3/AC-3e, <=440V 6A, 1NC , 230...240VAC coil

$227.38
Product Selector
reversing Contactor, TeSys K, 3P, AC-3/AC-3e, <=440V 6A, 1NC , 230...240VAC coil
  • Pre-wired power circuit connections as standard on screw clamp versions.
  • TeSys K is a compact contactor range with a wide variety of coil voltage and terminal connection options
  • The offer features specific versions for railway (TeSys S207) and electrodomestic (TeSys S335) applications.
  • One of the smallest contactor offerings in the market.
  • The range delivers strong performance for its compact size and promises seamless integration in all applications.
  • Widely used for industry, infrastructure and building applications.
  • Designed for simple control systems
Be the first to review this product
Manufacturer: Schneider Electric
Estimated Delivery Date: 18-Oct-2024
Product environmental
Catalogue
CAD
Declaration of conformity
End of life manual
Instruction sheet
Product Page Link
Product Data Sheet
TeSys K reversing contactor, 3 poles (3NO), for motor control applications up to 6A/690V AC-3 (2.2kW@400V). It provides 230-240V 50/60Hz AC coils, 2NC built-in auxiliary contacts, connection by screw clamp terminals. For operating rates until 600 cycles/hour in AC-3 and environments until 50°C, it procures reliability and durability to standard applications. Compact (90mm width), DIN-rail mounting or screw fixing. With pre-wired reversing power connections, mechanical interlock (without electrical interlocking). Multi standards certified (IEC, UL, CSA, CCC, EAC), Green Premium compliant (RoHS/REACh).

Products specifications

Attribute name Attribute value
Main
[Icw] rated short-time withstand current 110 A - 100 ms for signalling circuit, 90 A - 500 ms for signalling circuit, 80 A - 1 s for signalling circuit, 20 A 50 °C - >= 15 min for power circuit, 40 A 50 °C - 3 min for power circuit, 45 A 50 °C - 1 min for power circuit, 60 A 50 °C - 30 s for power circuit, 80 A 50 °C - 10 s for power circuit, 85 A 50 °C - 5 s for power circuit, 90 A 50 °C - 1 s for power circuit
Device short name LC2K
Device application control
Tightening torque 0.8-1.3 N.m - on screw clamp terminals pozidriv No 2, 0.8-1.3 N.m - on screw clamp terminals flat Ø 6 mm, 0.8-1.3 N.m - on screw clamp terminals Philips No 2
Mechanical durability 5 Mcycles
Electrical durability 0.05 Mcycles 36 A AC-4 at Ue <= 440 V, 1.3 Mcycles 6 A AC-3e at Ue <= 440 V, 1.3 Mcycles 6 A AC-3 at Ue <= 440 V
Device presentation preassembled with reversing power busbar
Range TeSys
Connections - terminals screw clamp terminals 2 cable(s) 0.34-1.5 mm²flexible with cable end, screw clamp terminals 2 cable(s) 0.75-4 mm²flexible without cable end, screw clamp terminals 2 cable(s) 1.5-4 mm²solid, screw clamp terminals 1 cable(s) 0.34-2.5 mm²flexible with cable end, screw clamp terminals 1 cable(s) 0.75-4 mm²flexible without cable end, screw clamp terminals 1 cable(s) 1.5-4 mm²solid
Associated fuse rating 10 A gG for signalling circuit conforming to VDE 0660, 10 A gG for signalling circuit conforming to IEC 60947, 25 A aM for power circuit, 25 A gG at <= 440 V for power circuit
Irms rated making capacity 110 A AC for signalling circuit conforming to IEC 60947, 110 A AC for power circuit conforming to IEC 60947
Rated breaking capacity 70 A at 660...690 V conforming to IEC 60947, 80 A at 500 V conforming to IEC 60947, 110 A at 440 V conforming to IEC 60947, 110 A at 415 V conforming to IEC 60947, 110 A at 380...400 V conforming to IEC 60947, 110 A at 220...230 V conforming to IEC 60947
Safety reliability level B10d = 20000000 cycles contactor with mechanical load conforming to EN/ISO 13849-1, B10d = 1369863 cycles contactor with nominal load conforming to EN/ISO 13849-1
Control circuit type AC at 50/60 Hz
[Ith] conventional free air thermal current 10 A (at 50 °C) for signalling circuit, 20 A (at 60 °C) for power circuit
Range of product TeSys K
Interlocking type mechanical
[Ui] rated insulation voltage signalling circuit: 600 V conforming to CSA C22.2 No 14, power circuit: 600 V conforming to CSA C22.2 No 14, signalling circuit: 600 V conforming to UL 508, signalling circuit: 690 V conforming to IEC 60947-5-1, signalling circuit: 690 V conforming to IEC 60947-4-1, power circuit: 690 V conforming to IEC 60947-4-1, power circuit: 600 V conforming to UL 508
Motor power kW 3 kW at 440/690 V AC 50/60 Hz, 2.2 kW at 380...415 V AC 50/60 Hz, 1.5 kW at 220...230 V AC 50/60 Hz
Overvoltage category III
Operating time 10...20 ms coil de-energisation and NO opening, 10...20 ms coil energisation and NO closing
Poles description 3P
Maximum operating rate 3600 cyc/h
[Ie] rated operational current 6 A (at <60 °C) at <= 440 V AC AC-3e for power circuit, 6 A (at <60 °C) at <= 440 V AC AC-3 for power circuit
Utilisation category AC-4, AC-3e, AC-3
Pole contact composition 3 NO
[Uimp] rated impulse withstand voltage 8 kV
Product name TeSys K
Product or component type reversing contactor
Contactor application motor control
Mounting support plate, rail
Standards JIS C8201-4-1, CSA C22.2 No 60947-4-1, UL 60947-4-1, GB/T 14048.4, EN/IEC 60947-4-1
Auxiliary contact composition 1 NC
Average impedance 3 mOhm - Ith 20 A 50 Hz for power circuit
[Ue] rated operational voltage signalling circuit: <= 690 V AC 50/60 Hz, power circuit: 690 V AC 50/60 Hz
[Uc] control circuit voltage 230...240 V AC 50/60 Hz
Product certifications UKCA, CE, EAC, CSA, UL, CCC, CB Scheme
Complementary
Heat dissipation 1.3-1.3 W
Compatibility code LC2K
Signalling circuit frequency <= 400 Hz
Minimum switching voltage 17 V for signalling circuit
Control circuit voltage limits drop-out: 0.2...0.75 Uc (at <50 °C), operational: 0.8...1.15 Uc (at <50 °C)
Hold-in power consumption in VA 4.5-4.5 VA (at 20 °C)
Auxiliary contacts type type instantaneous 1 NC
Inrush power in VA 30-30 VA (at 20 °C)
Insulation resistance > 10 MOhm for signalling circuit
Non overlap distance 0.5 mm
Minimum switching current 5 mA for signalling circuit
Environment
IP degree of protection IP20 conforming to VDE 0106
Protective treatment TC conforming to DIN 50016, TC conforming to IEC 60068
Ambient air temperature for storage -50-80 °C
Ambient air temperature for operation -25-50 °C
Height 58 mm
Mechanical robustness vibrations contactor opened: 2 Gn, 5...300 Hz conforming to IEC 60068-2-6, vibrations contactor closed: 4 Gn, 5...300 Hz conforming to IEC 60068-2-6, shocks contactor opened, on Z axis: 10 Gn for 11 ms conforming to IEC 60068-2-27, shocks contactor opened, on Y axis: 10 Gn for 11 ms conforming to IEC 60068-2-27, shocks contactor opened, on X axis: 6 Gn for 11 ms conforming to IEC 60068-2-27, shocks contactor closed, on Z axis: 15 Gn for 11 ms conforming to IEC 60068-2-27, shocks contactor closed, on Y axis: 15 Gn for 11 ms conforming to IEC 60068-2-27, shocks contactor closed, on X axis: 10 Gn for 11 ms conforming to IEC 60068-2-27
Depth 57 mm
Width 90 mm
Operating altitude 2000 m without derating
Flame retardance requirement 2 conforming to NF F 16-102, requirement 2 conforming to NF F 16-101, V1 conforming to UL 94
Net weight 0.39 kg
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 6.6 cm
Package 1 Width 9.4 cm
Package 1 Length 5.6 cm
Package 1 Weight 364.0 g
Unit Type of Package 2 2
Number of Units in Package 2 25
Package 2 Height 15.0 cm
Package 2 Width 30.0 cm
Package 2 Length 40.0 cm
Package 2 Weight 9.41 kg
