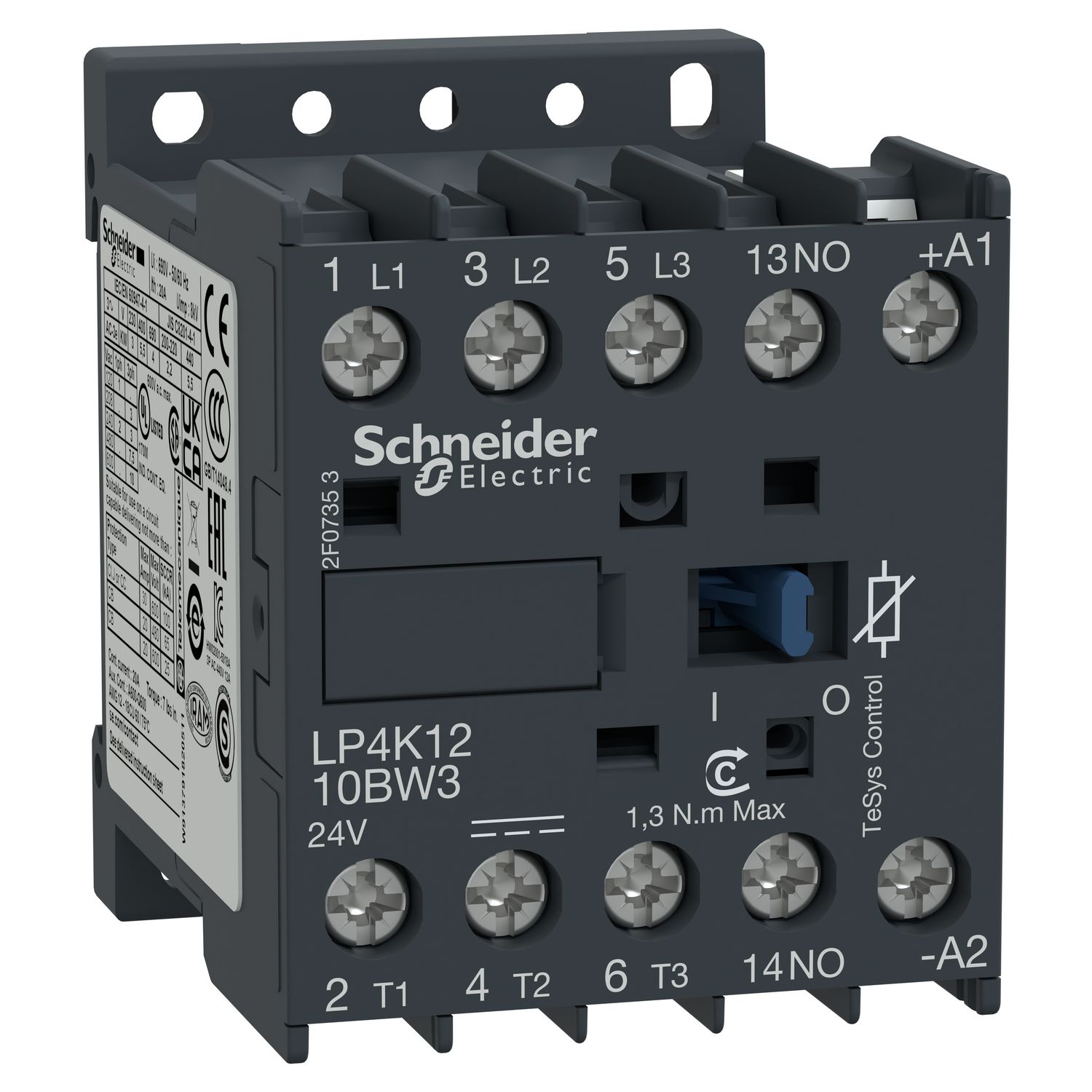

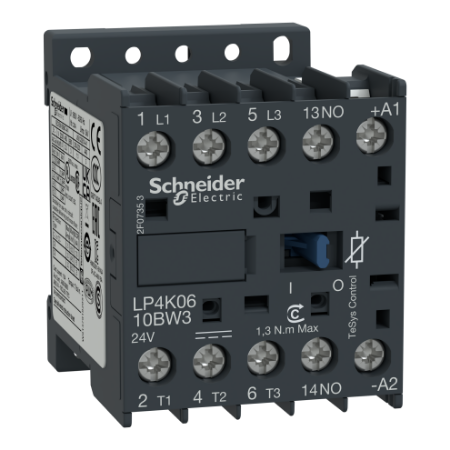

Picture of Contactor, TeSys K, 3P, AC-3/AC-3e, 440V, 12A, 1NO aux, 24V DC low consumption coil,screw clamps terminals
SKU:

LP4K1210BW3

Contactor, TeSys K, 3P, AC-3/AC-3e, 440V, 12A, 1NO aux, 24V DC low consumption coil,screw clamps terminals

$170.94
Available for Shipping : 05-Dec-2024
Product Selector
Contactor, TeSys K, 3P, AC-3/AC-3e, 440V, 12A, 1NO aux, 24V DC low consumption coil,screw clamps terminals
  • TeSys K is a compact contactor range with a wide variety of coil voltage and terminal connection options
  • The offer features specific versions for railway (TeSys S207) and electrodomestic (TeSys S335) applications.
  • One of the smallest contactor offerings in the market.
  • The range delivers strong performance for its compact size and promises seamless integration in all applications.
  • Widely used for industry, infrastructure and building applications.
  • Designed for simple control systems
Be the first to review this product
Manufacturer: Schneider Electric
Product environmental
Catalogue
CAD
Instruction sheet
End of life manual
Declaration of conformity
Product Page Link
Product Data Sheet
TeSys K contactor, 3 poles (3NO), for motor control applications up to 12A/690V AC-3 (5.5kW@400V). It provides a low consumption 24V DC coil with transient suppressor module, 1NO built-in auxiliary contact, connection by screw clamp terminals. For operating rates until 600 cycles/hour in AC-3 and environments until 50°C, it procures reliability and durability to standard applications. Very compact (45mm width), DIN-rail mounting or screw fixing. Multi standards certified (IEC, UL, CSA, CCC, EAC), Green Premium compliant (RoHS/REACh).

Products specifications

Attribute name Attribute value
Main
Device short name LP4K
Range TeSys
Range of product TeSys K
Product or component type contactor
Contactor application resistive load, motor control
Complementary
Heat dissipation 1.8-1.8 W
[Icw] rated short-time withstand current 110 A - 100 ms for signalling circuit, 90 A - 500 ms for signalling circuit, 80 A - 1 s for signalling circuit, 25 A 50 °C - >= 15 min for power circuit, 50 A 50 °C - 3 min for power circuit, 55 A 50 °C - 1 min for power circuit, 75 A 50 °C - 30 s for power circuit, 100 A 50 °C - 10 s for power circuit, 105 A 50 °C - 5 s for power circuit, 115 A 50 °C - 1 s for power circuit
Tightening torque 0.8-1.3 N.m - on screw clamp terminals pozidriv No 2, 0.8-1.3 N.m - on screw clamp terminals flat Ø 6 mm, 0.8-1.3 N.m - on screw clamp terminals Philips No 2
Compatibility code LP4K
Mechanical durability 30 Mcycles
Electrical durability 0.02 Mcycles 72 A AC-4 at Ue <= 440 V, 0.3 Mcycles 20 A AC-1 at Ue <= 690 V, 1.3 Mcycles 12 A AC-3e at Ue <= 440 V, 1.3 Mcycles 12 A AC-3 at Ue <= 440 V
Minimum switching voltage 17 V for signalling circuit
Connections - terminals power circuit: screw clamp terminals 2 cable(s) 1.5-1.5 mm²flexible with cable end, screw clamp terminals 2 cable(s) 0.34-1.5 mm²flexible with cable end, screw clamp terminals 2 cable(s) 0.75-4 mm²flexible without cable end, screw clamp terminals 2 cable(s) 1.5-4 mm²solid, screw clamp terminals 1 cable(s) 0.34-2.5 mm²flexible with cable end, screw clamp terminals 1 cable(s) 0.75-4 mm²flexible without cable end, screw clamp terminals 1 cable(s) 1.5-4 mm²solid
Motor power kW 4 kW at 690 V AC 50/60 Hz AC-4, 5.5 kW at 440 V AC 50/60 Hz AC-4, 5.5 kW at 380...415 V AC 50/60 Hz AC-4, 3 kW at 220...230 V AC 50/60 Hz AC-4, 4 kW at 690 V AC 50/60 Hz AC-3e, 5.5 kW at 440 V AC 50/60 Hz AC-3e, 5.5 kW at 380...415 V AC 50/60 Hz AC-3e, 3 kW at 220...230 V AC 50/60 Hz AC-3e, 4 kW at 690 V AC 50/60 Hz AC-3, 5.5 kW at 440 V AC 50/60 Hz AC-3, 5.5 kW at 380...415 V AC 50/60 Hz AC-3, 3 kW at 220...230 V AC 50/60 Hz AC-3
Associated fuse rating 10 A gG for signalling circuit conforming to VDE 0660, 10 A gG for signalling circuit conforming to IEC 60947, 25 A aM for power circuit, 25 A gG at <= 440 V for power circuit
Irms rated making capacity 110 A AC for signalling circuit conforming to IEC 60947, 144 A AC for power circuit conforming to IEC 60947
Rated breaking capacity 70 A at 660...690 V conforming to IEC 60947, 80 A at 500 V conforming to IEC 60947, 110 A at 440 V conforming to IEC 60947
Safety reliability level B10d = 20000000 cycles contactor with mechanical load conforming to EN/ISO 13849-1, B10d = 1369863 cycles contactor with nominal load conforming to EN/ISO 13849-1
Control circuit type DC wide range
[Ith] conventional free air thermal current 10 A (at 50 °C) for signalling circuit, 20 A (at 60 °C) for power circuit
Control circuit voltage limits drop-out: >= 0.10 Uc (at <50 °C), operational: 0.7...1.3 Uc (at <50 °C)
Height 58 mm
[Ui] rated insulation voltage signalling circuit: 600 V conforming to CSA C22.2 No 14, power circuit: 600 V conforming to CSA C22.2 No 14, signalling circuit: 600 V conforming to UL 508, signalling circuit: 690 V conforming to IEC 60947-5-1, signalling circuit: 690 V conforming to IEC 60947-4-1, power circuit: 690 V conforming to IEC 60947-4-1, power circuit: 600 V conforming to UL 508
Depth 57 mm
Overvoltage category III
Width 45 mm
Operating time 30...40 ms coil energisation and NO closing, 10...20 ms coil de-energisation and NO opening
Poles description 3P
Auxiliary contacts type type instantaneous 1 NO
Inrush power in W 1.8-1.8 W (at 20 °C)
Maximum operating rate 3600 cyc/h
[Ie] rated operational current 20 A (at <60 °C) at <= 690 V AC AC-1 for power circuit, 12 A (at <60 °C) at <= 440 V AC AC-3e for power circuit, 12 A (at <60 °C) at <= 440 V AC AC-3 for power circuit
Utilisation category AC-4, AC-1, AC-3e, AC-3
Coil technology built-in bidirectional peak limiting diode suppressor
Pole contact composition 3 NO
[Uimp] rated impulse withstand voltage 8 kV
Net weight 0.235 kg
Insulation resistance > 10 MOhm for signalling circuit
Hold-in power consumption in W 1.8-1.8 W at 20 °C
Mounting support rail, plate
Auxiliary contact composition 1 NO
Average impedance 3 mOhm - Ith 20 A 50 Hz for power circuit
[Ue] rated operational voltage signalling circuit: <= 690 V AC <= 400 Hz, power circuit: <= 690 V AC <= 400 Hz
[Uc] control circuit voltage 24 V DC
Minimum switching current 5 mA for signalling circuit
Environment
IP degree of protection IP2X
Ambient air temperature for storage -50-80 °C
Standards GB/T 14048.4, CSA C22.2 No 60947-5-1, CSA C22.2 No 60947-4-1, UL 60947-5-1, UL 60947-4-1, EN/IEC 60947-5-1, EN/IEC 60947-4-1
Ambient air temperature for operation -25-50 °C
Operating altitude 2000 m without derating
Flame retardance requirement 2 conforming to NF F 16-102, requirement 2 conforming to NF F 16-101, V1 conforming to UL 94
Product certifications UKCA, CE, EAC, CSA, UL, CCC, CB Scheme
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 5.000 cm
Package 1 Width 6.200 cm
Package 1 Length 6.500 cm
Package 1 Weight 222.300 g
Unit Type of Package 2 2
Number of Units in Package 2 40
Package 2 Height 15.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 9.151 kg
Unit Type of Package 3 3
Number of Units in Package 3 640
Package 3 Height 75.000 cm
Package 3 Width 80.000 cm
Package 3 Length 60.000 cm
Package 3 Weight 154.411 kg

Related products

Picture of TeSys, Auxiliary contact block, TeSys K, 2NC,front mounting, screw clamp terminals

TeSys, Auxiliary contact block, TeSys K, 2NC,front mounting, screw clamp terminals

LA1KN02
$29.84
View Detail
Picture of TeSys, Auxiliary contact block, TeSys K, 1NO + 1NC, front mounting, screw clamp terminals

TeSys, Auxiliary contact block, TeSys K, 1NO + 1NC, front mounting, screw clamp terminals

LA1KN11
$29.77
View Detail
Picture of TeSys, Auxiliary contact block, TeSys K, 2NO, front mounting, screw clamp terminals

TeSys, Auxiliary contact block, TeSys K, 2NO, front mounting, screw clamp terminals

LA1KN20
$29.84
View Detail

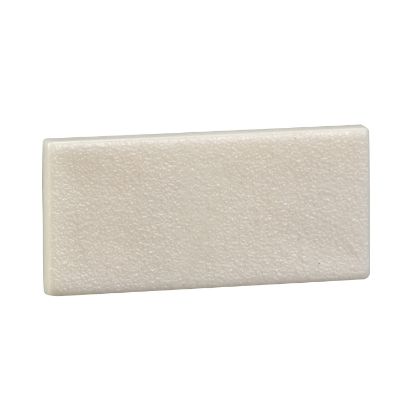

Picture of clip-on marker holder, 8x17mm, for TeSys k contactor or reversing contactor
