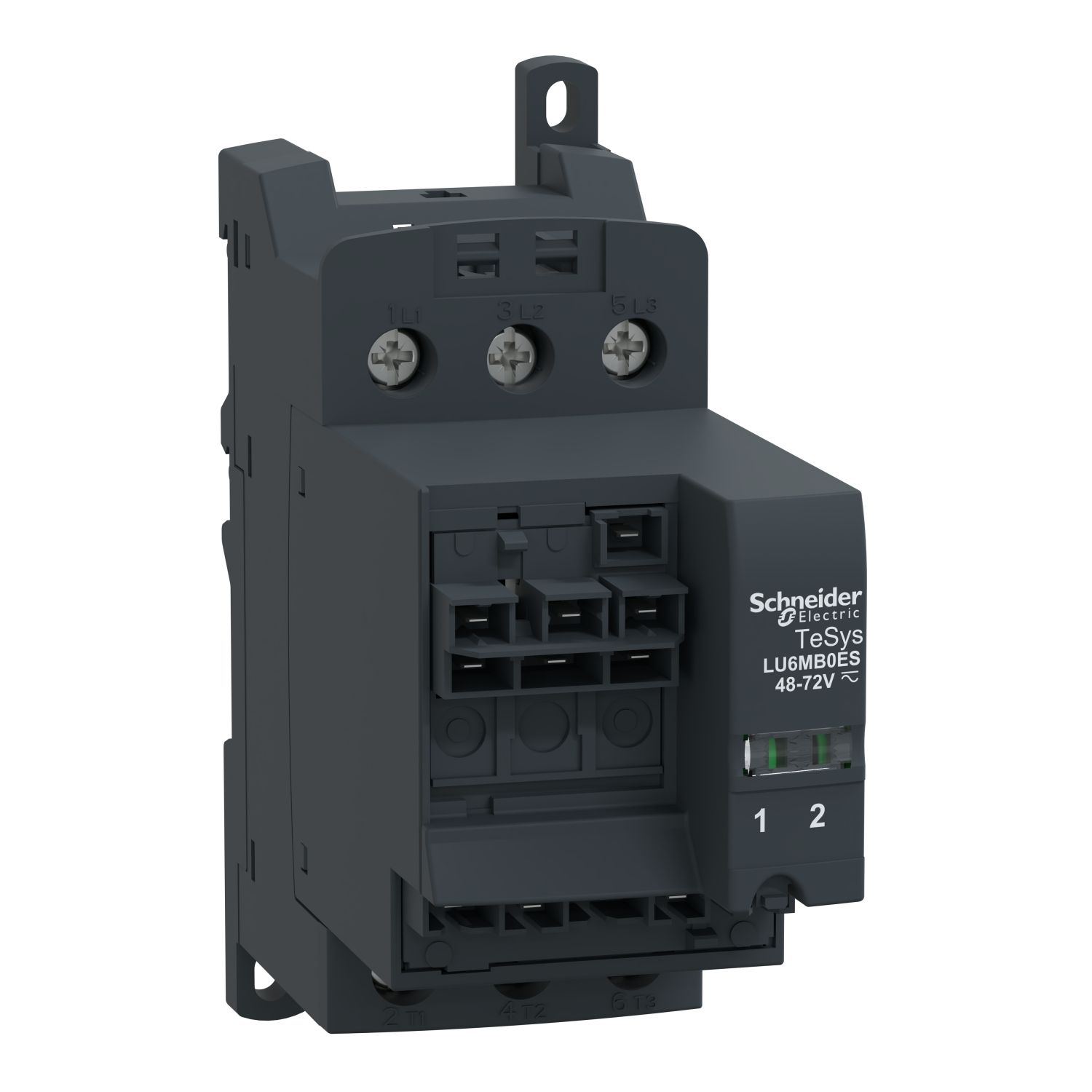

Picture of Reverser block, TeSys Ultra, 32A, 690VAC, 48 to 72VAC/DC coil, for side mounting
SKU:

LU6MB0ES

Reverser block, TeSys Ultra, 32A, 690VAC, 48 to 72VAC/DC coil, for side mounting

$687.94
Available for Shipping : 05-Jan-2025
Reverser block, TeSys Ultra, 32A, 690VAC, 48 to 72VAC/DC coil, for side mounting
  • Protection against overload and short-circuit
  • Control unit includes electronic components and the current adjustment dial
  • Modular, plug & play structure helps you to perform quick maintenance
  • Direct access to detailed information for every motor starter of your installation
  • Advanced motor management system
Be the first to review this product
Manufacturer: Schneider Electric
Catalogue
Instruction sheet
Product Page Link
Product Data Sheet
TeSys U reversing module for side mounting, for the constitution of TeSys U reversing starter controllers. It provides reverse power contacts, coil control with interlocking capabilities to be supplied with 48V AC / 48-72V DC. To be used with an advanced power base LUB120 or LUB320 equipped with a Control Unit LUC*ES type. To be associated with an assembling connector LU9MR1 and a control terminal block LU9M1 to complete the side mounting. Green Premium compliant (RoHS/REACh).

Products specifications

Attribute name Attribute value
Main
Device short name LU6MB
Device application motor control
[Ie] rated operational current 32 A
Range TeSys
Current consumption 2300 mA at 48...72 V DC I maximum while closing, 2300 mA at 48 V AC I maximum while closing
Product or component type reverser block
[Uc] control circuit voltage 48...72 V DC, 48 V AC 50/60 Hz
Device mounting separate mounting
Range of product TeSys Ultra
Complementary
Network frequency 40...60 Hz
Depth 113 mm
Tightening torque power circuit: 1.9-2.5 N.m pozidriv No 2 screwdriver 6 mm, power circuit: 1.9-2.5 N.m Philips No 2 screwdriver 6 mm, power circuit: 1.9-2.5 N.m flat screwdriver 6 mm, control circuit: 0.8-1.2 N.m Philips No 2 screwdriver 5 mm, control circuit: 0.8-1.2 N.m flat screwdriver 5 mm
Width 45 mm
Operating time 75 ms without change of direction, 150 ms with change of direction
Compatibility code LU6MB
[Ui] rated insulation voltage 600 V conforming to CSA C22.2 No 60947-4-1, 600 V conforming to UL 60947-4-1, 690 V conforming to IEC 60947-6-2
Standards CSA C22.2 No 60947-4-1, with phase barrier, UL 60947-4-1, with phase barrier, IEC 60947-6-2, EN 60947-6-2
Inrush restraint duration 15 ms DC, 25 ms AC
[Uimp] rated impulse withstand voltage 6 kV conforming to IEC 60947-6-2
Fixing mode screw-fixed (plate), clipped (DIN rail)
Net weight 0.425 kg
Connections - terminals power circuit: screw clamp terminals 2 cable(s) 1.5-6 mm² (external diameter: 4 mm) flexible without cable end, power circuit: screw clamp terminals 2 cable(s) 1-6 mm² (external diameter: 4 mm) rigid, power circuit: screw clamp terminals 2 cable(s) 1-6 mm² (external diameter: 4 mm) flexible with cable end, power circuit: screw clamp terminals 1 cable(s) 2.5-10 mm² (external diameter: 4 mm) flexible without cable end, power circuit: screw clamp terminals 1 cable(s) 1-6 mm² (external diameter: 4 mm) flexible with cable end, power circuit: screw clamp terminals 1 cable(s) 1-10 mm² (external diameter: 4 mm) rigid, control circuit: screw clamp terminals 2 cable(s) 0.75-1.5 mm² (external diameter: 3 mm) rigid, control circuit: screw clamp terminals 2 cable(s) 0.75-1.5 mm² (external diameter: 3 mm) flexible without cable end, control circuit: screw clamp terminals 2 cable(s) 0.34-1.5 mm² (external diameter: 3 mm) flexible with cable end, control circuit: screw clamp terminals 1 cable(s) 0.75-1.5 mm² (external diameter: 3 mm) rigid, control circuit: screw clamp terminals 1 cable(s) 0.75-1.5 mm² (external diameter: 3 mm) flexible without cable end, control circuit: screw clamp terminals 1 cable(s) 0.34-1.5 mm² (external diameter: 3 mm) flexible with cable end
Height 115 mm
[Ue] rated operational voltage 690 V AC power circuit
Product certifications Marine, ATEX, ASEFA, EAC, CCC, CSA, UL, CE
Environment
Resistance to fast transients 4 kV class 4 all circuits except for serial link conforming to IEC 61000-4-4, 2 kV class 3 serial link conforming to IEC 61000-4-4
Immunity to radioelectric fields 10 V conforming to IEC 61000-4-6
Fire resistance 650 °C conforming to IEC 60695-2-12, 960 °C parts supporting live components conforming to IEC 60695-2-12
Operating altitude 2000 m
Resistance to electrostatic discharge 8 kV level 4, on contact conforming to IEC 61000-4-2, 8 kV level 3, in open air conforming to IEC 61000-4-2
IP degree of protection IP40 conforming to IEC 60947-1 (front panel outside connection zone), IP20 conforming to IEC 60947-1 (other faces), IP20 conforming to IEC 60947-1 (front panel and wired terminals)
Protective treatment TH conforming to IEC 60068
Ambient air temperature for storage -40-85 °C
Vibration resistance 4 gn (f= 5-300 Hz) power poles closed conforming to IEC 60068-2-27, 2 gn (f= 5-300 Hz) power poles open conforming to IEC 60068-2-27
Shock resistance 15 gn power poles closed conforming to IEC 60068-2-27, 10 gn power poles open conforming to IEC 60068-2-27
Non-dissipating shock wave 2 kV common mode conforming to IEC 60947-6-2, 1 kV serial mode conforming to IEC 60947-6-2
Resistance to radiated fields 10 V/m level 3 conforming to IEC 61000-4-3
Ambient air temperature for operation -25-70 °C with LUCA, LUCB, LUCC, LUCD, -25-60 °C with LUCM
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 6.0 cm
Package 1 Width 13.1 cm
Package 1 Length 14.2 cm
Package 1 Weight 442.0 g
Unit Type of Package 2 2
Number of Units in Package 2 10
Package 2 Height 15.0 cm
Package 2 Width 30.0 cm
Package 2 Length 40.0 cm
Package 2 Weight 4.875 kg
