SKU:

LU9M1

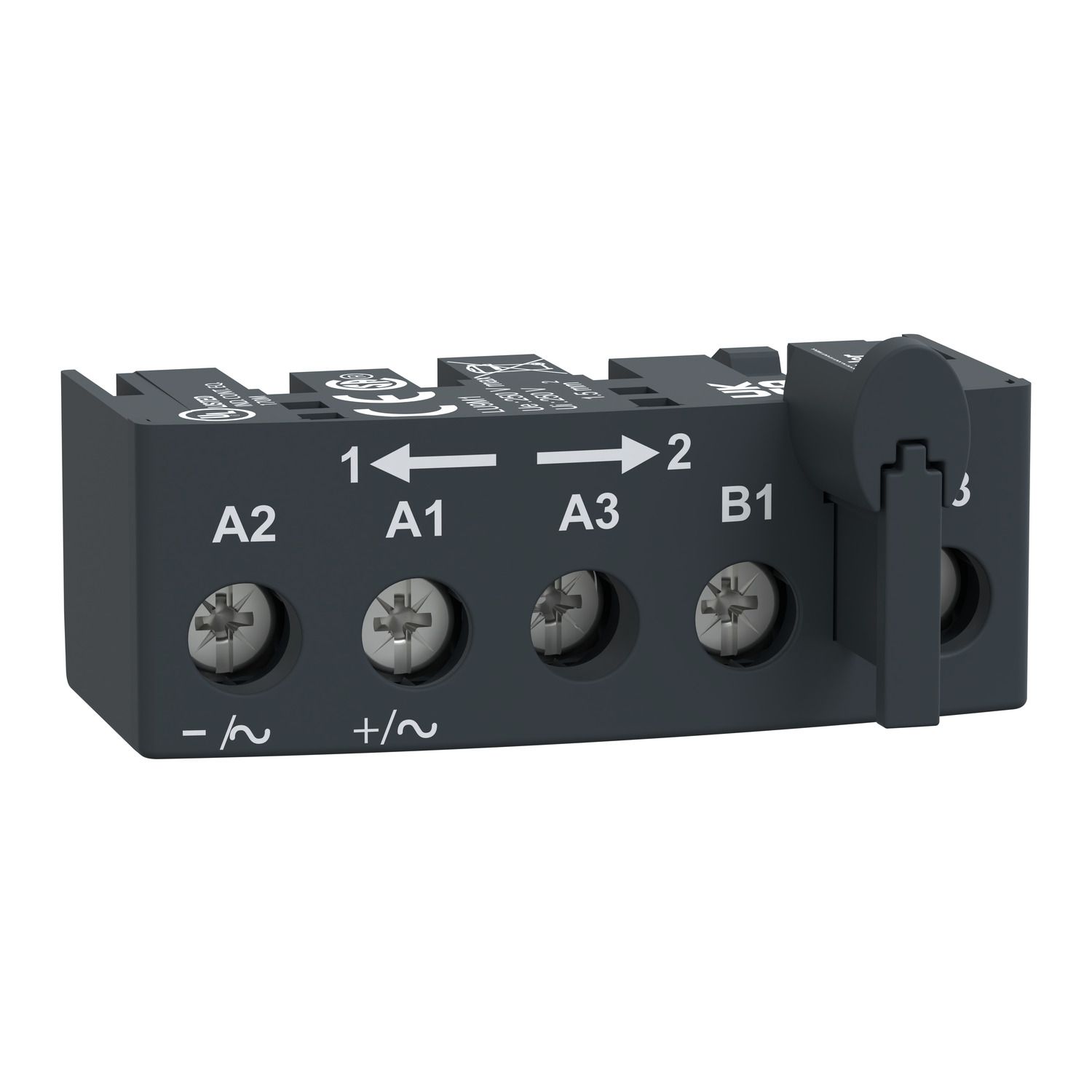

Control terminal block, TeSys Ultra, for reversing motor starter

$22.43
Available for Shipping : 12-Dec-2024
Control terminal block, TeSys Ultra, for reversing motor starter
  • Coil terminal block for wired control
  • Coil supply connector
  • Modular, plug & play structure helps you to perform quick maintenance
  • Direct access to detailed information for every motor starter of your installation
  • Advanced motor management system
Manufacturer: Schneider Electric
TeSys U control terminal block to be inserted in a reverser block LU2M* or LU6M* for the local wired control of a reversing starter controller. To be used for FW/RV/OFF control of reversing motor applications with wired control. It provides screw clamp terminals for the wiring of the FW/RV/OFF control circuit (2 directions of rotation). Block included with a reversing power base LU2B12, LU2B32, LU2B38. Green Premium compliant (RoHS/REACh).

Products specifications

Attribute name Attribute value
Main
Device short name LU9M
Product compatibility LU6MB0.., LU2BA0.., LU2BB0.., LU2MB0..
Range TeSys
Product or component type control terminal block
Range of product TeSys Ultra
Complementary
Compatibility code LU9M
Net weight 0.025 kg
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 3.0 cm
Package 1 Width 6.0 cm
Package 1 Length 6.0 cm
Package 1 Weight 21.0 g
Unit Type of Package 2 2
Number of Units in Package 2 30
Package 2 Height 15.0 cm
Package 2 Width 15.0 cm
Package 2 Length 40.0 cm
Package 2 Weight 844.0 g
