SKU:

LU6MB0FU

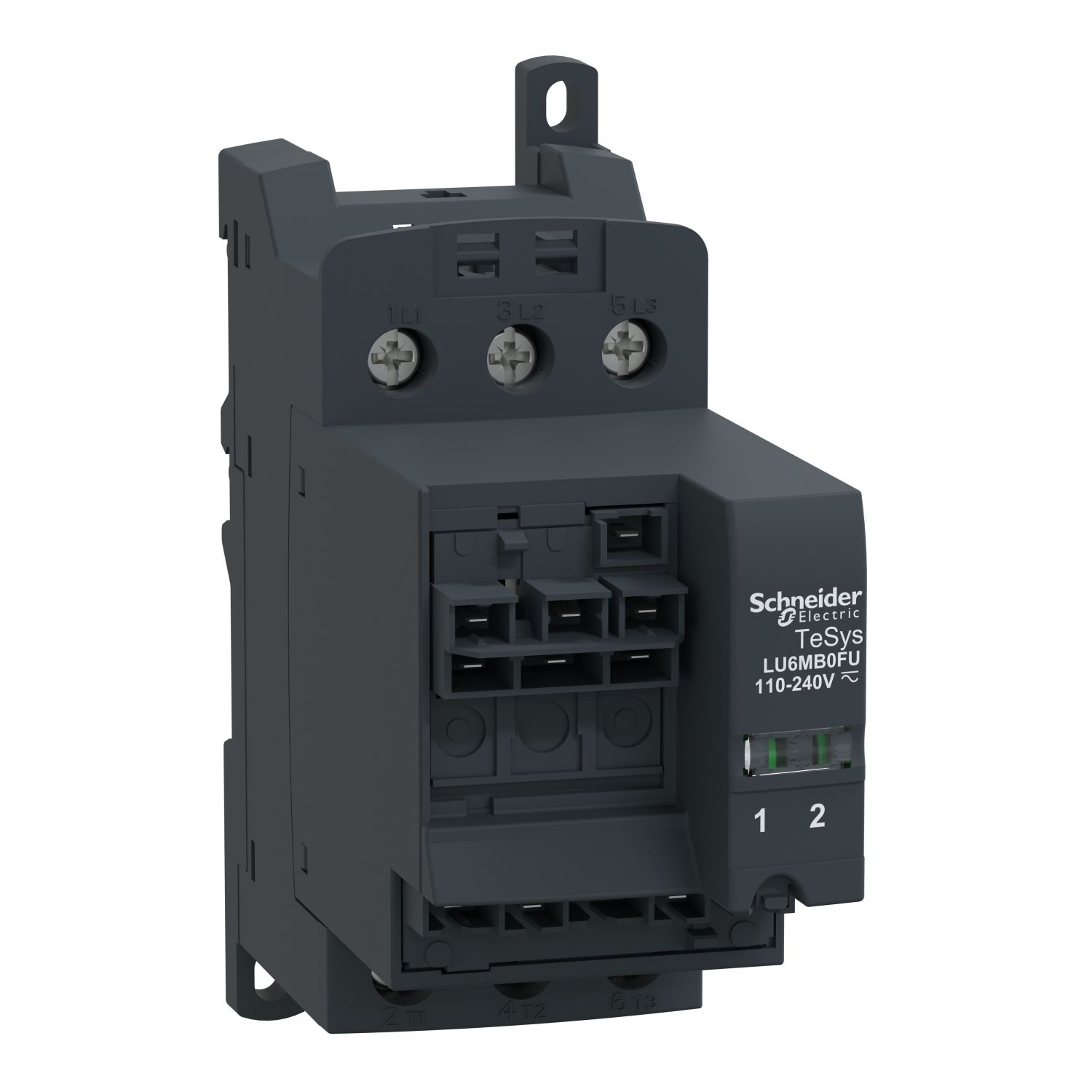

Reverser block, TeSys Ultra, 38A, 690VAC, 110 to 240VAC/DC coil, for side mounting

$687.94

Qty:

Available for Shipping : 03-Dec-2024

Reverser block, TeSys Ultra, 38A, 690VAC, 110 to 240VAC/DC coil, for side mounting

Protection against overload and short-circuit

Control unit includes electronic components and the current adjustment dial

Modular, plug & play structure helps you to perform quick maintenance

Direct access to detailed information for every motor starter of your installation

Advanced motor management system

Be the first to review this product

Manufacturer: Schneider Electric

Catalogue

Instruction sheet

Product Page Link

Product Data Sheet

TeSys U reversing module for side mounting, for the constitution of TeSys U reversing starter controllers. It provides reverse power contacts, coil control with interlocking capabilities to be supplied with 110-240V AC / 110-220V DC. To be used with an advanced power base LUB120, LUB320, or LUB380 equipped with a Control Unit LUC*FU type. To be associated with an assembling connector LU9MR1 and a control terminal block LU9M1 to complete the side mounting. Green Premium compliant (RoHS/REACh).

Products specifications

Attribute name	Attribute value
Main
Device short name	LU6MB
Device application	motor control
[Ie] rated operational current	38 A
Range	TeSys
Current consumption	1000 mA at 110...240 V AC I maximum while closing, 1000 mA at 110...220 V DC I maximum while closing
Product or component type	reverser block
[Uc] control circuit voltage	110...220 V DC, 110...240 V AC 50/60 Hz
Device mounting	separate mounting
Range of product	TeSys Ultra
Complementary
Network frequency	40...60 Hz
Depth	113 mm
Tightening torque	power circuit: 1.9-2.5 N.m pozidriv No 2 screwdriver 6 mm, power circuit: 1.9-2.5 N.m Philips No 2 screwdriver 6 mm, power circuit: 1.9-2.5 N.m flat screwdriver 6 mm, control circuit: 0.8-1.2 N.m Philips No 2 screwdriver 5 mm, control circuit: 0.8-1.2 N.m flat screwdriver 5 mm
Width	45 mm
Operating time	75 ms without change of direction, 150 ms with change of direction
Compatibility code	LU6MB
[Ui] rated insulation voltage	600 V conforming to CSA C22.2 No 60947-4-1, 600 V conforming to UL 60947-4-1, 690 V conforming to IEC 60947-6-2
Standards	CSA C22.2 No 60947-4-1, with phase barrier, UL 60947-4-1, with phase barrier, IEC 60947-6-2, EN 60947-6-2
Inrush restraint duration	15 ms DC, 25 ms AC
[Uimp] rated impulse withstand voltage	6 kV conforming to IEC 60947-6-2
Fixing mode	screw-fixed (plate), clipped (DIN rail)
Net weight	0.425 kg
Connections - terminals	power circuit: screw clamp terminals 2 cable(s) 1.5-6 mm² (external diameter: 4 mm) flexible without cable end, power circuit: screw clamp terminals 2 cable(s) 1-6 mm² (external diameter: 4 mm) rigid, power circuit: screw clamp terminals 2 cable(s) 1-6 mm² (external diameter: 4 mm) flexible with cable end, power circuit: screw clamp terminals 1 cable(s) 2.5-10 mm² (external diameter: 4 mm) flexible without cable end, power circuit: screw clamp terminals 1 cable(s) 1-6 mm² (external diameter: 4 mm) flexible with cable end, power circuit: screw clamp terminals 1 cable(s) 1-10 mm² (external diameter: 4 mm) rigid, control circuit: screw clamp terminals 2 cable(s) 0.75-1.5 mm² (external diameter: 3 mm) rigid, control circuit: screw clamp terminals 2 cable(s) 0.75-1.5 mm² (external diameter: 3 mm) flexible without cable end, control circuit: screw clamp terminals 2 cable(s) 0.34-1.5 mm² (external diameter: 3 mm) flexible with cable end, control circuit: screw clamp terminals 1 cable(s) 0.75-1.5 mm² (external diameter: 3 mm) rigid, control circuit: screw clamp terminals 1 cable(s) 0.75-1.5 mm² (external diameter: 3 mm) flexible without cable end, control circuit: screw clamp terminals 1 cable(s) 0.34-1.5 mm² (external diameter: 3 mm) flexible with cable end
Height	115 mm
[Ue] rated operational voltage	690 V AC power circuit
Product certifications	Marine, ATEX, ASEFA, EAC, CCC, CSA, UL, CE
Environment
Resistance to fast transients	4 kV class 4 all circuits except for serial link conforming to IEC 61000-4-4, 2 kV class 3 serial link conforming to IEC 61000-4-4
Immunity to radioelectric fields	10 V conforming to IEC 61000-4-6
Fire resistance	650 °C conforming to IEC 60695-2-12, 960 °C parts supporting live components conforming to IEC 60695-2-12
Operating altitude	2000 m
Resistance to electrostatic discharge	8 kV level 4, on contact conforming to IEC 61000-4-2, 8 kV level 3, in open air conforming to IEC 61000-4-2
IP degree of protection	IP40 conforming to IEC 60947-1 (front panel outside connection zone), IP20 conforming to IEC 60947-1 (other faces), IP20 conforming to IEC 60947-1 (front panel and wired terminals)
Protective treatment	TH conforming to IEC 60068
Ambient air temperature for storage	-40-85 °C
Vibration resistance	4 gn (f= 5-300 Hz) power poles closed conforming to IEC 60068-2-27, 2 gn (f= 5-300 Hz) power poles open conforming to IEC 60068-2-27
Shock resistance	15 gn power poles closed conforming to IEC 60068-2-27, 10 gn power poles open conforming to IEC 60068-2-27
Non-dissipating shock wave	2 kV common mode conforming to IEC 60947-6-2, 1 kV serial mode conforming to IEC 60947-6-2
Resistance to radiated fields	10 V/m level 3 conforming to IEC 61000-4-3
Ambient air temperature for operation	-25-70 °C with LUCA, LUCB, LUCC, LUCD, -25-60 °C with LUCM
Packing Units
Unit Type of Package 1	1
Number of Units in Package 1	1
Package 1 Height	14.500 cm
Package 1 Width	5.700 cm
Package 1 Length	13.000 cm
Package 1 Weight	444.000 g
Unit Type of Package 2	2
Number of Units in Package 2	10
Package 2 Height	15.000 cm
Package 2 Width	30.000 cm
Package 2 Length	40.000 cm
Package 2 Weight	4.722 kg
