SKU:

LUB120

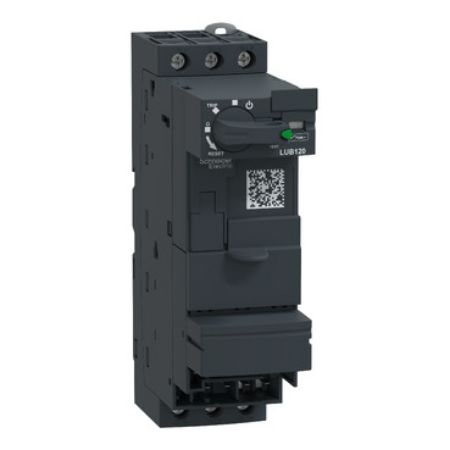

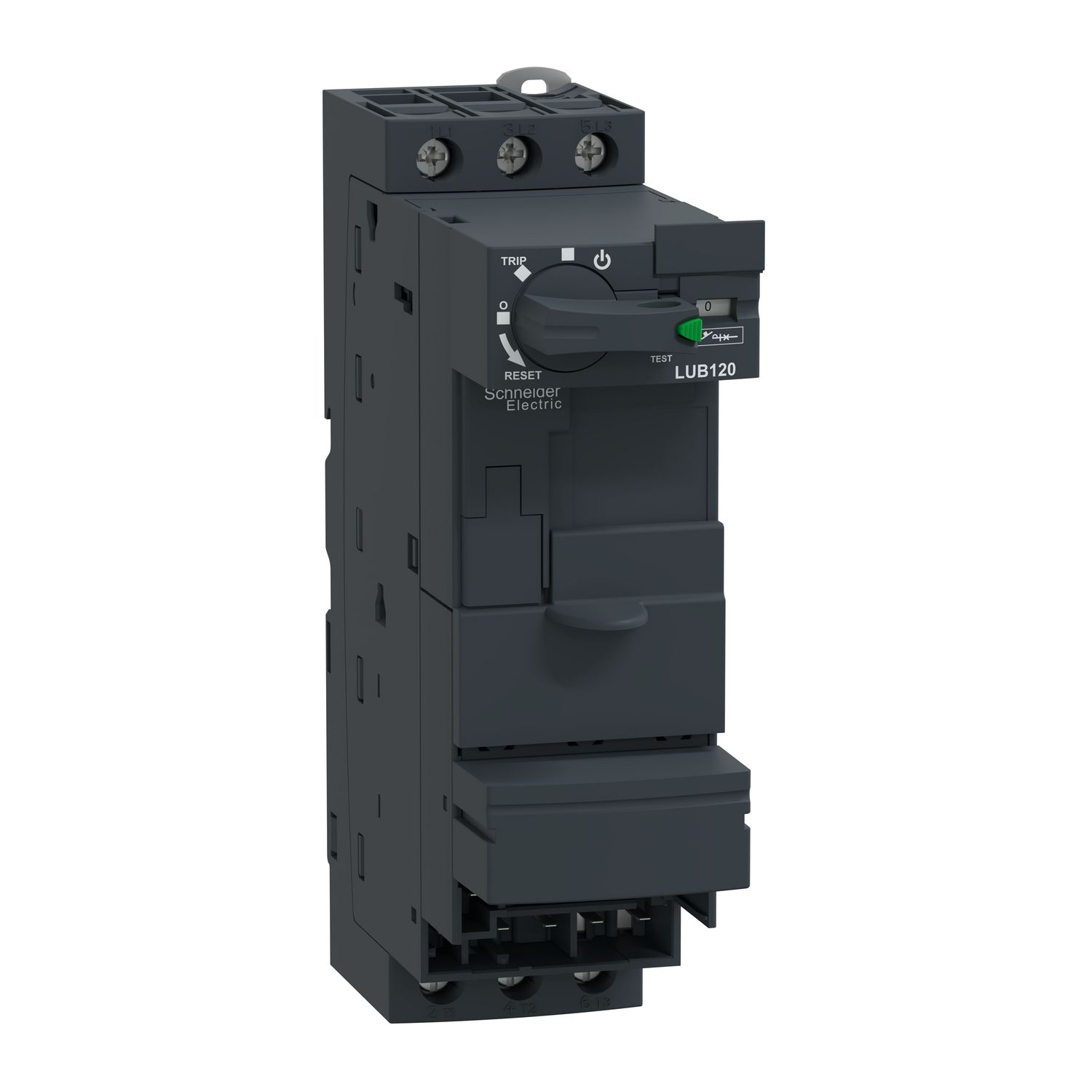

Non reversing power base, TeSys Ultra, 3P, 1NO + 1NC, 12A, 690V, Advanced power base

$268.84

Qty:

Available for Shipping : 17-Nov-2024

Non reversing power base, TeSys Ultra, 3P, 1NO + 1NC, 12A, 690V, Advanced power base

Number of direction of rotation to be controlled is 1

Type of control to be achieved is Advanced control

Modular, plug & play structure helps you to perform quick maintenance

Direct access to detailed information for every motor starter of your installation

Advanced motor management system

Be the first to review this product

Manufacturer: Schneider Electric

User guide

Catalogue

Product environmental

Instruction sheet

End of life manual

Product Page Link

Product Data Sheet

TeSys U advanced power base, 3 poles (3NO), 12A/690V, to be completed with a control unit LUC to form a TeSys U starter controller, for 3-phase motor applications up to 5.5kW@400V. Base composed of power contacts, control coil, rotary handle, with a modular design for additional modules to form a "all in one" starter controller with basic or advanced protection and control functions. It is equipped with auxiliary signaling contacts (1NO+1NC), a control terminal block, and blanking shutters covering the empty cavities. It provides a high breaking capacity Icu 50kA@400V, start-stop control guaranteed for 3600 cycles/hour. Very compact (45mm width), DIN-rail mounting and screw fixing, with a padlockable rotary handle. Certified when used in conjunction with a LUC control unit (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).

Products specifications

Attribute name	Attribute value
Main
Device short name	LUB
Device application	motor protection, motor control
Range	TeSys
Range of product	TeSys Ultra
[Ics] rated service breaking capacity	4 kA at 690 V, 10 kA at 500 V, 50 kA at 440 V, 50 kA at 230 V
Network frequency	40...60 Hz
Poles description	3P
Auxiliary contacts type	type mirror contact (1 NC) conforming to IEC 60947-1, type linked contacts (1 NO + 1 NC) conforming to IEC 60947-4-1
Suitability for isolation	yes
[Ie] rated operational current	9 A at 690 V, 12 A at 500 V, 12 A at <= 440 V
Utilisation category	AC-41, AC-44, AC-43
Product name	TeSys Ultra
[Ith] conventional free air thermal current	12 A
Product or component type	non reversing power base
[Uc] control circuit voltage	110...220 V DC, 110...240 V AC 50/60 Hz, 48...72 V DC, 48...72 V AC 50/60 Hz, 24 V DC, 24 V AC 50/60 Hz
Auxiliary contact composition	1 NO + 1 NC
[Ue] rated operational voltage	690 V AC for power circuit
Complementary
Heat dissipation	1.7-1.7 W for control circuit with LUCM, 2-2 W for control circuit with LUCA, LUCB, LUCC, LUCD
Safe separation of circuit	400 V SELV between the control or auxiliary circuit and the main circuit conforming to IEC 60947-1 appendix N, 400 V SELV between the control and auxiliary circuits conforming to IEC 60947-1 appendix N
Tightening torque	power circuit: 1.9-2.5 N.m pozidriv No 2 screwdriver 6 mm, power circuit: 1.9-2.5 N.m Philips No 2 screwdriver 6 mm, power circuit: 1.9-2.5 N.m flat screwdriver 6 mm, control circuit: 0.8-1.2 N.m Philips no 1 screwdriver 5 mm, control circuit: 0.8-1.2 N.m flat screwdriver 5 mm
Compatibility code	LUB
Mechanical durability	15 Mcycles
Typical current consumption	70 mA at 24 V DC I rms sealed with LUCM, 70 mA at 24 V AC I rms sealed with LUCA, LUCB, LUCC, LUCD, 60 mA at 24 V DC I rms sealed with LUCA, LUCB, LUCC, LUCD, 35 mA at 48...72 V DC I rms sealed with LUCA, LUCB, LUCC, LUCD, 35 mA at 48...72 V AC I rms sealed with LUCA, LUCB, LUCC, LUCD, 35 mA at 110...240 V AC I rms sealed with LUCA, LUCB, LUCC, LUCD, 35 mA at 110...220 V DC I rms sealed with LUCA, LUCB, LUCC, LUCD, 280 mA at 48...72 V DC I maximum while closing with LUCA, LUCB, LUCC, LUCD, 280 mA at 48...72 V AC I maximum while closing with LUCA, LUCB, LUCC, LUCD, 280 mA at 110...240 V AC I maximum while closing with LUCA, LUCB, LUCC, LUCD, 280 mA at 110...220 V DC I maximum while closing with LUCA, LUCB, LUCC, LUCD, 150 mA at 24 V DC I maximum while closing with LUCM, 140 mA at 24 V AC I maximum while closing with LUCA, LUCB, LUCC, LUCD, 130 mA at 24 V DC I maximum while closing with LUCA, LUCB, LUCC, LUCD
Fixing mode	screw-fixed (plate), clipped (DIN rail)
Connections - terminals	control circuit: without connection, power circuit: screw clamp terminals 2 cable(s) 1.5-6 mm² flexible without cable end, power circuit: screw clamp terminals 2 cable(s) 1-6 mm² rigid, power circuit: screw clamp terminals 2 cable(s) 1-6 mm² flexible with cable end, power circuit: screw clamp terminals 1 cable(s) 2.5-10 mm² flexible without cable end, power circuit: screw clamp terminals 1 cable(s) 1-6 mm² flexible with cable end, power circuit: screw clamp terminals 1 cable(s) 1-10 mm² rigid
Maximum operating rate	3600 cyc/h
Safety reliability level	B10d = 20000000 cycles contactor with mechanical load conforming to EN/ISO 13849-1, B10d = 1369863 cycles contactor with nominal load conforming to EN/ISO 13849-1
Height	154 mm
Depth	126 mm
Width	45 mm
Operating time	75 ms closing with LUCM for control circuit, 70 ms at 24 V closing with LUCA, LUCB, LUCC, LUCD for control circuit, 60 ms at 48 V closing with LUCA, LUCB, LUCC, LUCD for control circuit, 50 ms at >= 72 V closing with LUCA, LUCB, LUCC, LUCD for control circuit, 35 ms opening with LUCA, LUCB, LUCC, LUCD, LUCM for control circuit
[Ui] rated insulation voltage	600 V conforming to CSA C22.2 No 60947-4-1, 600 V conforming to UL 60947-4-1, 690 V conforming to IEC 60947-6-2 (pollution degree 3)
Standards	CSA C22.2 No 60947-4-1, with phase barrier, UL 60947-4-1, with phase barrier, IEC 60947-6-2, EN 60947-6-2
[Uimp] rated impulse withstand voltage	6 kV conforming to IEC 60947-6-2
Net weight	0.865 kg
Product certifications	Marine, ATEX, ASEFA, EAC, CCC, CSA, UL, CE
Environment
Resistance to fast transients	4 kV class 4 all circuits except for serial link conforming to IEC 61000-4-4, 2 kV class 3 serial link conforming to IEC 61000-4-4
Fire resistance	650 °C conforming to IEC 60695-2-12, 960 °C parts supporting live components conforming to IEC 60695-2-12
IP degree of protection	IP40 conforming to IEC 60947-1 (front panel outside connection zone), IP20 conforming to IEC 60947-1 (other faces), IP20 conforming to IEC 60947-1 (front panel and wired terminals)
Resistance to electrostatic discharge	8 kV level 4 on contact conforming to IEC 61000-4-2, 8 kV level 3 in open air conforming to IEC 61000-4-2
Protective treatment	TH conforming to IEC 60068
Ambient air temperature for storage	-40-85 °C
Immunity to voltage dips	70 % / 500 ms conforming to IEC 61000-4-11
Shock resistance	15 gn power poles closed conforming to IEC 60068-2-27, 10 gn power poles open conforming to IEC 60068-2-27
Non-dissipating shock wave	2 kV common mode 48...220 V DC conforming to IEC 60947-6-2, 2 kV common mode 24...240 V AC conforming to IEC 60947-6-2, 1 kV serial mode 48...220 V DC conforming to IEC 60947-6-2, 1 kV serial mode 24...240 V AC conforming to IEC 60947-6-2
Ambient air temperature for operation	-25-70 °C with LUCA, LUCB, LUCC, LUCD, -25-60 °C with LUCM
Operating altitude	2000 m
Immunity to radioelectric fields	10 V conforming to IEC 61000-4-6
Vibration resistance	4 gn (f= 5-300 Hz) power poles closed conforming to IEC 60068-2-27, 2 gn (f= 5-300 Hz) power poles open conforming to IEC 60068-2-27
Immunity to microbreaks	3 ms for control circuit
Resistance to radiated fields	10 V/m 3 conforming to IEC 61000-4-3
Packing Units
Unit Type of Package 1	1
Number of Units in Package 1	1
Package 1 Height	5.200 cm
Package 1 Width	13.500 cm
Package 1 Length	16.700 cm
Package 1 Weight	817.000 g
Unit Type of Package 2	2
Number of Units in Package 2	10
Package 2 Height	15.000 cm
Package 2 Width	30.000 cm
Package 2 Length	40.000 cm
Package 2 Weight	8.417 kg
Unit Type of Package 3	3
Number of Units in Package 3	160
Package 3 Height	75.000 cm
Package 3 Width	60.000 cm
Package 3 Length	80.000 cm
Package 3 Weight	141.000 kg
