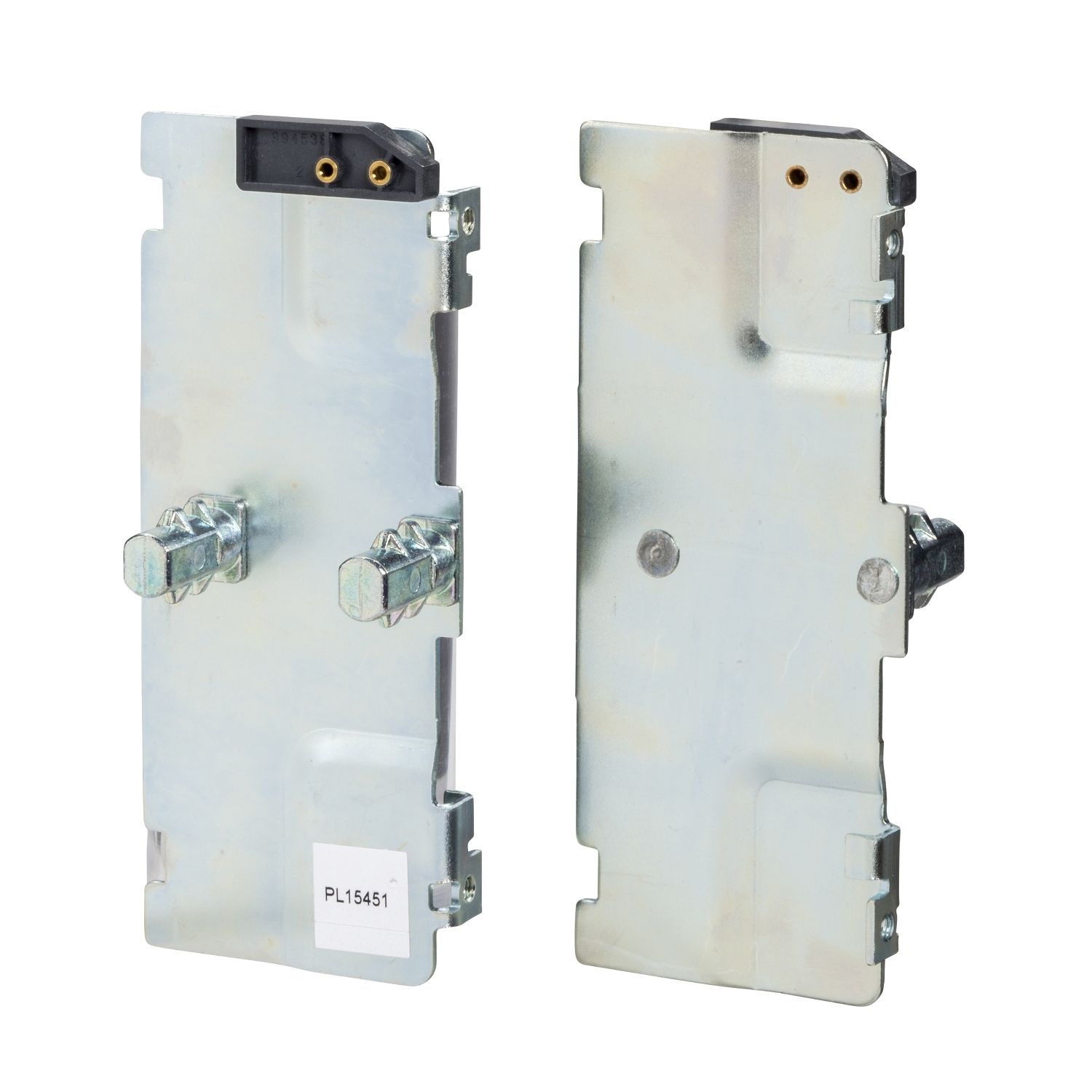

Picture of chassis side plates for breaker, ComPact NSX100/160/250 withdrawable, 2/3/4 poles
SKU:

LV429283

chassis side plates for breaker, ComPact NSX100/160/250 withdrawable, 2/3/4 poles

Old price: $198.44 INC GST
$162.32 INC GST
Available for Shipping : 15-Dec-2025
chassis side plates for breaker, ComPact NSX100/160/250 withdrawable, 2/3/4 poles
  • Schneider Electric green signature style for the entire ComPacT range
  • Estimated 40% reduction of wiring time for panel builders
  • Experience easier installation thanks to a new ergonomic front-plate design
  • Gain the confidence that all auxiliaries are on the right spot, and check that you have the right coil rating
  • Ergonomic new toggle for easier breaker manual operation
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 15-Dec-2025
Catalog
Instruction sheet
User guide
Product Page Link
Product Data Sheet
These are chassis side plates for withdrawable 2, 3 or 4 poles Compact NSX 100/160/250 circuit breakers. These side plates allow the installation on a chassis in order to facilitate the handling. These side plates are mounted on the circuit breaker. A withdrawable configuration requires 2 chassis side plates on the circuit breaker and 2 chassis side plates on the base.

Products specifications

Attribute name Attribute value
Main
Kit composition chassis side plates for breaker
Poles description 3P, 4P, 2P
Range ComPacT
Product or component type side plate
Accessory / separate part category mounting accessory
Range compatibility ComPact Compact NSX250 DC, ComPact Compact NSX160 DC, ComPact Compact NSX100 DC, ComPact ComPact NSX250, ComPact ComPact NSX160, ComPact ComPact NSX100
Range of product ComPact NSX100...250 DC, ComPact NSX100...250
Complementary
Mounting mode drawout
[In] rated current 250 A
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 3.000 cm
Package 1 Width 12.500 cm
Package 1 Length 16.000 cm
Package 1 Weight 510.300 g
Unit Type of Package 2 2
Number of Units in Package 2 12
Package 2 Height 30.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 6.525 kg
Unit Type of Package 3 3
Number of Units in Package 3 96
Package 3 Height 45.000 cm
Package 3 Width 80.000 cm
Package 3 Length 120.000 cm
Package 3 Weight 62.998 kg
