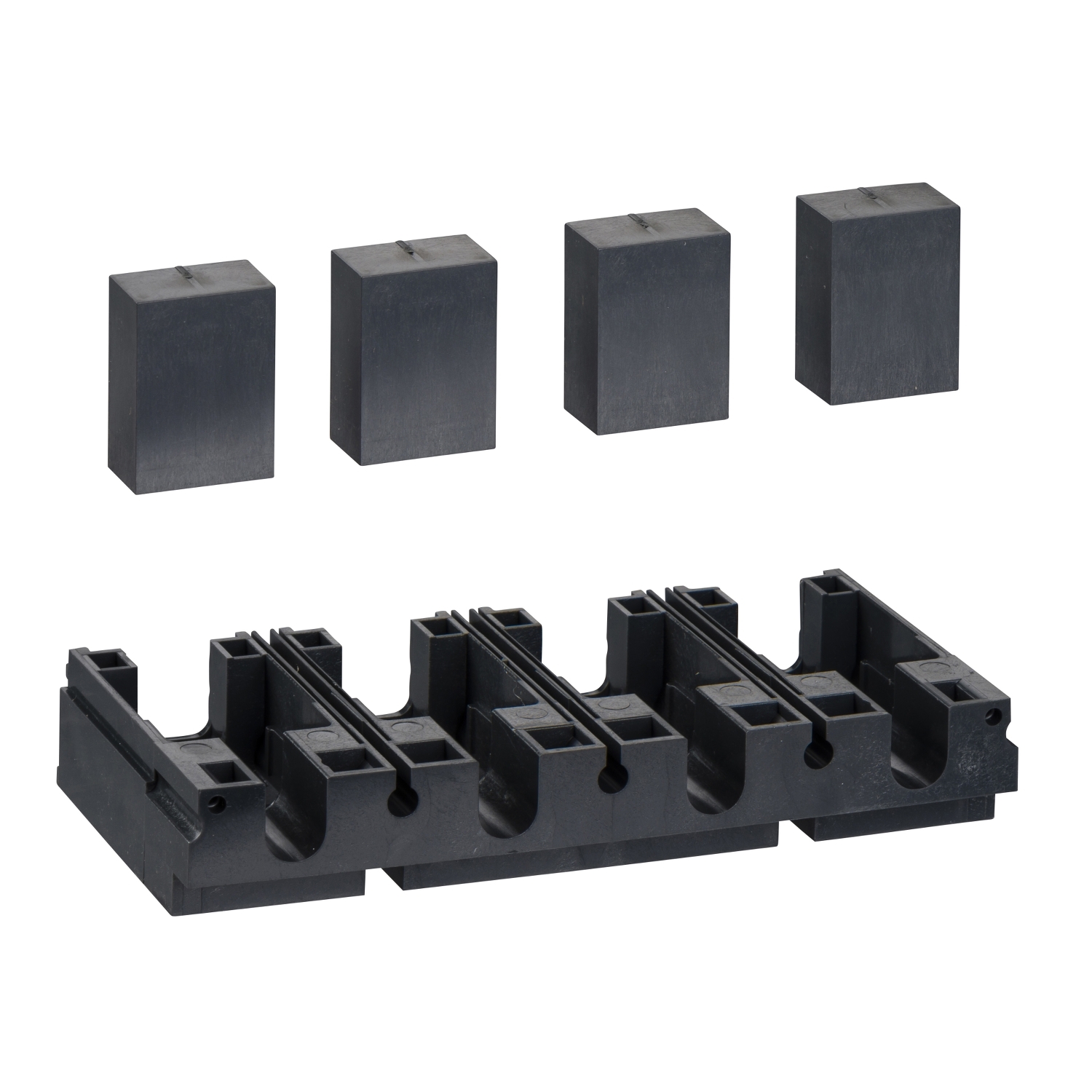

Picture of connection adapter for plug in base, ComPact NSX100/160/250, 4 poles
SKU:

LV429307

connection adapter for plug in base, ComPact NSX100/160/250, 4 poles

Old price: $31.13 INC GST
$25.46 INC GST
Available for Shipping : 08-Dec-2025
connection adapter for plug in base, ComPact NSX100/160/250, 4 poles
  • Schneider Electric green signature style for the entire ComPacT range
  • Estimated 40% reduction of wiring time for panel builders
  • Experience easier installation thanks to a new ergonomic front-plate design
  • Gain the confidence that all auxiliaries are on the right spot, and check that you have the right coil rating
  • Ergonomic new toggle for easier breaker manual operation
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 08-Dec-2025
Instruction sheet
Circularity Profile
User guide
Catalog
Environmental Disclosure
Product Page Link
Product Data Sheet
This is a connection adapter for 4 poles plug-in base for Compact NSX 100/160/250. It allows to connect the power circuit to the power terminals of Compact NSX plug-in circuit breaker.

Products specifications

Attribute name Attribute value
Main
Range ComPacT
Accessory / separate part category connection accessory
Range of product ComPact NSX100...250 DC, ComPact NSX100...250
Poles description 4P
Product or component type connection adapter
Range compatibility ComPact Compact NSX250 DC, ComPact Compact NSX160 DC, ComPact Compact NSX100 DC, ComPact ComPact NSX250, ComPact ComPact NSX160, ComPact ComPact NSX100
Complementary
Mounting mode plug-in
[In] rated current 250 A
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 3.500 cm
Package 1 Width 14.000 cm
Package 1 Length 20.000 cm
Package 1 Weight 105.400 g
Unit Type of Package 2 2
Number of Units in Package 2 40
Package 2 Height 30.000 cm
Package 2 Width 40.000 cm
Package 2 Length 60.000 cm
Package 2 Weight 4.956 kg
Unit Type of Package 3 3
Number of Units in Package 3 160
Package 3 Height 41.500 cm
Package 3 Width 80.000 cm
Package 3 Length 120.000 cm
Package 3 Weight 31.024 kg
