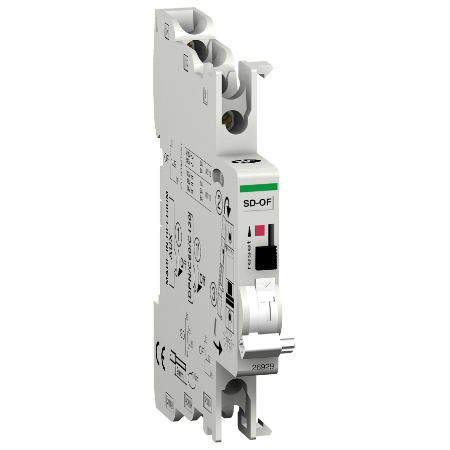

Picture of Multi9 - double OC or fault contact - 1 OF+SD/OF - 240/415 V AC - 24/130 V DC
SKU:

M9A26929

Multi9 - double OC or fault contact - 1 OF+SD/OF - 240/415 V AC - 24/130 V DC

$137.00
Availability: Please contact our sales team on 1300 724 622.
Multi9 - double OC or fault contact - 1 OF+SD/OF - 240/415 V AC - 24/130 V DC
Be the first to review this product
Manufacturer: Schneider Electric
Product environmental
Brochure
End of life manual
Declaration of conformity
Product Page Link
Product Data Sheet
This Multi9 OF+SD/OF electric auxiliary is a double open/closed or fault indicator contact. It is dedicated to C60 UL/CSA/IEC, iID products. It provides a remote position open/close and/or fault tripping indication of the associated device. The In rated operational current is under 24VAC to 240VAC, 3A under 415VAC. The width in 9mm pitches is 1. The product color is white (RAL9003). The dimensions are (W) 9mm x (H) 90mm x (D) 73.5mm. Product weight is 38g. The operating temperature is -25°C to + 50°C. The storage temperature is -40°C to + 85°C.

Products specifications

Attribute name Attribute value
Main
Device short name SD + OF
[In] rated current 6-6 A at <= 240 V, AC 50/60 Hz,  3-3 A at 415 V, AC 50/60 Hz
Signal contacts composition 2 C/O
Range Multi9
Product or component type double OC or fault contact
9 mm pitches 1
Range of product C60SP, C60BP, C60BPR, GFP
[Uc] control circuit voltage 24...130 V DC, 240...415 V AC 50/60 Hz
Complementary
Tightening torque 1-1 N.m bottom
Depth 73.5 mm
Width 9 mm
[Uimp] rated impulse withstand voltage 4 kV
Mounting mode fixed
[Ui] rated insulation voltage 500 V
Wire stripping length 9 mm for bottom connection
Net weight 0.038 kg
Connections - terminals clamp terminal (bottom) 2 cable(s) 1.5-1.5 mm² (AWG 16) - rigid, clamp terminal (bottom) 1 cable(s) 2.5-2.5 mm² (AWG 14) - rigid
Comb busbar and distribution block compatibility NO
Range compatibility Multi 9 Multi9 C60H-DC C60H-DC, Multi 9 Multi9 GFP GFP, Multi 9 Multi9 C60 C60SP, Multi 9 Multi9 C60 C60BPR, Multi 9 Multi9 C60 C60BP
Mounting support DIN rail
Height 90 mm
Environment
Ambient air temperature for storage -40-85 °C
Standards EN 62019-2, EN/IEC 60947-5-1
Ambient air temperature for operation -25-50 °C
Product certifications CSA, PCT, CCC, UL, UR
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 2.200 cm
Package 1 Width 7.800 cm
Package 1 Length 9.400 cm
Package 1 Weight 46.000 g
Unit Type of Package 2 2
Number of Units in Package 2 12
Package 2 Height 8.700 cm
Package 2 Width 10.000 cm
Package 2 Length 26.500 cm
Package 2 Weight 615.000 g
Unit Type of Package 3 3
Number of Units in Package 3 108
Package 3 Height 30.000 cm
Package 3 Width 30.000 cm
Package 3 Length 40.000 cm
Package 3 Weight 6.028 kg
Unit Type of Package 4 4
Number of Units in Package 4 864
Package 4 Height 45.000 cm
Package 4 Width 80.000 cm
Package 4 Length 120.000 cm
Package 4 Weight 60.896 kg
