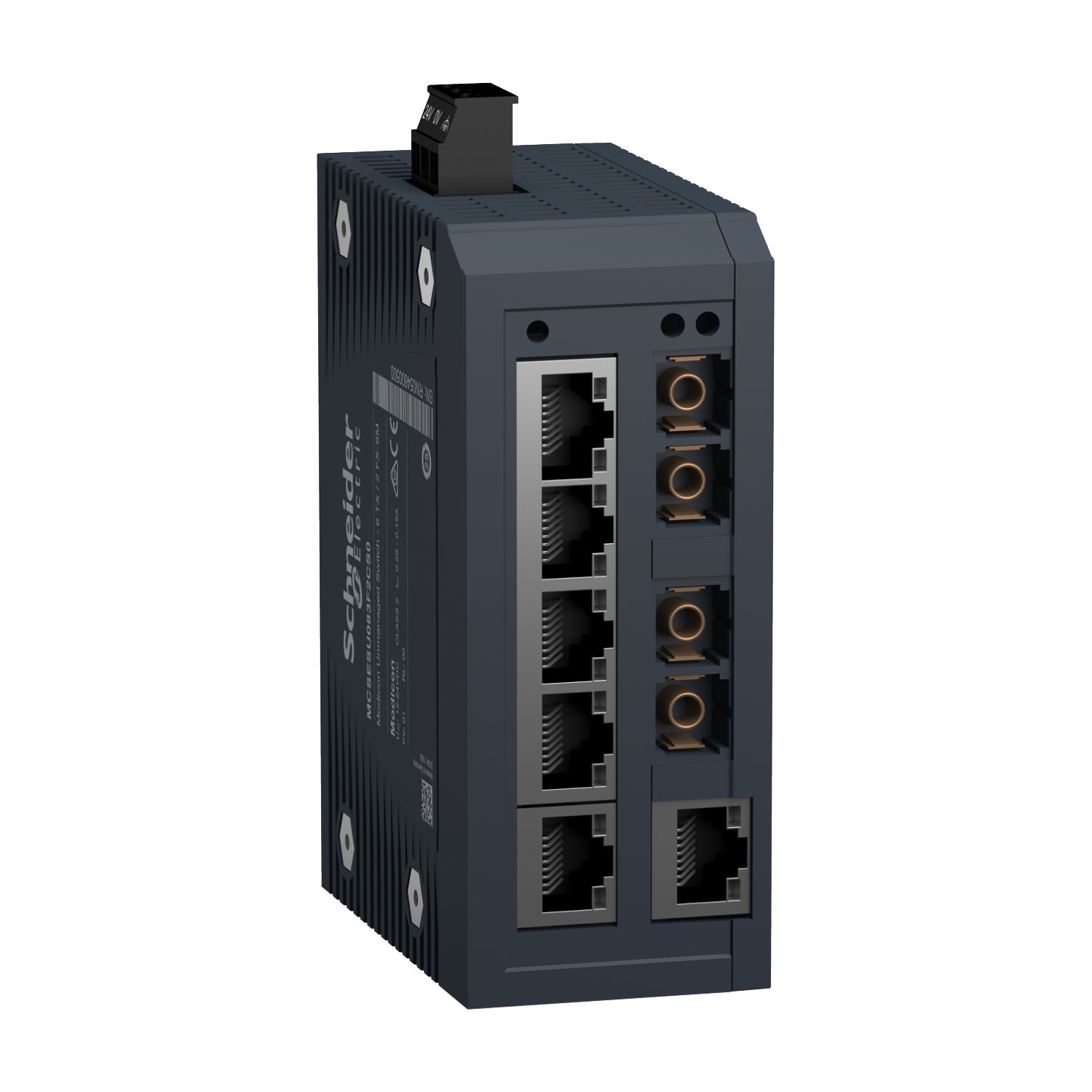

Picture of network switch, Modicon Networking, standard unmanaged, 6 ports for copper with 2 ports for singlemode fiber optic

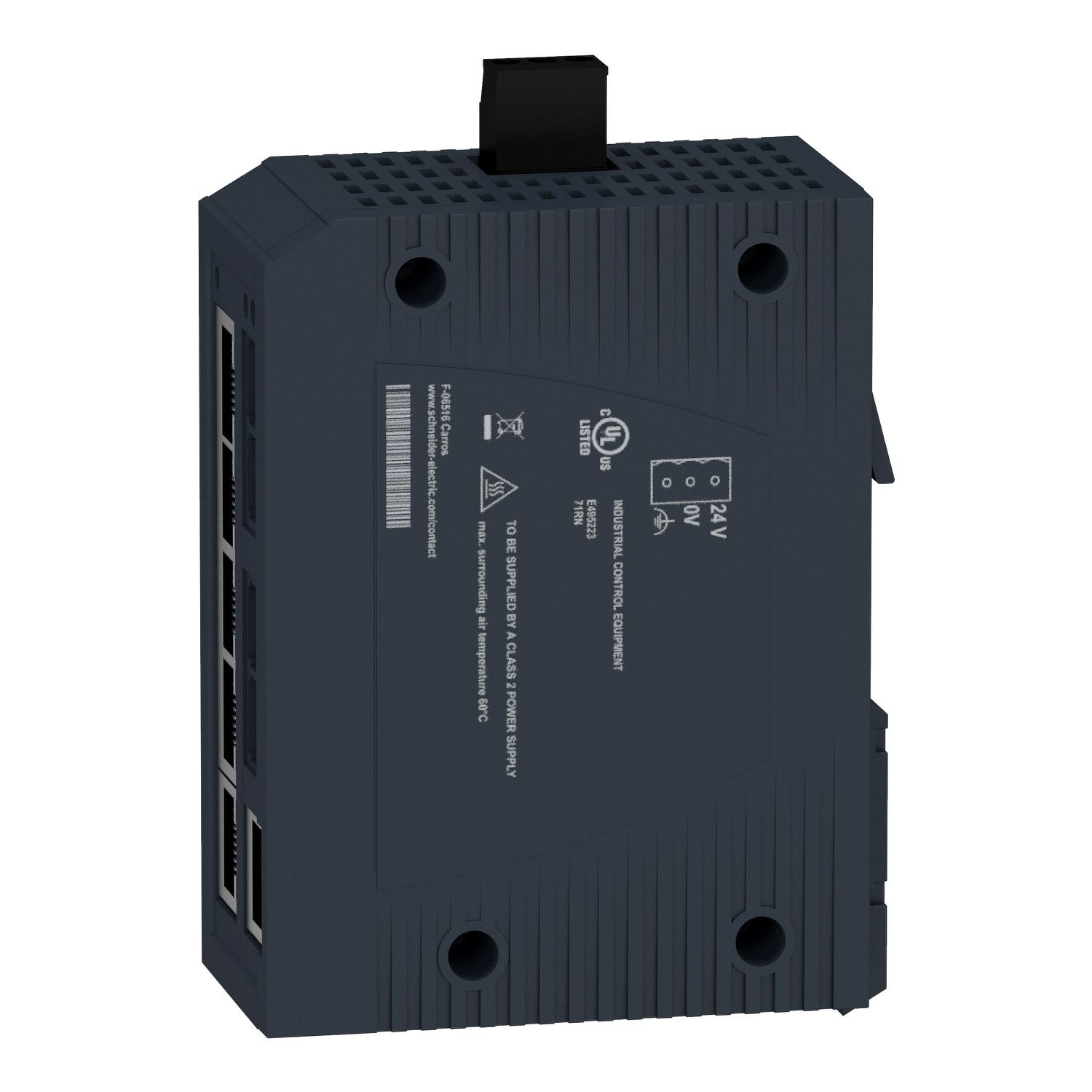

Picture of network switch, Modicon Networking, standard unmanaged, 6 ports for copper with 2 ports for singlemode fiber optic

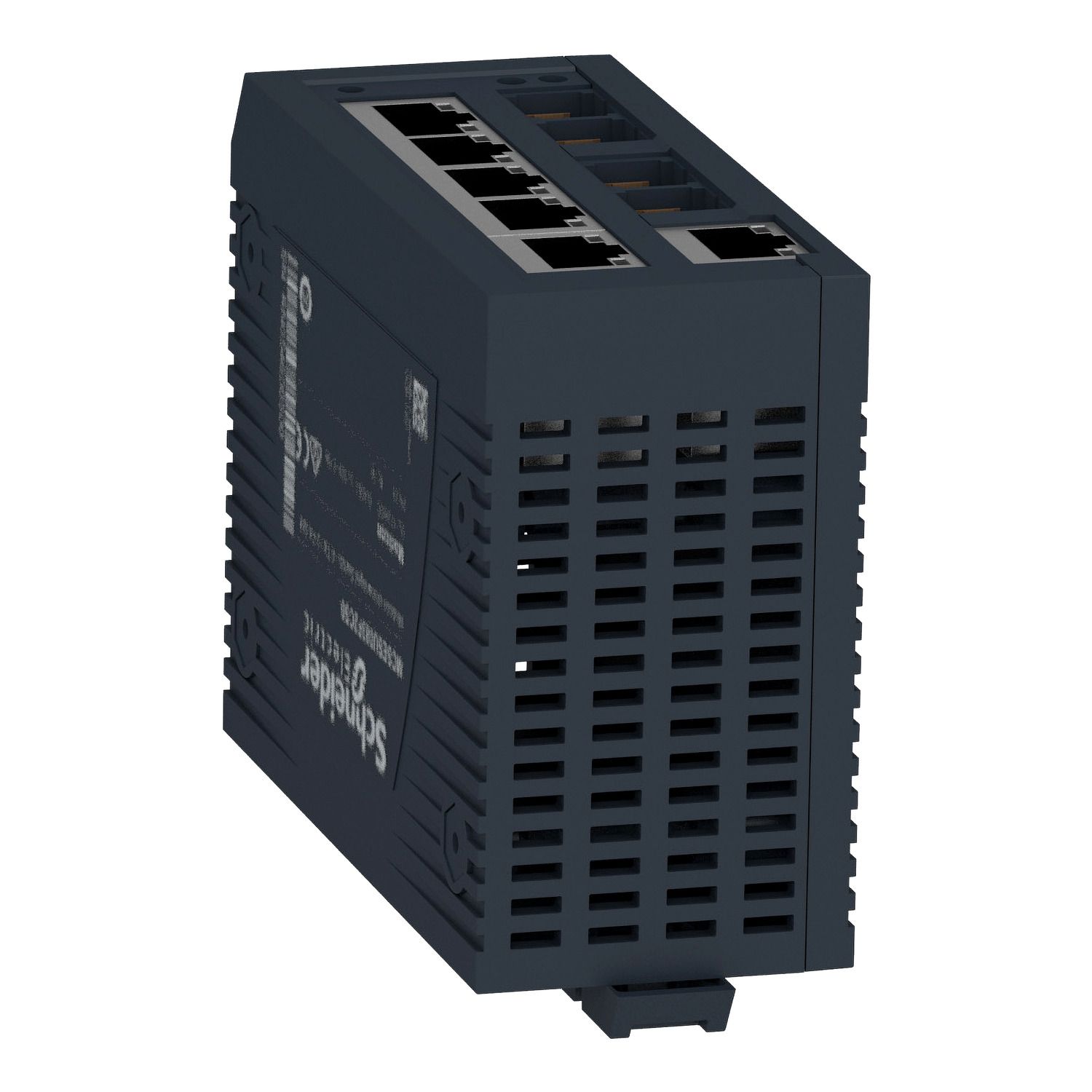

Picture of network switch, Modicon Networking, standard unmanaged, 6 ports for copper with 2 ports for singlemode fiber optic

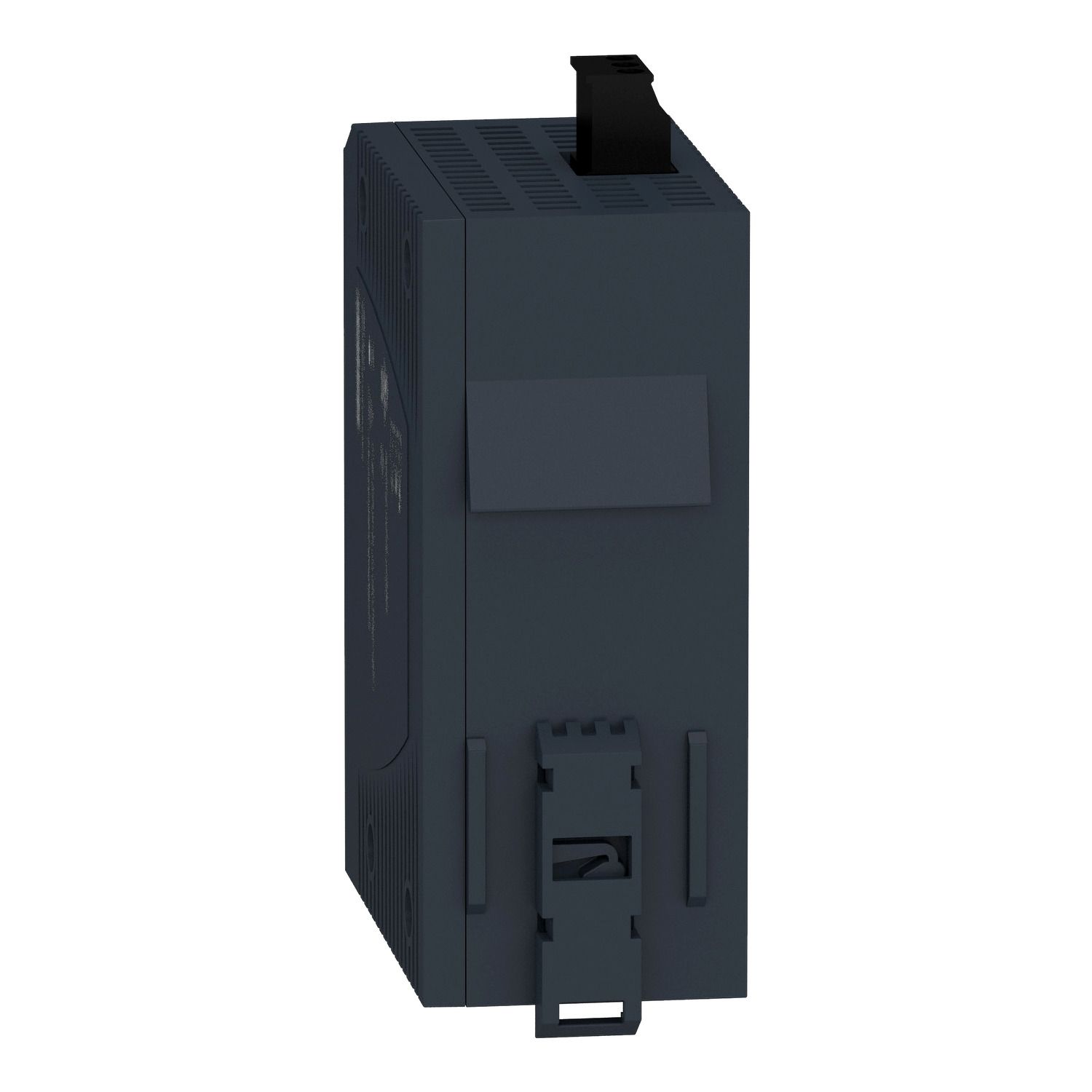

Picture of network switch, Modicon Networking, standard unmanaged, 6 ports for copper with 2 ports for singlemode fiber optic

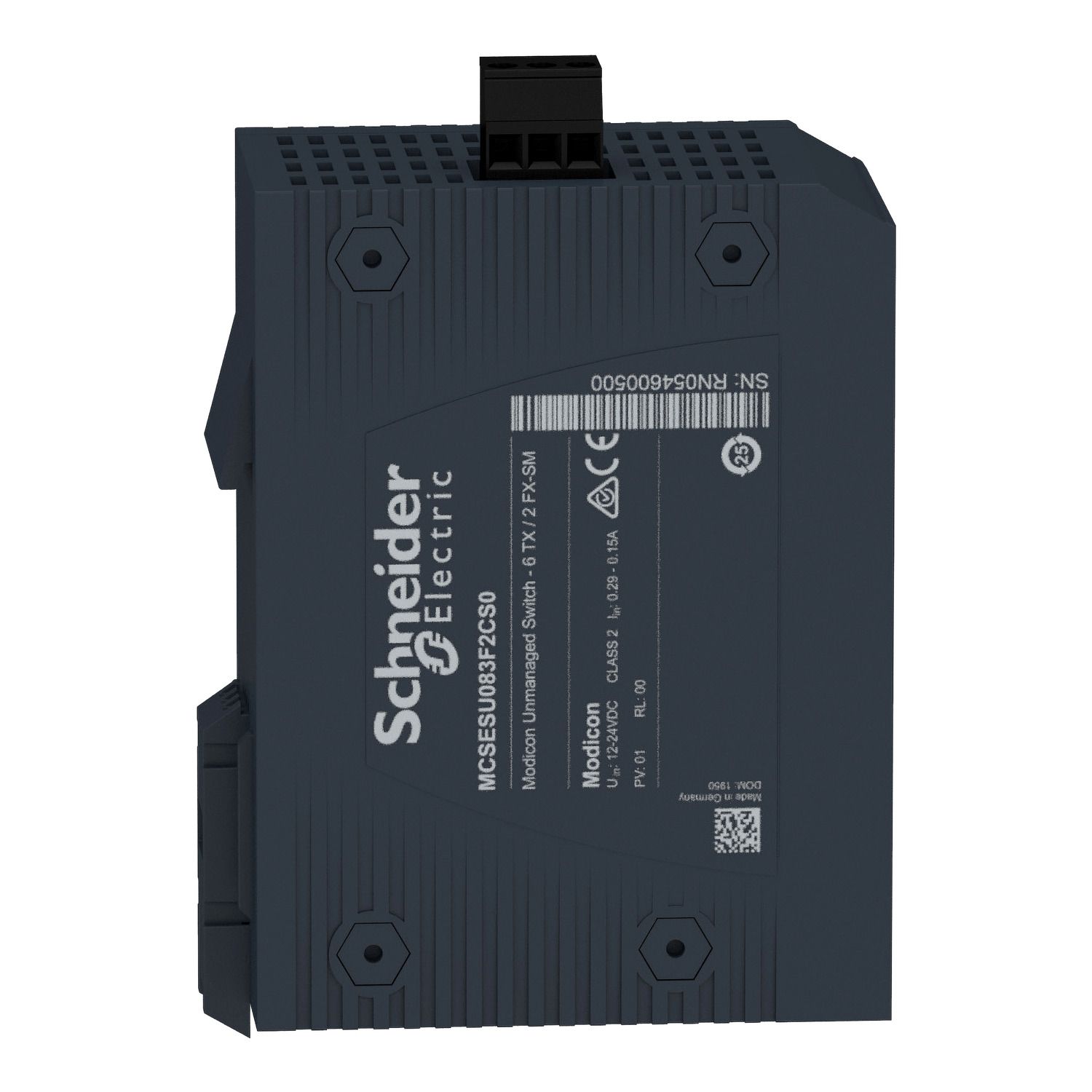

Picture of network switch, Modicon Networking, standard unmanaged, 6 ports for copper with 2 ports for singlemode fiber optic

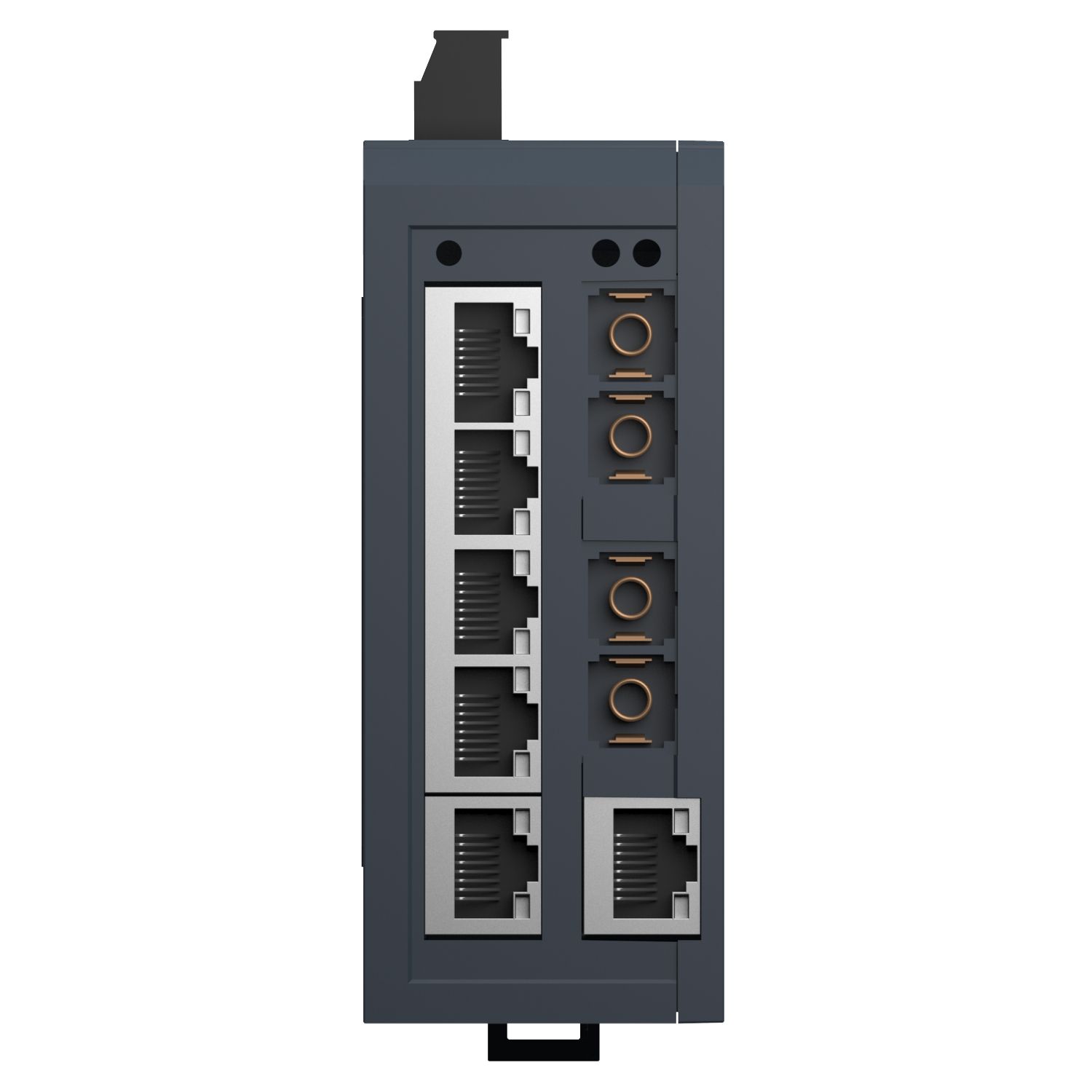

Picture of network switch, Modicon Networking, standard unmanaged, 6 ports for copper with 2 ports for singlemode fiber optic

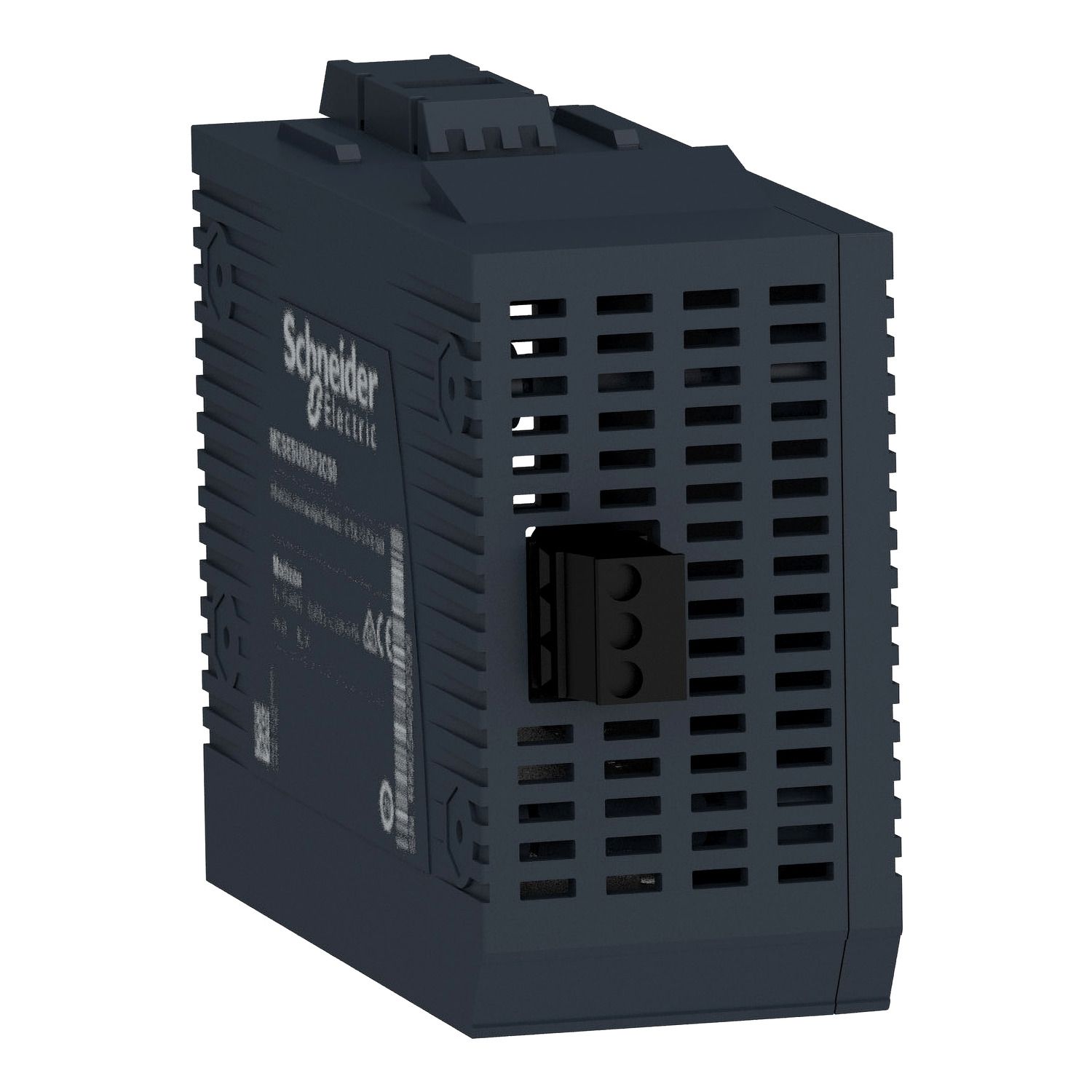

Picture of network switch, Modicon Networking, standard unmanaged, 6 ports for copper with 2 ports for singlemode fiber optic
SKU:

MCSESU083F2CS0

network switch, Modicon Networking, standard unmanaged, 6 ports for copper with 2 ports for singlemode fiber optic

Please Contact Sales to buy this Product. click here
Product Selector
network switch, Modicon Networking, standard unmanaged, 6 ports for copper with 2 ports for singlemode fiber optic
Be the first to review this product
Manufacturer: Schneider Electric
Estimated Delivery Date: 26-Sep-2024
Image of product
Image of product
End of life manual
User guide
Image of product
Image of product
Product environmental
Declaration of conformity
Image of product
Catalogue
Product Page Link
Product Data Sheet
This product is part of the Modicon Networking range, an offer of Modicon Standard Unmanaged Switch. This unmanaged switch comes with Ethernet TCP/IP protocol. It comes with 6 transmission ports for copper cable and 2 port for single-mode fiber optic. It provides simple connectivity for multiple Ethernet devices and gives customers more options with industrial grade application. This product works at a power consumption of 3.8W and a rated voltage from 12V to 24V DC. It has a removable 3-pin power supply connector . Dimensions are 45mm (width) x 110mm (height) x 88mm (depth)and weighs 0.235kg. It has shielded connectors which is suitable for small, isolated networks or system with light network traffic and network with low complexity levels. It is CE, UL, RCM, UKCA, EAC certified and conforms to UL 61010 and EN/IEC 61131 standards. It is designed to be mounted on a symmetrical DIN rail. It provides low power consumption and compact footprint. It also provides simple connectivity for multiple Ethernet device. The Modicon Networking range offers you a smart and flexible way to integrate Ethernet solutions into your operation, from the device level to the control network and to your corporate network.

Products specifications

Attribute nameAttribute value
Main
ConceptTransparent Ready
Communication port protocolEthernet TCP/IP
Product or component typeEthernet TCP/IP unmanaged switch
Port Ethernet100BASE-FX - 2 port(s) fiber optic, 10/100BASE-TX - 6 port(s) copper cable
Range of productModicon
Maximum number of switches in cascadeunlimited
Complementary
Depth88 mm
Width45 mm
Optic fiber length32.5 km 9/125 µm
Local signalling1 dual colour LED (green/yellow) for link status, 1 LED per channel (yellow) for data rate (ETH LINK), 1 LED (green) for power supply
Supply voltage limits9.6-32 V DC SELV
Ethernet cabling systemTF switches
Attenuation0-16 dB (9/125 µm)
Electrical connectionremovable connector 3 ways power supply
Net weight0.235 kg
MarkingRCM, UL, CE
Power consumption in W3.8 W
Mounting support35 mm symmetrical DIN rail
Transmission support mediumsingle mode optical fiber for fiber optic, twisted shielded pairs cable CAT 5E for copper cable
Integrated connection typeduplex SC fiber optic, shielded RJ45 copper cable
Height110 mm
[Us] rated supply voltage12...24 V
Maximum cable distance between devices100 m copper cable
Environment
IP degree of protectionIP30
Relative humidity10-95 % non-condensing
Directives2014/30/EU - electromagnetic compatibility, 2014/35/EU - low voltage directive
Product certificationsRCM, UL, CE
StandardsEN/IEC 61131-2, UL 61010-2-201
Ambient air temperature for operation0-60 °C
Packing Units
Unit Type of Package 11
Number of Units in Package 11
Package 1 Height6.500 cm
Package 1 Width16.500 cm
Package 1 Length24.000 cm
Package 1 Weight378.000 g
Unit Type of Package 22
Number of Units in Package 28
Package 2 Height30.000 cm
Package 2 Width30.000 cm
Package 2 Length40.000 cm
Package 2 Weight3.530 kg
