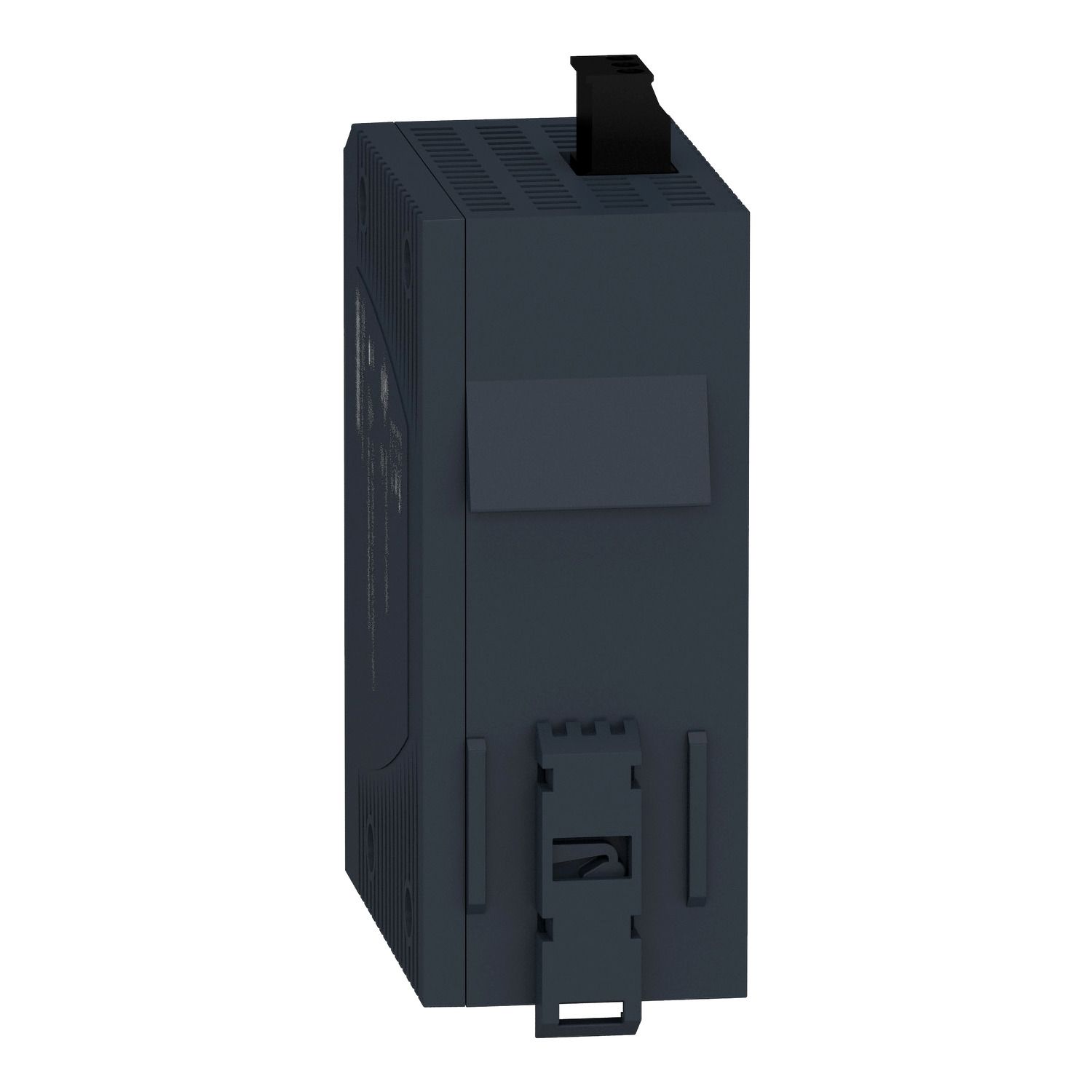

Picture of network switch, Modicon Networking, standard unmanaged, 6 ports for copper with 2 ports for multimode fiber optic

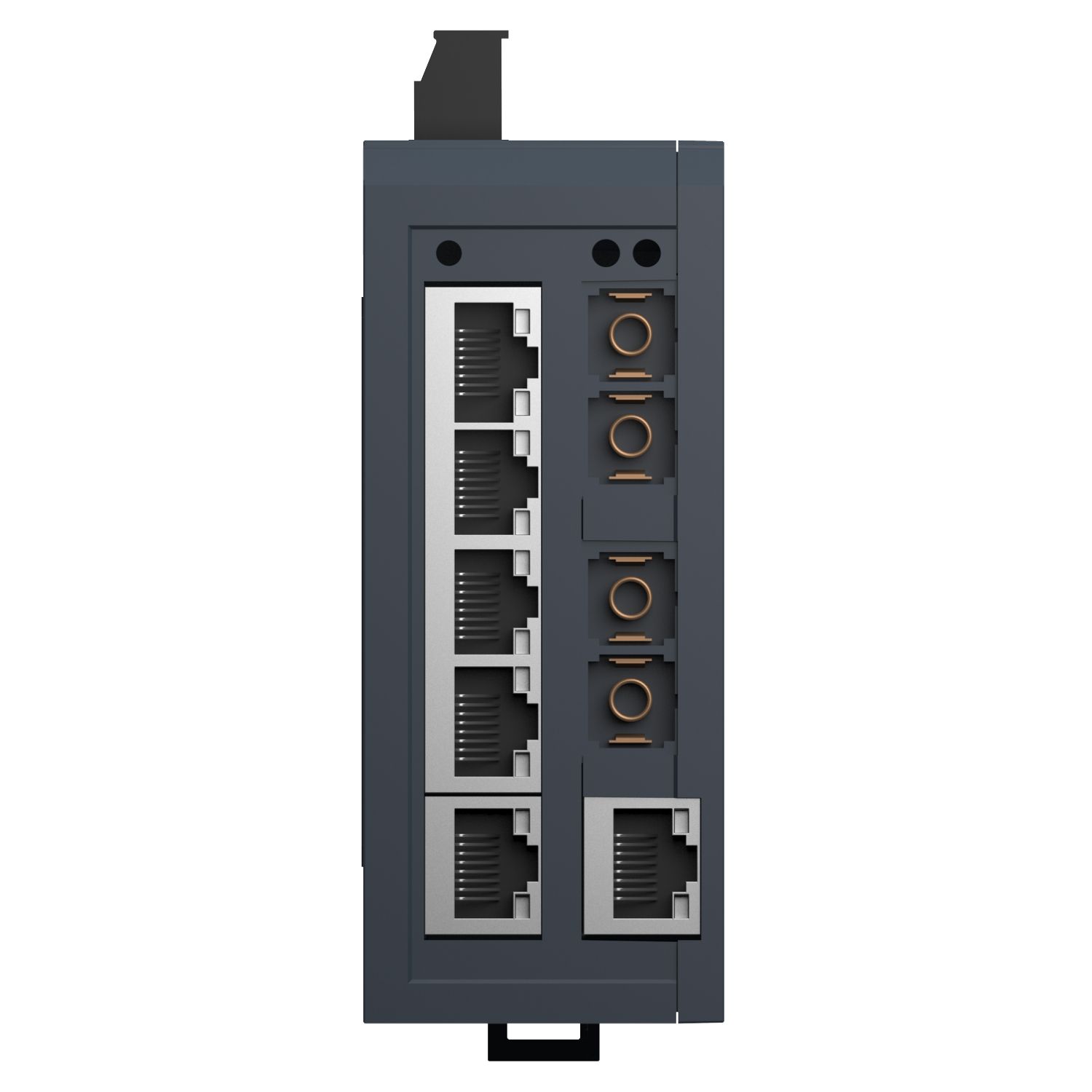

Picture of network switch, Modicon Networking, standard unmanaged, 6 ports for copper with 2 ports for multimode fiber optic

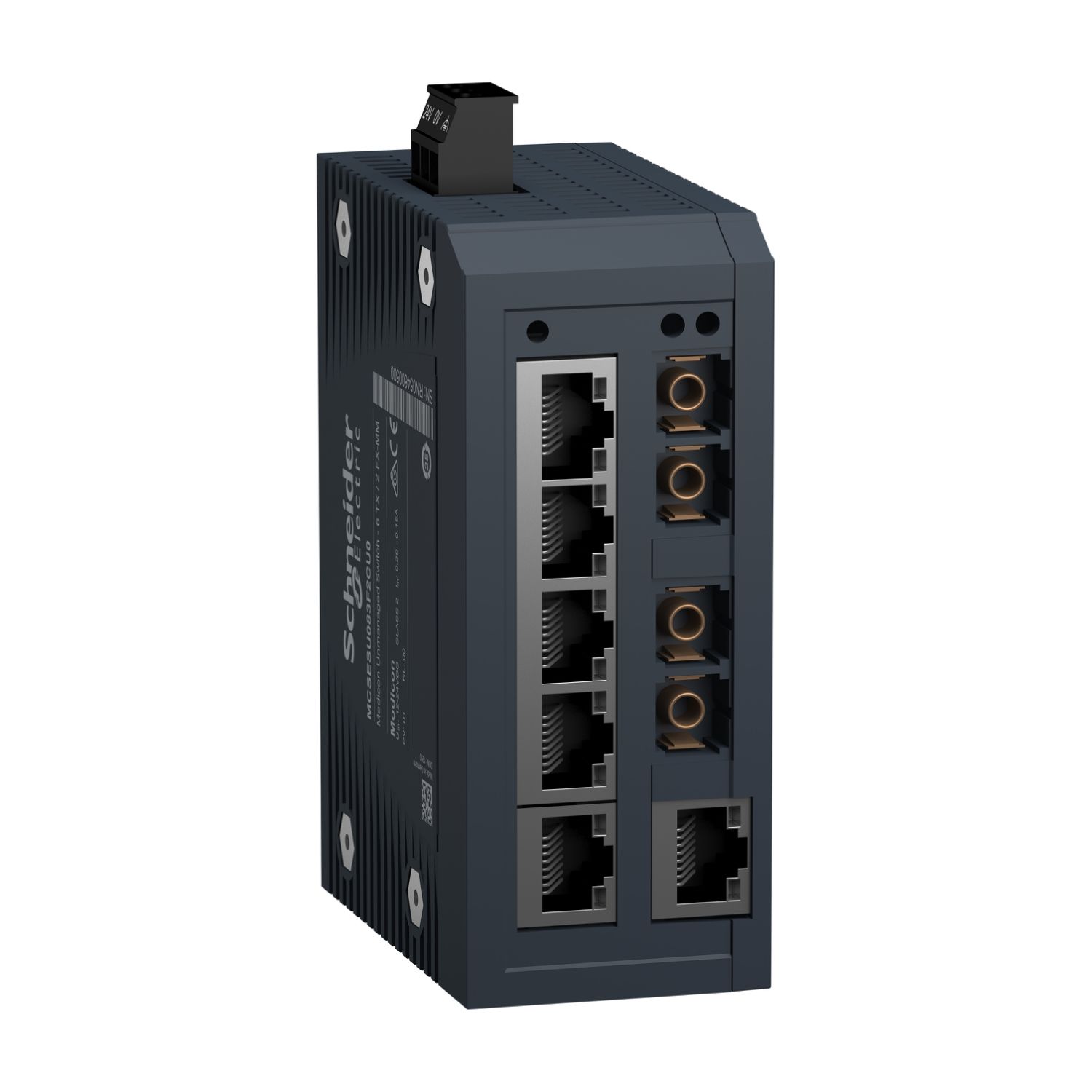

Picture of network switch, Modicon Networking, standard unmanaged, 6 ports for copper with 2 ports for multimode fiber optic

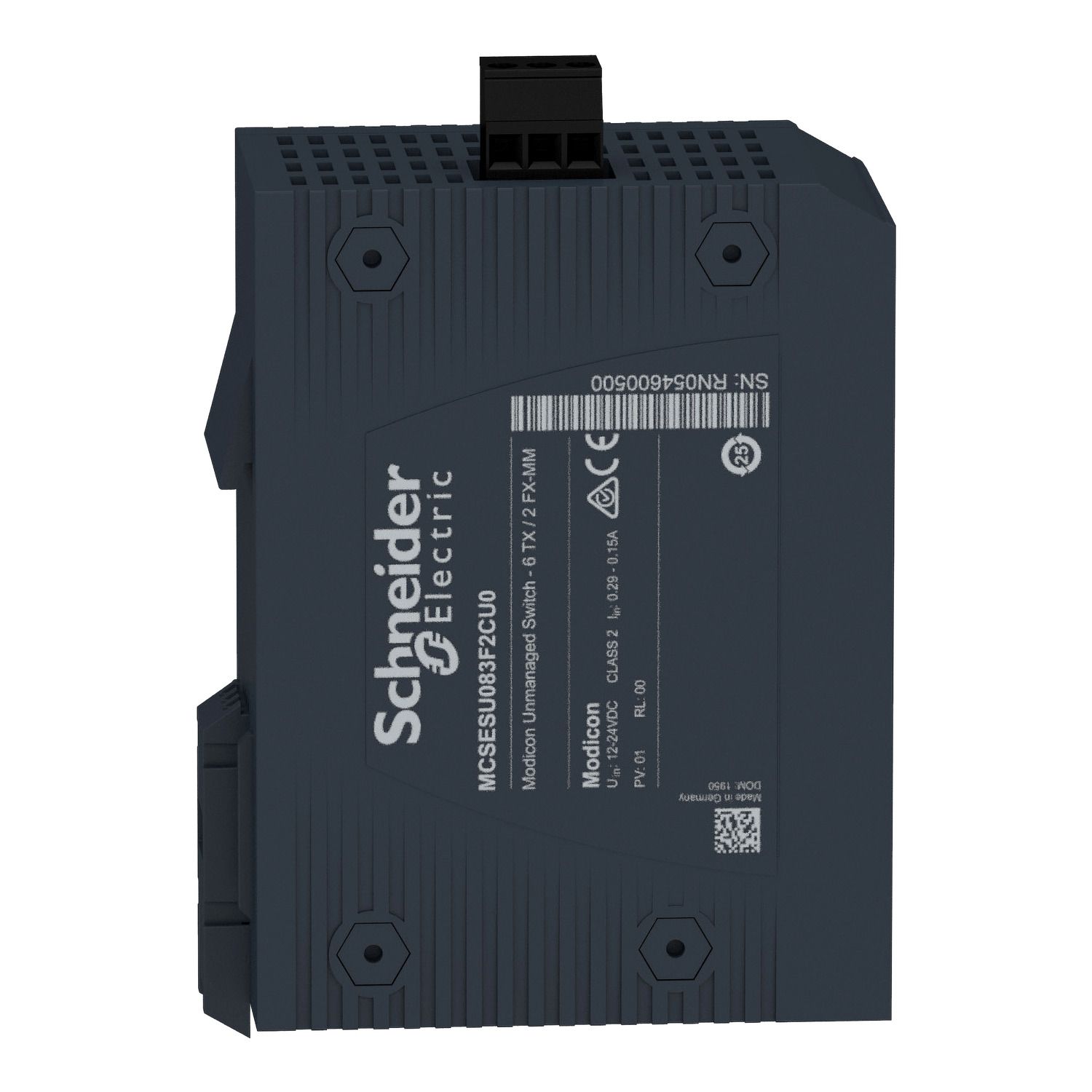

Picture of network switch, Modicon Networking, standard unmanaged, 6 ports for copper with 2 ports for multimode fiber optic

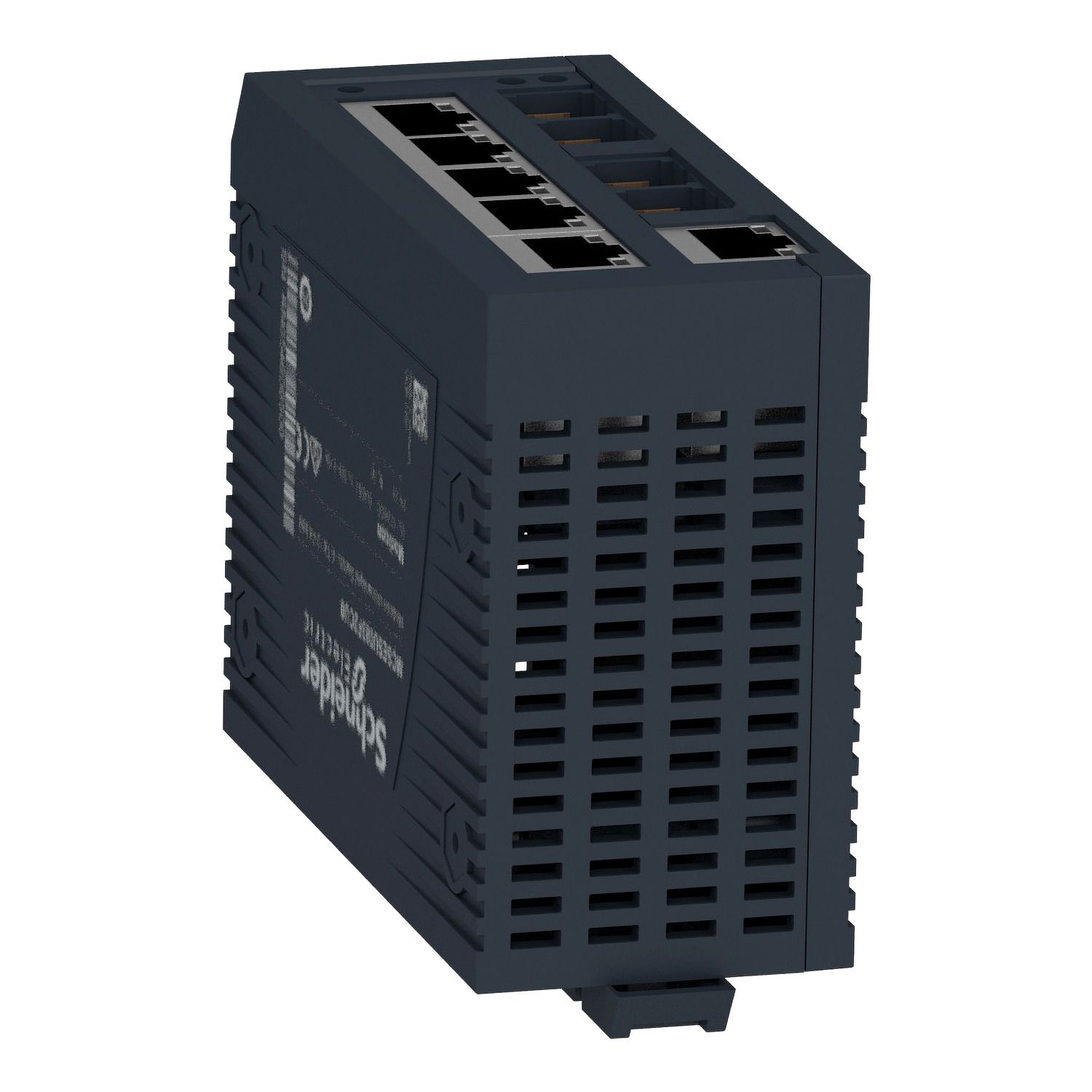

Picture of network switch, Modicon Networking, standard unmanaged, 6 ports for copper with 2 ports for multimode fiber optic

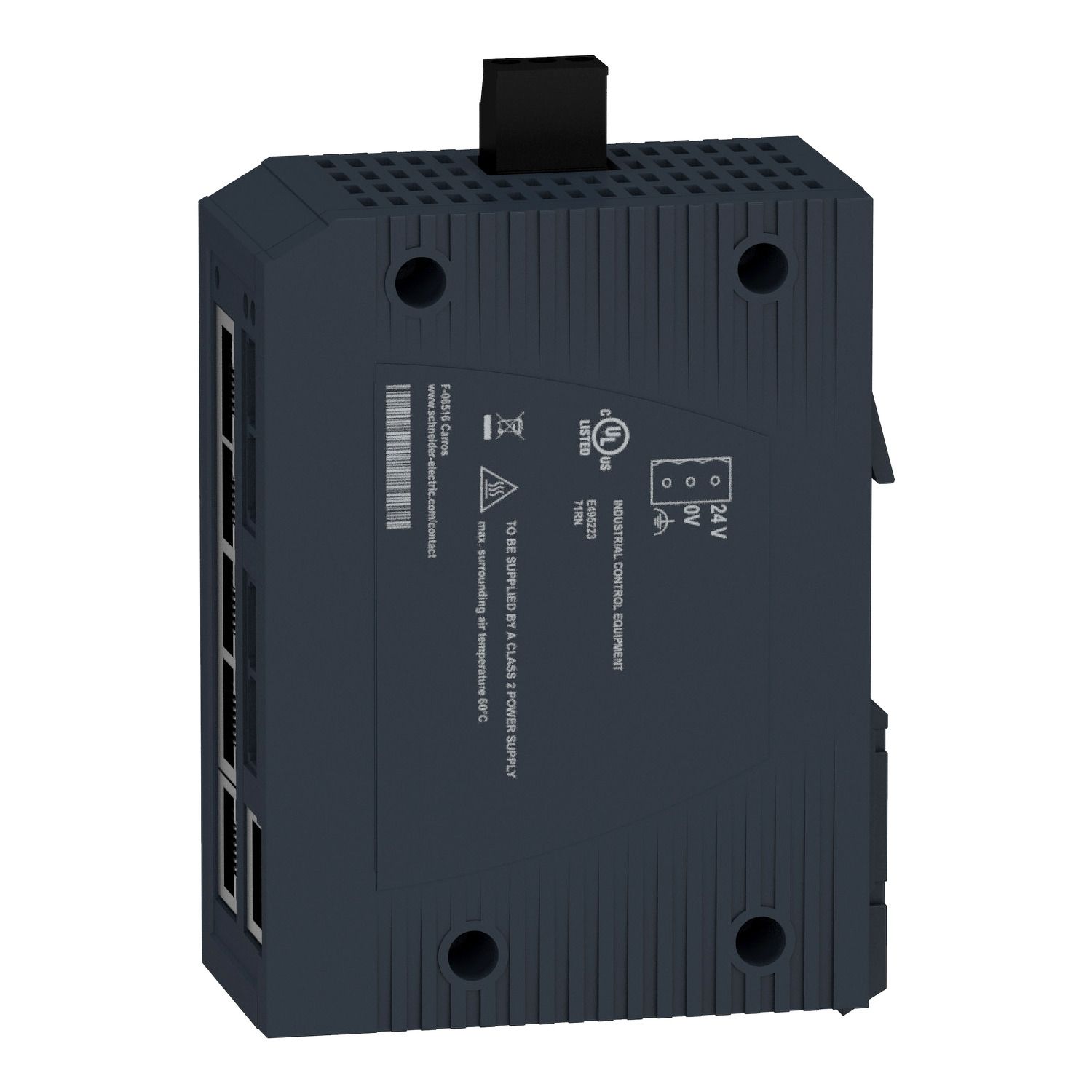

Picture of network switch, Modicon Networking, standard unmanaged, 6 ports for copper with 2 ports for multimode fiber optic

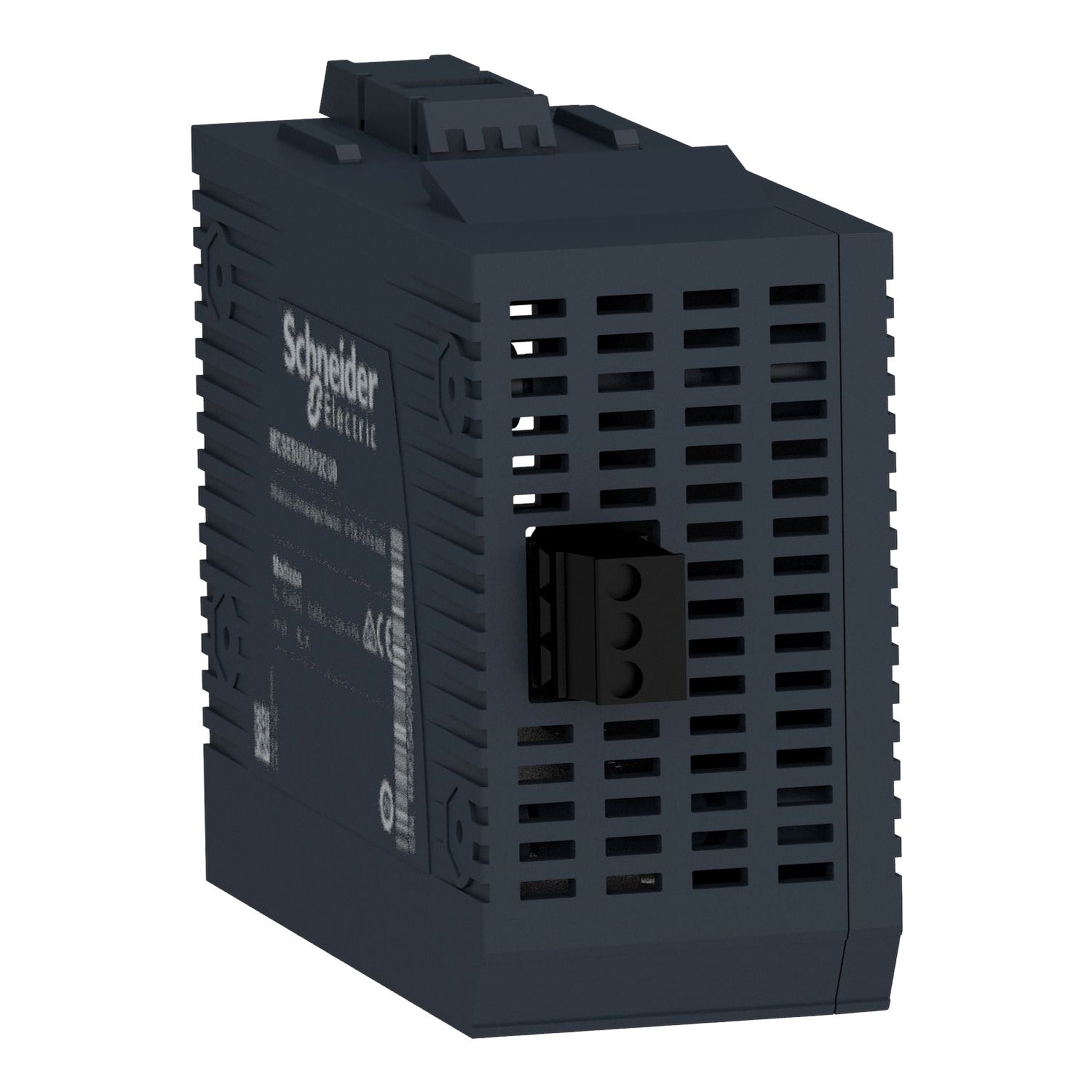

Picture of network switch, Modicon Networking, standard unmanaged, 6 ports for copper with 2 ports for multimode fiber optic
SKU:

MCSESU083F2CU0

network switch, Modicon Networking, standard unmanaged, 6 ports for copper with 2 ports for multimode fiber optic

$849.84
Available for Shipping : 12-Nov-2024
Product Selector
network switch, Modicon Networking, standard unmanaged, 6 ports for copper with 2 ports for multimode fiber optic
Be the first to review this product
Manufacturer: Schneider Electric
End of life manual
User guide
Product environmental
Declaration of conformity
Catalogue
Product Page Link
Product Data Sheet
This product is part of the Modicon Networking range, an offer of Modicon Standard Unmanaged Switch. This unmanaged switch comes with Ethernet TCP/IP protocol. It comes with 6 transmission ports for copper cable and 2 port for multi-mode fiber optic. It provides simple connectivity for multiple Ethernet devices and gives customers more options with industrial grade application. This product works at a power consumption of 3.8W and a rated voltage from 12V to 24V DC. It has a removable 3-pin power supply connector . Dimensions are 45mm (width) x 110mm (height) x 88mm (depth) and weighs 0.235kg. It has shielded connectors which is suitable for small, isolated networks or system with light network traffic and network with low complexity levels. It is CE, UL, RCM, UKCA, EAC certified and conforms to UL 61010 and EN/IEC 61131 standards. It is designed to be mounted on a symmetrical DIN rail. It provides low power consumption and compact footprint. It also provides simple connectivity for multiple Ethernet device. The Modicon Networking range offers you a smart and flexible way to integrate Ethernet solutions into your operation, from the device level to the control network and to your corporate network.

Products specifications

Attribute name Attribute value
Main
Concept Transparent Ready
Communication port protocol Ethernet TCP/IP
Product or component type Ethernet TCP/IP unmanaged switch
Port Ethernet 100BASE-FX - 2 port(s) fiber optic, 10/100BASE-TX - 6 port(s) copper cable
Range of product Modicon
Maximum number of switches in cascade unlimited
Complementary
Depth 88 mm
Width 45 mm
Optic fiber length 5 km 50/125 µm, 4 km 62.5/125 µm
Local signalling 1 dual colour LED (green/yellow) for link status, 1 LED per channel (yellow) for data rate (ETH LINK), 1 LED (green) for power supply
Supply voltage limits 9.6-32 V DC SELV
Ethernet cabling system TF switches
Attenuation 0-8 dB (50/125 µm), 0-11 dB (62.2/125 µm)
Electrical connection removable connector 3 ways power supply
Net weight 0.235 kg
Marking RCM, UL, CE
Power consumption in W 3.8 W
Mounting support 35 mm symmetrical DIN rail
Transmission support medium multimode optical fiber for fiber optic, twisted shielded pairs cable CAT 5E for copper cable
Integrated connection type duplex SC fiber optic, shielded RJ45 copper cable
Height 110 mm
[Us] rated supply voltage 12...24 V
Maximum cable distance between devices 100 m copper cable
Environment
IP degree of protection IP30
Relative humidity 10-95 % non-condensing
Directives 2014/30/EU - electromagnetic compatibility, 2014/35/EU - low voltage directive
Product certifications RCM, UL, CE
Standards EN/IEC 61131-2, UL 61010-2-201
Ambient air temperature for operation 0-60 °C
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 6.500 cm
Package 1 Width 16.500 cm
Package 1 Length 24.000 cm
Package 1 Weight 375.000 g
Unit Type of Package 2 2
Number of Units in Package 2 8
Package 2 Height 30.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 3.472 kg
