SKU:

NSYPLM64G

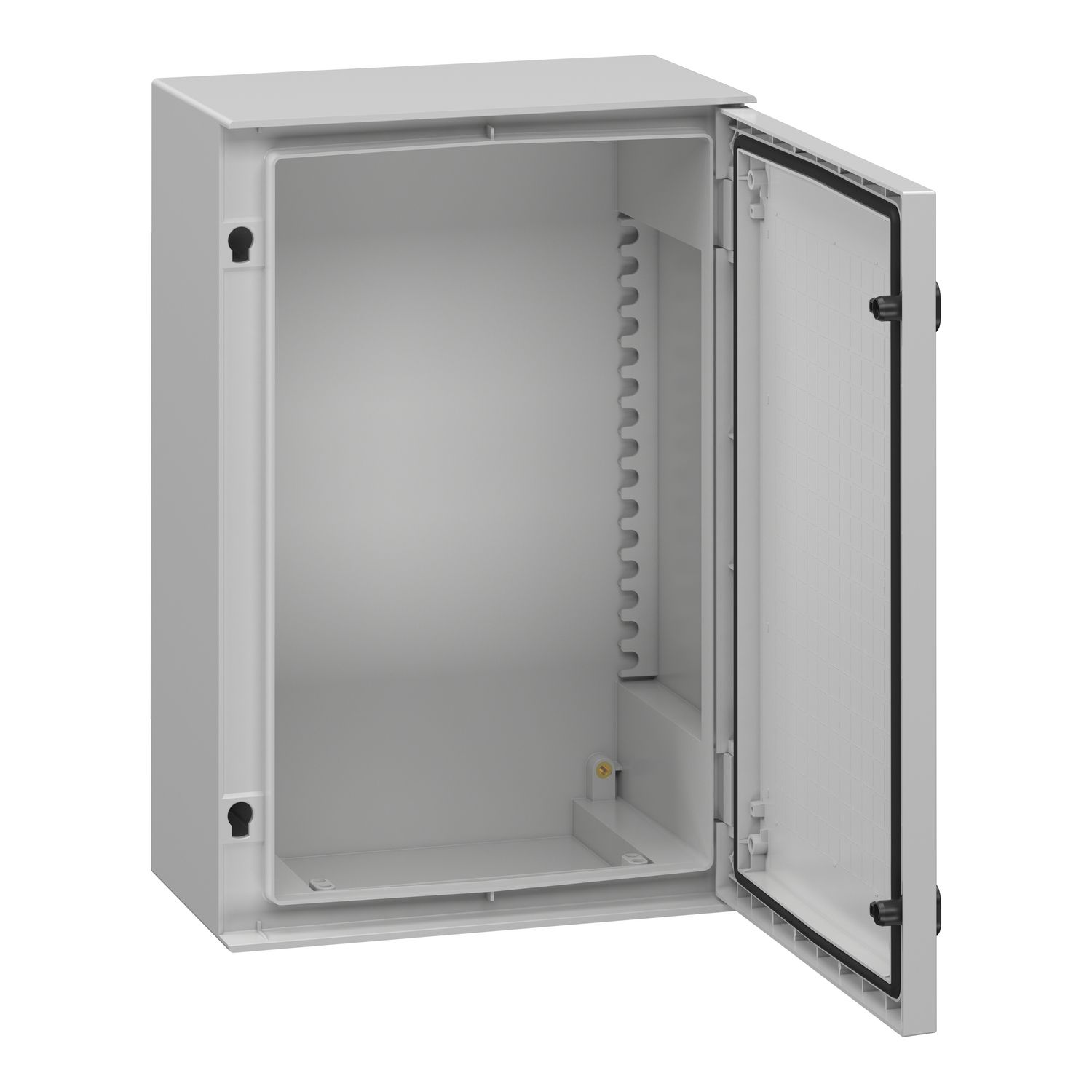

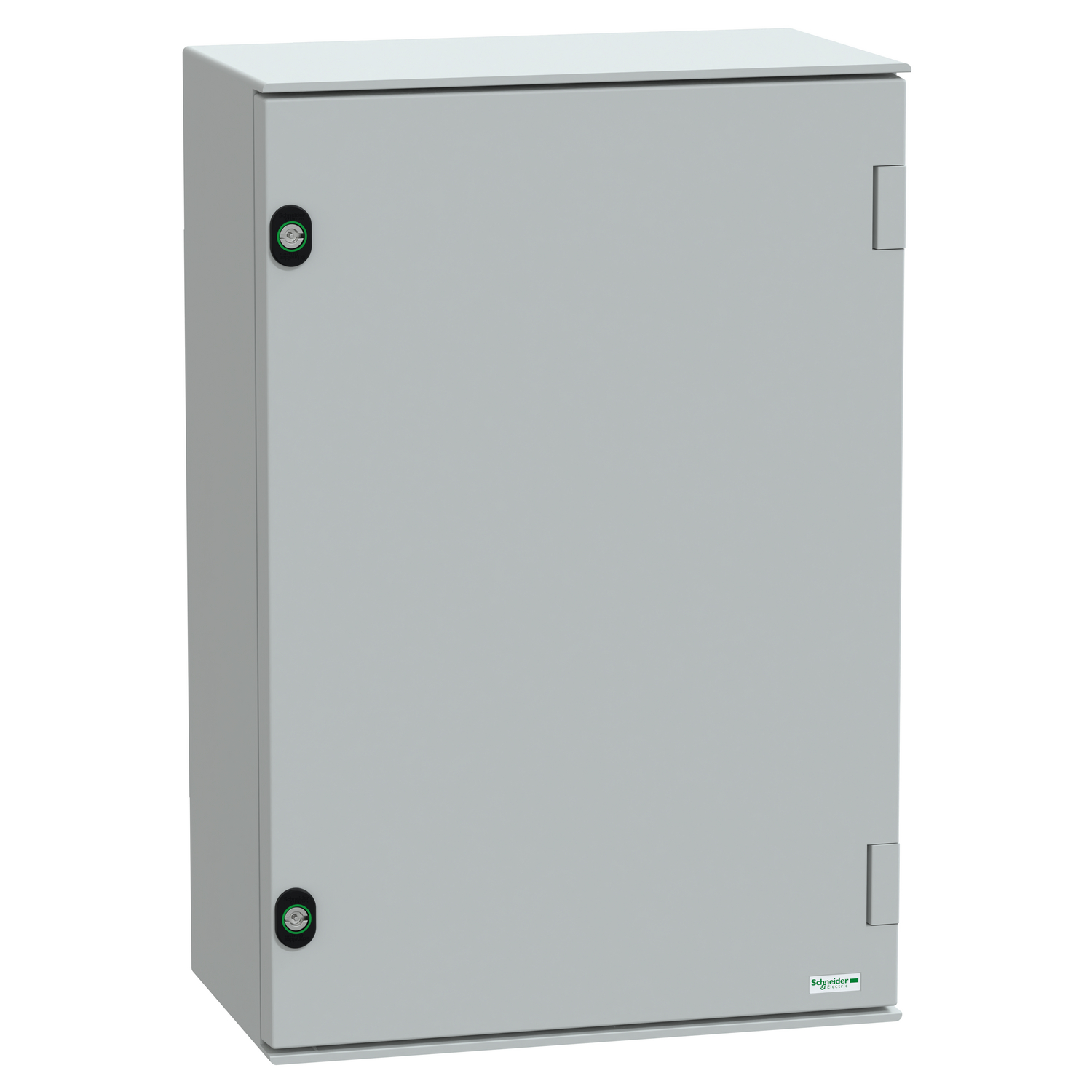

Thalassa, Wall mounted polyester enclosure, Thalassa PLM, plain door, 647x436x250mm, IP66, IK10, RAL 7035

$330.29 INC GST
Available for Shipping : 12-May-2025
Thalassa, Wall mounted polyester enclosure, Thalassa PLM, plain door, 647x436x250mm, IP66, IK10, RAL 7035
Manufacturer: Schneider Electric
Thalassa PLM wall-mounting polyester enclosure monobloc. 647 x 436 x 250 mm. Built-in canopy, one piece moulded with notches in the rear. Without mounting plate. 2 locks (3 mm double-bar lock). Accessible front. Polyester reinforced with fibreglass. Grey RAL 7035. IP66, IK10, NEMA (13,4X) 960°C fire resistance.

Products specifications

Attribute name Attribute value
Main
Enclosure nominal width 436 mm
Device short name PLM
Device application multi-purpose
Enclosure nominal depth 250 mm
Enclosure mounting wall mounted
Range Thalassa
Door type plain
Lock type 3 mm double-bar lock
Enclosure nominal height 647 mm
Device composition 2 lock, 1 door, 1 body
Product name Thalassa PLM
Product or component type compact enclosure
Complementary
Colour grey (RAL 7035)
Electrical insulation class class II
Number of locks 2
Removable parts door by hinges
Mounting plate description without mounting plate
Accessibility for operation front
Material polyester reinforced with fibreglass
Standards IEC 62208, NEMA classification 4X, NEMA classification 13
Product certifications UL
Environment
Fire resistance 960 °C conforming to IEC 62208
IP degree of protection IP66 conforming to IEC 60529
Ambient air temperature for operation -40-80 °C
IK degree of protection IK10 conforming to IEC 62262
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 27.500 cm
Package 1 Width 46.000 cm
Package 1 Length 71.000 cm
Package 1 Weight 12.341 kg
Unit Type of Package 2 2
Number of Units in Package 2 21
Package 2 Height 220.000 cm
Package 2 Width 100.000 cm
Package 2 Length 120.000 cm
Package 2 Weight 272.161 kg
