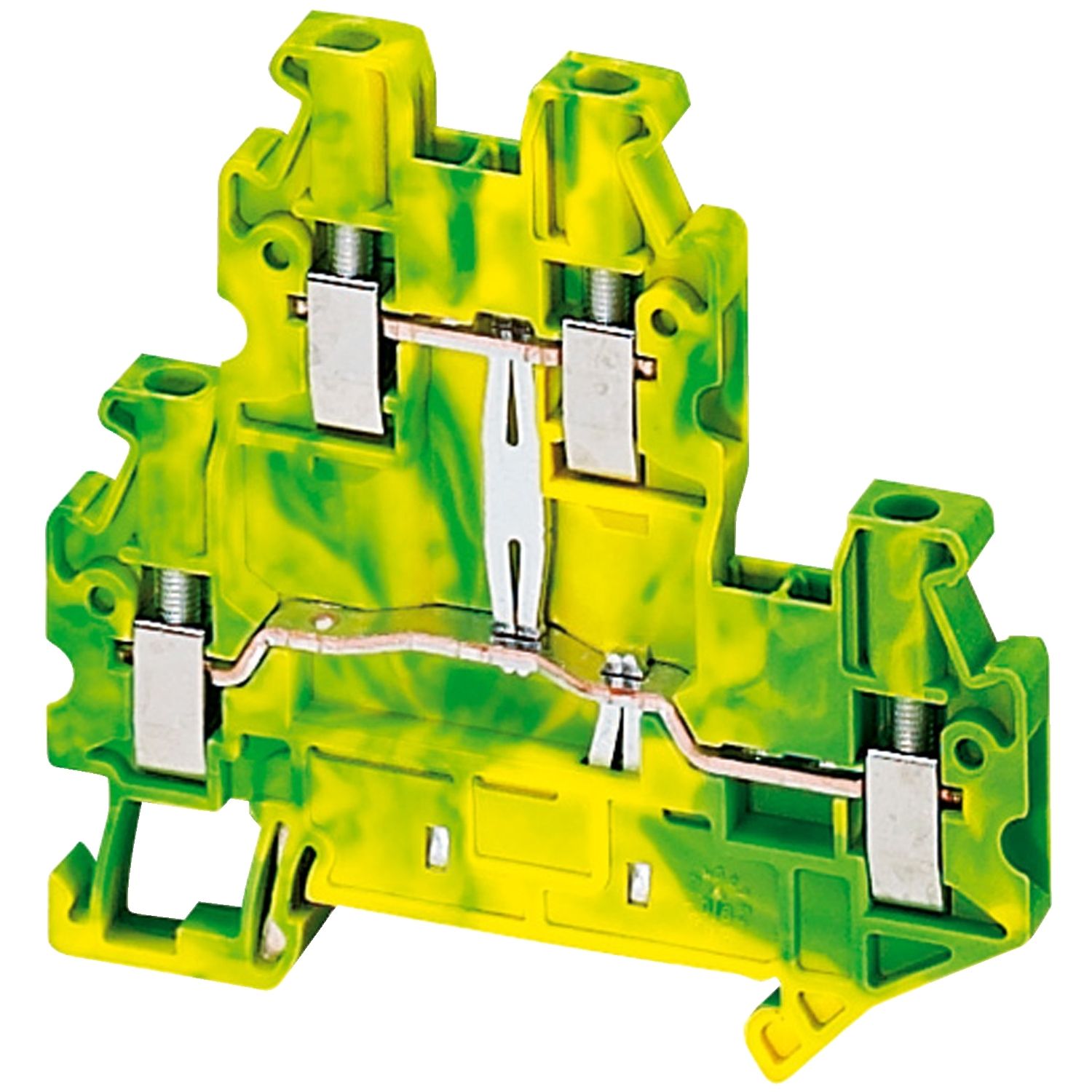

Picture of Linergy, Screw Terminal, Double Level, Protective Earth, 4 Points, 2,5mm², GRE
SKU:

NSYTRV24DPE

Linergy, Screw Terminal, Double Level, Protective Earth, 4 Points, 2,5mm², GRE

$7.42
Available for Shipping : 24-Nov-2024
Linergy, Screw Terminal, Double Level, Protective Earth, 4 Points, 2,5mm², GRE
Be the first to review this product
Manufacturer: Schneider Electric
Product environmental
Catalogue
Product Page Link
Product Data Sheet

Products specifications

Attribute name Attribute value
Main
Quantity per set set of 50
Terminal block level 2
Length 69.9 mm
Device short name TRV
Colour green-yellow
Mounting mode clip-on
Range Linergy
Range of product Linergy
Nominal cross section 2.5 mm²
Product name Linergy TR
Product or component type terminal block
Terminal block type protective earth
Complementary
Range compatibility TeSys, Pragma, Kaedra, Spacial, Prisma Pack, Prisma PH, Prisma P, Prisma G
Compatibility code terminal block
Wire stripping length 9 mm
Tool type disconnection: screwdriver, connection: screwdriver
Number of measurement input 4
Connection position sideways
Connections - terminals 1 x screw terminal: downstream, 1 x screw terminal: upstream
Height 65 mm
Material polyamide 6/6: insulating case
Dielectric constant 3.7 at 1 MHz
Net weight 21 g
Number of terminals 2
Product compatibility Spacial enclosures
Tightening torque 0.5-0.6 N.m
Surface resistance 1000 GΩ conforming to VDE 0303-T30, 1000 GΩ conforming to IEC 60093
Resistivity 10000 MΩ.m conforming to VDE 0303-T30, 10000 MΩ.m conforming to IEC 60093
Flame retardance V0, thickness0.8 mm conforming to UL 94
Dielectric loss 0.01 at 1 MHz conforming to VDE 0303-T4, 0.01 at 1 MHz conforming to IEC 60250
Creep resistance 500 CTI (> 400 kB) conforming to VDE 0303-T30, 500 CTI (> 400 kB) conforming to IEC 60093
Width 5.2 mm
Cable cross section 0.14-4 mm², flexible without cable end, 0.2-2.5 mm², flexible with cable end, 0.14-4 mm², solid
Environment
Product certifications GL, cURus, IEC-Ex, LR, EAC, DNV, CSA, ATEX
Ambient air temperature for operation -40-130 °C conforming to VDE 0304-T21, -40-130 °C conforming to IEC 60216-1
Dielectric strength 1000 V conforming to IEC 60243-1
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 6.900 cm
Package 1 Width 8.000 cm
Package 1 Length 27.000 cm
Package 1 Weight 20.000 g
Unit Type of Package 2 2
Number of Units in Package 2 50
Package 2 Height 6.900 cm
Package 2 Width 8.000 cm
Package 2 Length 27.000 cm
Package 2 Weight 1.024 kg
Unit Type of Package 3 3
Number of Units in Package 3 500
Package 3 Height 30.000 cm
Package 3 Width 30.000 cm
Package 3 Length 40.000 cm
Package 3 Weight 10.668 kg
