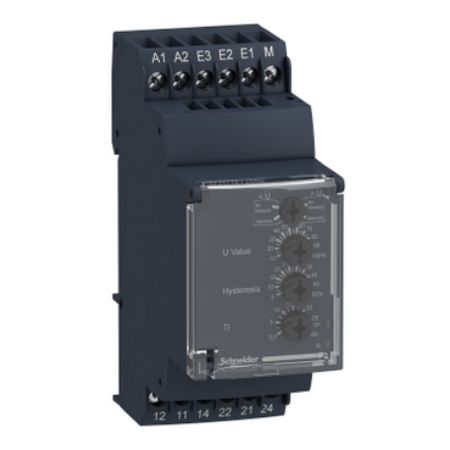

Harmony Control Relays, Modular 1 phaseVoltage control relay, 5A, 2CO, range 0.05...5V, 24..240V AC DC

$352.69
Product Selector
Harmony Control Relays, Modular 1 phaseVoltage control relay, 5A, 2CO, range 0.05...5V, 24..240V AC DC
Be the first to review this product
Manufacturer: Schneider Electric
Estimated Delivery Date: 27-Oct-2024
Image of product
End of life manual
Image of product
Catalogue
Image of product
Image of product
Declaration of conformity
Technical illustration
Instruction sheet
Image of product
Image of product
Product environmental
Product Page Link
Product Data Sheet
This Harmony RM35-U multi function control relay allows monitoring of voltage control. This modular multi function control relay is ideal for monitoring of electrical values and voltage variation in industrial and building control panels. It applies to a wide type of industrial automation applications such as hoisting, packaging, lifts, textile, water. It has one of market medium form-factors with 35mm width, allowing for a flexible and easy installation on DIN rail, using the same space as any modular 3-pole DIN device. It also offers a selectable memory function, integral LED for indicating control status, sealable cover, with simple and precise settings with screw trimmers. It provides automatic shutdown management and fault information to user for a quick fault identification and troubleshooting. Multi function controller for wide choice selected in hard-wired logic automated systems, ideal for refurbishment of old installations without using a PLC. 0 0 0 0 0 0 0 0 0 0 0 0

Products specifications

Attribute nameAttribute value
Main
[Uc] control circuit voltage24...240 V
Relay typemultifunction voltage control relay
Relay nameRM35UA
Power consumption in VA0-3.5 VA AC
Measurement range0.05...5 V voltage AC/DC
Range of productHarmony Control Relays
Maximum switching current5 A AC/DC
[In] rated current5 A
Relay monitored parametersovervoltage or undervoltage detection
Time delay typeadjustable 0.3...30 s, 0 + 10 % Tt- time delay upon fault
Contacts type and composition2 C/O
Utilisation categoryDC-14 conforming to IEC 60947-5-1, DC-13 conforming to IEC 60947-5-1, DC-12 conforming to IEC 60947-5-1, AC-15 conforming to IEC 60947-5-1, AC-14 conforming to IEC 60947-5-1, AC-13 conforming to IEC 60947-5-1, AC-12 conforming to IEC 60947-5-1
Product or component typevoltage control relay
Switching capacity in VA1250 VA
Connections - terminalsscrew connectors
Minimum switching current10 mA at 5 V DC
Complementary
Tightening torque0.6-1 N.m conforming to IEC 60947-1
Control circuit frequency40...70 Hz +/- 10 %
Resistance across terminals50 mOhm at E3-M terminals, 5 mOhm at E1-M terminals, 30 mOhm at E2-M terminals
Compatibility codeRM3
Mechanical durability30000000 cycles
Supply voltage limits20.4-264 V AC/DC
Control typewithout test button
Threshold setting10...100 %
Measurement error< 1 % over the whole range with voltage variation, +/- 0.05 %/°C with temperature variation
Insulation resistance> 1 MOhm at 500 V DC between supply and measurement conforming to IEC 60664-1, > 500 MOhm at 500 V DC between measurement and relay output conforming to IEC 60255-5, > 500 MOhm at 500 V DC between supply and relay output conforming to IEC 60664-1, > 1 MOhm at 500 V DC between supply and measurement conforming to IEC 60255-5, > 500 MOhm at 500 V DC between measurement and relay output conforming to IEC 60664-1, > 500 MOhm at 500 V DC between supply and relay output conforming to IEC 60255-5
Control circuit voltage limits- 15 % + 10 % Un
Safety reliability dataMTTFd = 308.2 years, B10d = 290000
Repeat accuracy+/- 2 % for time delay, +/- 0.5 % for input and measurement circuit
Electrical durability100000 cycles
Maximum power consumption in W0.6 W DC
Width35 mm
Measurement accuracy+/- 10 % of the full scale value
Housing materialself-extinguishing plastic
Local signallingLED (yellow) for relay ON, LED (green) for power ON
Nominal output current5 A
Mounting support35 mm symmetrical DIN rail conforming to IEC 60715
Quality labelsCE
Overvoltage categoryIII conforming to IEC 60664-1
[Ui] rated insulation voltage600 V conforming to IEC 60664-1, 250 V conforming to IEC 60664-1
Run-up delay at power-up600 ms
Connections - terminalsscrew terminals, 2 x 0.2...2 x 1.5 mm² (AWG 24...AWG 16) flexible with cable end, screw terminals, 1 x 0.2...2 x 2.5 mm² (AWG 24...AWG 12) flexible with cable end, screw terminals, 2 x 0.5...2 x 2.5 mm² (AWG 20...AWG 14) solid without cable end, screw terminals, 1 x 0.5...1 x 4 mm² (AWG 20...AWG 11) solid without cable end
Reset time1500 ms time delay
Maximum switching voltage250 V AC/DC
Net weight0.08 kg
Sensitivity scale0.5...5 V E3-M terminals, 0.3...3 V E2-M terminals, 0.05...0.5 V E1-M terminals
Operating positionany position without derating
Polaritynon reversible polarity on DC supply
Immunity to microbreaks10 ms
Output contacts2 C/O
Operating rate<= 360 operations/hour full load
[Us] rated supply voltageAC/DC non self-powered
Hysteresis5-50 % of threshold setting
Maximum measuring cycle30 ms measurement cycle as true rms value
Environment
Relative humidity95-95 % at 55-55 °C conforming to IEC 60068-2-30
Ambient air temperature for storage-40-70 °C
Directives89/336/EEC - electromagnetic compatibility, 73/23/EEC - low voltage directive
Pollution degree3 conforming to IEC 60664-1
IP degree of protectionIP30 (casing) conforming to IEC 60529, IP20 (terminals) conforming to IEC 60529
Ambient air temperature for operation-20-50 °C
Electromagnetic compatibilityimmunity for industrial environments conforming to NF EN/IEC 61000-6-2, emission standard for residential, commercial and light-industrial environments conforming to IEC 61000-6-3, emission standard for industrial environments conforming to IEC 61000-6-4
Non-dissipating shock wave4 kV conforming to IEC 61000-4-5, 4 kV conforming to IEC 60664-1, 4 kV conforming to IEC 60255-5
Vibration resistance1 gn (f= 57.6-150 Hz) conforming to IEC 60255-21-1, 0.35 mm (f= 5-57.6 Hz) conforming to IEC 60068-2-6
Shock resistance5 gn conforming to IEC 60068-2-27
Dielectric test voltage2 kV, 1 min AC 50 Hz conforming to IEC 60664-1, 2 kV, 1 min AC 50 Hz conforming to IEC 60255-5
StandardsIEC 60255-6
Product certificationsC-Tick, UL, GL, CSA, GOST
Packing Units
Unit Type of Package 11
Number of Units in Package 11
Package 1 Height4.500 cm
Package 1 Width9.600 cm
Package 1 Length7.800 cm
Package 1 Weight140.000 g
Unit Type of Package 22
Number of Units in Package 248
Package 2 Height30.000 cm
Package 2 Width30.000 cm
Package 2 Length40.000 cm
Package 2 Weight7.475 kg
