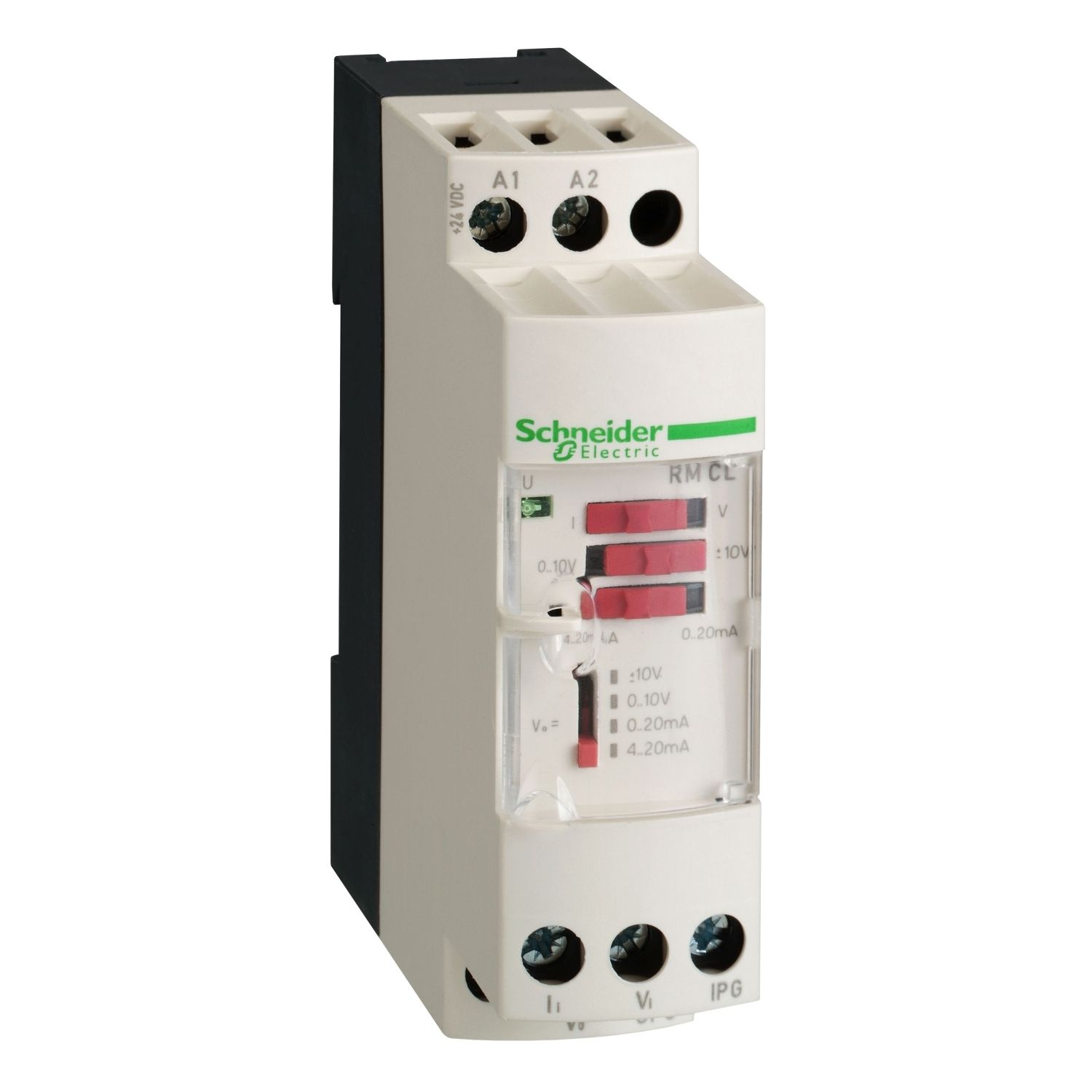

Picture of Voltage or current converter, Harmony Analog, Isolated 0...20mA
SKU:

RMCL55BD

Voltage or current converter, Harmony Analog, Isolated 0...20mA

Old price: $563.20 INC GST
$535.04 INC GST
Available for Shipping : 03-Feb-2026
Voltage or current converter, Harmony Analog, Isolated 0...20mA
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 03-Feb-2026
Instruction sheet
Catalog
Declaration of conformity
Product Page Link
Product Data Sheet
This voltage/current converter is part of the range of Harmony Analog. It allows conversion of the most common signals. Its supply voltage is 24V DC, isolated. It features four inputs with voltage/current range of 0V to 10V, +/- 10V, 0mA to 20mA, and 4mA to 20mA. It has four outputs with a switchable voltage/current range of 0V to 10V, +/- 10V, 0mA to 20mA, and 4mA to 20mA. It also allows the connection distance between a sensor and the measurement acquisition device to be increased. 0 It weighs 0.120Kg. 0 0 Conforming to IEC standards, UL and CSA certified, this converter is suitable for universal use. 0 0 0 0 Quick and intuitive setting, easy to use with fixed input and output values according to the market needs. The settings are secure with sealable protective cover. 0

Products specifications

Attribute name Attribute value
Main
Range of product Harmony Analog
Analogue input type voltage 0...10 V DC, voltage +/- 10 V DC, current 4...20 mA, current 0...20 mA
Product or component type voltage/current converter
Analogue output type voltage 0...10 V >= 100 kOhm switchable, voltage +/- 10 V >= 100 kOhm switchable, current 4...20 mA <= 500 Ohm switchable, current 0...20 mA <= 500 Ohm switchable
Complementary
Protection type overvoltage protection on output (+/- 30 V), short-circuit protection on output, reverse polarity protection on output
Temperature coefficient 200 ppm/°C
Surge withstand 0.5 kV during 1.2/50 µs conforming to IEC 61000-4-5
Fixing mode clip-on (35 mm symmetrical DIN rail), by screws (mounting plate)
Marking CE
Clamping connection capacity 1 x 2.5 mm², 2 x 1.5 mm²
Measurement error +/- 1 % of full scale at 20 °C, +/- 10 % of full scale at 20 °C (electromagnetic interference of 10 V/m)
Safety reliability data MTTFd = 21.6 years, B10d = 20000
[Us] rated supply voltage 24 V DC +/- 20 %, isolated
Repeat accuracy +/- 0.6 % full scale at 60 °C, +/- 0.2 % full scale at 20 °C
Analogue output current 4-30 mA, output selected 4...20 mA no input or input wire broken current, -30-0 mA, output selected 0...20 mA no input or input wire broken current, 22-30 mA, output selected 4...20 mA no input or input wire broken voltage, 22-30 mA, output selected 0...20 mA no input or input wire broken voltage
Tightening torque 0.6-1.1 N.m
Local signalling LED (green) for power ON
Net weight 0.12 kg
Analogue output voltage -15...0 V, output selected 4...20 mA no input or input wire broken current, -15...0 V, output selected 0...20 mA no input or input wire broken current, 11...15 V, output selected 0...10 V no input or input wire broken voltage, 11...15 V, output selected - 10...10 V no input or input wire broken voltage
[Ui] rated insulation voltage 2 kV
Current consumption <= 90 mA for current output, <= 70 mA for voltage output
Environment
Resistance to fast transients 2 kV (on power supply) conforming to IEC 61000-4-4, 1 kV (on input-output) conforming to IEC 61000-4-4
Fire resistance 850 °C conforming to UL, 850 °C conforming to IEC 60695-2-1
Resistance to electrostatic discharge 8 kV (in air) conforming to IEC 61000-4-2 level 3, 6 kV (in contact) conforming to IEC 61000-4-2 level 3
Ambient air temperature for storage -40-85 °C
Pollution degree 2 conforming to IEC 60664-1
Disturbance radiated/conducted CISPR 11, CISPR 22 group 1 - class B
IP degree of protection IP50 (housing), IP20 (terminal block)
Ambient air temperature for operation 0-60 °C 2 cm spacing, 0-50 °C mounting side by side
Vibration resistance 5 gn (f= 10-100 Hz) conforming to IEC 60068-2-6
Shock resistance 50 gn for 11 ms conforming to IEC 60068-2-27
Standards IEC 60584-1, IEC 60947-1
Product certifications CSA, GL, UL
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 3.100 cm
Package 1 Width 8.300 cm
Package 1 Length 8.600 cm
Package 1 Weight 118.000 g
Unit Type of Package 2 2
Number of Units in Package 2 47
Package 2 Height 15.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 6.140 kg

Related products

Isolated analog converter, Harmony Analog, 0…10V or 4...20mA to 0…10V or 4...20mA

RMCN22BD
$314.54 INC GST $331.10 INC GST
View Detail

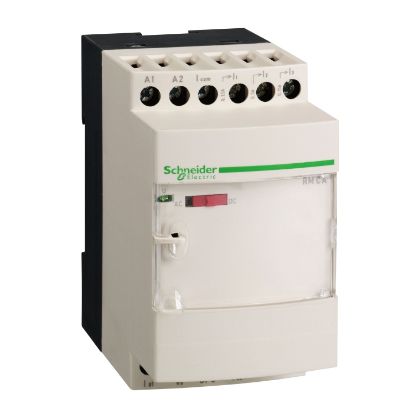

Isolated analog converter, Harmony Analog, 0…15A current to 0…10V or 4...20mA
