RPM42ED

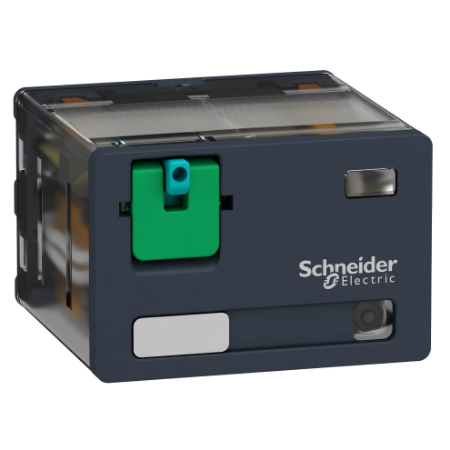

plug-in relay, Harmony electromechanical relays, 15A, 4CO, with LED, lockable test button, 48V DC

Call for pricing
Availability: Please contact our sales team on 1300 724 622.
Product Selector
plug-in relay, Harmony electromechanical relays, 15A, 4CO, with LED, lockable test button, 48V DC
Be the first to review this product
Manufacturer: Schneider Electric
Catalogue
Image of product in real life situation
Declaration of conformity
Image of product in real life situation
Product environmental
Technical illustration
Product Page Link
Product Data Sheet
This Harmony RPM power plug-in relay has a coil control voltage of 48V DC and has 4 changeover contacts 4PDT (quadruple pole double throw) with a rating of 15A. It has large choice of number of contacts for high rated current use. It also offers LED indicator to alert on the current status of the relay. It helps to reduce the size of enclosures and increase machine reliability, you can mount nearly everywhere. This RPM product is IP40. Workability for hard-wired logic automated systems to complement the functions of industrial programmable logic controllers (PLCs). Status display with LED, clearly signal both in the day and night. 0 0 0 0 0 0 0 0 0 0 0 0

Products specifications

Attribute name Attribute value
Main
Device short name RPM
[Uc] control circuit voltage 48 V, 48 V DC
Control type lockable test button
Range of product Harmony Electromechanical Relays
Utilisation coefficient 20 %
[Ithe] conventional enclosed thermal current 15 A at -40-55 °C
[In] rated current 15 A
Contacts type and composition 4 C/O
Series name Power
Status LED with
Product or component type plug-in relay
Complementary
Drop-out voltage threshold >= 0.1 Uc DC
[Uimp] rated impulse withstand voltage 4 kV during 1.2/50 µs
Load current 15 A at 28 V DC, 15 A at 250 V AC
Operating position any position
Compatibility code RPM
Mechanical durability 10000000 cycles
Pollution degree 3
Average coil consumption 1.6 W
Device presentation complete product
Average resistance 1210 Ohm at 20 °C +/- 10 %
Shape of pin flat
Contacts material AgNi
Electrical durability 100000 cycles for resistive load
Safety reliability data B10d = 100000
Maximum switching capacity 420 W, 3750 VA
Minimum switching capacity 170 mW at 10 mA, 17 V
Operating time 20 ms at nominal voltage
[Ui] rated insulation voltage 300 V conforming to UL, 300 V conforming to CSA, 250 V conforming to IEC
[Ie] rated operational current 7.5 A at 28 V (DC) NC conforming to IEC, 7.5 A at 250 V (AC) NC conforming to IEC, 15 A at 28 V (DC) NO conforming to IEC, 15 A at 250 V (AC) NO conforming to IEC, 15 A at 28 V (DC) conforming to UL, 15 A at 277 V (AC) conforming to UL
Rated operational voltage limits 38.4...52.8 V DC
Maximum switching voltage 250 V conforming to IEC
Net weight 0.071 kg
Reset time 20 ms at nominal voltage
Test levels level A group mounting
Protection category RT I
Operating rate <= 18000 cycles/hour no-load, <= 1200 cycles/hour under load
Environment
Ambient air temperature for storage -40-85 °C
IP degree of protection IP40 conforming to IEC 60529
Ambient air temperature for operation -40-55 °C
Shock resistance 30 gn for not operating, 15 gn for in operation
Vibration resistance 5 gn, amplitude = +/- 1 mm (f = 10-150 Hz)5 cycles not operating, 3 gn, amplitude = +/- 1 mm (f = 10-150 Hz)5 cycles in operation
Dielectric strength 2000 V AC between poles with basic, 2000 V AC between coil and contact with reinforced, 1500 V AC between contacts with micro disconnection
Standards UL 508, IEC 61810-1, CSA C22.2 No 14
Product certifications EAC, UL, CSA
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 2.8 cm
Package 1 Width 4 cm
Package 1 Length 4.7 cm
Package 1 Weight 76 g
Unit Type of Package 2 2
Number of Units in Package 2 10
Package 2 Height 3.1 cm
Package 2 Width 10.5 cm
Package 2 Length 22.6 cm
Package 2 Weight 762 g
Unit Type of Package 3 3
Number of Units in Package 3 40
Package 3 Height 15 cm
Package 3 Width 15 cm
Package 3 Length 40 cm
Package 3 Weight 3.354 kg
