SKU:

SER8350A5B00

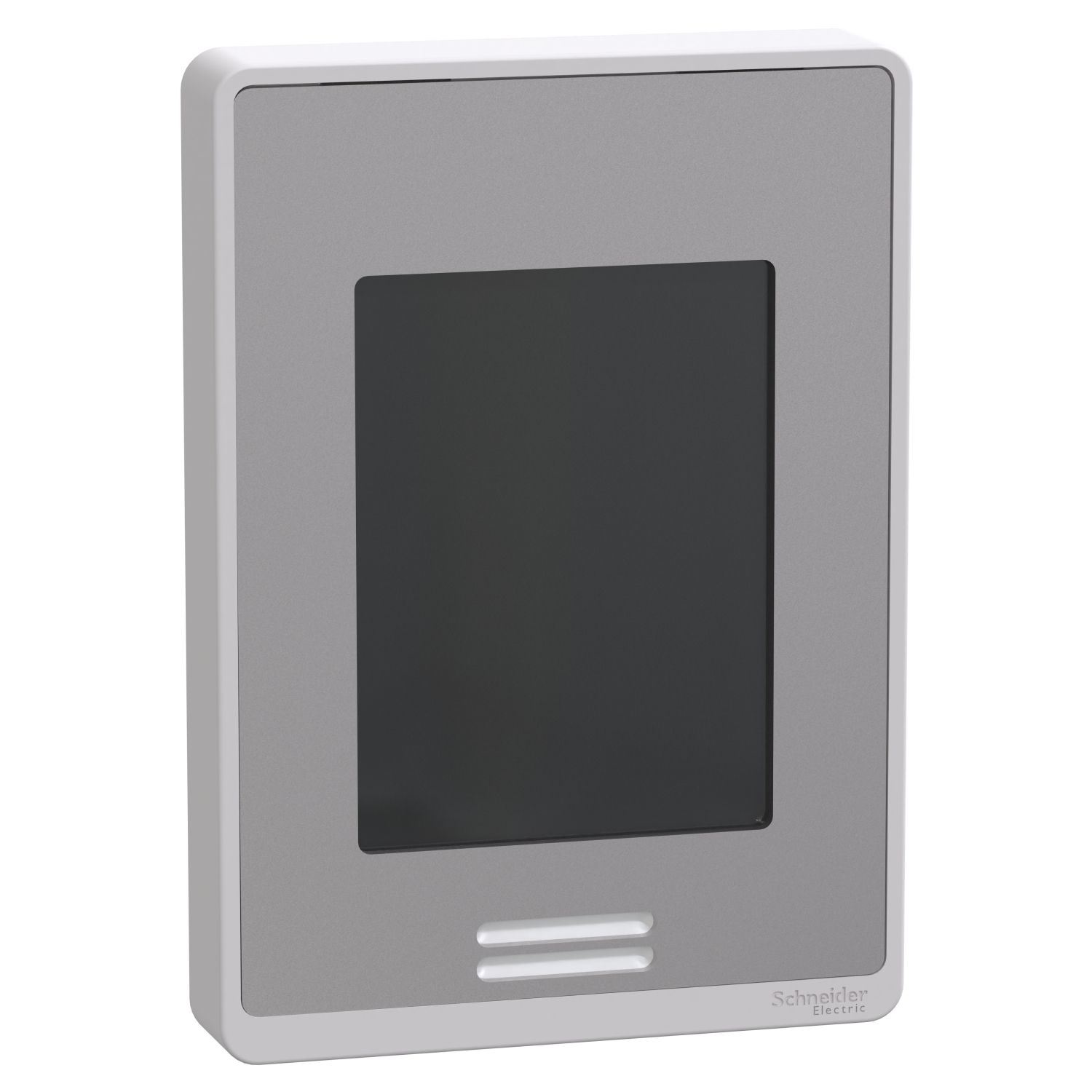

Line-Voltage Fan Coil Room Controller: BACnet MS/TP, RH sensor & control, PIR motion sensor, Silver Case/Fascia

$938.40 INC GST

Qty:

Available for Shipping : 10-Feb-2025

Line-Voltage Fan Coil Room Controller: BACnet MS/TP, RH sensor & control, PIR motion sensor, Silver Case/Fascia

Be the first to review this product

Manufacturer: Schneider Electric

User guide

End of life manual

Instruction sheet

Brochure

Product environmental

Declaration of conformity

Catalogue

Product Page Link

Product Data Sheet

This SER8350 Line Voltage fan coil unit room controller works with VC3000 relay pack. With touch color screen. Silver Fascia & Casing. PIR motion sensor. BACnet communication to connect with BMS

Products specifications

Attribute name	Attribute value
Main
Device short name	SER8300
Device application	line voltage fan coil
Depth	25 mm
Temperature resolution	0.1 °C
Humidity setting range	30-95 %
Market segment	school, residential, office, non-critical buildings, healthcare, buildings, small commercial, lodging/hotel
Width	86 mm
[In] rated current	4 A
Temperature setting range	4.5-32 °C heating, 12-37.5 °C cooling
Sensor type	space RH sensor humidity, 10 kOhm T2 NTC thermistor temperature
Relative humidity	0-95 %
Input voltage	0...10 V DC
Output current	1 A relay output
Ambient air temperature for storage	-30-50 °C
AWG gauge	AWG 24...AWG 18
Directives	2014/53/EU - radio equipment directive, 2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility
Communication port protocol	Modbus RTU, BACnet MS/TP
Input type	5 x analog, 2 x dry contact
Range	EcoStruxure Building Expert
Net weight	340 g
Product name	SE8000 Series
Humidity measurement drift	less than 1 % yearly
Output type	4 xuniversal, 5 xrelay output
Product or component type	room controller
Targeted region	North America.
Output voltage	0...10 V DC for analog output, 24 V AC for relay output
Standards	ETSI EN 301 489-17:v2.2.1, 2012, UL 60730-2-9, FCC part 15 Subpart C, ETSI EN 301 489-1:v1.9.2, ETSI EN 300 328, ICES-003, FCC part 15 Subpart B, EN/IEC 60730-1
Calibration certificate	1 pt
Ambient air temperature for operation	0-50 °C
Height	120 mm
Housing colour	silver
Complementary
Surface treatment	untreated
Surface finish	matt

Economizer	Yes
PIR cover	Yes
Humidity control	Yes
Scheduling	No
Packing Units
Unit Type of Package 1	1
Number of Units in Package 1	1
Package 1 Height	4.7 cm
Package 1 Width	10.6 cm
Package 1 Length	15.2 cm
Package 1 Weight	43 g
