SKU:

SER8350A5B11P

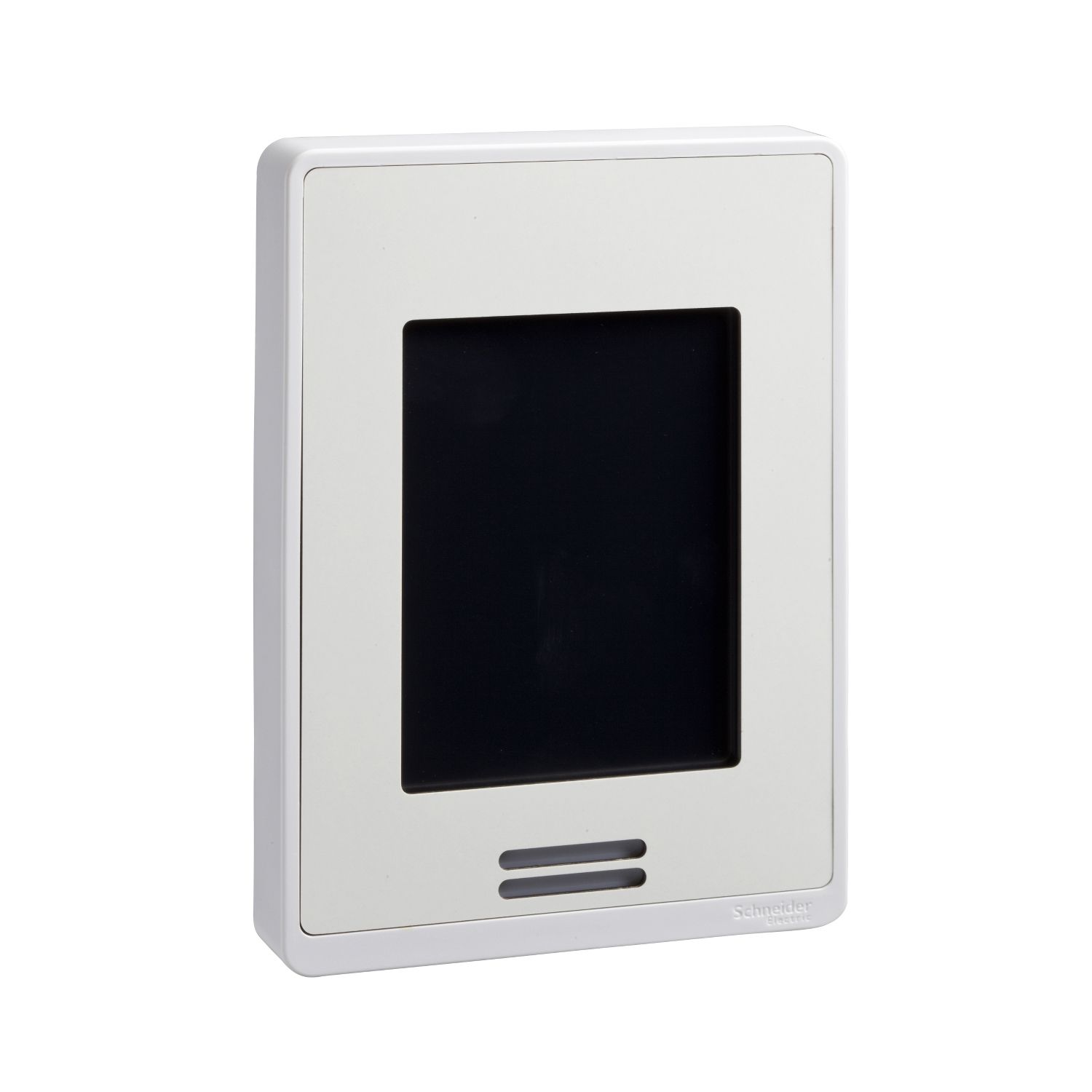

Line-Voltage Fan Coil Room Controller: BACnet MS/TP, ZigBee Embedded, RH sensor & control, IP ready, PIR motion sensor, White Case/Fascia

$1,182.00

Qty:

Available for Shipping : 10-Dec-2024

Line-Voltage Fan Coil Room Controller: BACnet MS/TP, ZigBee Embedded, RH sensor & control, IP ready, PIR motion sensor, White Case/Fascia

Be the first to review this product

Manufacturer: Schneider Electric

User guide

Instruction sheet

Brochure

Declaration of conformity

Catalogue

Product Page Link

Product Data Sheet

This SER8350 Line Voltage fan coil unit room controller works with VC3000 relay pack. With touch color screen. White Fascia & Casing. PIR motion sensor. BACnet communication & Zigbee Pro On board

Products specifications

Attribute name	Attribute value
Main
Device short name	SER8300
Device application	line voltage fan coil
Depth	25 mm
Humidity setting range	30-95 %
Market segment	school, residential, office, non-critical buildings, healthcare, buildings, hotel, small commercial, lodging
Width	86 mm
[In] rated current	4 A
Temperature setting range	4.5-32 °C heating, 12-37.5 °C cooling
Sensor type	space RH sensor humidity, 10 kOhm T2 NTC thermistor temperature
Relative humidity	0-95 %
Input voltage	0...10 V DC
Output current	3 A relay output (inrush), 1 A relay output
Ambient air temperature for storage	-30-50 °C
AWG gauge	AWG 24...AWG 18
Directives	2014/53/EU - radio equipment directive, 2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility
Communication port protocol	Zigbee Pro, Modbus RTU, BACnet MS/TP
Input type	5 x analog, 2 x dry contact
Range	EcoStruxure Building Expert
Net weight	340 g
Product name	SE8000 Series
Output type	4 xuniversal, 5 xrelay output
Product or component type	room controller
Output voltage	0...10 V DC for analog output, 24 V AC for relay output
Standards	RSS 247, ETSI EN 301 489-17:v2.2.1, 2012, FCC part 15 Subpart C, ETSI EN 301 489-1:v1.9.2, ETSI EN 300 328:v2.1.1, FCC part 15 Subpart B, ICES-003, UL 60730-2-13, UL 60730-2-9, CSA E60730-2-9, EN/IEC 60730-2-13, EN/IEC 60730-2-9, EN/IEC 60730-1
Ambient air temperature for operation	0-50 °C
Height	120 mm
Housing colour	white
Complementary
Surface treatment	untreated
Surface finish	matt

Economizer	No
PIR cover	Yes
Humidity control	Yes
Scheduling	Yes
Packing Units
Unit Type of Package 1	1
Number of Units in Package 1	1
Package 1 Height	8.6 cm
Package 1 Width	12.0 cm
Package 1 Length	2.5 cm
Package 1 Weight	245.0 g
