Picture of Zelio Logic, Compact discovery packs, smart relay discovery pack, 20 I/O, 100...240 V AC
SKU:

SR2PACK2FU

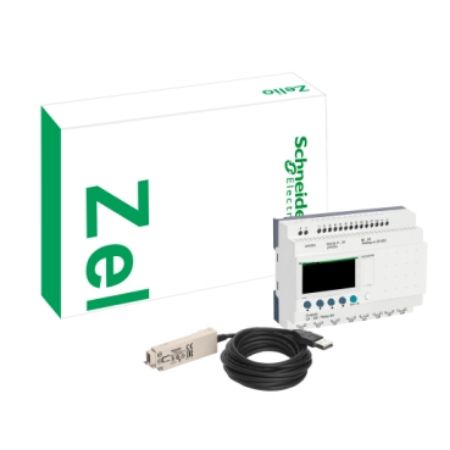

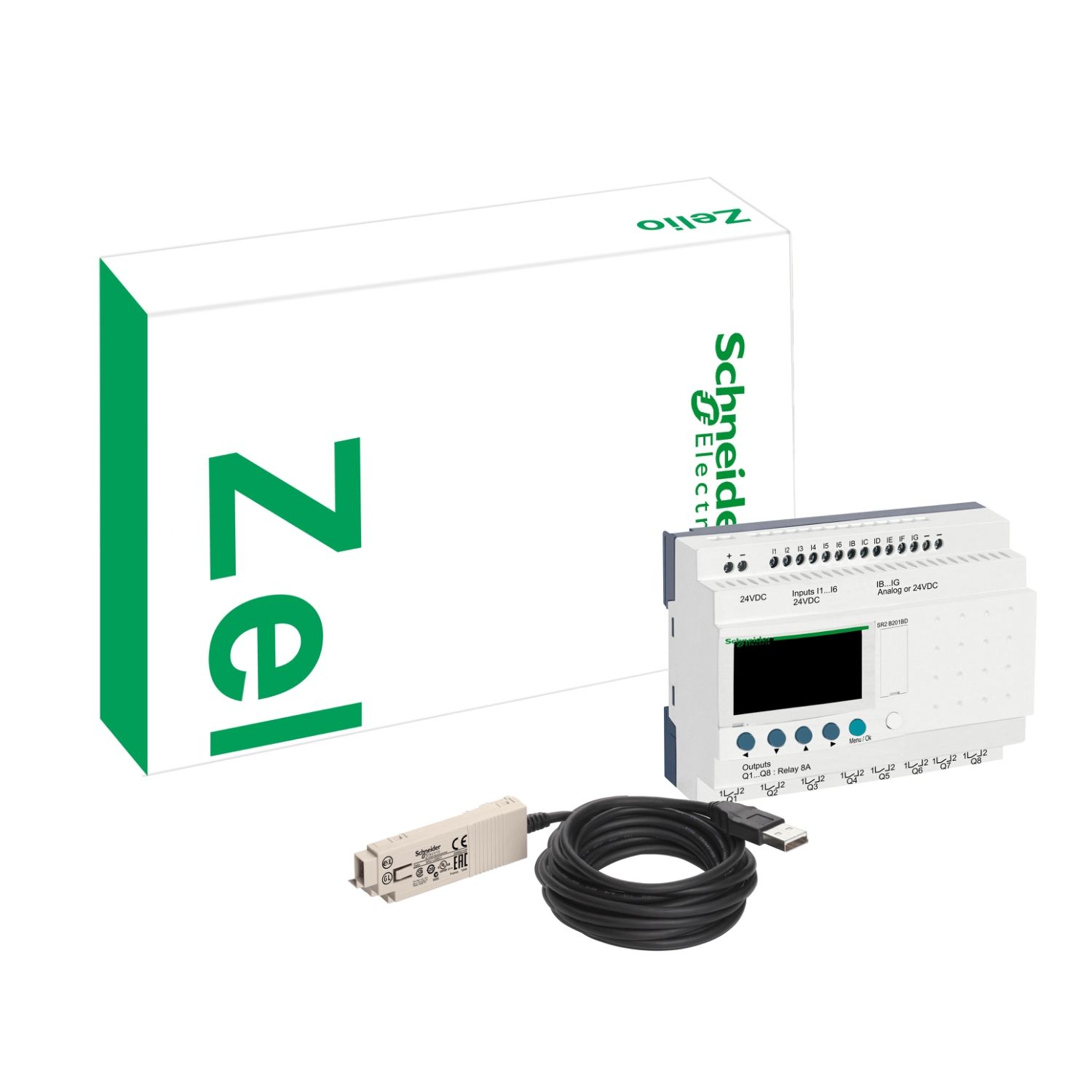

Zelio Logic, Compact discovery packs, smart relay discovery pack, 20 I/O, 100...240 V AC

$651.14 INC GST
Available for Shipping : 11-Feb-2025
Product Selector
Zelio Logic, Compact discovery packs, smart relay discovery pack, 20 I/O, 100...240 V AC
Be the first to review this product
Manufacturer: Telemecanique
Catalogue
User guide
Product environmental
End of life manual
Instruction sheet
Product Page Link
Product Data Sheet
This product is part of Smart Relay - Zelio Logic SR2/SR3, an offer of simple automation systems from 10 to 40 I/Os. This compact discovery packs Zelio Logic has 12 discrete inputs with 8 relay outputs. It is a module with discrete input voltage ranges from 100V AC to 240V AC. It is an IP20 and IP40 rated product. It weighs 0.85kg. The main application of this module is industry and building/service sector. This product is certified by C-Tick, GL, UL, CSA and GOST. It meets EN/IEC 60068-2-6 Fc and EN/IEC 61000-4-11 standards. Easy to use, Zelio Logic provides a real alternative solutions based on cabled logic or specific cards.

Products specifications

Attribute name Attribute value
Main
Discrete input number 12
Product or component type compact discovery packs
Number of outputs 8 relay
Range of product Zelio Logic
Complementary
[Us] rated supply voltage 100...240 V
Checks program memory on each power up
Supply frequency 50/60 Hz
Kit composition cable PC SR2USB01 for connection to PC, SR2B201FU
Cycle time 6-90 ms
Operating rate in Hz 10 Hz (no load) for relay output, 0.1 Hz (at Ie) for relay output
[Uimp] rated impulse withstand voltage 4 kV conforming to EN/IEC 60947-1 and EN/IEC 60664-1
Protection type against inversion of terminals (control instructions not executed)
Switching capacity in mA >= 10 mA at 12 V (relay output)
Isolation voltage 1780 V
Tightening torque 0.5 N.m
Maximum supply current 50 mA at 240 V (without extension), 100 mA at 100 V (without extension)
Mechanical durability 10000000 cycles for relay output
Overvoltage category III conforming to IEC 60664-1
Supply voltage limits 85-264 V
Current state 0 guaranteed <= 0.5 mA (discrete input)
Voltage state 1 guaranteed >= 79 V for discrete input
Connections - terminals screw terminals, 2 x 0.25...2 x 0.75 mm² (AWG 24...AWG 18) flexible with cable end, screw terminals, 2 x 0.2...2 x 1.5 mm² (AWG 24...AWG 16) solid, screw terminals, 1 x 0.25...1 x 2.5 mm² (AWG 24...AWG 14) flexible with cable end, screw terminals, 1 x 0.2...1 x 2.5 mm² (AWG 25...AWG 14) solid, screw terminals, 1 x 0.2...1 x 2.5 mm² (AWG 25...AWG 14) semi-solid
Electrical durability DC-13: 500000 cycles at 24 V, 0.6 A for relay output conforming to IEC 60947-5-1, DC-12: 500000 cycles at 24 V, 1.5 A for relay output conforming to IEC 60947-5-1, AC-15: 500000 cycles at 230 V, 0.9 A for relay output conforming to IEC 60947-5-1, AC-12: 500000 cycles at 230 V, 1.5 A for relay output conforming to IEC 60947-5-1
Output voltage limits 24...250 V AC, 5...30 V DC (relay output)
Voltage state 0 guaranteed <= 40 V for discrete input
Input/output number 20
Local display with
Net weight 0.85 kg
Clock without
Response time 5 ms (from state 1 to state 0) for relay output, 10 ms (from state 0 to state 1) for relay output, 50...255 ms with FBD programming (from state 1 to state 0) for discrete input, 50...255 ms with FBD programming (from state 0 to state 1) for discrete input, 50 ms with ladder programming (from state 1 to state 0) for discrete input, 50 ms with ladder programming (from state 0 to state 1) for discrete input
Current state 1 guaranteed >= 0.17 mA (discrete input)
Discrete input current 0.6 mA
Power consumption in VA 11 VA without extension
Clock drift 6 s/month at 25-25 °C, 12 min/year at 0-55 °C
Backup time 10 years at 25 °C
Discrete input voltage 100...240 V AC
Number or control scheme lines 0-200 with FBD programming, 120-120 with ladder programming
Output thermal current 8 A for all 8 outputs for relay output
Discrete input frequency 47...53 Hz, 57...63 Hz
Input impedance 350 kOhm for discrete input
Contacts type and composition NO for relay output
Environment
Operating altitude 2000 m
Maximum altitude transport 3048 m
Relative humidity 95-95 % without condensation or dripping water
Ambient air temperature for storage -40-70 °C
Pollution degree 2 conforming to IEC 61131-2
IP degree of protection IP40 (front panel) conforming to IEC 60529, IP20 (terminal block) conforming to IEC 60529
Environmental characteristic low voltage directive conforming to IEC 61131-2, EMC directive conforming to IEC 61131-2 zone B, EMC directive conforming to IEC 61000-6-4, EMC directive conforming to IEC 61000-6-3, EMC directive conforming to IEC 61000-6-2
Immunity to microbreaks 10 ms
Ambient air temperature for operation -20-55 °C conforming to IEC 60068-2-1 and IEC 60068-2-2, -20-40 °C in non-ventilated enclosure conforming to IEC 60068-2-1 and IEC 60068-2-2
Disturbance radiated/conducted class B conforming to EN 55022-11 group 1
Standards IEC 61000-4-11, IEC 61000-4-12, IEC 61000-4-4 level 3, IEC 60068-2-6 Fc, IEC 61000-4-3, IEC 61000-4-6 level 3, IEC 61000-4-5, IEC 60068-2-27 Ea, IEC 61000-4-2 level 3
Product certifications GOST, CSA, GL, C-Tick, UL
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 6.2 cm
Package 1 Width 15.3 cm
Package 1 Length 23.2 cm
Package 1 Weight 599 g
Unit Type of Package 2 2
Number of Units in Package 2 10
Package 2 Height 30 cm
Package 2 Width 30 cm
Package 2 Length 40 cm
Package 2 Weight 6.613 kg
