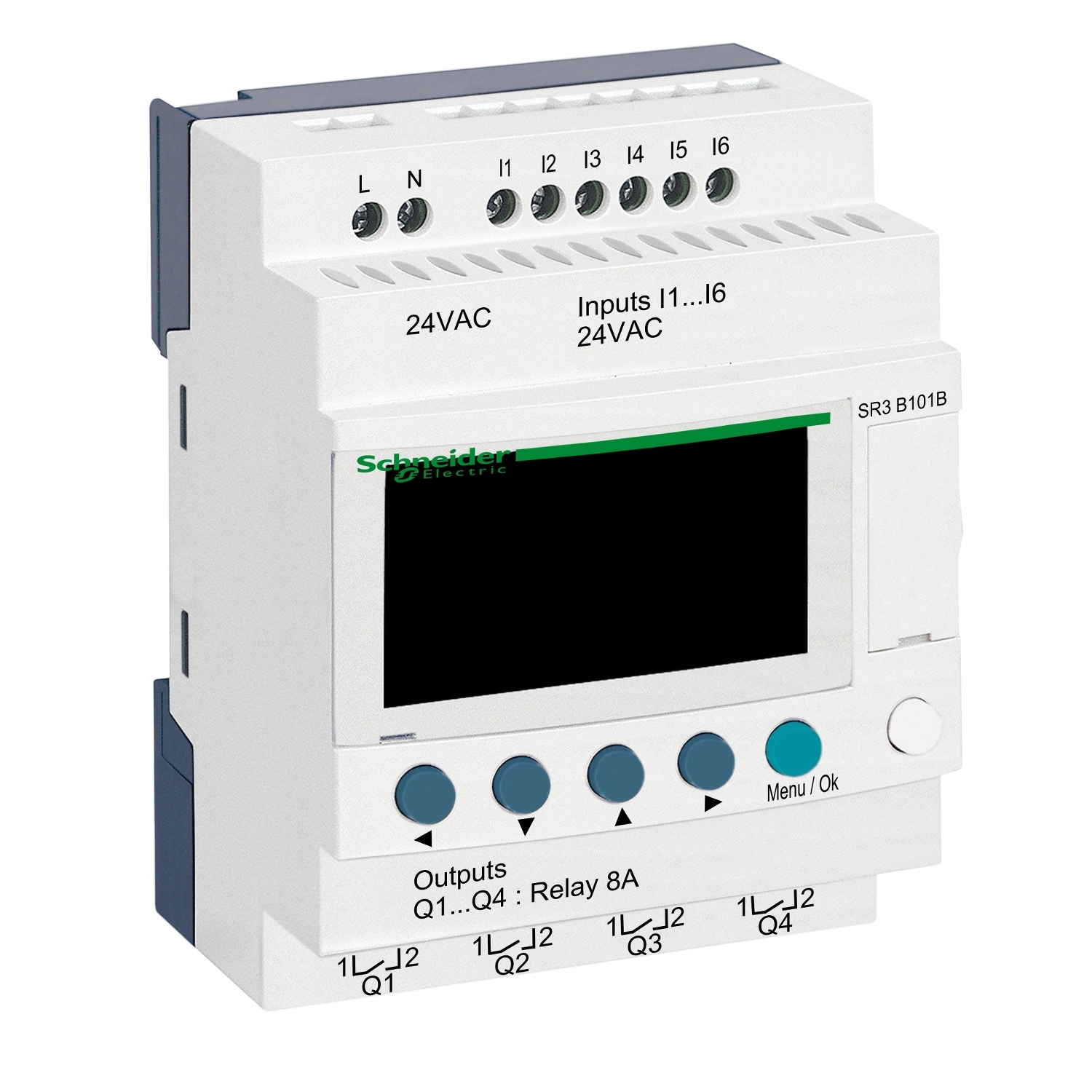

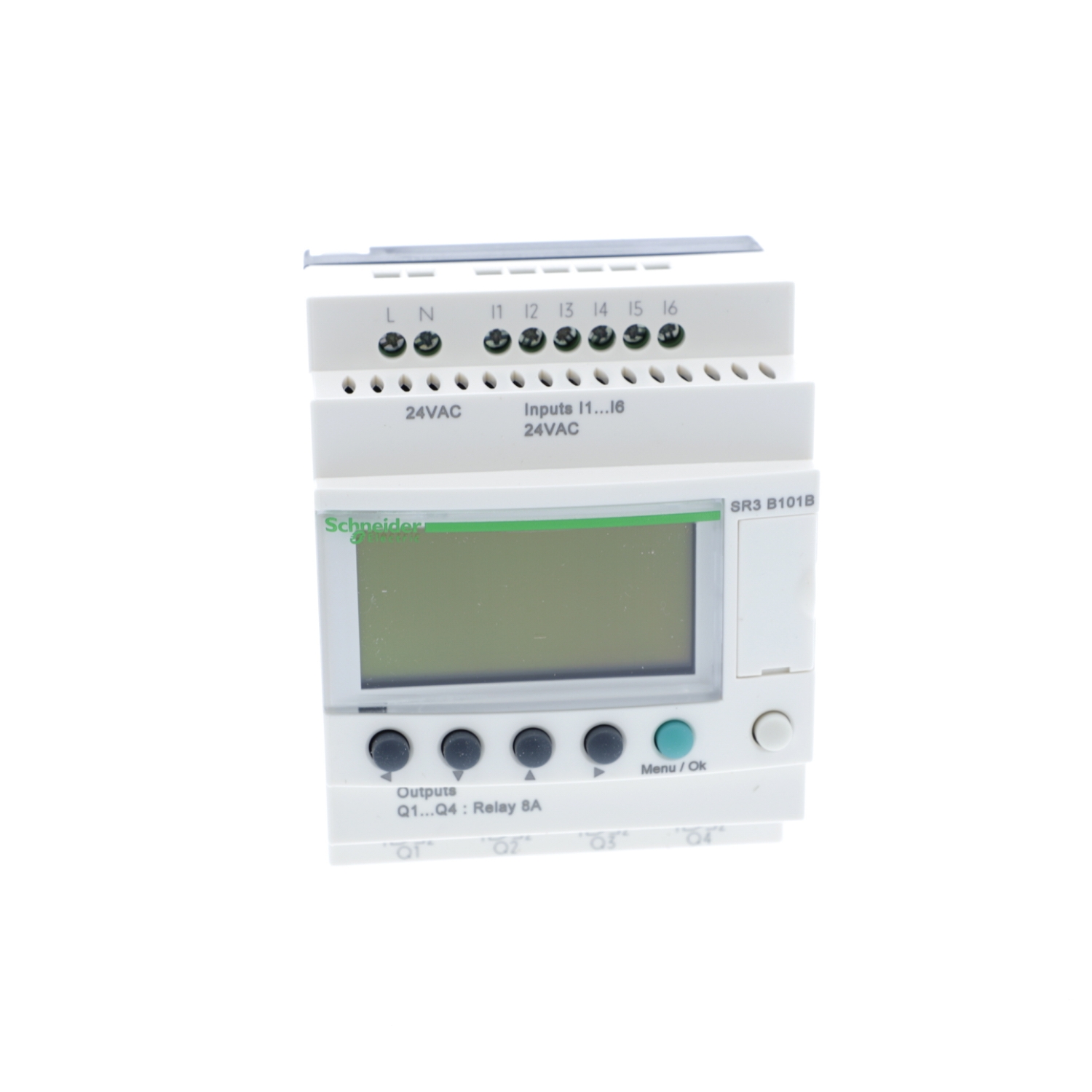

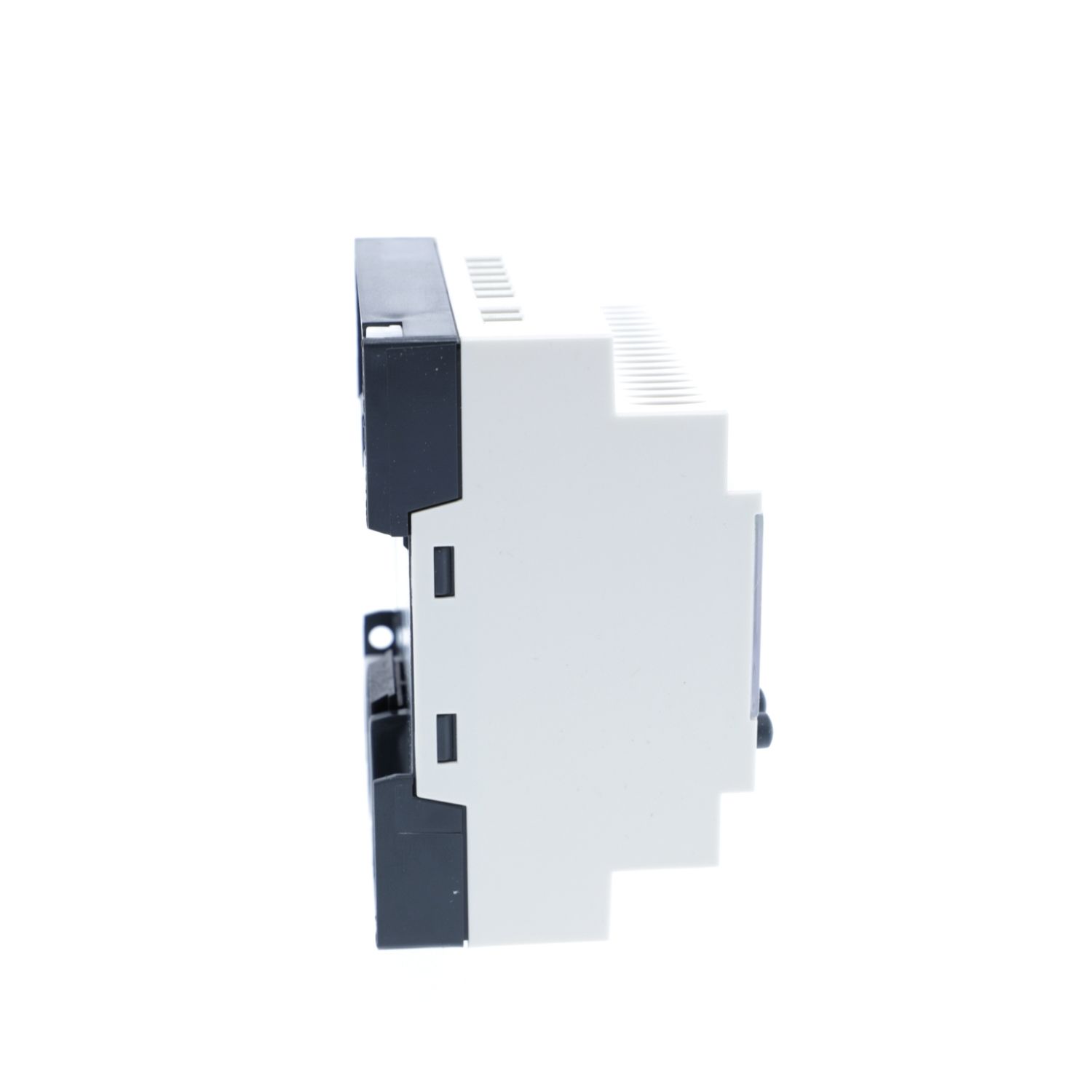

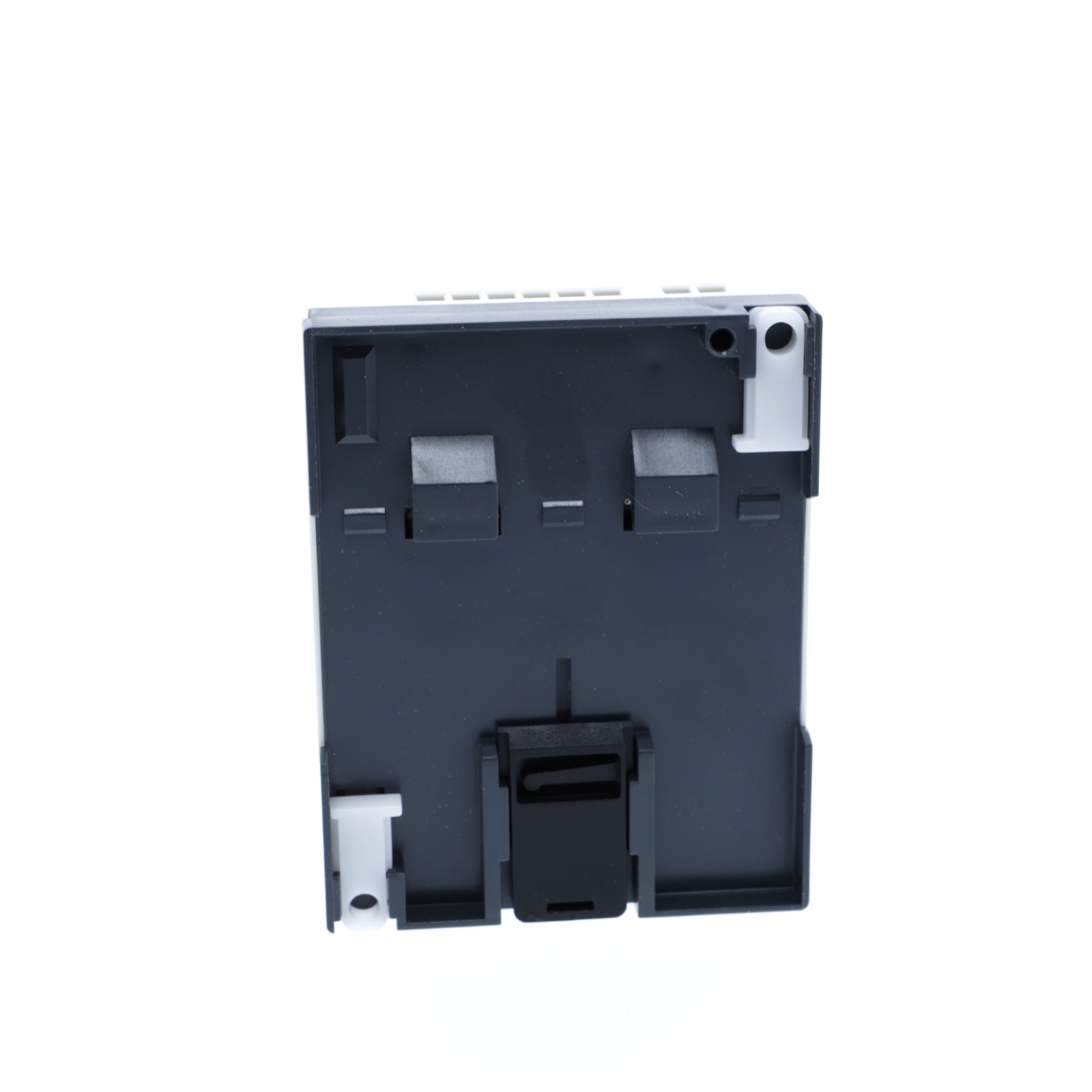

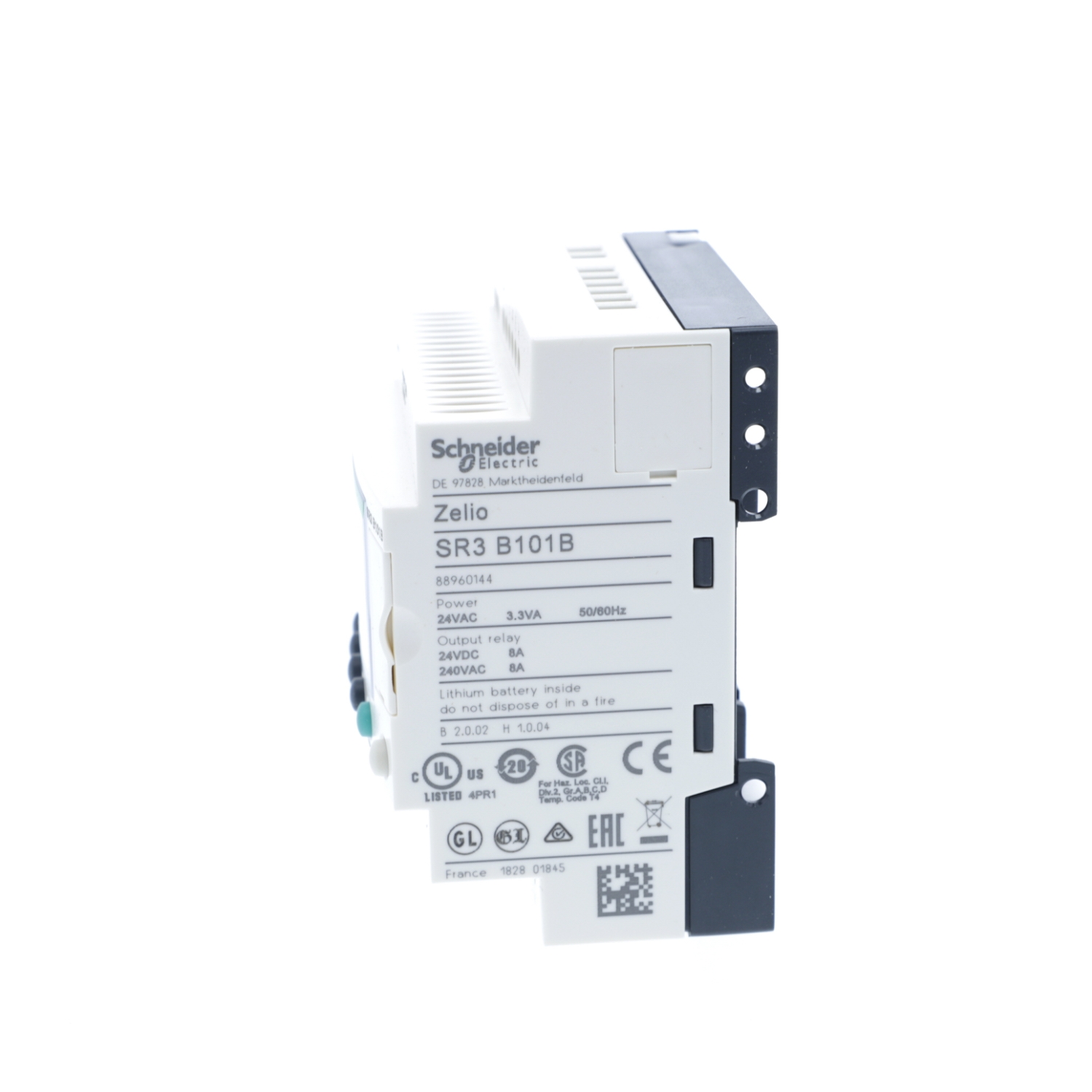

Picture of Zelio Logic, Modular smart relay, 10 I/O, 24 V AC, clock, display
SKU:

SR3B101B

Zelio Logic, Modular smart relay, 10 I/O, 24 V AC, clock, display

$429.06
Product Selector
Zelio Logic, Modular smart relay, 10 I/O, 24 V AC, clock, display
Be the first to review this product
Manufacturer: Telemecanique
Estimated Delivery Date: 26-Sep-2024
Catalogue
User guide
Declaration of conformity
Product environmental
Instruction sheet
End of life manual
Product Page Link
Product Data Sheet
This product is part of the Zelio Logic range, an offer of smart relays for simple automation systems from 10 to 40 I/Os. The compact smart relay provides a real alternative to solutions based on cabled logic or specific cards. It comes with display and clock. Checks program memory on each power up and 0 to 240 with ladder programming number or control scheme lines. Easy to use, Zelio Logic provides a real alternative to solutions based on cabled logic or specific cards It offers 4 relay outputs with normally opened contact and 6 discrete inputs. It is a smart relay with a rated supply voltage of 24V, a maximum supply current of 160mA (without extension) and a power consumption of 4VA without extension. It is an IP20 and IP40 rated product. It weighs 0.25kg. This product meets EN/IEC 61000-4-2 level 3, EN/IEC 61000-4-5, EN/IEC 61000-4-12, EN/IEC 61000-4-4 level 3, EN/IEC 60068-2-6 Fc, EN/IEC 61000-4-6 level 3, EN/IEC 61000-4-11, EN/IEC 61000-4-3 and EN/IEC 60068-2-27 standards. Simple to select, install and program, Zelio Logic is suitable for all your applications. Flexible, it offers you the choice of 2 ranges, compact or modular, extendable and 2 programming languages (FBD or LADDER). Easy to use, Zelio Logic provides a real alternative to solutions based on cabled logic or specific cards.

Products specifications

Attribute nameAttribute value
Main
Range of productZelio Logic
Product or component typemodular smart relay
Complementary
Discrete input number6
Operating rate in Hz10 Hz (no load) for relay output, 0.1 Hz (at Ie) for relay output
Isolation voltage1780 V
Tightening torque0.5 N.m
Supply voltage limits20.4-28.8 V
Electrical durabilityDC-13: 500000 cycles at 24 V, 0.6 A for relay output conforming to IEC 60947-5-1, DC-12: 500000 cycles at 24 V, 1.5 A for relay output conforming to IEC 60947-5-1, AC-15: 500000 cycles at 230 V, 0.9 A for relay output conforming to IEC 60947-5-1, AC-12: 500000 cycles at 230 V, 1.5 A for relay output conforming to IEC 60947-5-1
Local displaywith
Discrete input frequency47...53 Hz, 57...63 Hz
[Us] rated supply voltage24 V
Checksprogram memory on each power up
Switching capacity in mA>= 10 mA at 12 V (relay output)
Mechanical durability10000000 cycles for relay output
Voltage state 1 guaranteed>= 14 V for discrete input
Connections - terminalsscrew terminals, 2 x 0.25...2 x 0.75 mm² (AWG 24...AWG 18) flexible with cable end, screw terminals, 2 x 0.2...2 x 1.5 mm² (AWG 24...AWG 16) solid, screw terminals, 1 x 0.25...1 x 2.5 mm² (AWG 24...AWG 14) flexible with cable end, screw terminals, 1 x 0.2...1 x 2.5 mm² (AWG 25...AWG 14) solid, screw terminals, 1 x 0.2...1 x 2.5 mm² (AWG 25...AWG 14) semi-solid
Net weight0.25 kg
Current state 1 guaranteed>= 2 mA (discrete input)
Discrete input current4.4 mA
Number or control scheme lines0-240 with ladder programming, 0-500 with FBD programming
Supply frequency50/60 Hz
Protection typeagainst inversion of terminals (control instructions not executed)
Current state 0 guaranteed<= 0.5 mA (discrete input)
Voltage state 0 guaranteed<= 5 V for discrete input
Clockwith
Backup time10 years at 25 °C
Discrete input voltage24 V AC
Output thermal current8 A for all 4 outputs for relay output
Contacts type and compositionNO for relay output
Cycle time6-90 ms
Maximum supply current280 mA (with extensions), 160 mA (without extension)
Overvoltage categoryIII conforming to IEC 60664-1
Output voltage limits24...250 V AC, 5...30 V DC (relay output)
[Uimp] rated impulse withstand voltage4 kV conforming to EN/IEC 60947-1 and EN/IEC 60664-1
Response time5 ms (from state 1 to state 0) for relay output, 10 ms (from state 0 to state 1) for relay output, 50...255 ms with FBD programming (from state 1 to state 0) for discrete input, 50...255 ms with FBD programming (from state 0 to state 1) for discrete input, 50 ms with ladder programming (from state 1 to state 0) for discrete input, 50 ms with ladder programming (from state 0 to state 1) for discrete input
Power consumption in VA7.5 VA with extensions, 4 VA without extension
Clock drift6 s/month at 25-25 °C, 12 min/year at 0-55 °C
Number of outputs4 relay
Input impedance4.6 kOhm for discrete input
Environment
Ambient air temperature for storage-40-70 °C
Ambient air temperature for operation-20-55 °C conforming to IEC 60068-2-1 and IEC 60068-2-2, -20-40 °C in non-ventilated enclosure conforming to IEC 60068-2-1 and IEC 60068-2-2
Disturbance radiated/conductedclass B conforming to EN 55022-11 group 1
Operating altitude2000 m
Maximum altitude transport3048 m
Immunity to microbreaks10 ms repeated 20 times
Product certificationsGOST, CSA, C-Tick, UL, GL
Relative humidity95-95 % without condensation or dripping water
Pollution degree2 conforming to IEC 61131-2
IP degree of protectionIP40 (front panel) conforming to IEC 60529, IP20 (terminal block) conforming to IEC 60529
Environmental characteristiclow voltage directive conforming to IEC 61131-2, EMC directive conforming to IEC 61131-2 zone B, EMC directive conforming to IEC 61000-6-4, EMC directive conforming to IEC 61000-6-3, EMC directive conforming to IEC 61000-6-2
StandardsIEC 60068-2-27 Ea, IEC 61000-4-3, IEC 61000-4-11, IEC 61000-4-6 level 3, IEC 60068-2-6 Fc, IEC 61000-4-4 level 3, IEC 61000-4-12, IEC 61000-4-5, IEC 61000-4-2 level 3
Packing Units
Unit Type of Package 11
Number of Units in Package 11
Package 1 Height6.8 cm
Package 1 Width9 cm
Package 1 Length10 cm
Package 1 Weight239 g
Unit Type of Package 22
Number of Units in Package 230
Package 2 Height30 cm
Package 2 Width30 cm
Package 2 Length40 cm
Package 2 Weight7.683 kg
