SSL1A12BDR

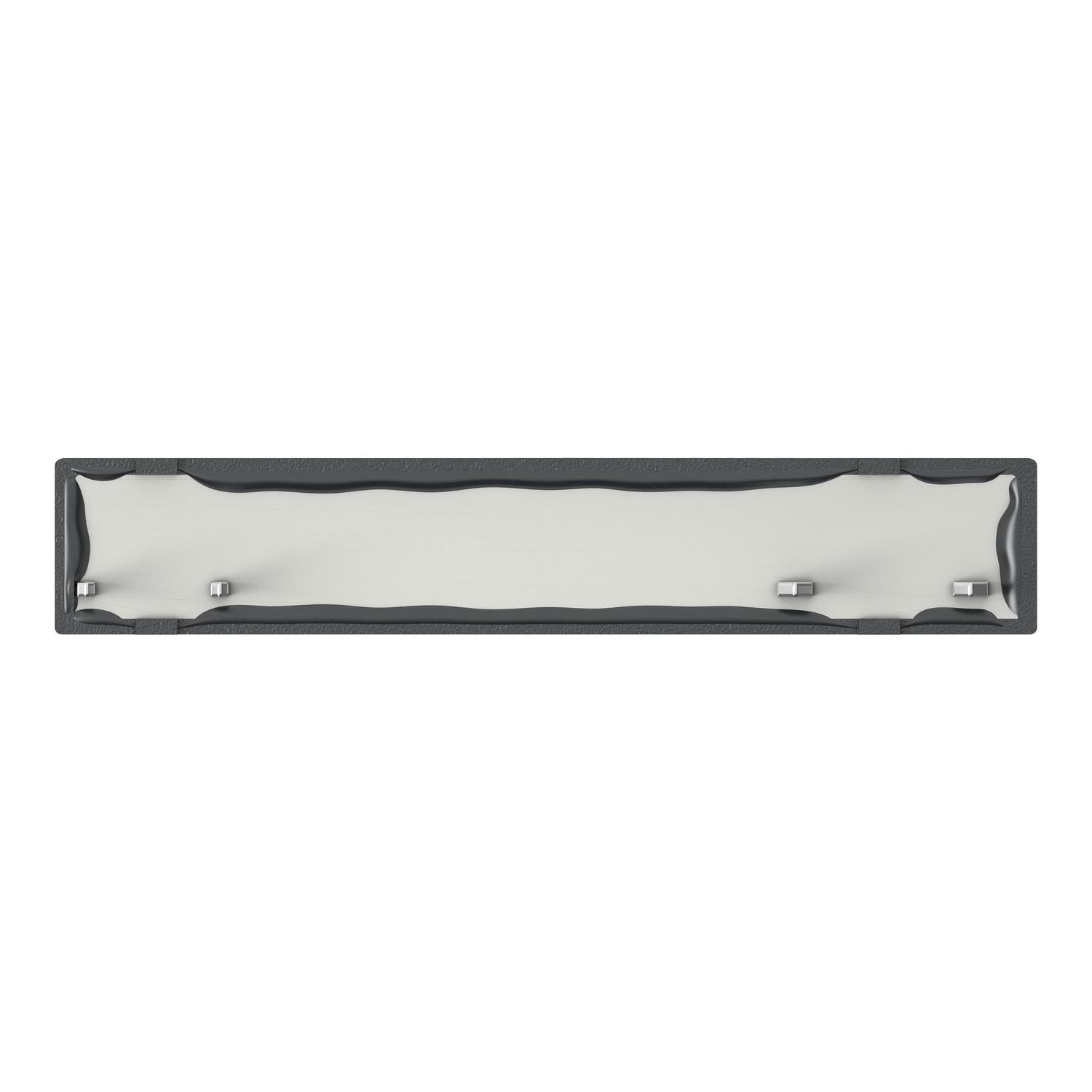

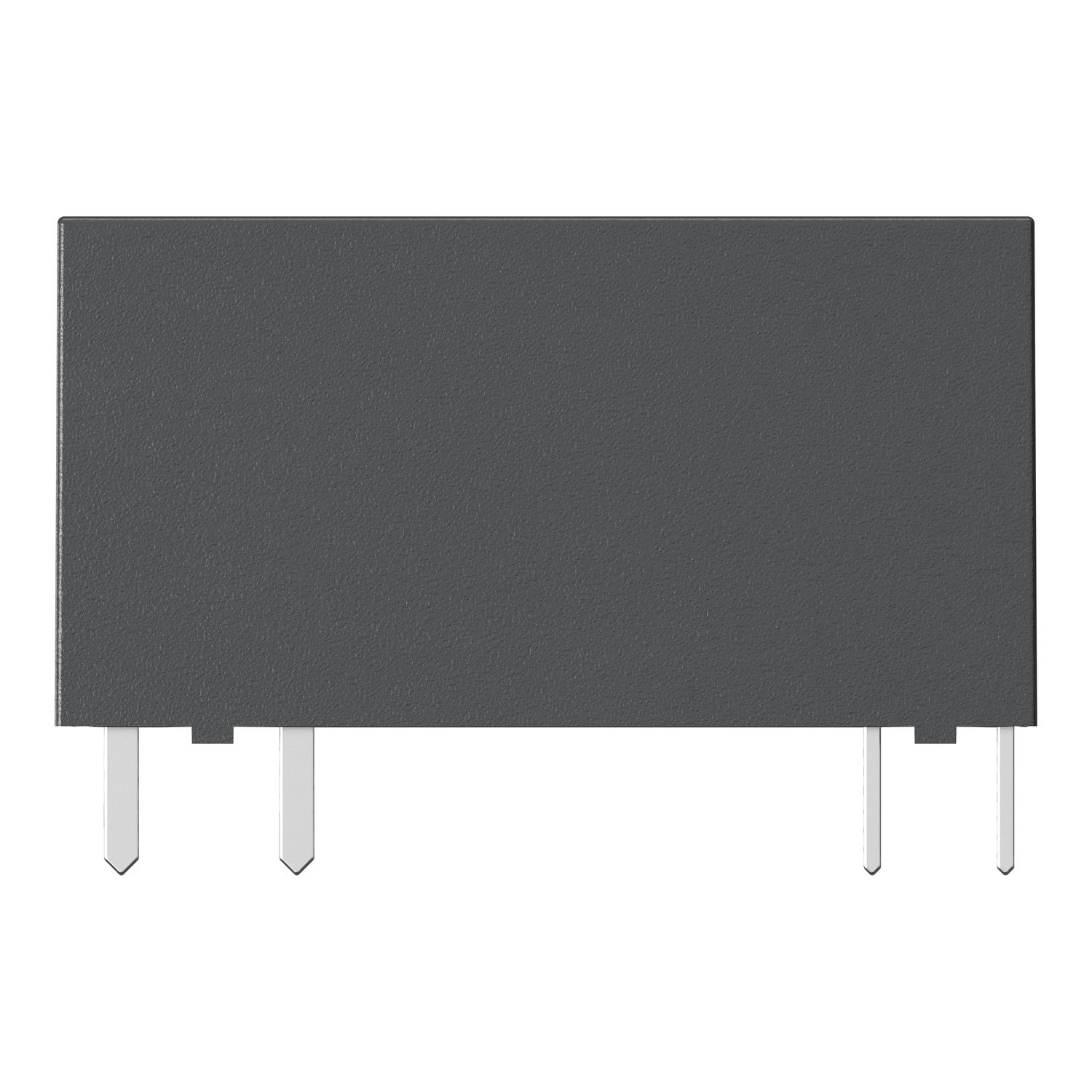

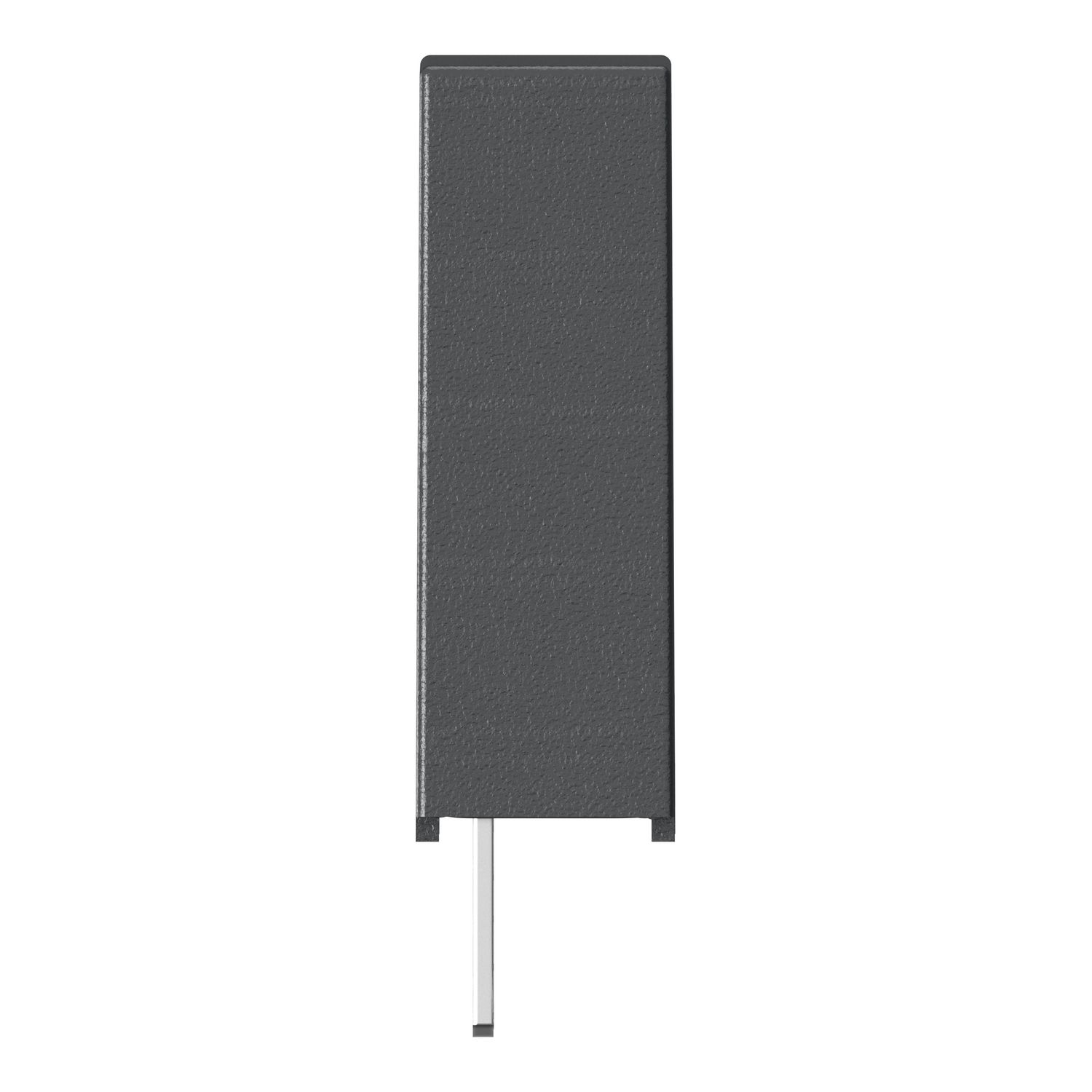

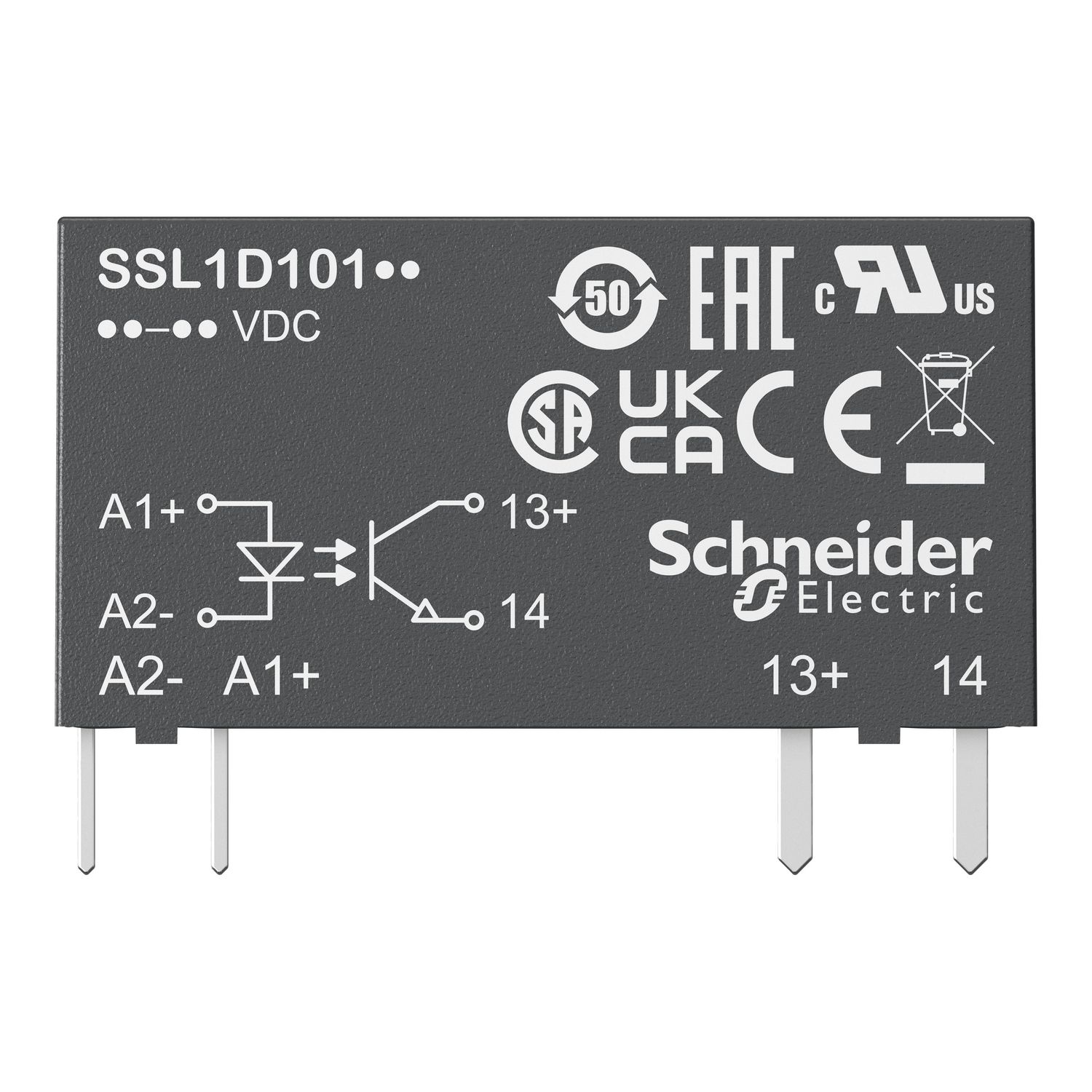

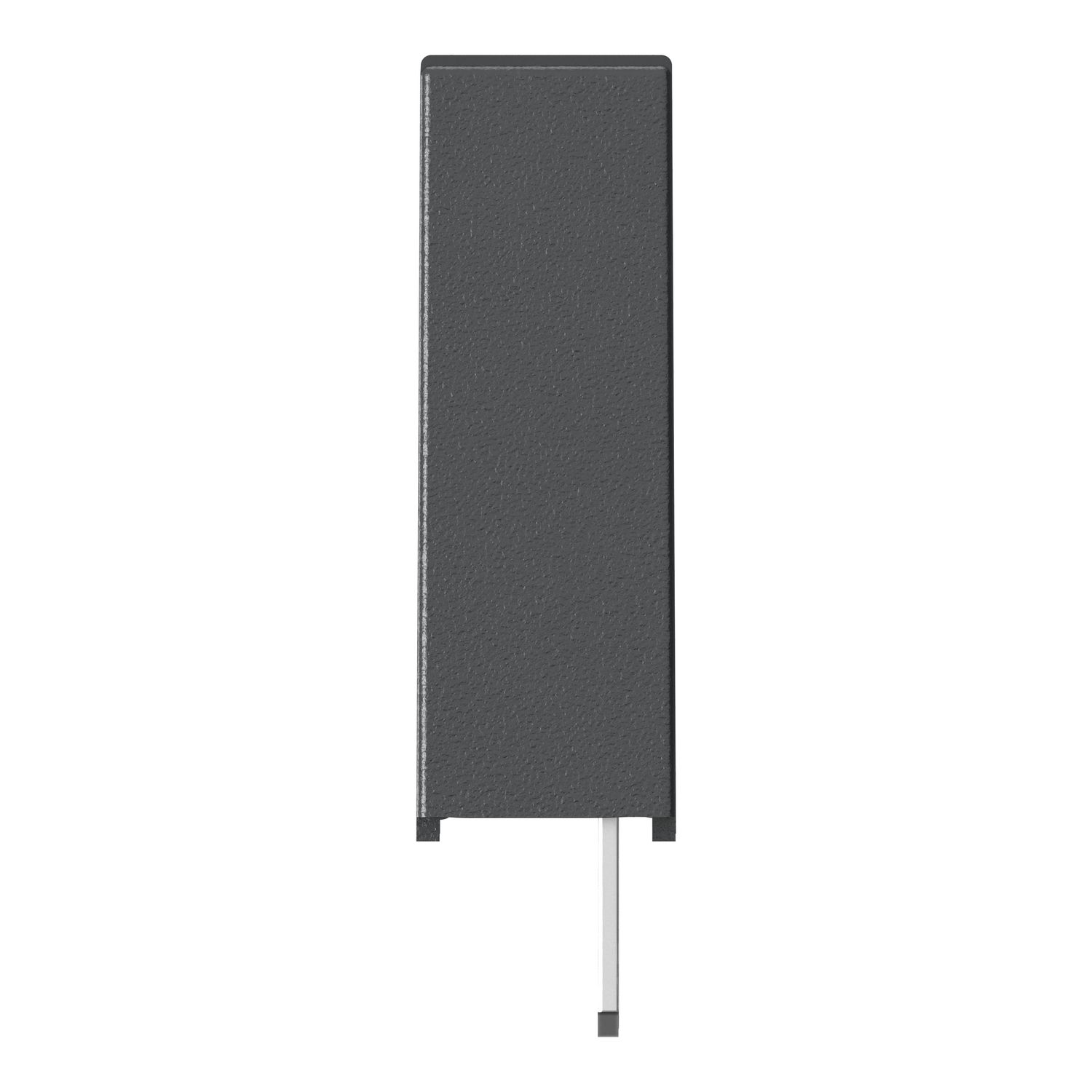

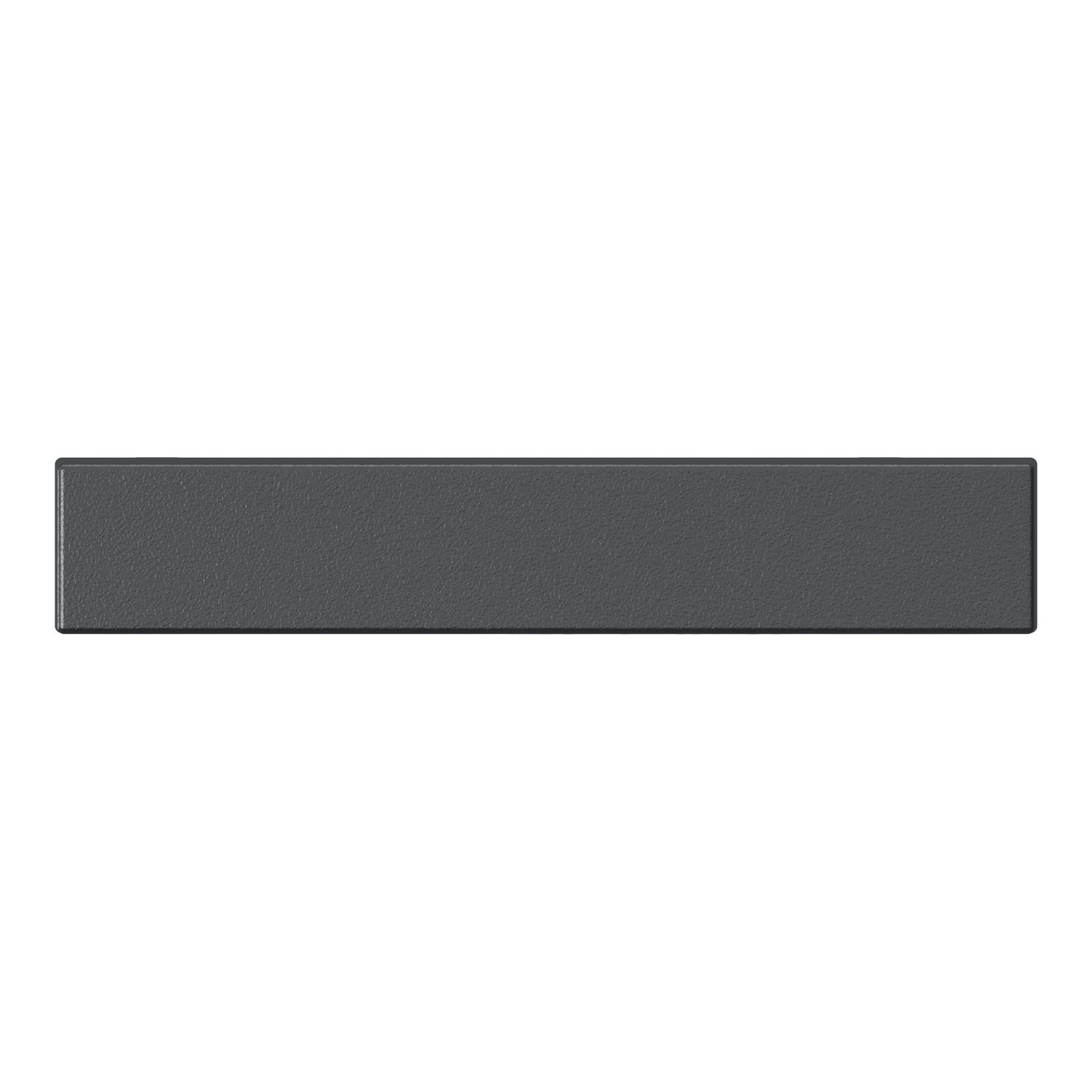

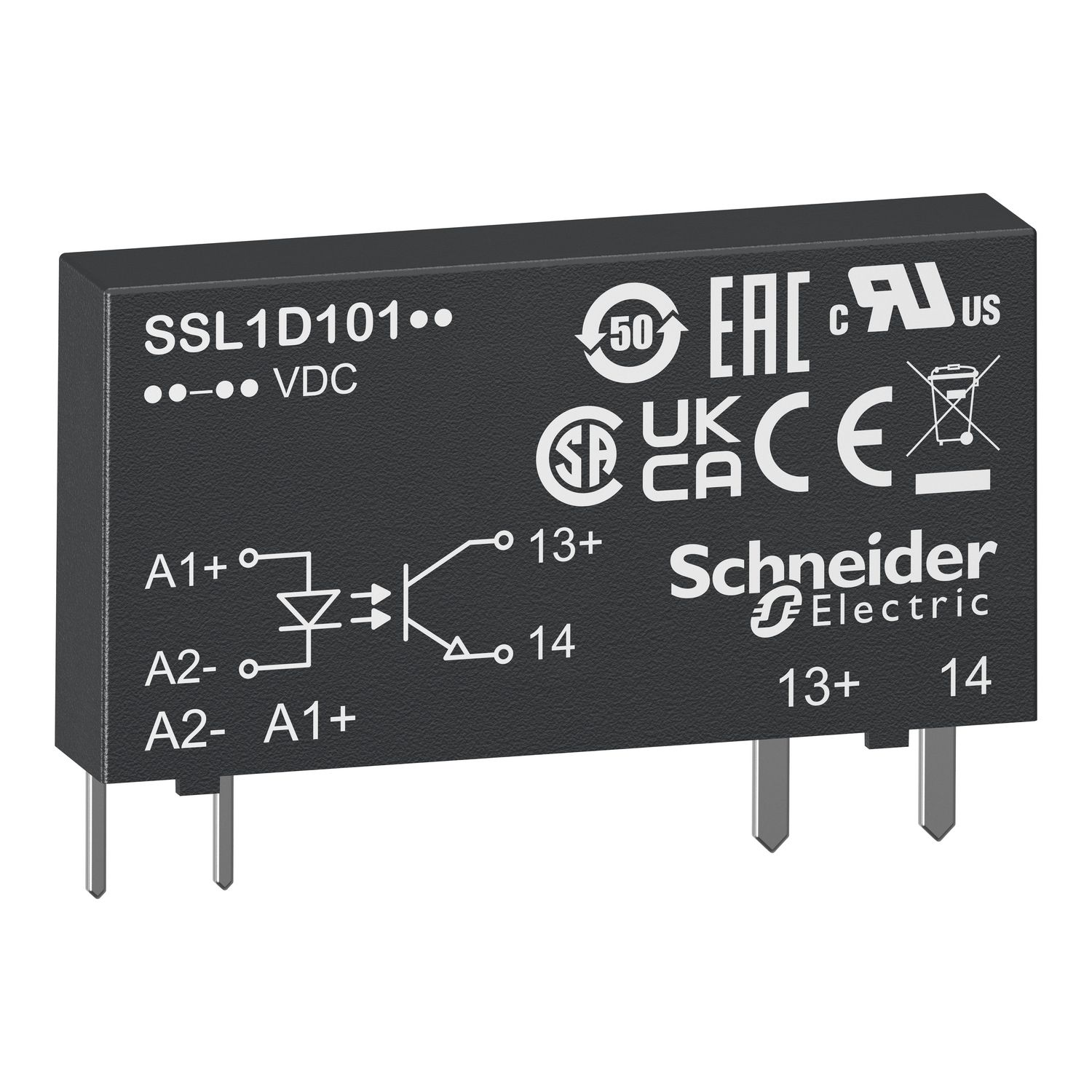

Harmony Solid State Relays, Solid state slim relay, 2A, random switching, input 15...30V DC, output 24...280V AC

$26.54
Available for Shipping : 24-Nov-2024
Product Selector
Harmony Solid State Relays, Solid state slim relay, 2A, random switching, input 15...30V DC, output 24...280V AC
Be the first to review this product
Manufacturer: Schneider Electric
Technical illustration
Declaration of conformity
End of life manual
Product environmental
Catalogue
Product Page Link
Product Data Sheet
This Harmony SSL slim interfacing solid state plug-in relay is rated 2A, is controlled with a 15V to 30V DC input, has a rated load voltage of 24V to 280V AC with random voltage switching, ideal for inductive loads. It is 6mm width, including socket, to save space in your control cabinets. It is also silent and reliable thanks to the absence of moving contacts. It is shock, vibration and pollution resistant thanks to its IP67, it makes it ideal for harsh industrial environments. 0 0 0 0 0 0 0 0 0 0 0 0

Products specifications

Attribute name Attribute value
Main
Device short name SSL
[Uc] control circuit voltage 15...30 V
Range of product Harmony Solid State Relays
Network number of phases 1 phase
Product or component type solid state relay up to 10 A
Output switching mode random voltage switching
Complementary
Maximum switching voltage 10 V DC turn-off
DV/dt 500 V/µs off-state at maximum voltage
Input current limits 6-6 mA
Device presentation complete product
Minimum switching voltage 15 V DC turn-on
Maximum voltage drop <1.1 V on-state
Output voltage 24...280 V AC
Height 28 mm
Depth 15 mm
Overvoltage category III
Width 5 mm
[In] rated current 2 A
Capacitance unbalance 1.5 pF input/output
Solid state output type random voltage switching, SCR output
Input impedance 3500 Ohm
Absolute maximum voltage 600 V AC
Maximum leakage current 4 mA off-state
Net weight 0.0041 kg
Load current 0.07-2 A
Surge current 115 A for 20 ms, 120 A for 16.6 ms
Response time 0.1 ms (turn-on), 0.5 cycle (turn-off)
Maximum I²t for fusing 60 A².s for 8.3 ms at 60 Hz, 66 A².s for 10 ms at 50 Hz
Mounting support socket
[Uc] control circuit voltage 15...30 V DC
Environment
Ambient air temperature for storage -20-85 °C
Marking CE
Pollution degree 2
Ambient air temperature for operation -20-80 °C
Flame retardance V0 conforming to UL 94
Dielectric strength 2500 V for input/output
Product certifications CSA, UL
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 0.700 cm
Package 1 Width 2.500 cm
Package 1 Length 37.000 cm
Package 1 Weight 4.000 g
Unit Type of Package 2 2
Number of Units in Package 2 12
Package 2 Height 0.700 cm
Package 2 Width 2.500 cm
Package 2 Length 37.000 cm
Package 2 Weight 61.000 g
Unit Type of Package 3 3
Number of Units in Package 3 1080
Package 3 Height 15.000 cm
Package 3 Width 15.000 cm
Package 3 Length 40.000 cm
Package 3 Weight 5.872 kg
