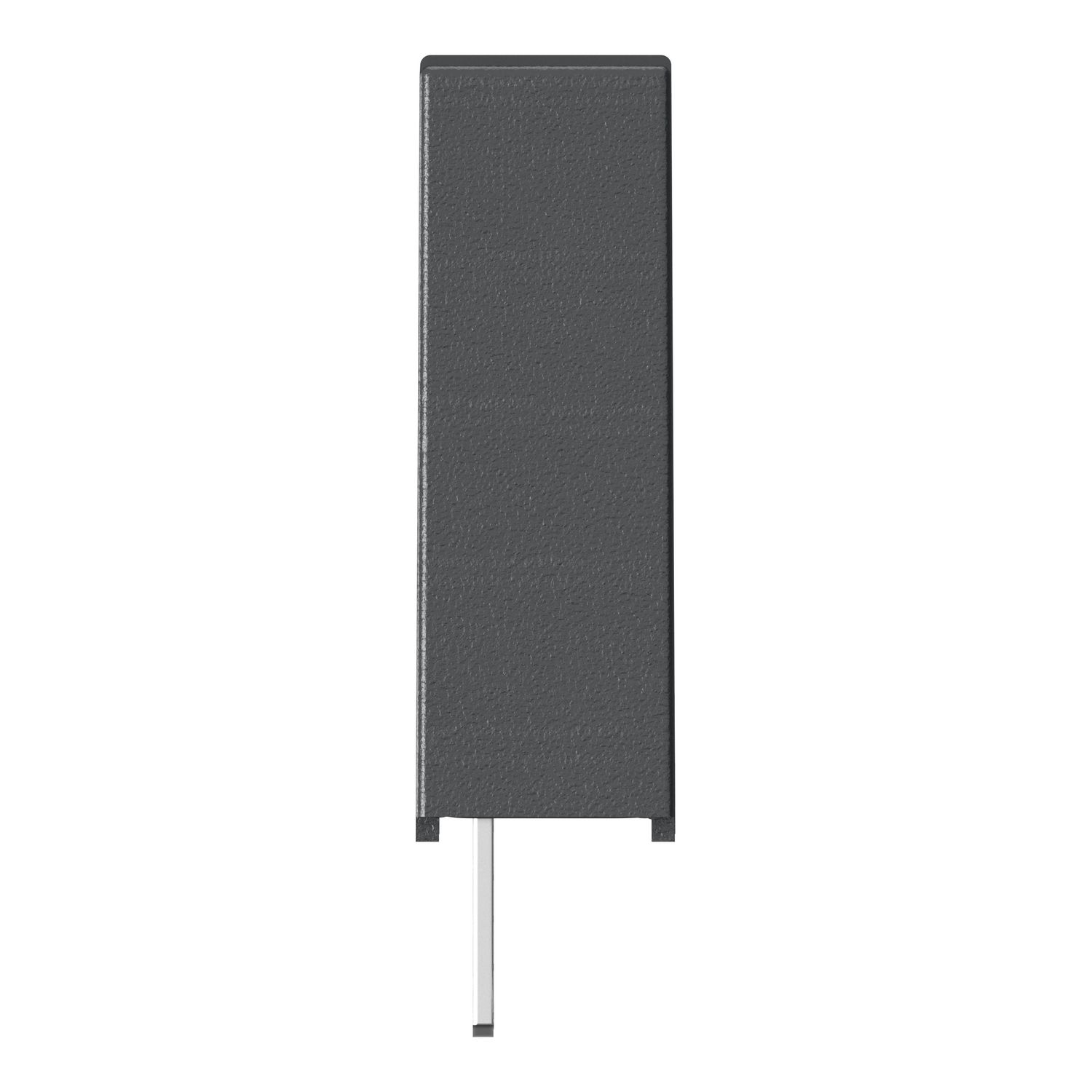

Picture of Harmony Solid State Relays, Solid state slim relay, 0.1A, DC switching, input 16…30V DC, output 1…48V DC

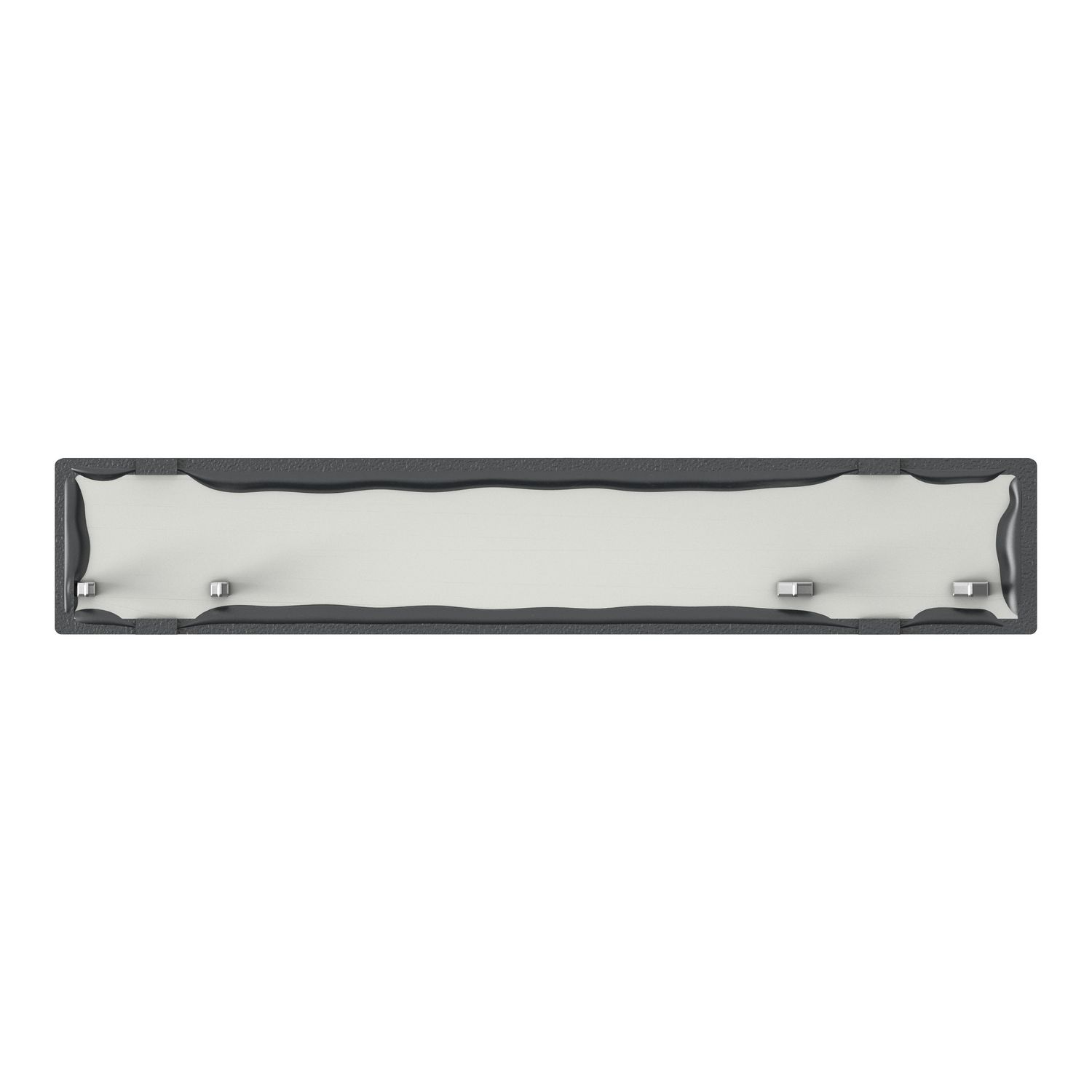

Picture of Harmony Solid State Relays, Solid state slim relay, 0.1A, DC switching, input 16…30V DC, output 1…48V DC

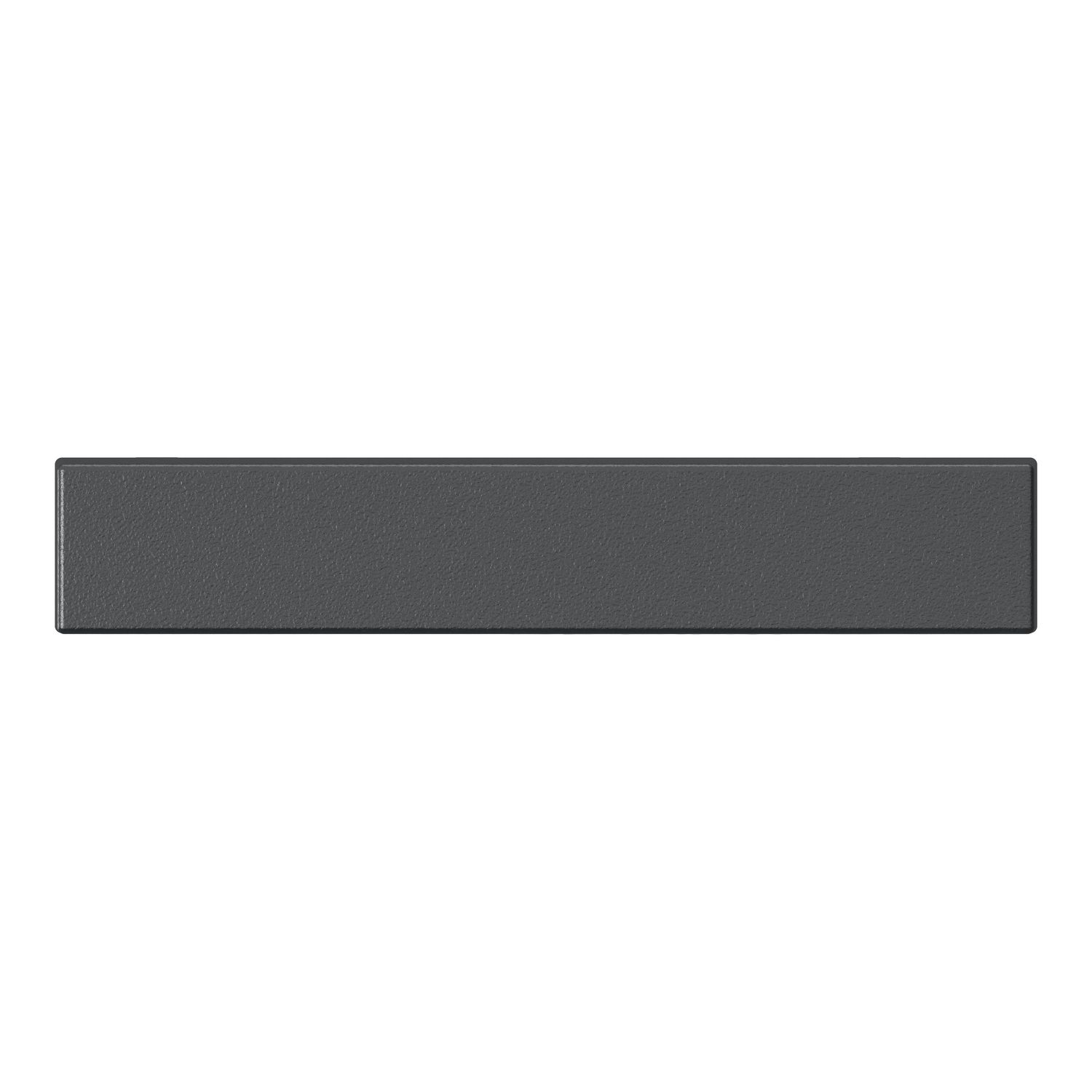

Picture of Harmony Solid State Relays, Solid state slim relay, 0.1A, DC switching, input 16…30V DC, output 1…48V DC

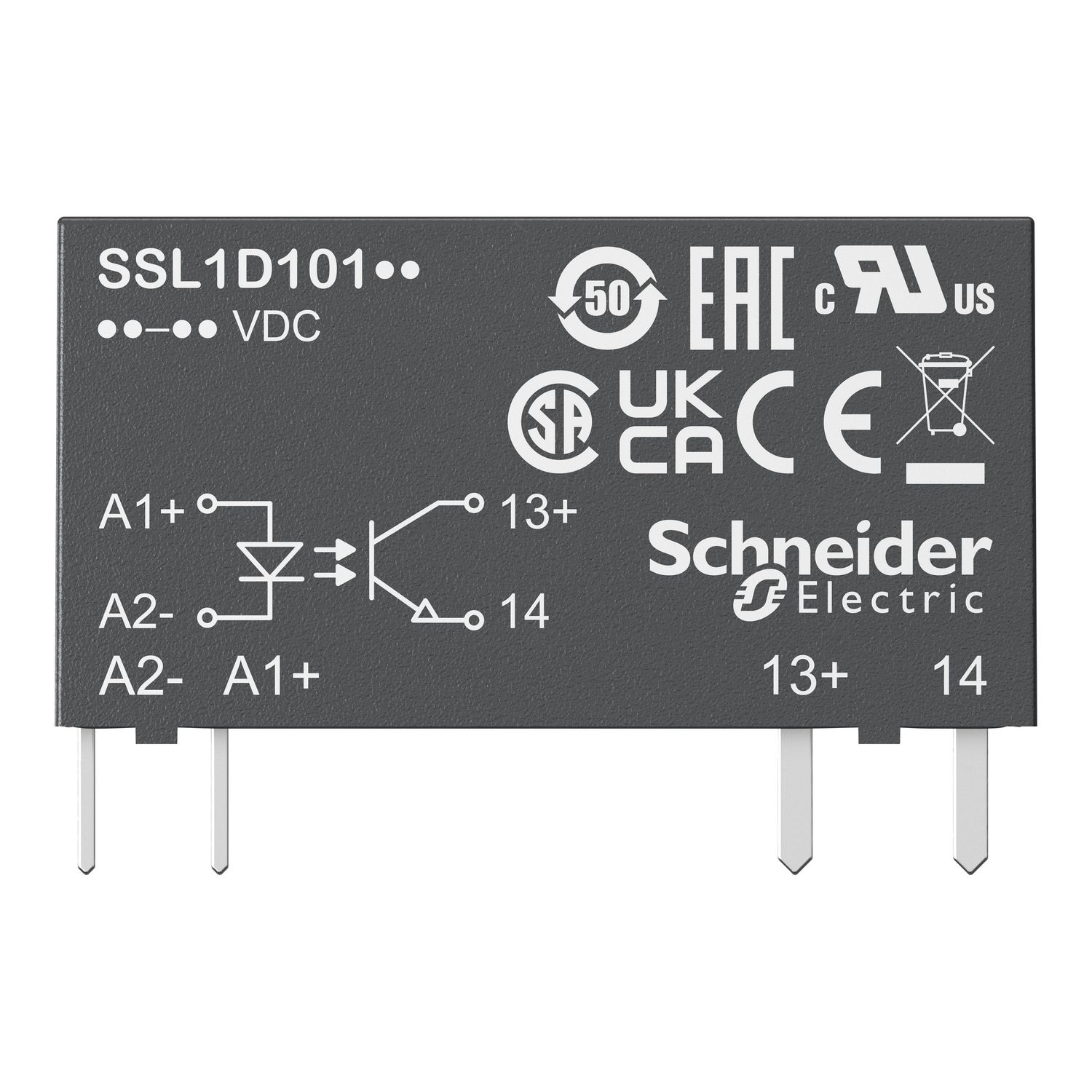

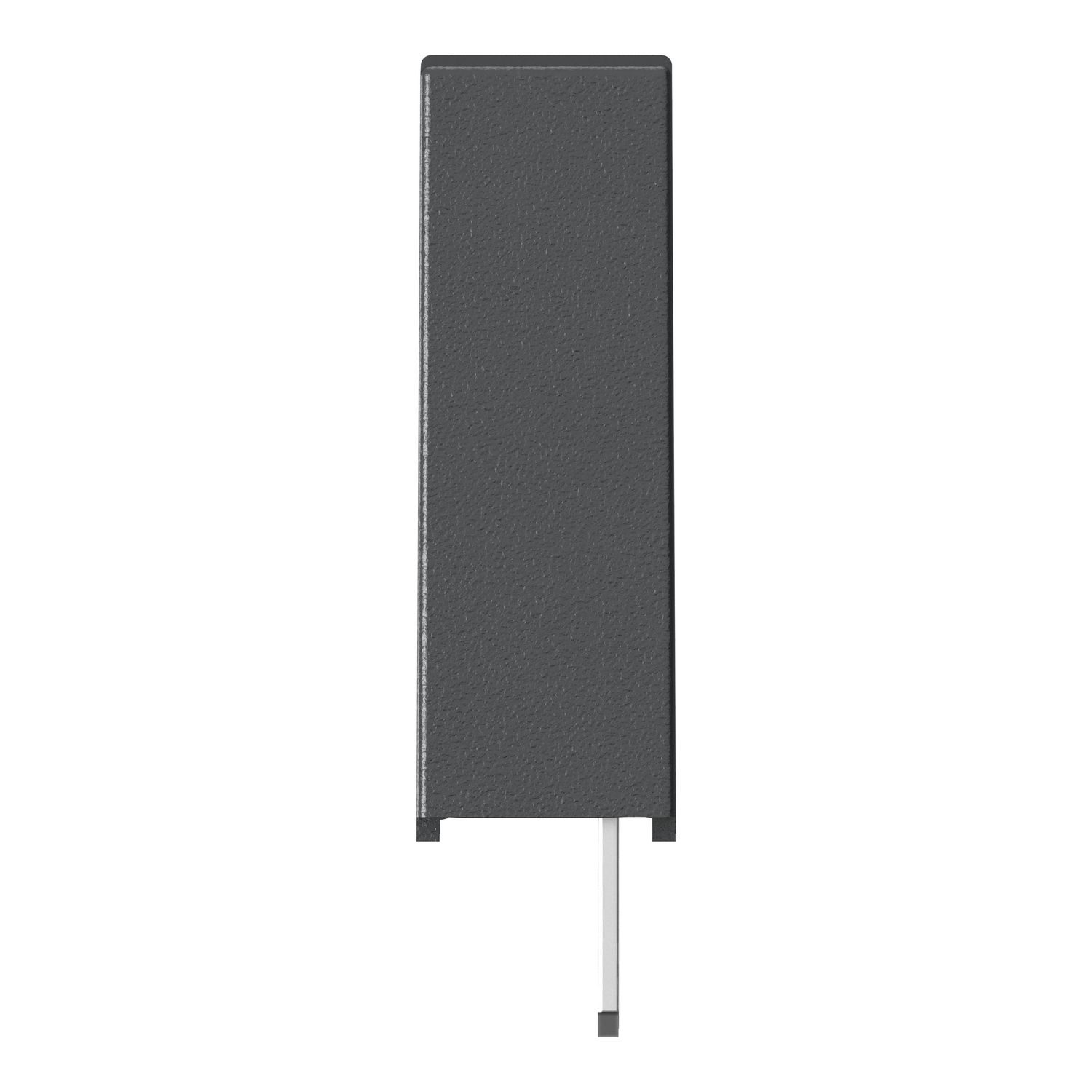

Picture of Harmony Solid State Relays, Solid state slim relay, 0.1A, DC switching, input 16…30V DC, output 1…48V DC

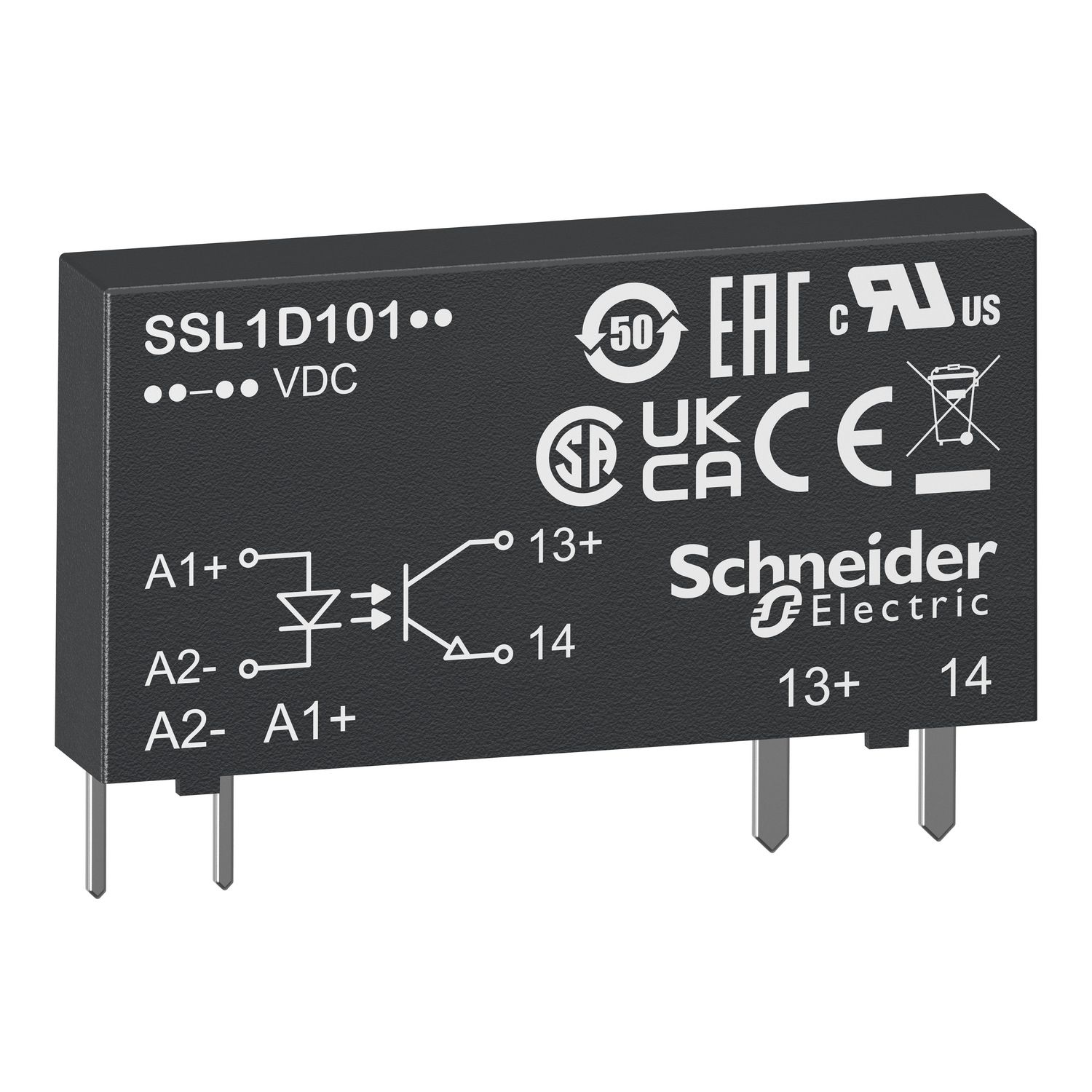

Picture of Harmony Solid State Relays, Solid state slim relay, 0.1A, DC switching, input 16…30V DC, output 1…48V DC
SKU:

SSL1D101BD

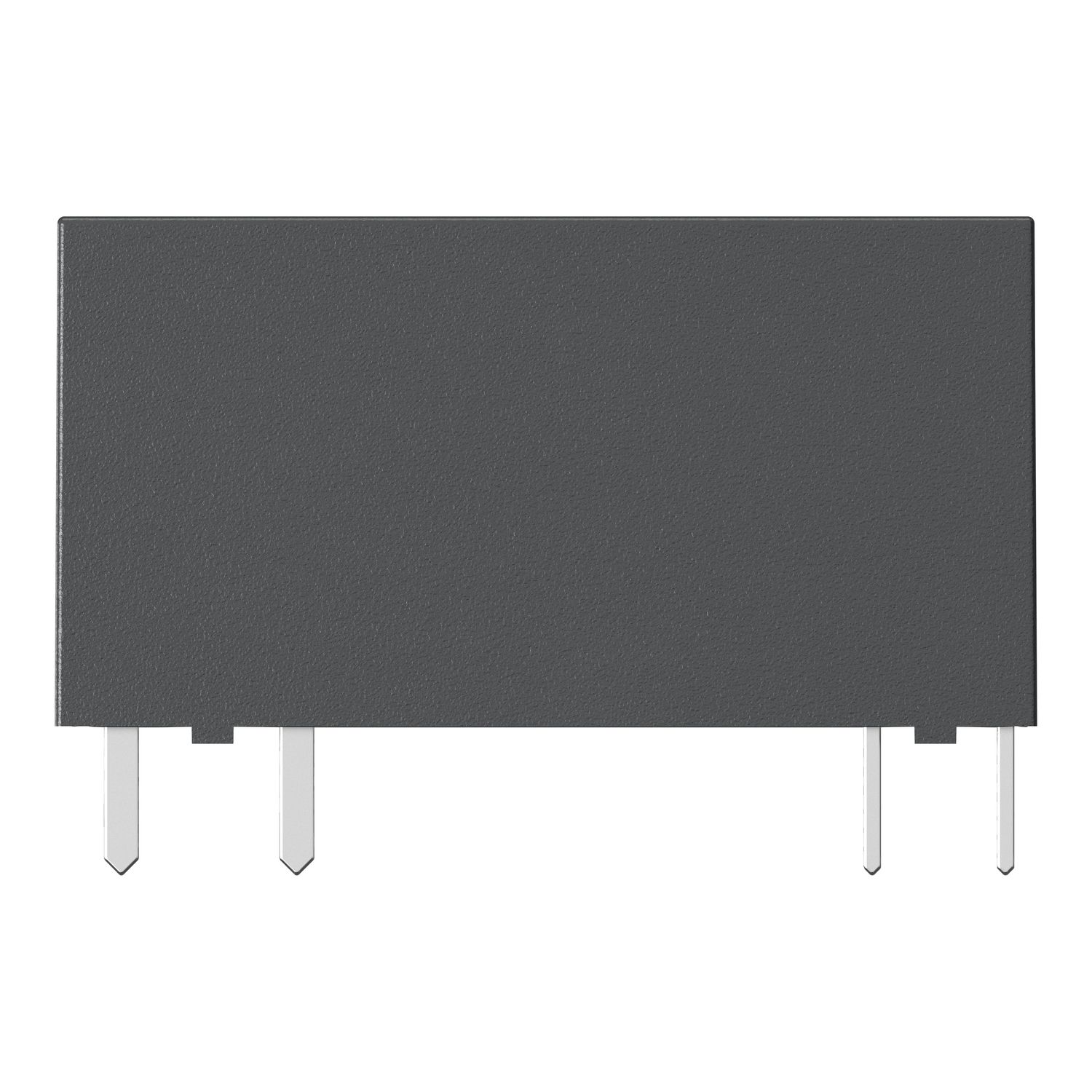

Harmony Solid State Relays, Solid state slim relay, 0.1A, DC switching, input 16…30V DC, output 1…48V DC

$23.63 INC GST
Available for Shipping : 12-May-2025
Product Selector
Harmony Solid State Relays, Solid state slim relay, 0.1A, DC switching, input 16…30V DC, output 1…48V DC
Be the first to review this product
Manufacturer: Schneider Electric
Technical illustration
End of life manual
Product environmental
Declaration of conformity
Catalogue
Product Page Link
Product Data Sheet
This Harmony SSL slim interfacing solid state plug-in relay is rated 0.1A, is controlled with a 16V to 30V DC input, has a rated load voltage of 1V to 48V DC with DC switching. It is 6mm width, including socket, to save space in your control cabinets. It is also silent and reliable thanks to the absence of moving contacts. It is shock, vibration and pollution resistant thanks to its IP67, it makes it ideal for harsh industrial environments. 0 0 0 0 0 0 0 0 0 0 0 0

Products specifications

Attribute name Attribute value
Main
Device short name SSL
[Uc] control circuit voltage 16...30 V
Range of product Harmony Solid State Relays
Network number of phases 1 phase
Product or component type solid state relay up to 10 A
Output switching mode DC switching
Complementary
Maximum switching voltage 9 V DC turn-off
Input current limits 5-5 mA
Device presentation complete product
Minimum switching voltage 16 V DC turn-on
Maximum voltage drop <1 V on-state
Output voltage 1...48 V DC
Height 28 mm
Maximum operating frequency 500 Hz
Depth 15 mm
Overvoltage category III
Width 5 mm
[In] rated current 0.1 A
Capacitance unbalance 1.5 pF input/output
Solid state output type transistor output, DC switching
Input impedance 3500 Ohm
Absolute maximum voltage 60 V DC
Maximum leakage current 0.001 mA off-state
Net weight 0.0041 kg
Load current 0.001-0.1 A
Surge current 0.3 A for 10 ms
Response time 0.13 ms (turn-off), 0.02 ms (turn-on)
Mounting support socket
[Uc] control circuit voltage 16...30 V DC
Environment
Ambient air temperature for storage -20-85 °C
Marking CE
Pollution degree 2
Ambient air temperature for operation -20-80 °C
Flame retardance V0 conforming to UL 94
Dielectric strength 3750 V for input/output
Product certifications UL, CSA
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 0.700 cm
Package 1 Width 2.500 cm
Package 1 Length 37.000 cm
Package 1 Weight 4.000 g
Unit Type of Package 2 2
Number of Units in Package 2 12
Package 2 Height 0.700 cm
Package 2 Width 2.500 cm
Package 2 Length 37.000 cm
Package 2 Weight 62.000 g
Unit Type of Package 3 3
Number of Units in Package 3 1080
Package 3 Height 15.000 cm
Package 3 Width 15.000 cm
Package 3 Length 40.000 cm
Package 3 Weight 5.684 kg

Related products

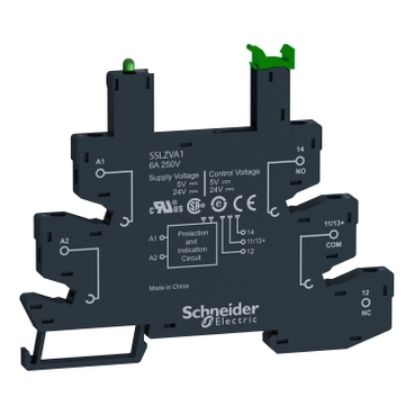

Harmony Solid State Relays, Socket equipped with LED and protection circuit, for SSL relays, screw connectors, 5 24V DC

SSLZVA1
$15.88 INC GST
View Detail

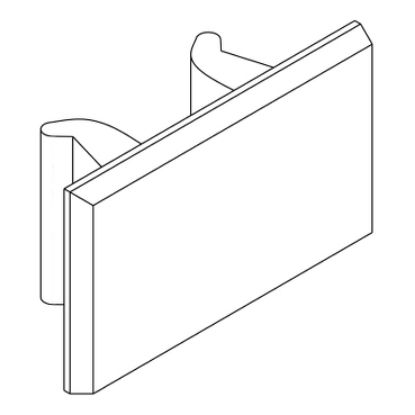

Picture of Harmony Electromechanical Relays, Clip-in legends, for RSL/SSL sockets, plastic
