SSL1D101JD

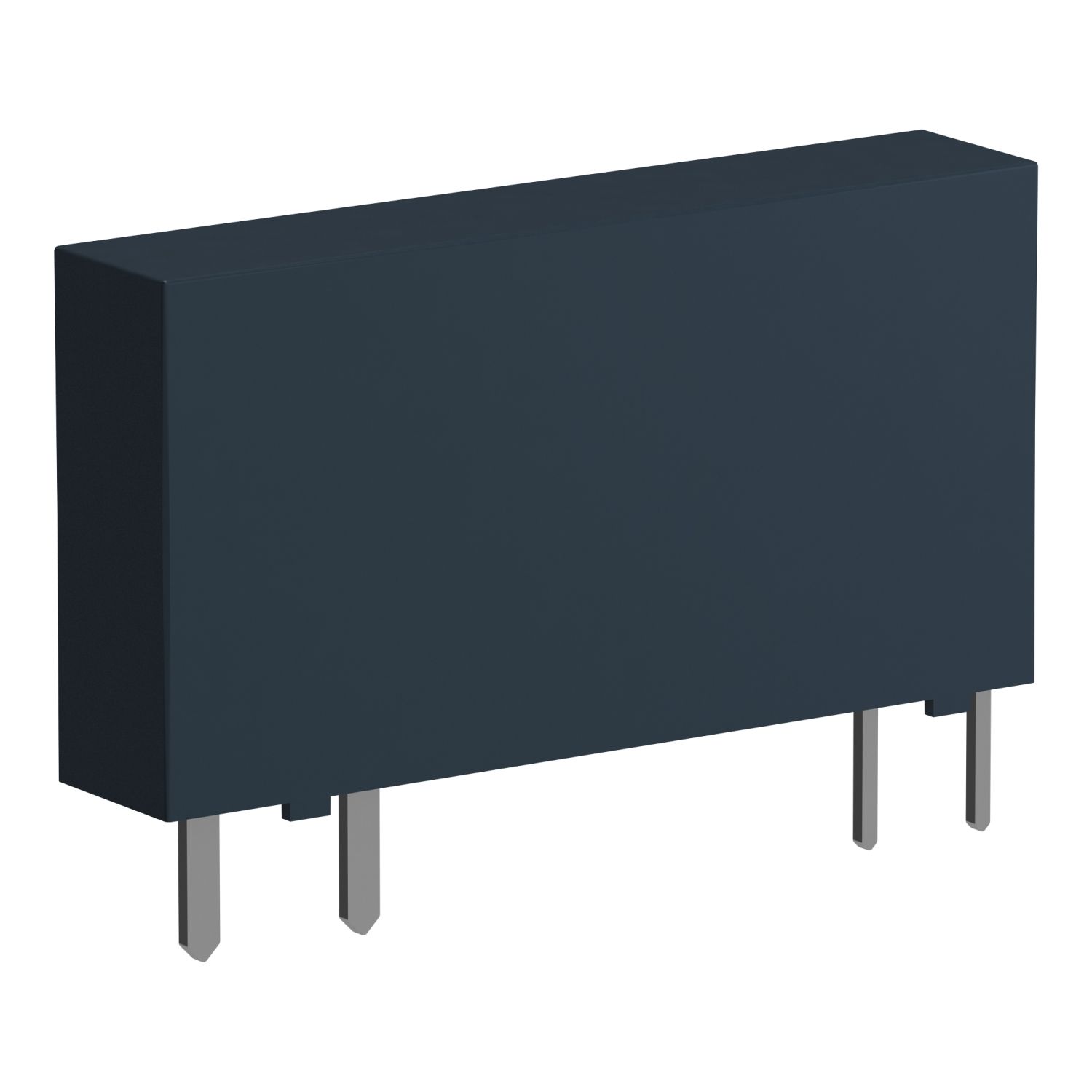

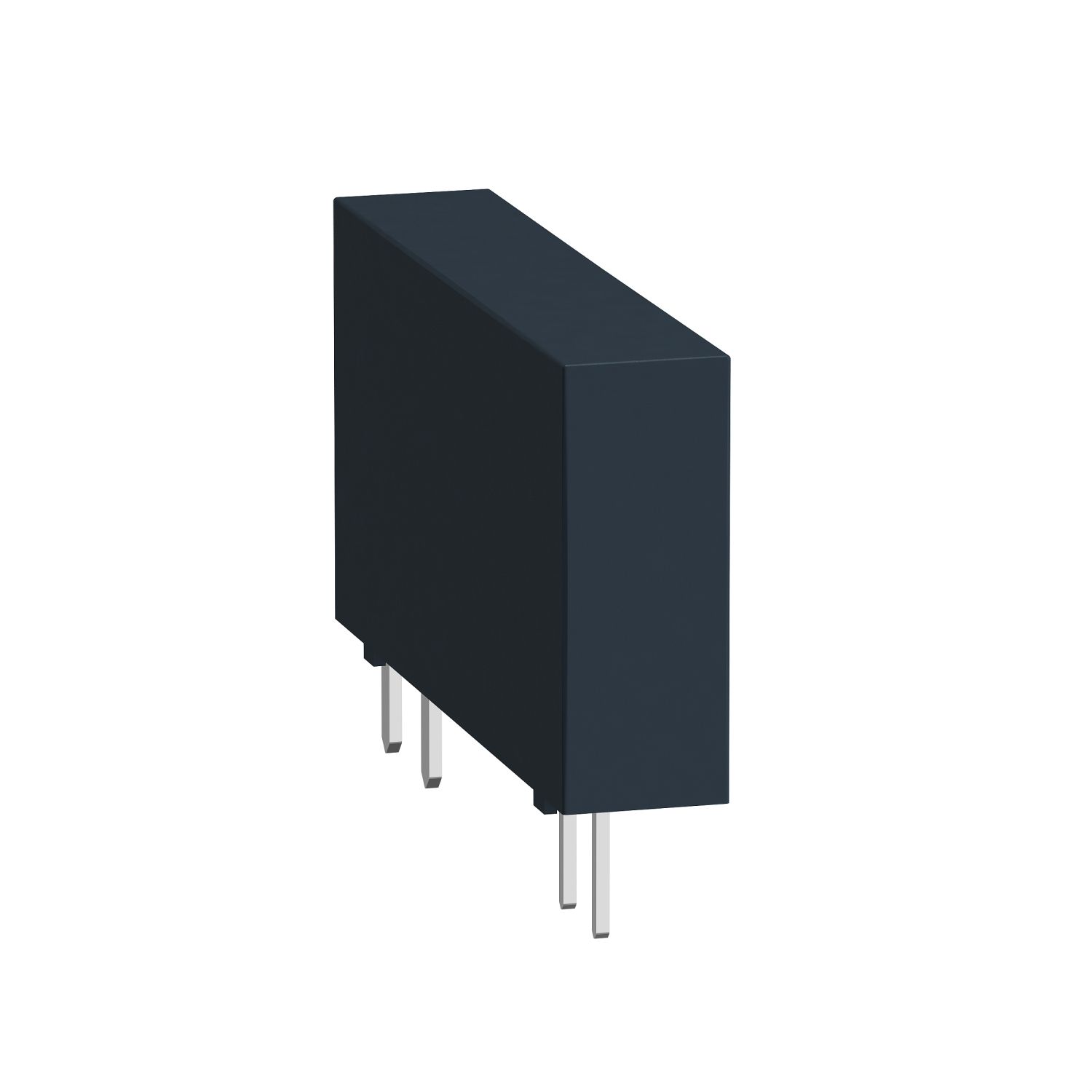

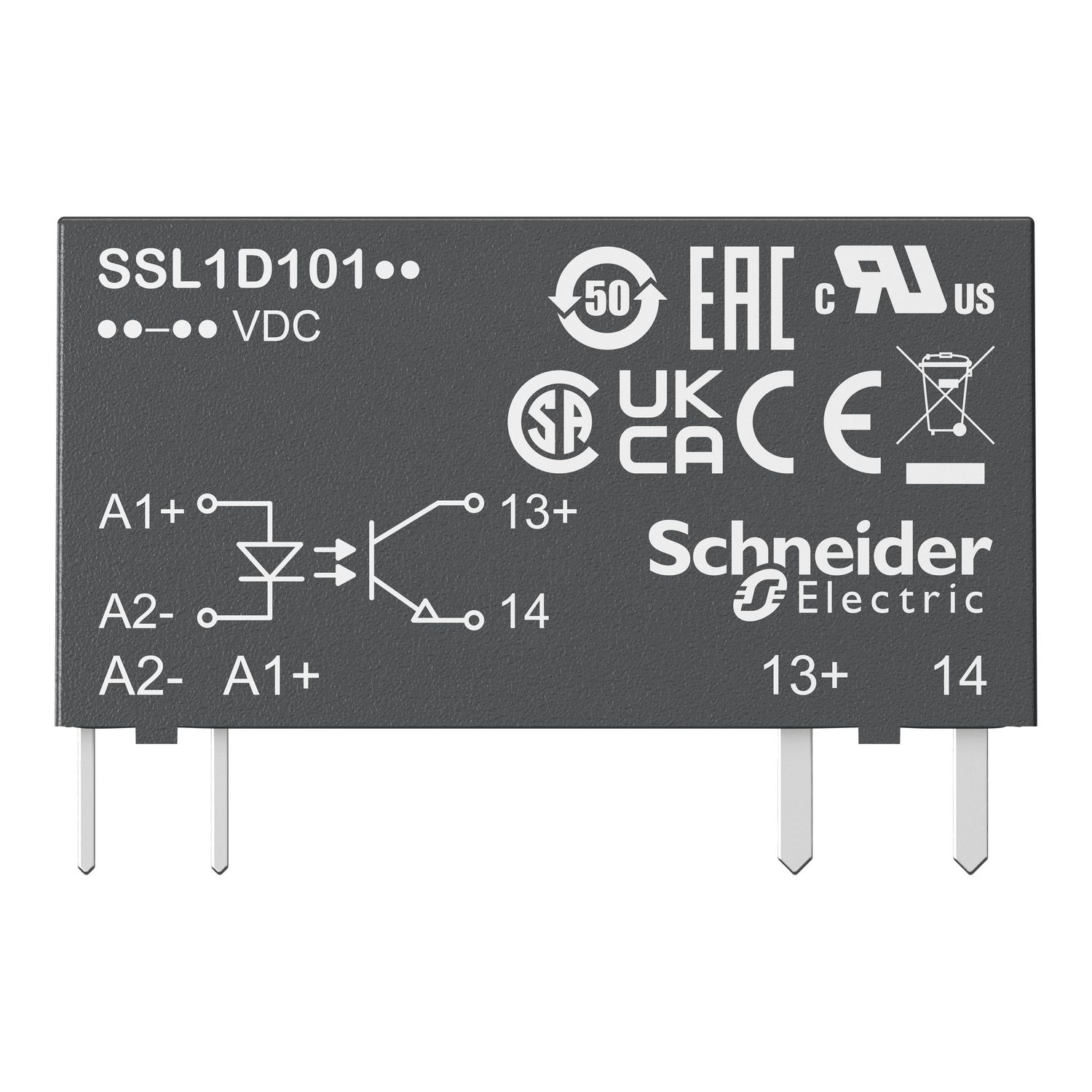

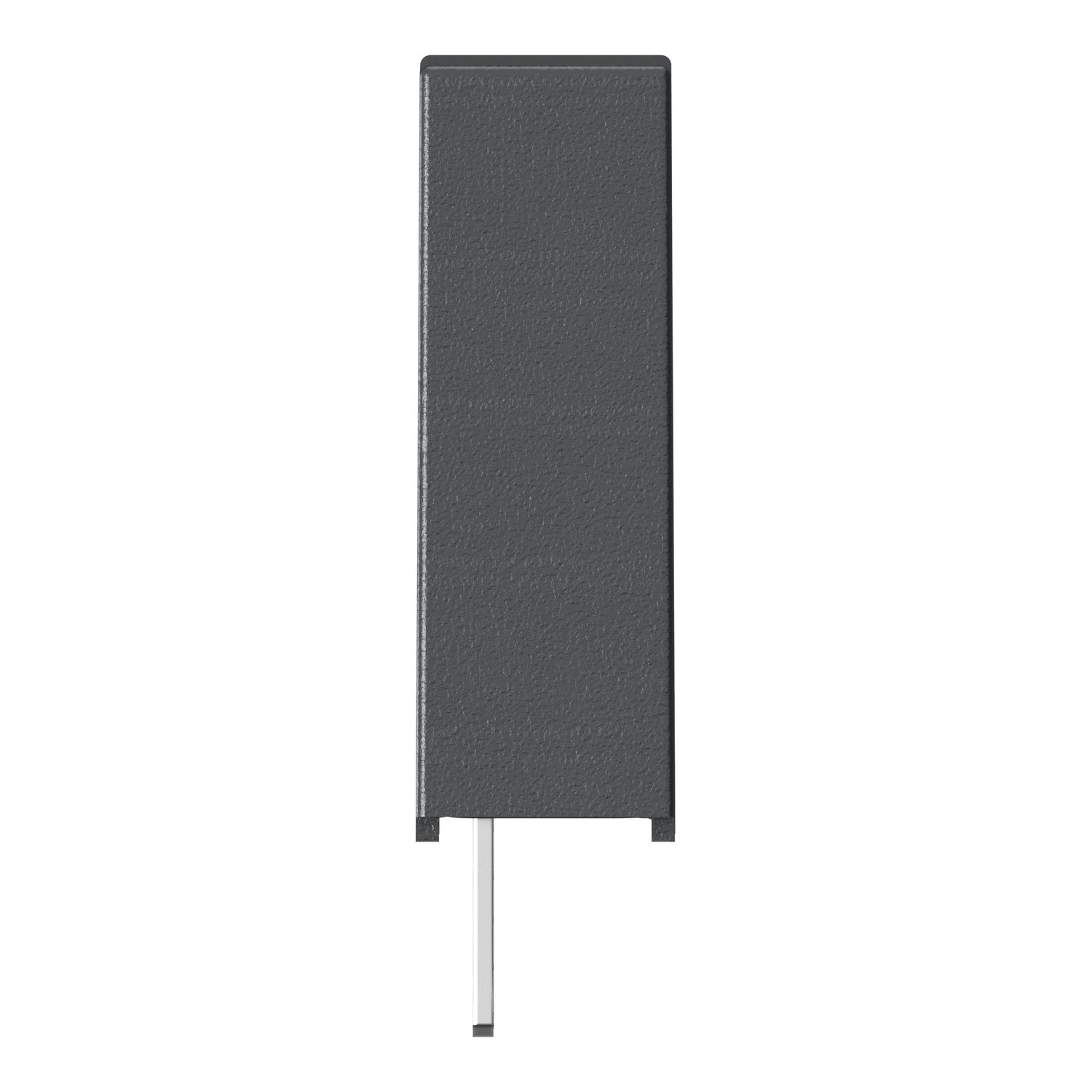

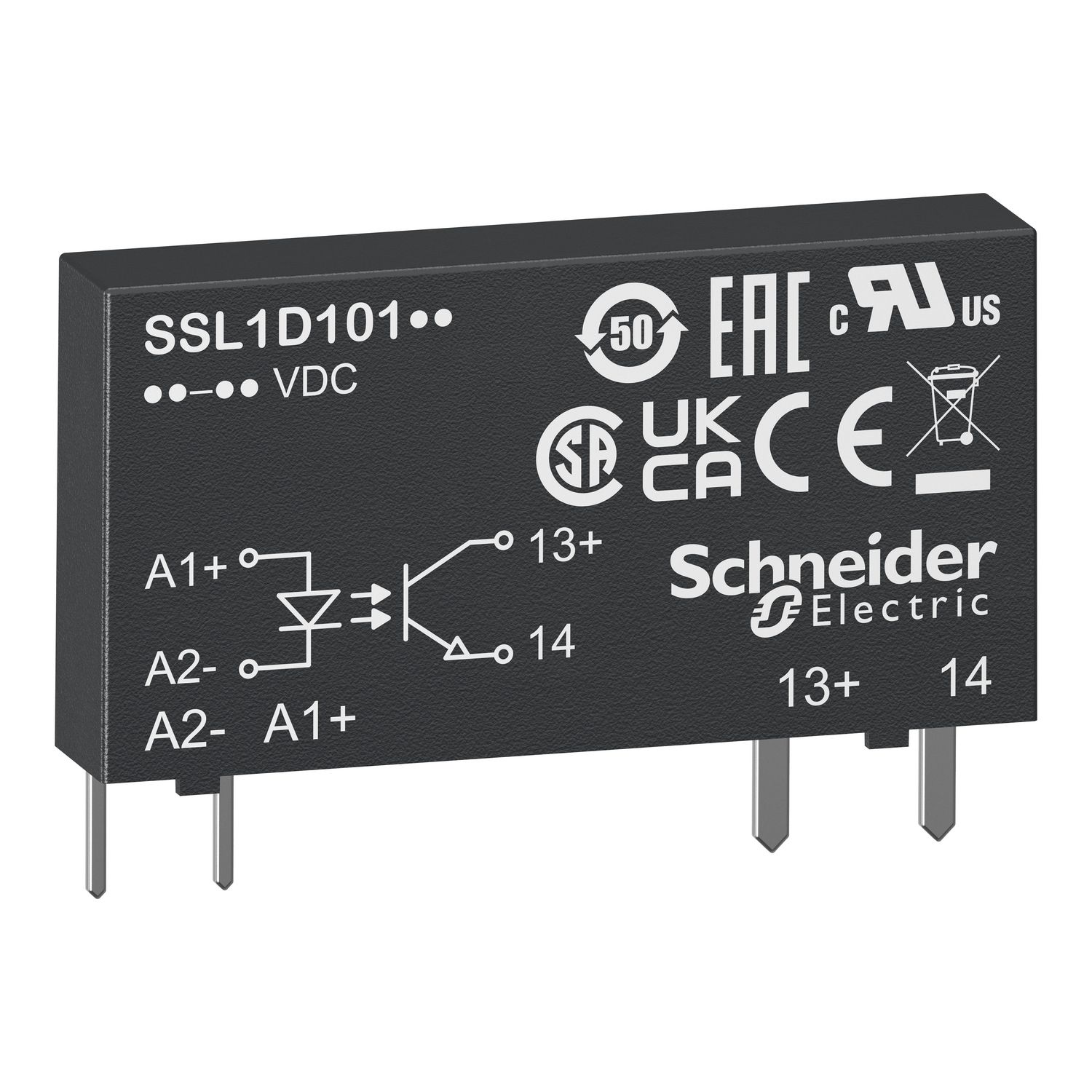

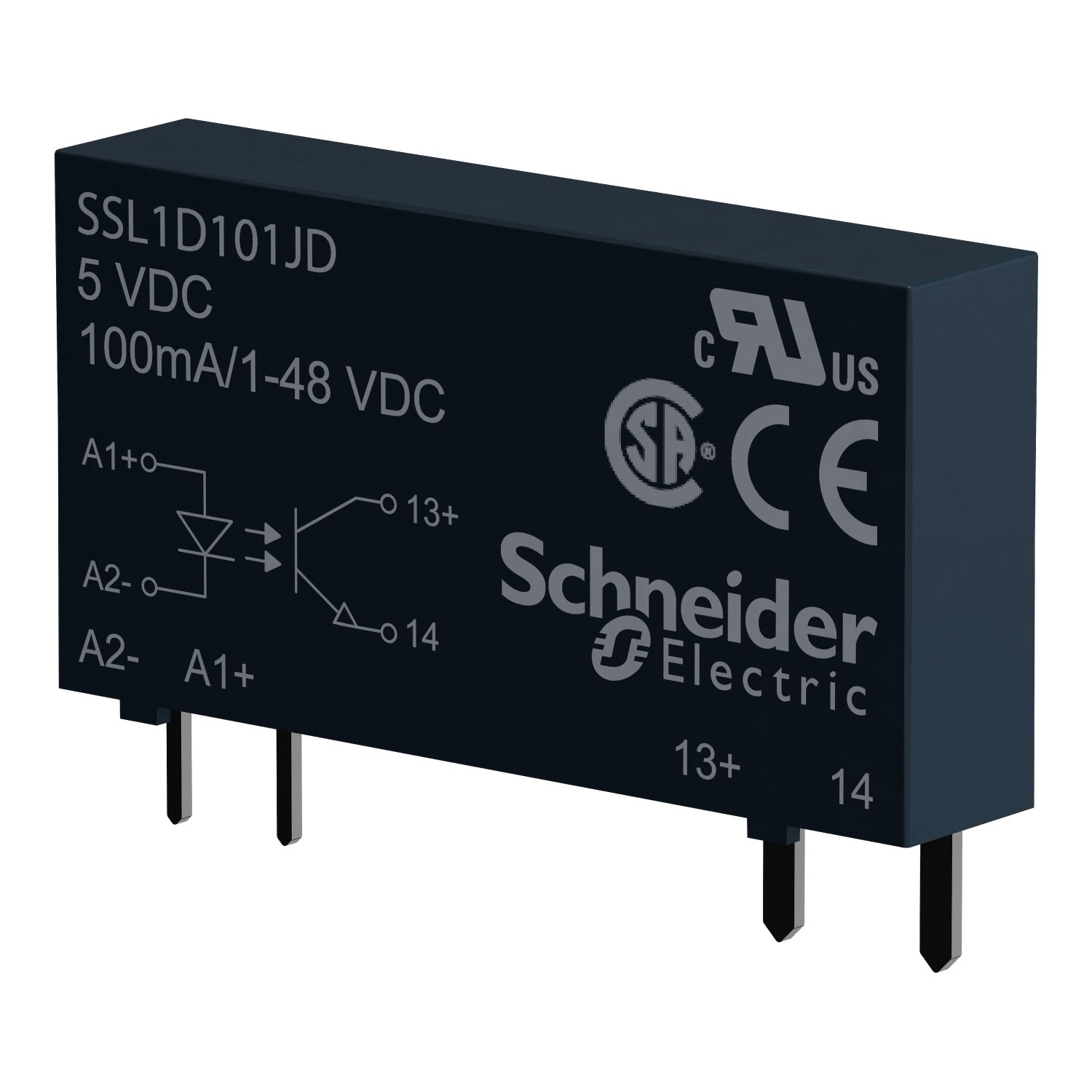

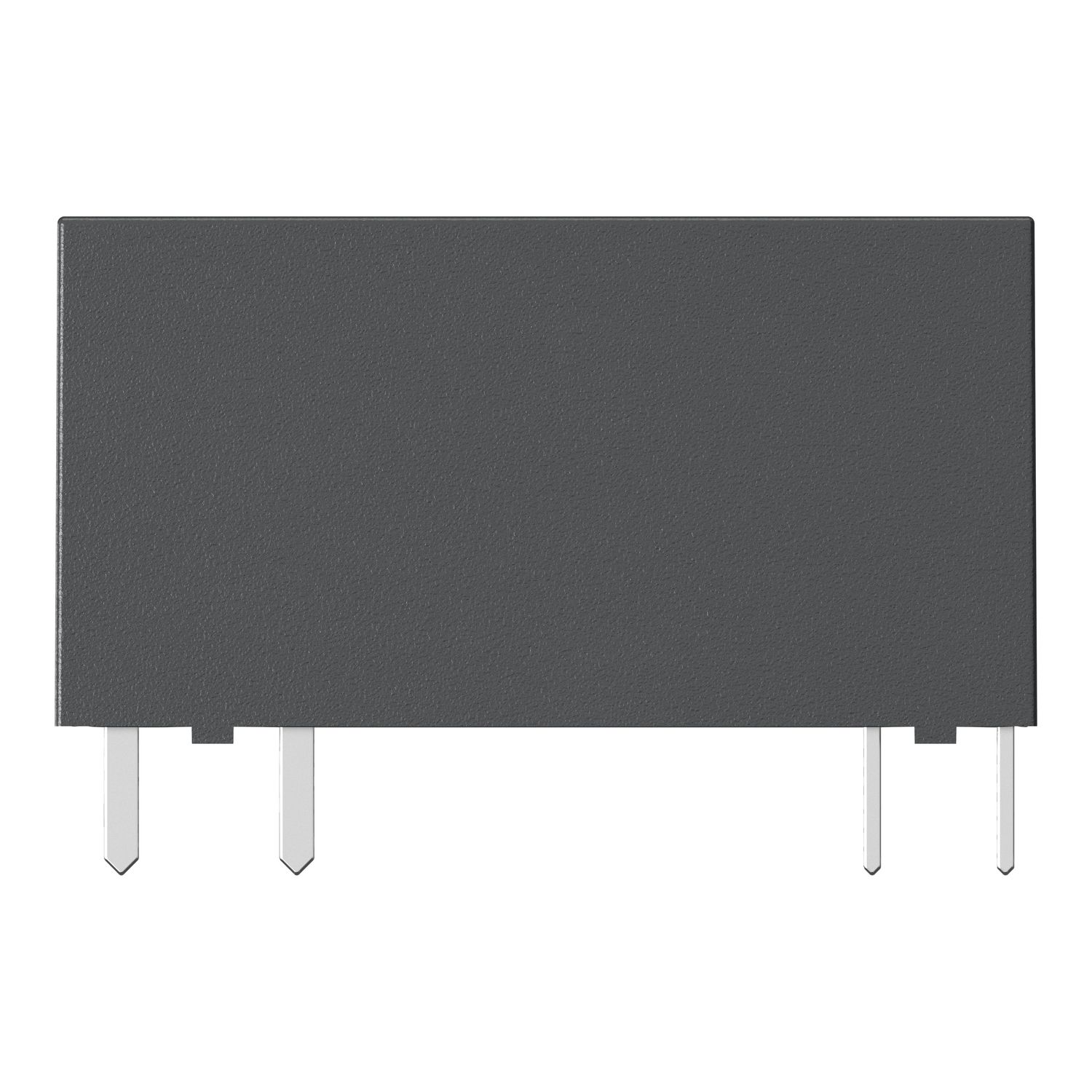

Harmony Solid State Relays, Solid state slim relay, 0.1A, DC switching, input 3…12V DC, output 1…48V DC

$21.48
Available for Shipping : 24-Nov-2024
Product Selector
Harmony Solid State Relays, Solid state slim relay, 0.1A, DC switching, input 3…12V DC, output 1…48V DC
Be the first to review this product
Manufacturer: Schneider Electric
Technical illustration
End of life manual
Product environmental
Declaration of conformity
Catalogue
Product Page Link
Product Data Sheet

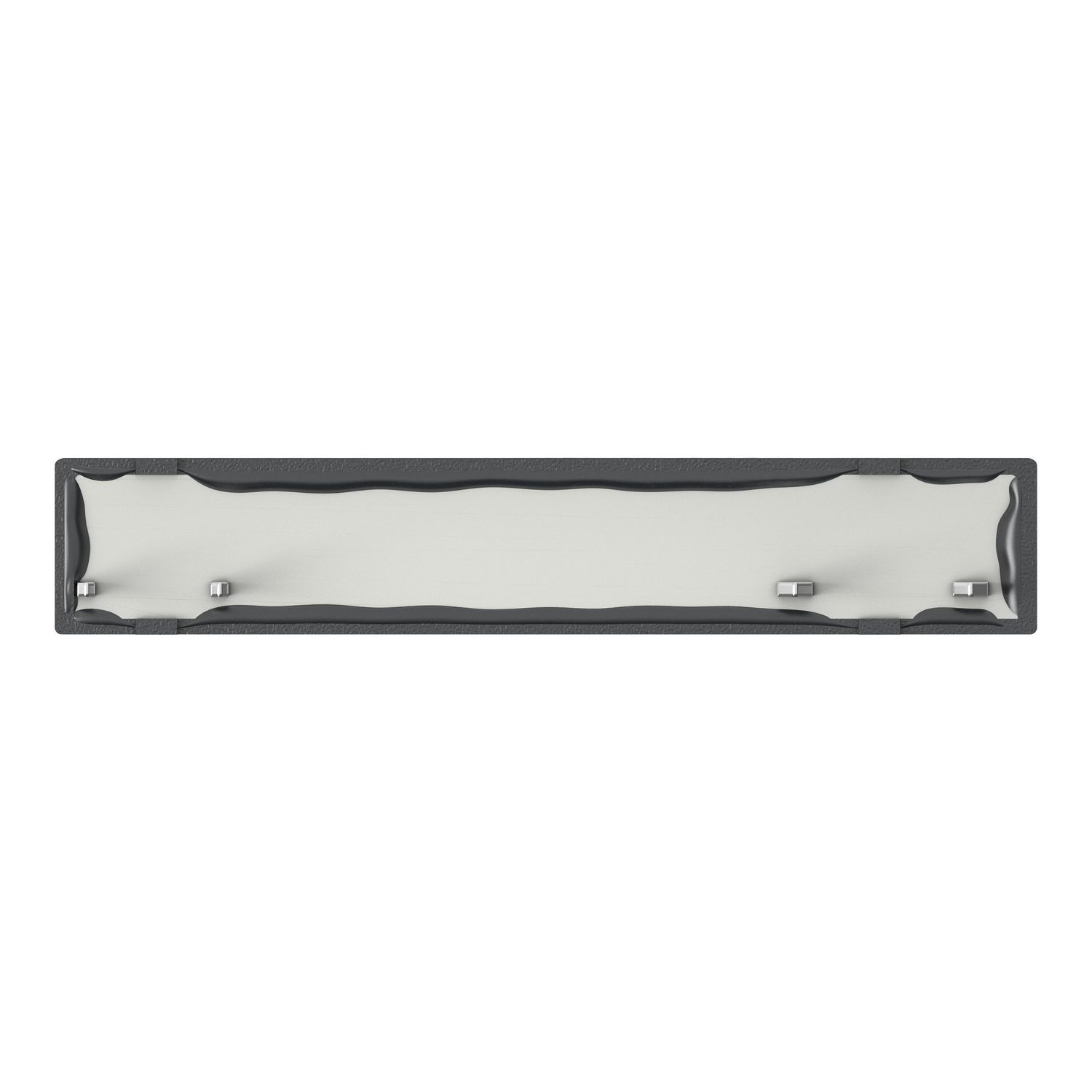

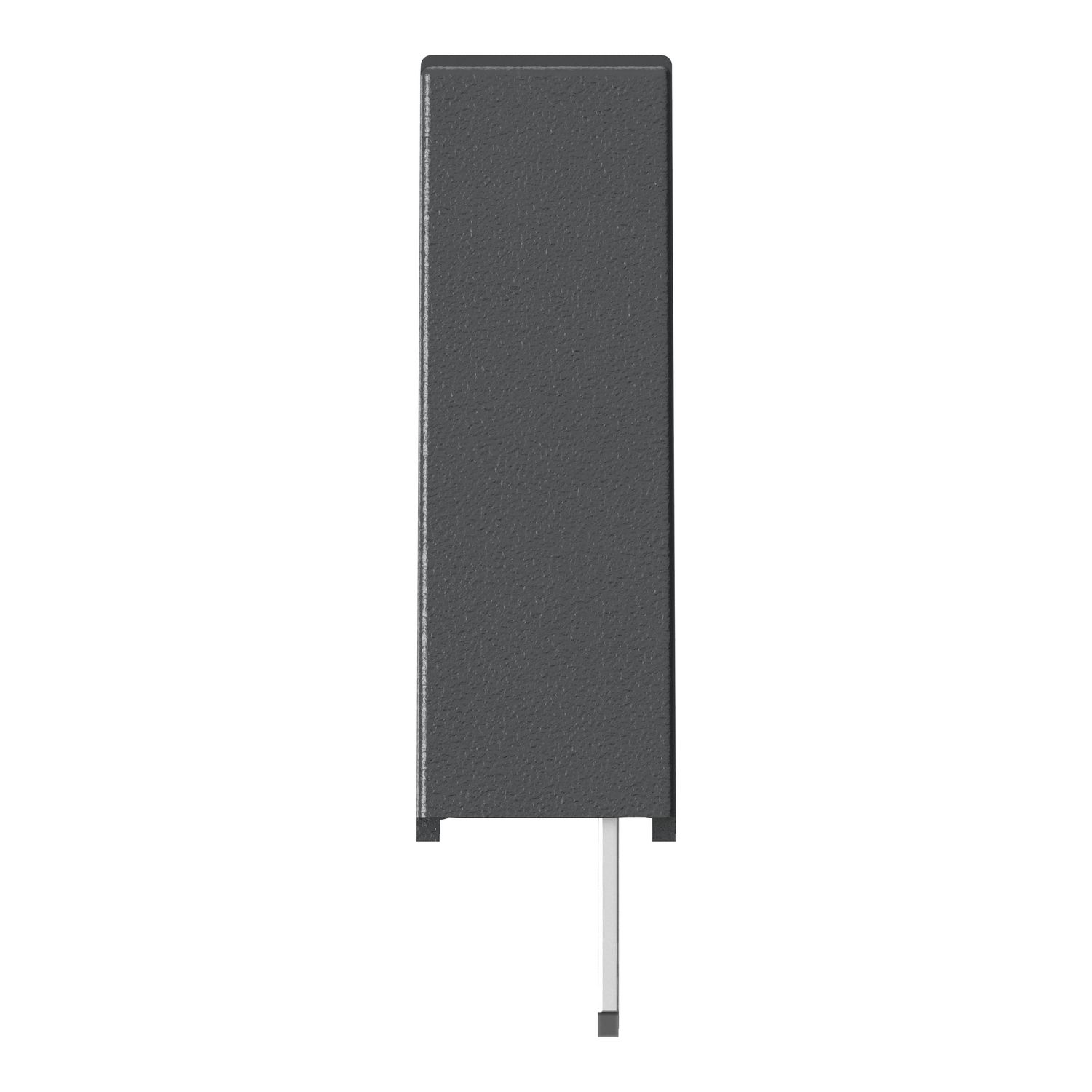

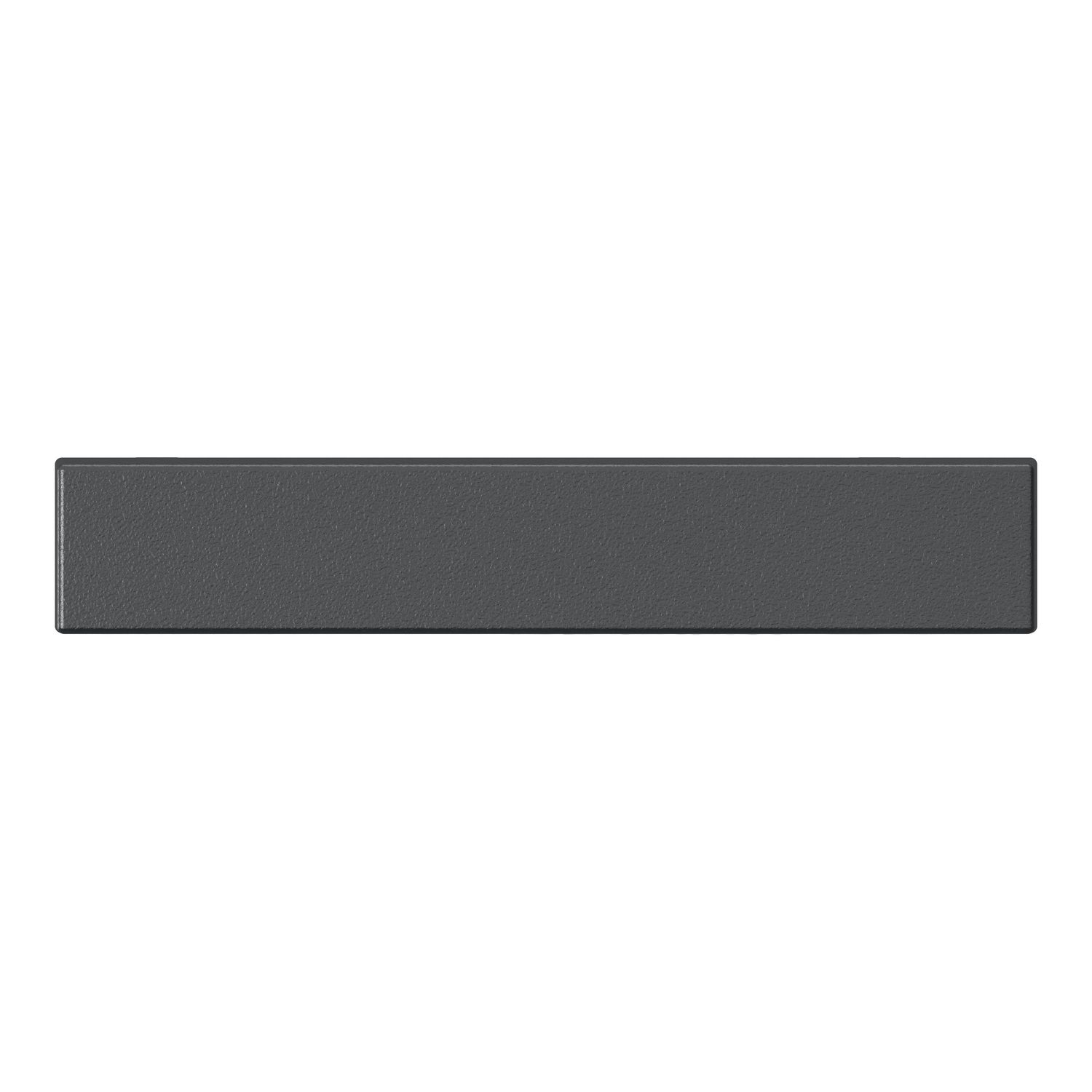

This Harmony SSL slim interfacing solid state plug-in relay is rated 0.1A, is controlled with a 3V to 12V DC input, has a rated load voltage of 1V to 48V DC with DC switching. It is 6mm width, including socket, to save space in your control cabinets. It is also silent and reliable thanks to the absence of moving contacts. It is shock, vibration and pollution resistant thanks to its IP67, it makes it ideal for harsh industrial environments. 0 0 0 0 0 0 0 0 0 0 0 0

Products specifications

Attribute name Attribute value
Main
Device short name SSL
[Uc] control circuit voltage 3...12 V
Range of product Harmony Solid State Relays
Network number of phases 1 phase
Product or component type solid state relay up to 10 A
Output switching mode DC switching
Complementary
Maximum switching voltage 1 V DC turn-off
Input current limits 4-4 mA
Device presentation complete product
Minimum switching voltage 3 V DC turn-on
Maximum voltage drop <1 V on-state
Output voltage 1...48 V DC
Height 28 mm
Maximum operating frequency 500 Hz
Depth 15 mm
Overvoltage category III
Width 5 mm
[In] rated current 0.1 A
Capacitance unbalance 1.5 pF input/output
Solid state output type DC switching, transistor output
Input impedance 1250 Ohm
Absolute maximum voltage 60 V DC
Maximum leakage current 0.001 mA off-state
Net weight 0.0041 kg
Load current 0.001-0.1 A
Surge current 0.3 A for 10 ms
Response time 0.13 ms (turn-off), 0.02 ms (turn-on)
Mounting support socket
[Uc] control circuit voltage 3...12 V DC
Environment
Ambient air temperature for storage -20-85 °C
Marking CE
Pollution degree 2
Ambient air temperature for operation -20-80 °C
Flame retardance V0 conforming to UL 94
Dielectric strength 3750 V for input/output
Product certifications CSA, UL
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 0.7 cm
Package 1 Width 2.5 cm
Package 1 Length 37 cm
Package 1 Weight 5 g
Unit Type of Package 2 2
Number of Units in Package 2 12
Package 2 Height 0.7 cm
Package 2 Width 2.5 cm
Package 2 Length 37 cm
Package 2 Weight 60 g
Unit Type of Package 3 3
Number of Units in Package 3 1080
Package 3 Height 15 cm
Package 3 Width 15 cm
Package 3 Length 40 cm
Package 3 Weight 5.684 kg
