SKU:

SXWASB36X10001

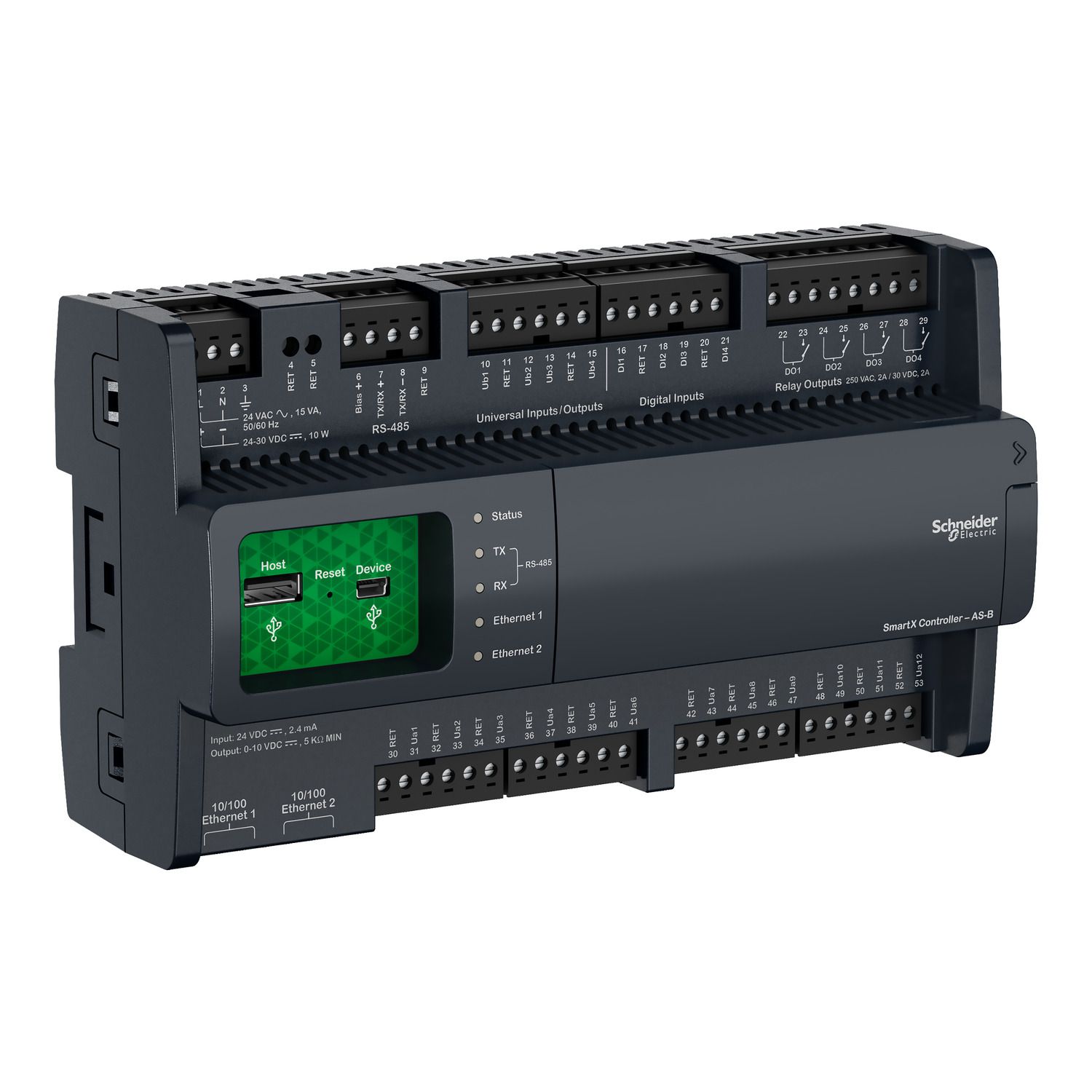

Automation server, SpaceLogic Plant Room Servers, AS-B-36, 36 I/O points, BACnet, MS/TP, modbus

Please Contact Sales to buy this Product. click here

Automation server, SpaceLogic Plant Room Servers, AS-B-36, 36 I/O points, BACnet, MS/TP, modbus

Be the first to review this product

Manufacturer: Schneider Electric

Estimated Delivery Date: 02-Oct-2024

CAD

End of life manual

Product environmental

Declaration of conformity

Instruction sheet

Product Page Link

Product Data Sheet

The SpaceLogic AS-B server is at the core of an EcoStruxure BMS. It performs functionality, such as control logic, trend logging and alarm supervision. It provides built-in I/O, and supports communication and connectivity to the field buses. It is a powerful device with built-in power supply and I/O, which makes it suitable for control applications at the plant room level of a BMS. The SpaceLogic AS-B server can act as a standalone server or controller using its built-in I/O and also monitor and manage field bus devices. Its dimensions are 110 mm (4.3 in.) in height, 198 mm (7.8 in.) in width and 64 mm (2.5 in.) in depth. The AS-B-36 model features 36 I/O points with a versatile mix of I/O points and a variety of connectivity options. It supports the SpaceLogic IP-IO modules for I/O expansion and the SpaceLogic Zigbee Adapter for Zigbee wireless connectivity. Its dimensions are 110 mm (4.3 in.) in height, 198 mm (7.8 in.) in width and 64 mm (2.5 in.) in depth. Available spare parts are terminal blocks (SXWASBCON10001) and an installer kit (SXWASBINS10001). Available spare parts are the AS-B connector kit (SXWASBCON10001) and AS-B installer kit (SXWASBINS10001).
