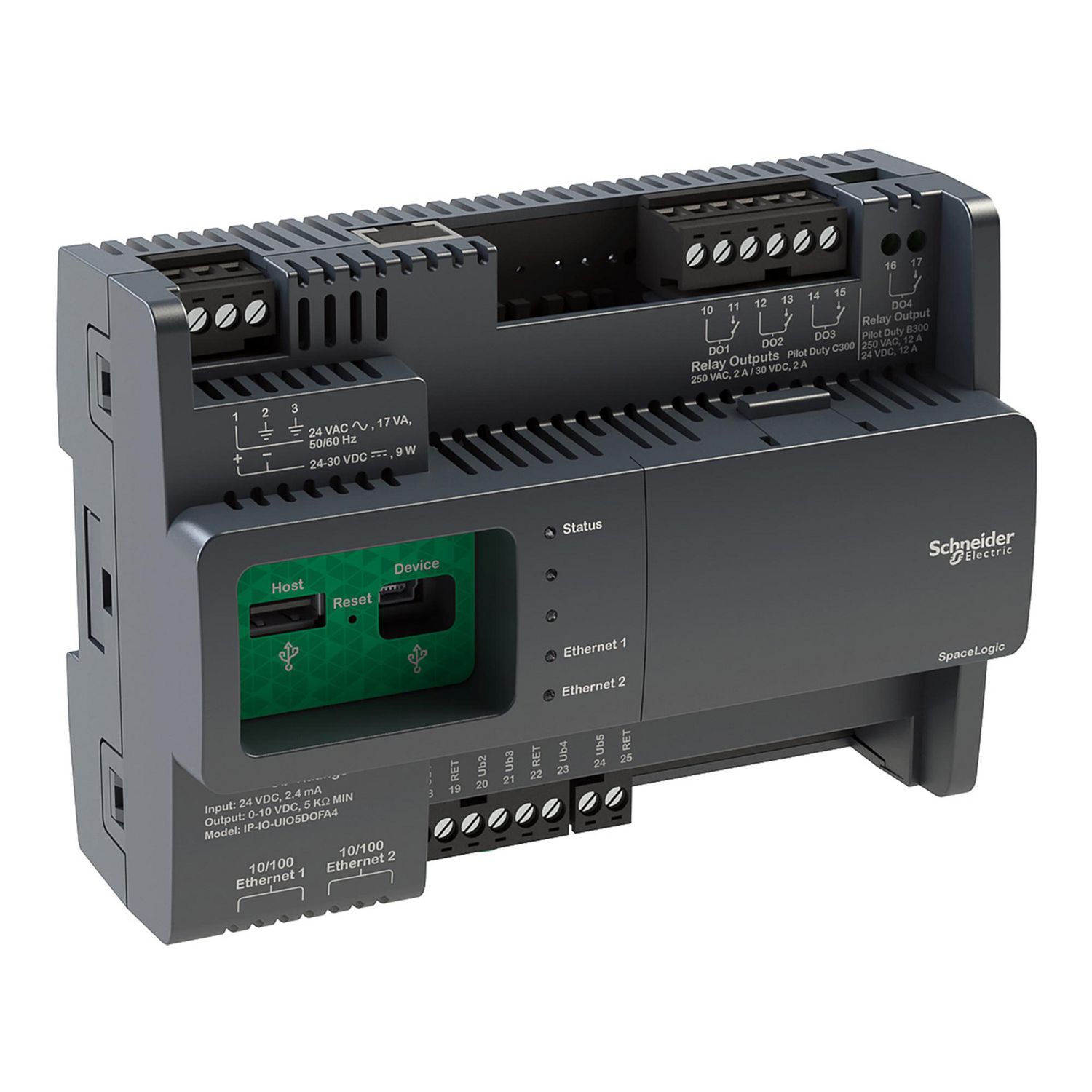

Picture of Input/output expander, SpaceLogic IP-IO Series, 5 universal inputs/outputs, 4 digital output form A relay
SKU:

SXWIPIOCA10001

Input/output expander, SpaceLogic IP-IO Series, 5 universal inputs/outputs, 4 digital output form A relay

Please Contact Sales to buy this Product. click here
Input/output expander, SpaceLogic IP-IO Series, 5 universal inputs/outputs, 4 digital output form A relay
Be the first to review this product
Manufacturer: Schneider Electric
Estimated Delivery Date: 12-Oct-2024
Product environmental
End of life manual
Instruction sheet
Declaration of conformity
CAD
Product Page Link
Product Data Sheet
SpaceLogic IP Controller IP-IO module provides I/O expansion to HVAC applications over BACnet/IP. It can share its I/O resources across applications running in SpaceLogic servers, SpaceLogic IP controllers, or third-party systems. With local alarms and local trend logs, the module avoids unnecessary traffic over the network while being able to log important information locally. The IP-IO module is based on open protocols that simplify interoperability, IP configuration, and device management. It supports an optional display that provides insight and control of the inputs and outputs. There are three models with different I/O point count and a versatile mix of I/O point types that match a wide variety of applications. The IP-IO-UIO5DOFA4 model features 5 universal type Ub I/O, 3 relay form A outputs and 1 high power relay form A output. Its dimensions are 110 mm (4.3 in.) in height, 153 mm (6.0 in.) in width and 64 mm (2.5 in.) in depth. The IP-IO module supports an optional display (SXWMPCDSP10001). Available spart part is a DIN-rail end clip package (SXWDINEND10001).

Products specifications

Attribute nameAttribute value
Main
Number of port1 , connector type: USB device port Mini-B, 1 , connector type: USB type A female, 2 , connector type: RJ45
Device short nameIP-IO-UIO5DOFA4
Width153 mm
Relative humidity0-95 % RH, non-condensing
Power consumption in VA17 VA
Ambient air temperature for storage-20-70 °C
Mounting modepanel-mounted, DIN rail mount
Memory type128 MB RAM, 32 MB flash
Input/output type5 universal I/O
Product or component typeI/O module
Power consumption in W9 W
Communication port protocolBACnet IP
Backup time7 days
Number of outputs3, 1 form A relay output, 3 form A relay output
Ambient air temperature for operation0-50 °C
Height110 mm
Communication port supportETHERNET 10/100BASE-TX
[Us] rated supply voltage21...33 V DC, 24...30 V DC, 24 V AC +/- 20 %
Network frequency60 Hz, 50 Hz
Complementary
StandardsCAN/CSA C22.2 No. 24
ModelIP-IO-UIO5DOFA4
Packing Units
Unit Type of Package 11
Number of Units in Package 11
Package 1 Height7.0 cm
Package 1 Width12.4 cm
Package 1 Length16.3 cm
Package 1 Weight417.0 g
