Controller, SpaceLogic RP-V, RP-V-5A, BACnet/IP, 5 points, 2 universal inputs, 3 digital outputs

$1,241.65
Available for Shipping : 28-Nov-2024
Controller, SpaceLogic RP-V, RP-V-5A, BACnet/IP, 5 points, 2 universal inputs, 3 digital outputs
Manufacturer: Schneider Electric

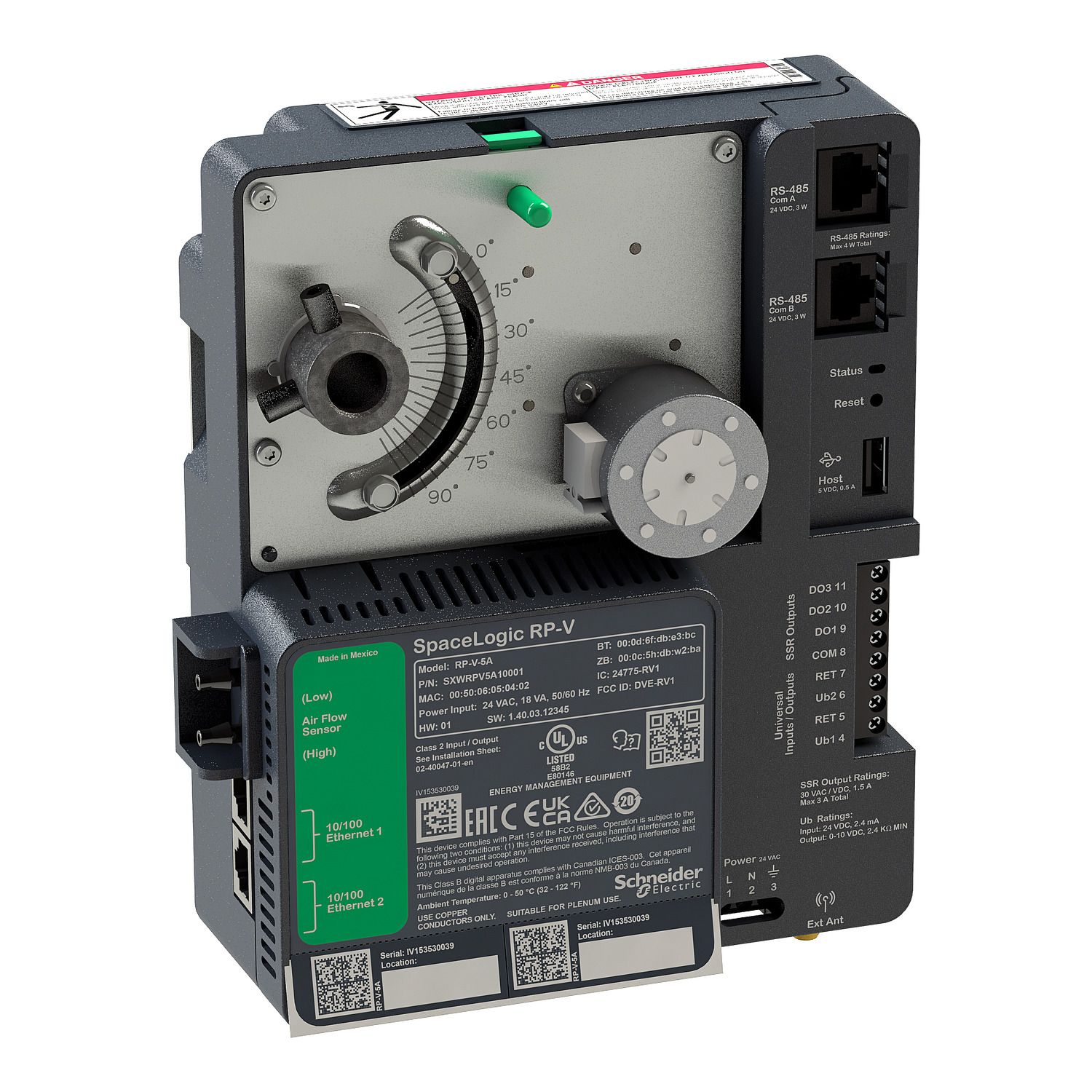

SpaceLogic RP-V controller is a fully programmable, IP based field controller dedicated for VAV applications. It has a built in actuator, air-flow sensor and on-board IO. RP-V also has on-board BLE communication for simple commissioning. It can be extended with light, blind and other CRS modules. RP-V has dual Ethernet ports that can be connected in a ring topology. The RP-V-5A has 2 universal inputs and 3 digital outputs. Its dimensions are 168 mm (6.6 in.) in width, 201 mm (7.9 in.) in height and 65 mm (2.6 in.) in depth. The weight of the product is 1.132 kg (2.496 lb). It is a UL 916 (Open Class Energy Management Equipment) and is approved for plenum installation (UL 2043). The device can be installed directly over the damper shaft of the VAV box. Available spare part is Adapter for damper shaft (AM-135).

Products specifications

Attribute name Attribute value
Main
Maximum number of I/O expansion module 4
IP degree of protection IP20
Device short name RP-V-5A
Device application variable air volume
Width 168 mm
Input voltage -0.5...24 V DC for universal input
Product weight 1.132 kg
Relative humidity 0-95 % RH, non-condensing
Output current 0...20 mA analog output
Power consumption in VA 18 VA
Ambient air temperature for storage -40-70 °C
Function available programmable, integrated air flow sensor, integrated actuator
Topology Rapid Spanning Tree Protocol (RSTP), daisy chain, star
Height 201 mm
Depth 65 mm
Input/output type 2 universal I/O
Product or component type field controller
Protection type internal fuse, MOV suppression
Ambient air temperature for operation 0-50 °C
Number of outputs 3 solid-state relay output
Range of product SpaceLogic
Communication port support RS485, USB, ETHERNET 10/100BASE-TX
[Us] rated supply voltage 24 V AC +/- 15 %
Network frequency 60 Hz, 50 Hz
Product certifications UL listed, cUL listed, CE, RCM
Complementary
Actuator damper10 N.m 0-90 ° 9.5-12.7 mm
Processor name flash 48 MB,  FRAM 128 kB, ARM Cortex-A7 single core 500 MHz SRAM 6 MB
Flame retardance UL94-V0
Backup time 7 days +/- 1 min/month
Communication port protocol Bluetooth 5.1 low energy, BACnet IP
Range compatibility Connected Room Solution, SpaceLogic AS
Standards FCC part 15 Subpart B class B, FCC part 15 Subpart C class B, EN 50491-5-2, EN 61000-6-3, UL 2043, EN 50491-3, EN 60730-2-11, EN 60730-1, EN 50491-5-3, EN 61000-6-2, ICES-003, UL 916
Product brand Schneider Electric
Output voltage 0...10 V DC for analog output
Range SpaceLogic
Model RP-V-5A
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 10 cm
Package 1 Width 23 cm
Package 1 Length 20 cm
Package 1 Weight 1.225 kg
Unit Type of Package 2 2
Number of Units in Package 2 5
Package 2 Height 15 cm
Package 2 Width 30 cm
Package 2 Length 40 cm
Package 2 Weight 6.44 kg
