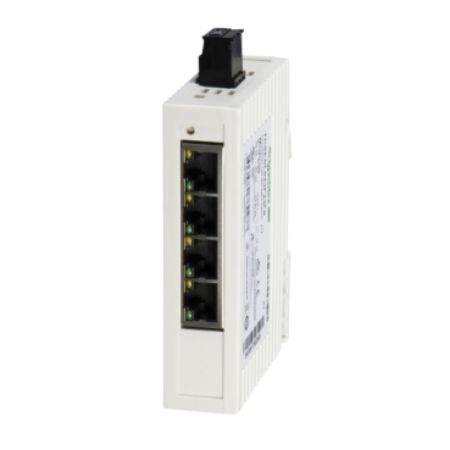

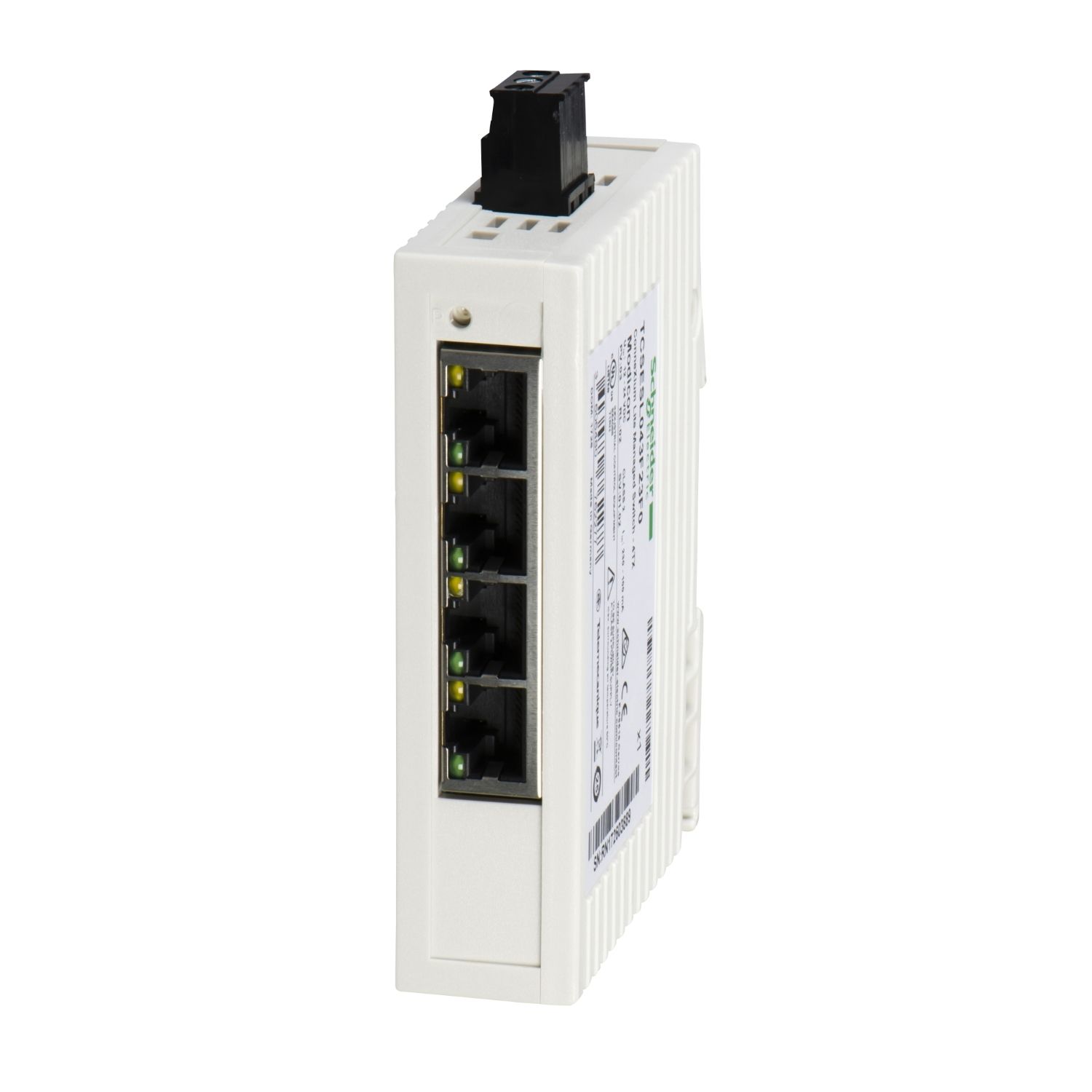

Picture of network switch, Modicon Networking, lite managed, 4 ports for copper
SKU:

TCSESL043F23F0

network switch, Modicon Networking, lite managed, 4 ports for copper

Please Contact Sales to buy this Product. click here
Product Selector
network switch, Modicon Networking, lite managed, 4 ports for copper
Be the first to review this product
Manufacturer: Schneider Electric
Availability: Please contact our sales team on 1300 724 622.
Declaration of conformity
Catalogue
End of life manual
User guide
Product environmental
Product Page Link
Product Data Sheet
This product is part of the ConneXium range, an offer of Ethernet connecting devices. This managed switch comes with Ethernet TCP/IP protocol. It comes with 4 copper cable transmission ports and maximum number of switches in a ring is 50. The lite managed switch is suitable for simple application that requires a ring architecture, or as an alternative to unmanaged switches. This product works at a power consumption of 2.35W and a rated voltage of 12 to 24V DC. It has a removable 6-pin power supply connector. The supported transmission medium is twisted shielded pair category 5E copper cable. Its dimensions are 25mm (width) x 114mm (height) x 79mm (depth) and weighs 0.103 kg. This switch can manage a single ring with RSTP compatible devices. It also has the capability of managing network traffic, diagnostics and redundancy with RSTP protocol. It is CE, UL, RCM, EAC, UKCA certified and conforms to UL 61010 standard. It is designed to be mounted on a 35mm symmetrical DIN rail. It provides low power consumption and compact footprint. It also provides simple connectivity for multiple Ethernet device. The Modicon Networking range offers you a smart and flexible way to integrate Ethernet solutions into your operation, from the device level to the control network and to your corporate network.

Products specifications

Attribute nameAttribute value
Main
ConceptTransparent Ready
Cybersecurityenable/disable communication ports
Communication port protocolLLDP, SNMP, HTTPS, HTTP, Ethernet TCP/IP
Product or component typeEthernet TCP/IP managed switch
Port Ethernet10/100BASE-TX - 4 port(s) copper cable
Range of productConneXium
Maximum number of switches in cascadeunlimited
Complementary
Depth79 mm
Width25 mm
Diagnostics run timelog file
Local signalling1 LED per channel (green) for link status, 1 LED per channel (yellow) for data rate (ETH LINK), 1 LED (green) for power supply
Supply voltage limits9.6-32 V DC SELV
Ethernet cabling systemTF switches
Ethernet serviceSNMP-Traps, syslog, multicast filtering, configuration via web server
Maximum number of switches in a ring50
Electrical connectionremovable connector 3 ways power supply
Net weight0.103 kg
RedundancyRSTP
MarkingRCM, cULus, CE
Communication serviceport monitoring, TFTP
Power consumption in W2.35 W
Mounting support35 mm symmetrical DIN rail
Transmission support mediumtwisted shielded pairs cable CAT 5E for copper cable
Integrated connection typeshielded RJ45 copper cable
Height114 mm
[Us] rated supply voltage12...24 V
Maximum cable distance between devices100 m copper cable
Environment
IP degree of protectionIP30
Relative humidity5-95 % non-condensing
Directives2014/30/EU - electromagnetic compatibility, 2014/35/EU - low voltage directive
Product certificationsRCM, UL, CE
StandardsUL 61010
Ambient air temperature for operation0-60 °C
Packing Units
Unit Type of Package 11
Number of Units in Package 11
Package 1 Height3.600 cm
Package 1 Width12.400 cm
Package 1 Length17.600 cm
Package 1 Weight167.000 g
Unit Type of Package 22
Number of Units in Package 228
Package 2 Height30.000 cm
Package 2 Width30.000 cm
Package 2 Length40.000 cm
Package 2 Weight5.161 kg
