SKU:

TM262L01MDESE8T

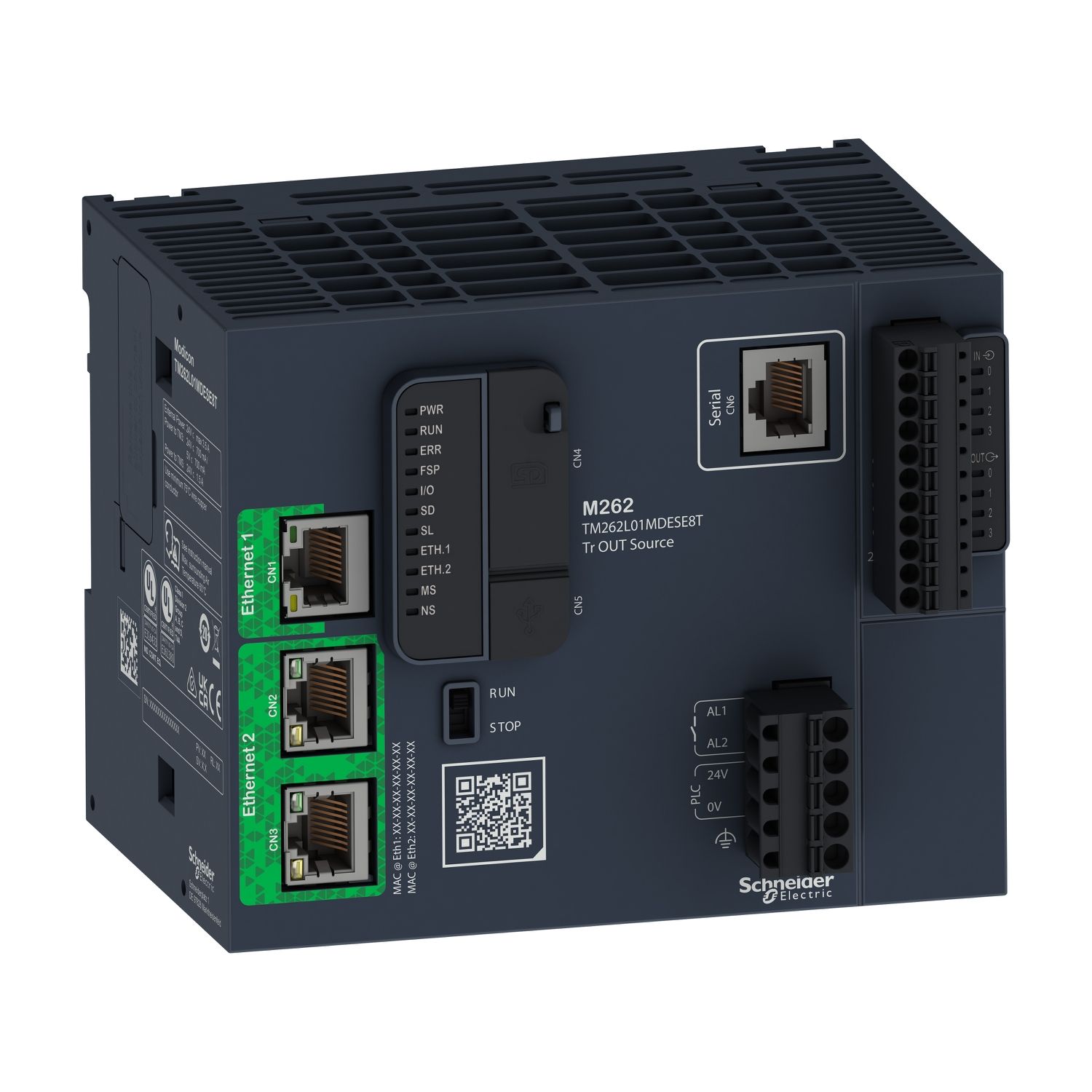

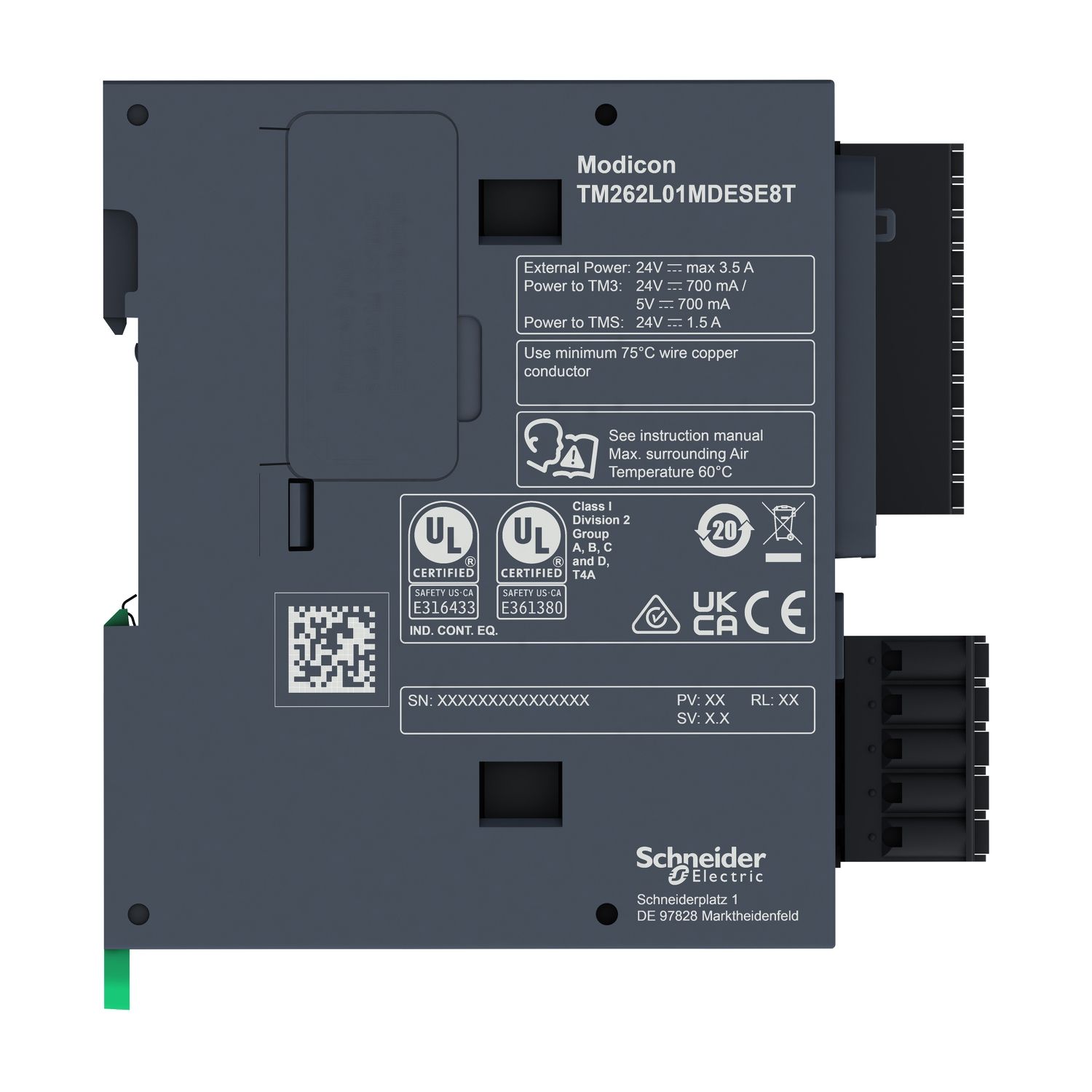

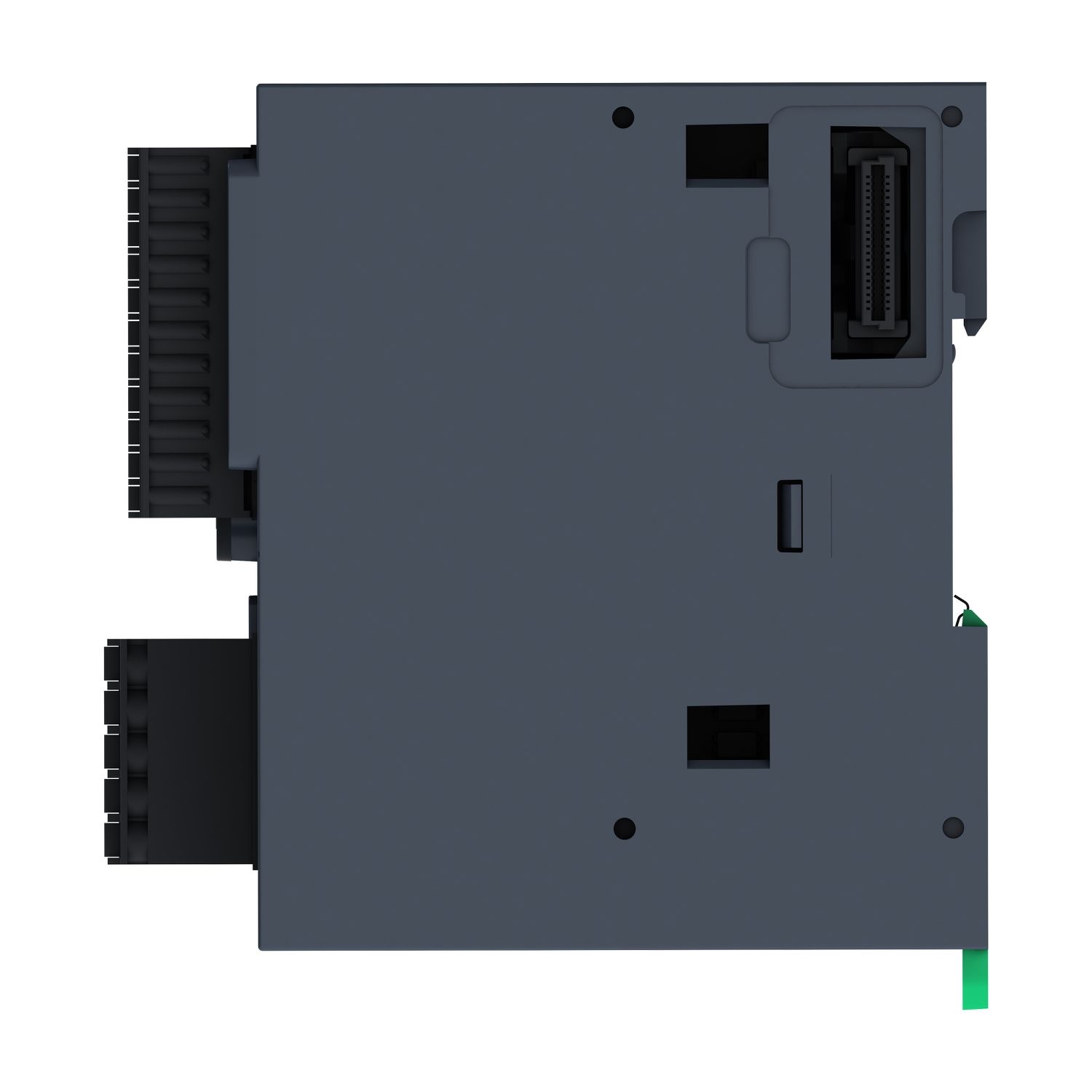

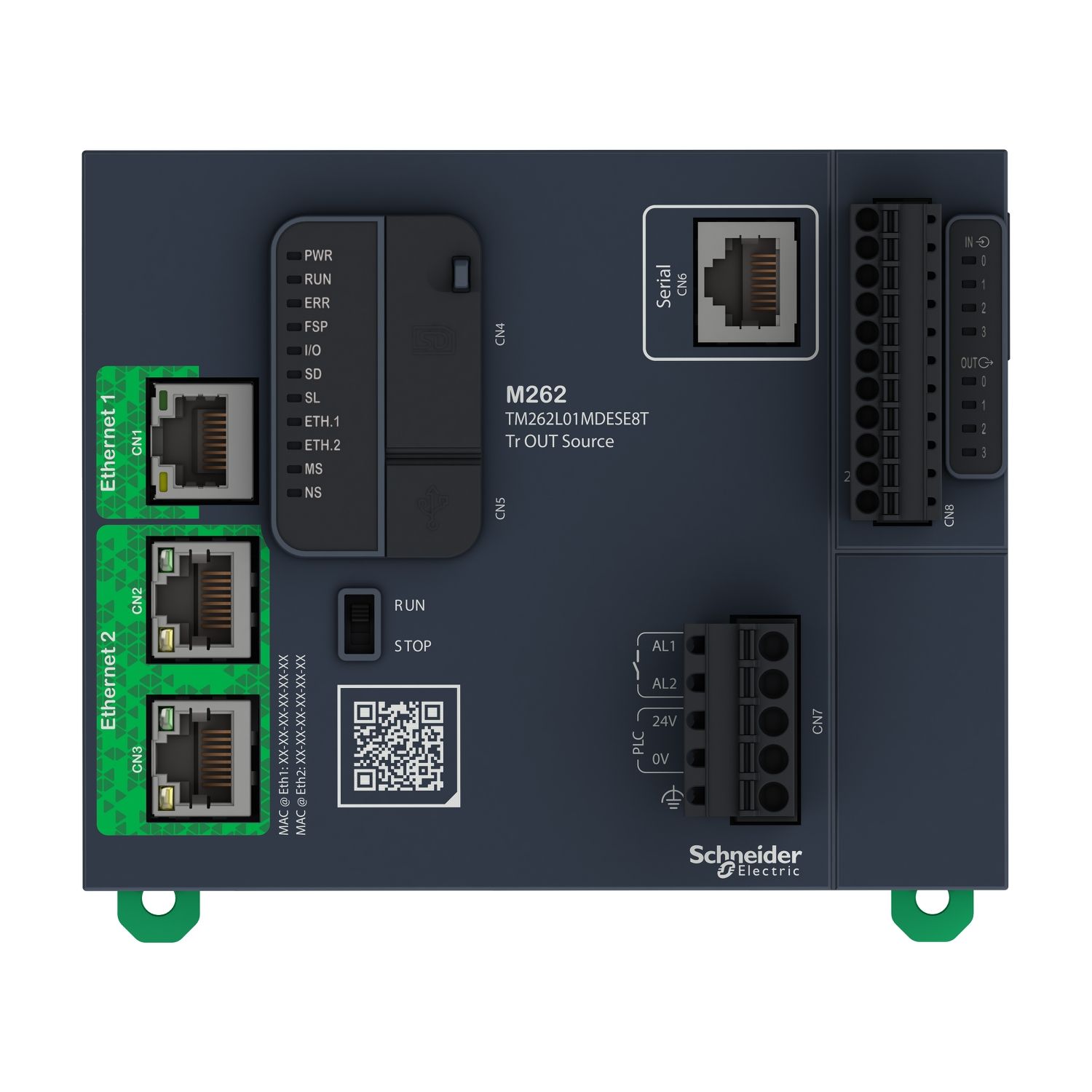

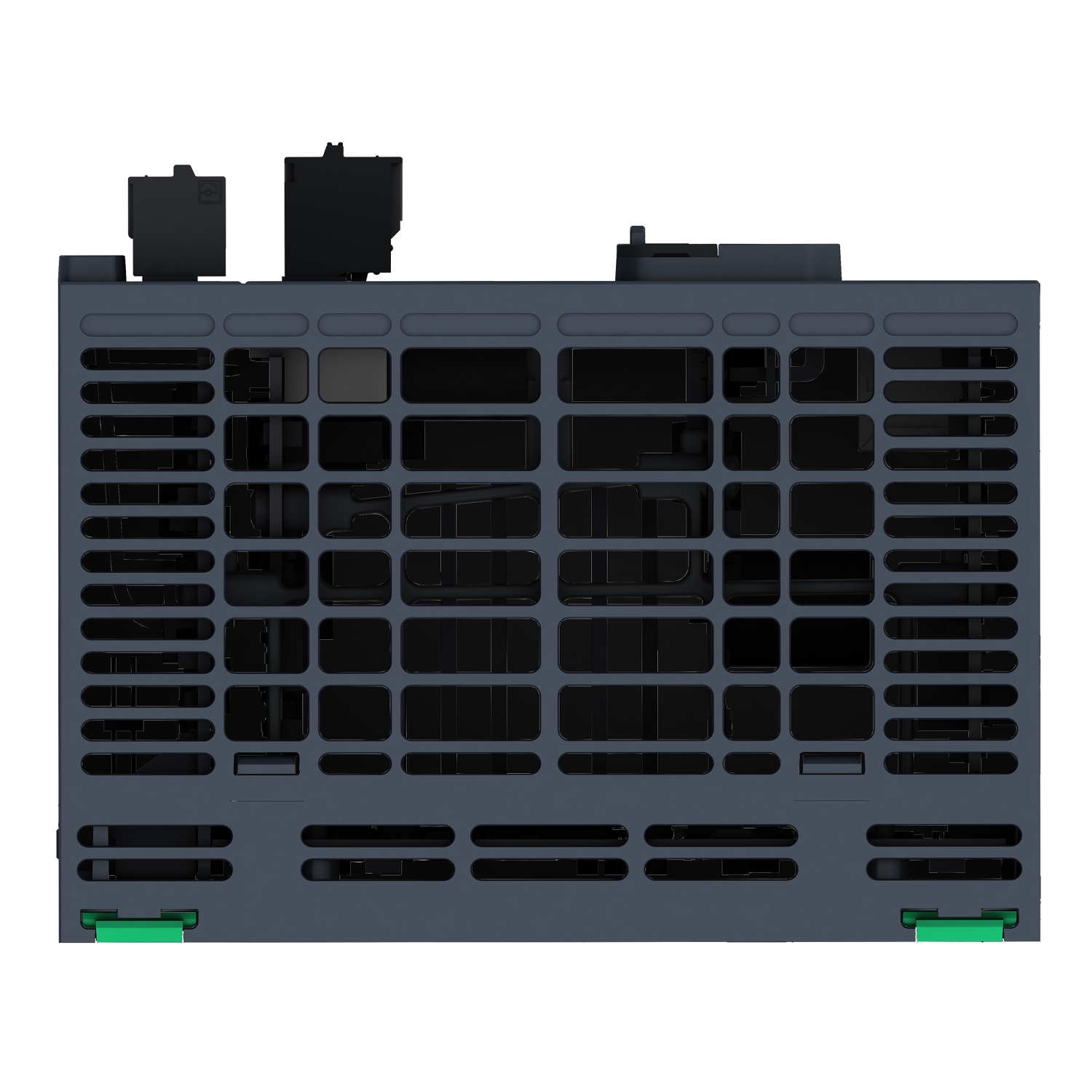

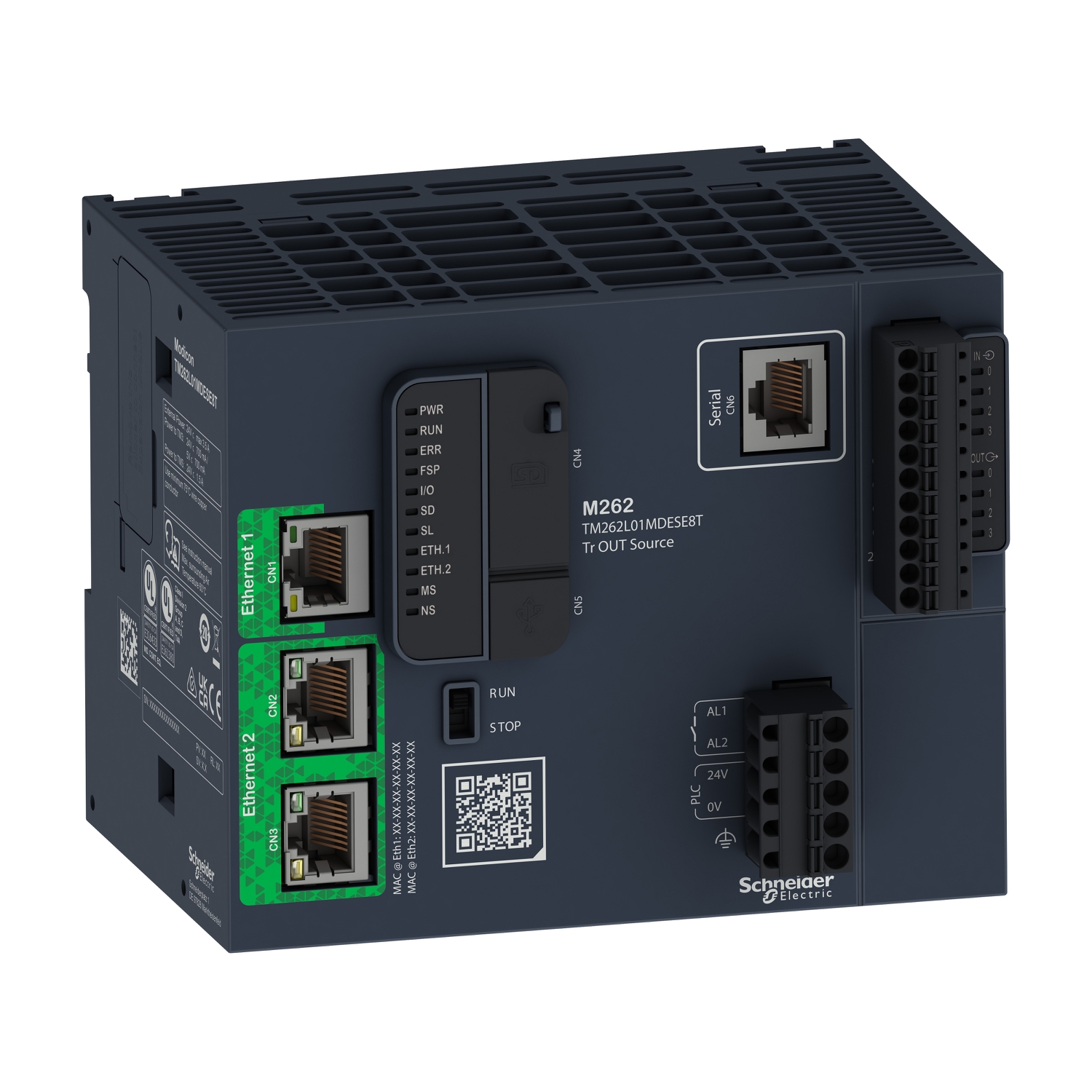

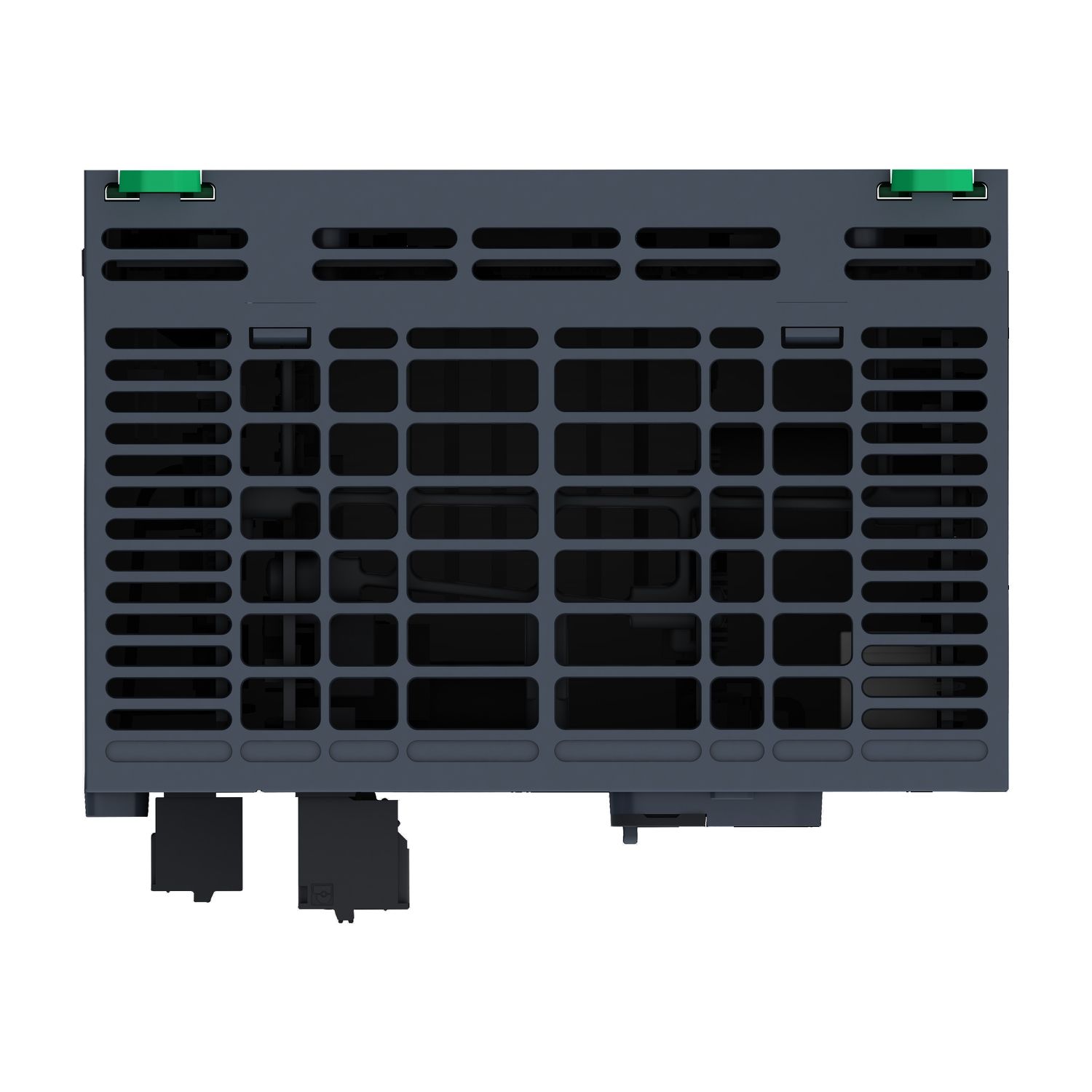

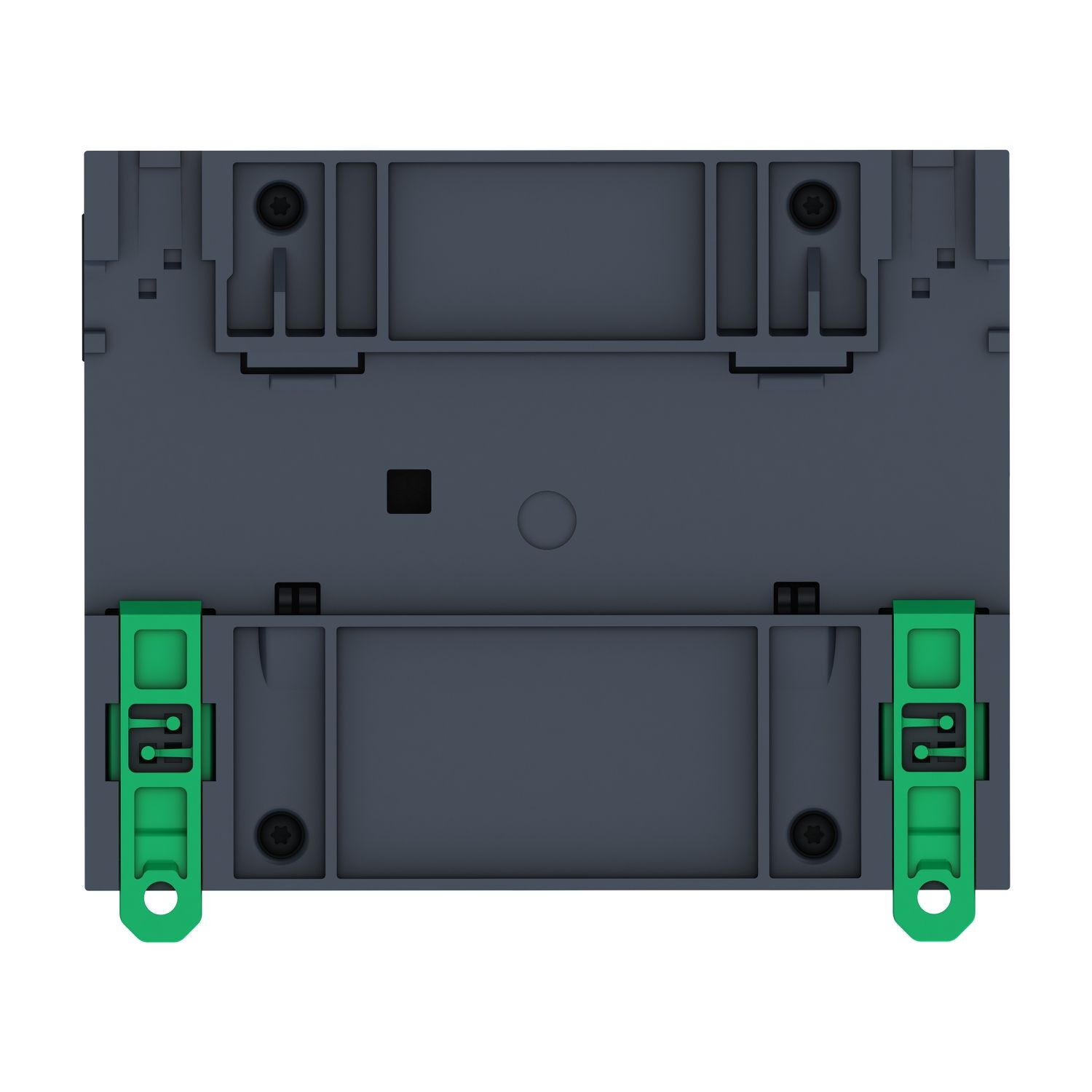

distributed PAC controller, Modicon M262

Old price: $1,870.00 INC GST
$1,776.50 INC GST
Available for Shipping : 12-Jan-2026
distributed PAC controller, Modicon M262
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 12-Jan-2026
Environmental Disclosure
Circularity Profile
Catalog
Instruction sheet
User guide
Declaration of conformity
Product Page Link
Product Data Sheet
The Modicon M262 distributed PAC module is part of the EcoStructure Automation Expert hardware controller range. It is an optimised dPAC controller that supports Modicon TM3 I/O catalog. The controller carries up to 448 discrete I/O channels, 112 analog I/O channels and 14 (7 local + 7 remote) Modicon TM3 bus expansion modules. Modicon M262 dPAC is the controller for medium size machines and distributed processes. It embeds both OPC UA client and server to ease its vertical and horizontal integration in the architectures. It is powered with a non-isolated 24V DC power supply, has a built-in overload protection, embeds a dual-core processor and a 256MB memory capacity, and reaches a 5ns per instruction performance. This logic controller has two communication buses (Ethernet TCP/IP and Serial), one I/O bus, and one I/O port. It weighs 0.655kg (1.444lb). Certified with CE, cULus HazLoc, RCM. Conform to IEC/EN 61131-2, UL 61010-1, UL 61010-2-201, ANSI/ISA 12.12.01-2007, CSA C22.2 No.213. This controller supports Modicon TM3 I/O expansion modules. Modicon M262 logic controller installs on 35mm DIN rail with Clip-on locks.

Products specifications

Attribute name Attribute value
Main
Range of product EcoStruxure Automation Expert
Product or component type dPAC module
[Us] rated supply voltage 24 V DC - 15...20 %
Complementary
Insulation non-insulated between supply and ground, between supply and internal logic at 500 V AC
Realtime clock with
Execution time for 1 KInstruction 0.005 ms
Surge withstand 1 kV transistor output common mode conforming to EN/IEC 61000-4-5, 1 kV input common mode conforming to EN/IEC 61000-4-5, 0.5 kV relay output differential mode conforming to EN/IEC 61000-4-5, 1 kV shielded cable common mode conforming to EN/IEC 61000-4-5, 1 kV power lines (DC) common mode conforming to EN/IEC 61000-4-5
Supply voltage limits 20.4-28.8 V DC
Backup time 1000 h at 25 °C
Communication port protocol Modbus SL client/server, Modbus TCP IO scanner, Modbus TCP client/server, EtherNet/IP scanner
Transmission rate 10/100/1000 Mbit/s for Ethernet2, 10/100 Mbit/s for Ethernet1, 57.6 kbit/s for bus length of 3-3 m for RS232, 57.6 kbit/s for bus length of 15-15 m for RS485
Communication service NTP client, HTTPs Methods (API), OPC UA server (Encrypt)
Height 100 mm
Maximum cable distance between devices shielded cable: <15 m for RS232, shielded cable: <30 m for RS485 link
Electrical connection removable spring terminal blockfor connecting the 24 V DC power supply,  removable spring terminal blockfor inputs and outputs
Data backed up 1 GB built-in flash memory for backup of user programs
Maximum number of connected devices Modbus TCP/EtherNet/IP: 96 , Modbus TCP: 64 , EtherNet/IP: 64
Depth 90 mm
Width 125 mm
Overvoltage protection with
Local signalling 1 LED (green/red) for EIP NS, 1 LED (green/red) for EIP MS, 1 LED (green/red) for ETH2 state, 1 LED (green/red) for ETH1 state, 1 LED (green/orange) for SL activity, 1 LED (green/orange) for SD card activity, 1 LED (green/red) for I/O error (I/O), 1 LED (green/red) for stop forced, 1 LED (green/red) for ERROR (fault), 1 LED (green/red) for RUN, 1 LED (green/red) for PWR
Mounting support plate or panel with fixing kit, top hat type TH35-7.5 rail conforming to IEC 60715, top hat type TH35-15 rail conforming to IEC 60715
Integrated connection type TM3 IO bus, serial link with RJ45 connector and RS232/RS485 interface , Ethernet 2 with 2 RJ45 connector and 100/1000BASE-T interface , Ethernet 1 with RJ45 connector and 10/100BASE-T interface
Net weight 0.655 kg
Maximum number of I/O expansion module 7 TM3 IO module (remote I/O-Architecture), 7 TM3 IO module (local I/O-Architecture)
Clock drift <= 10 s/month at 25-25 °C
Inrush current 40 A
Power consumption in W 82 W
Environment
Resistance to fast transients 1 kV (transistor output) conforming to EN/IEC 61000-4-4, 1 kV (input) conforming to EN/IEC 61000-4-4, 1 kV (serial link) conforming to EN/IEC 61000-4-4, 1 kV (Ethernet line) conforming to EN/IEC 61000-4-4, 2 kV (power lines) conforming to EN/IEC 61000-4-4
Resistance to electrostatic discharge 8 kV on air conforming to EN/IEC 61000-4-2, 4 kV on contact conforming to EN/IEC 61000-4-2
IP degree of protection IP20
Relative humidity 5-95 %, without condensation (in storage), 5-95 %, without condensation (in operation)
Ambient air temperature for storage -40-85 °C
Ambient air temperature for operation -20-45 °C (flat mounting), -20-50 °C (vertical installation), -20-60 °C (horizontal installation)
Pollution degree 2
Standards EN 61131-2, ANSI/ISA 12-12-01, CSA C22.2 No 213, CSA C22.2 No 61010-2-201,  CSA C22.2 No 61010-1, UL 61010-2-201, UL 61010-1
Immunity to microbreaks 0.01 ms
Resistance to electromagnetic fields 1 V/m 2 GHz...3 GHz conforming to EN/IEC 61000-4-3, 3 V/m 1.4 GHz...2 GHz conforming to EN/IEC 61000-4-3, 10 V/m 80 MHz...1 GHz conforming to EN/IEC 61000-4-3
Resistance to conducted disturbances 10 V spot frequency (2, 3, 4, 6.2, 8.2, 12.6, 16.5, 18.8, 22, 25 MHz), 3 V 0.1...80 MHz, 10 V 0.15...80 MHz conforming to EN/IEC 61000-4-4
Electromagnetic emission radiated emissions at 230-1000 MHz conforming to EN/IEC 55011, conducted emissions - test level: 79...63 dBμV/m QP ( power lines) at 150-1500 kHz conforming to EN/IEC 55011, radiated emissions - test level: 40 dBµV/m at 30-230 kHz conforming to EN/IEC 55011, conducted emissions - test level: 63 dBμV/m QP ( power lines) at 1.5-30 MHz conforming to EN/IEC 55011, conducted emissions - test level: 120...69 dBµV/m QP ( power lines) at 10-150 kHz conforming to EN/IEC 55011
Operating altitude 0...2000 m
Vibration resistance 1 gn at 8.4-200 Hz on panel mounting, 3.5 mm at 2-8.4 Hz on panel mounting, 1 gn at 8.4-200 Hz on symmetrical rail, 3.5 mm at 2-8.4 Hz on symmetrical rail
Shock resistance 15 gn for 11 ms
Storage altitude 0-3000 m
Product certifications RCM, cULus HazLoc Class I Division 2 CSA 22-2 No 213, cULus, CE
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 13.500 cm
Package 1 Width 14.000 cm
Package 1 Length 18.500 cm
Package 1 Weight 836.000 g
Unit Type of Package 2 2
Number of Units in Package 2 8
Package 2 Height 30.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 7.424 kg

Related products

Picture of Modicon M221, Memory card, for M2xx controller

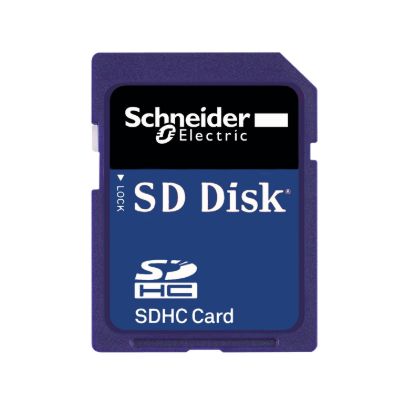

Modicon M221, Memory card, for M2xx controller

TMASD1
$168.67 INC GST
View Detail
Picture of connecting cable, Modicon M340, USB, PC or terminal, for processor, 1.8m

connecting cable, Modicon M340, USB, PC or terminal, for processor, 1.8m

BMXXCAUSBH018
$313.09 INC GST
View Detail

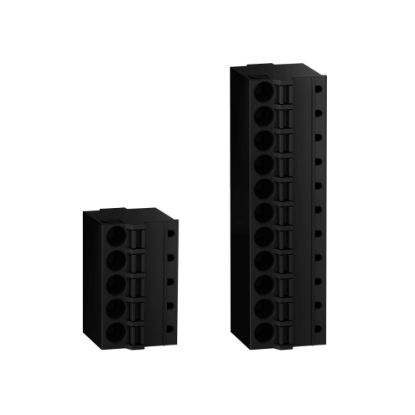

Picture of Terminal block kit, Modicon M262, Set of connector, Logic/motion controller Spring connectors, 5 + 11 conn. Blocks

Terminal block kit, Modicon M262, Set of connector, Logic/motion controller Spring connectors, 5 + 11 conn. Blocks

TMA262SET8G
$38.56 INC GST $40.59 INC GST
View Detail

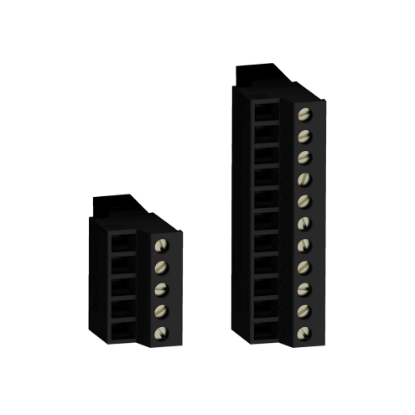

Picture of Terminal block kit, Modicon M262, Set of connector, Logic/motion controller Screw connectors, 5 + 11 conn. Blocks
