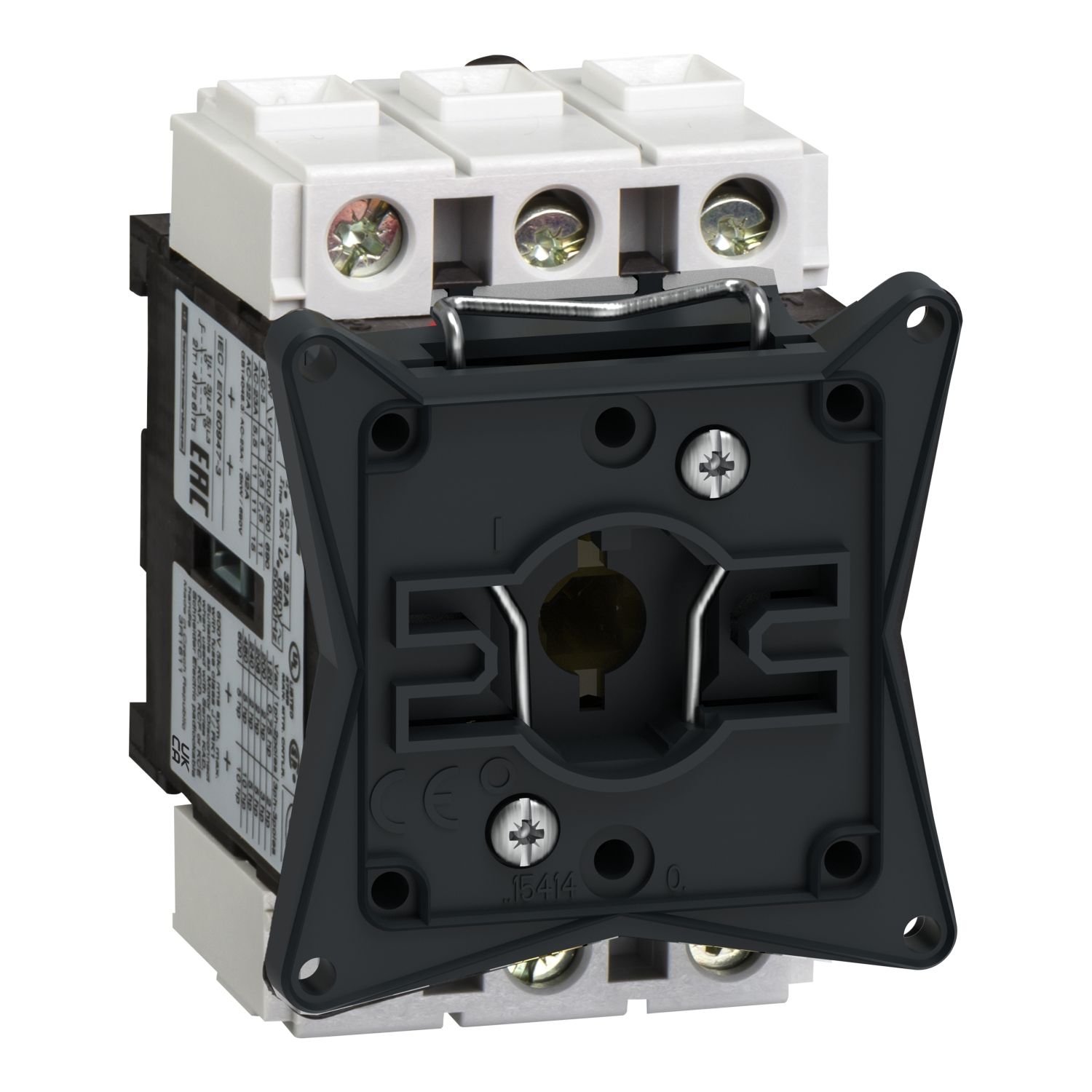

TeSys, TeSys VARIO - Switch body for switch-disconnector - 3 poles - 25 A

$136.75

Qty:

TeSys, TeSys VARIO - Switch body for switch-disconnector - 3 poles - 25 A

It is suitable for multi utilization categories and has reliable performance in DC circuit

It provides suitability and capability for up to 4 add-on modules

Easy operation with several models of handles for option

Multi standards certified

Green Premium compliant (RoHS/REACh)

Be the first to review this product

Manufacturer: Schneider Electric

Estimated Delivery Date: 26-Sep-2024

Instruction sheet

Product environmental

Catalogue

Product Page Link

Product Data Sheet

TeSys Vario switch body, 3 poles, 25A/690V, for motor switching applications up to 7.5kW@400V AC-23. It can be used to switch DC circuits until 250V DC DC-1 to DC-5, by use of contacts in series. It provides capability to have mounted until 4 add-on modules, connection by screw terminals, mounting on DIN-rail or by screw fixing. To be equipped with an handle to form an operational switch-disconnector, several models of handles are available. Add-on modules (main pole, neutral pole, earthing module, auxiliary contacts) and mounting accessories are available (to be ordered separately). Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).

Products specifications

Attribute name	Attribute value
Main
Device short name	V
Range	TeSys
Product name	TeSys VARIO
Product or component type	switch body
Complementary
[Icw] rated short-time withstand current	300 A at 400 V duration: 1 s
Tightening torque	power circuit: 2.1-2.1 N.m - on screw clamp terminals
Compatibility code	V
Mechanical durability	100000 cycles
[Ie] rated operational current	14.5 A AC-23 Ue: 400 V
Electrical durability	30000 cycles DC-1...5, 100000 cycles AC-21
[Ith] conventional free air thermal current	25 A
Intermittent duty class	30
Height	74 mm
Rated conditional short-circuit current	10 kA at 400 V - associated fuse 25 A gG, 10 kA at 400 V - associated fuse 25 A aM
Rated operational power in W	7.5 kW at 400...415 V (AC-23A), 5.5 kW at 230...240 V (AC-23A), 7.5 kW at 500 V (AC-3), 5.5 kW at 400...415 V (AC-3), 4 kW at 230...240 V (AC-3), 15 kW at 690 V (AC-23A), 11 kW at 690 V (AC-3), 11 kW at 500 V (AC-23A)
Breaking capacity	200 A at 400 V (AC-23A), 200 A at 400 V (AC-22A), 200 A at 400 V (AC-21A)
Depth	60 mm
Width	55 mm
Poles description	3P
Suitability for isolation	yes
[Icm] rated short-circuit making capacity	1 kA at 400 V at Ipeak
Contacts type and composition	3 NO
Connections - terminals	power circuit: screw clamp terminals6-6 mm² - flexible - with cable end, power circuit: screw clamp terminals10-10 mm² - solid
[Uimp] rated impulse withstand voltage	8 kV
Making capacity	250 A at 400 V AC-23A, 250 A at 400 V AC-22A, 250 A at 400 V AC-21A
Performance level	high performance
Net weight	0.2 kg
[Ithe] conventional enclosed thermal current	20 A
Network type	DC, AC
Mounting support	plate, symmetrical rail
[Ue] rated operational voltage	690 V AC 50/60 Hz
Network frequency	50/60 Hz
Environment
Fire resistance	960 °C conforming to IEC 60695-2-1
Mechanical robustness	shocks 11 ms (30 Gn) conforming to IEC 60068-2-27, vibrations 10...150 Hz (1 gn) conforming to IEC 60068-2-6
Protective treatment	TC
IP degree of protection	IP20 conforming to IEC 60529
Ambient air temperature for operation	-20-50 °C
Standards	IEC 60947-3
Product certifications	CCC, UKCA, GL, CSA, UL
Packing Units
Unit Type of Package 1	1
Number of Units in Package 1	1
Package 1 Height	12 cm
Package 1 Width	8.4 cm
Package 1 Length	8.2 cm
Package 1 Weight	174 g
Unit Type of Package 2	2
Number of Units in Package 2	24
Package 2 Height	30 cm
Package 2 Width	30 cm
Package 2 Length	40 cm
Package 2 Weight	4.668 kg
Unit Type of Package 3	3
Number of Units in Package 3	192
Package 3 Height	77 cm
Package 3 Width	80 cm
Package 3 Length	60 cm
Package 3 Weight	45.844 kg
