SKU:

VCFXGE1

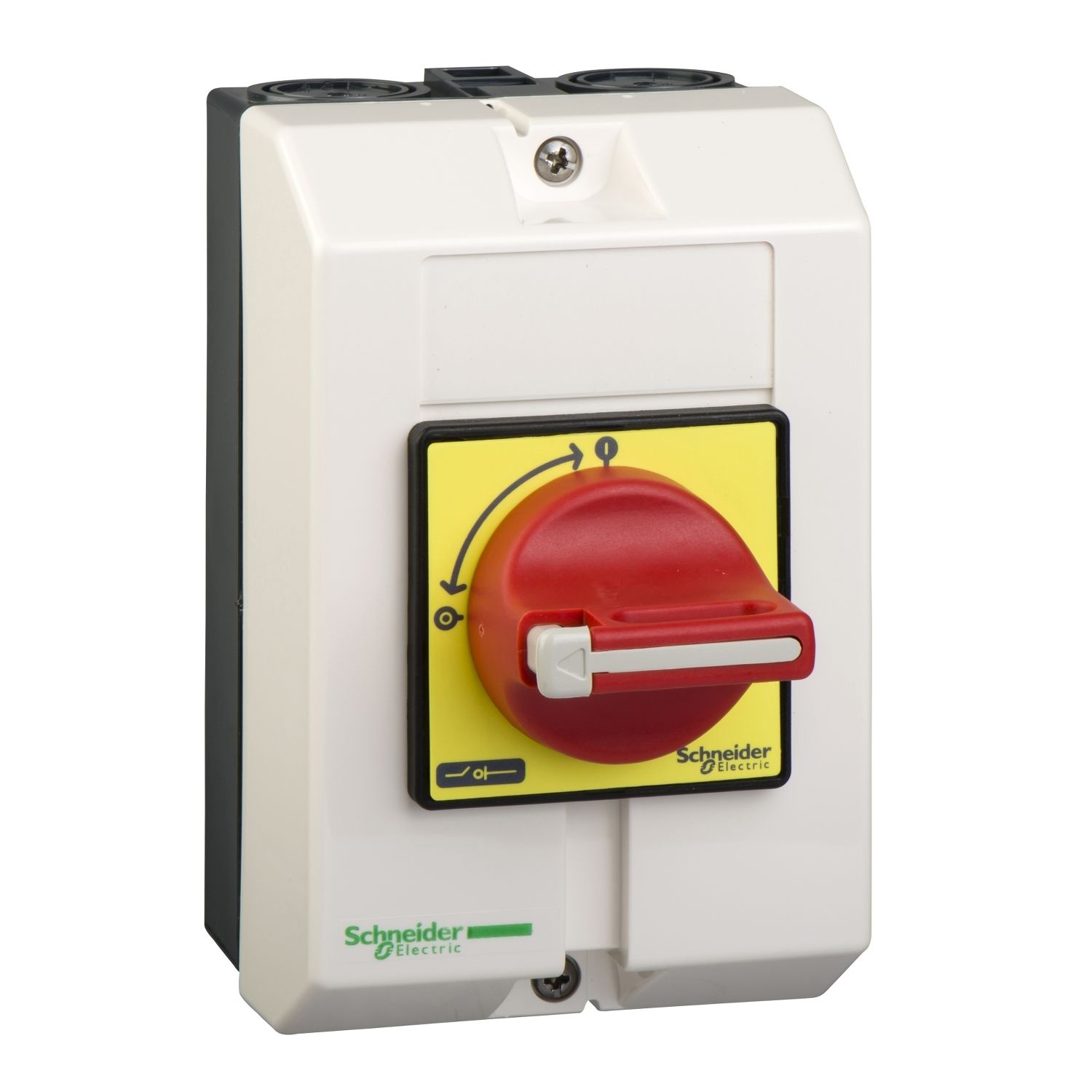

Empty enclosure,TeSys Control,red padlockable handle operator and yellow front plate,IP65,for VN12/VN20/V02-V2

$88.01

Qty:

Available for Shipping : 03-Dec-2024

Empty enclosure,TeSys Control,red padlockable handle operator and yellow front plate,IP65,for VN12/VN20/V02-V2

Suitable for harsh environment with high level of waterproof and dustproof

Easy to mount and maintain

Designed with a padlockable handle operator to guarantee safety and simple application

Compliant with Green Premium

Be the first to review this product

Manufacturer: Schneider Electric

Product environmental

Catalogue

Instruction sheet

Product Page Link

Product Data Sheet

TeSys enclosed starters, empty enclosure for mounting a switch disconnector for main switching in motor applications up to 15kW@400V AC-23. Enclosure providing IP65 protection, fitted with a red rotary handle and yellow front plate, padlockable (padlocks not included). to be equipped with a Vario switch body VN12-VN20 or V02-V2 (to be ordered separately), with 2 possible add-on module attachments Surface mounting enclosure with screw fixing, 2 knock-outs for cable glands on top and bottom, sealable cover. It conforms to IEC 60947-4-1, Green Premium compliant (RoHS/REACh).

Products specifications

Attribute name	Attribute value
Main
Device short name	VCFX
Product compatibility	V02...V2, VN20, VN12
Range	TeSys
Product or component type	enclosure
Complementary
Depth	131 mm
Width	90 mm
Rotary handle padlocking	with
Compatibility code	empty enclosure
Environmental characteristic	standard environment
Net weight	0.34 kg
Handle colour	red
[Ithe] conventional enclosed thermal current	32 A, 16 A, 20 A, 10 A, 25 A
Handle front plate colour	yellow
Height	146 mm
Environment
IP degree of protection	IP65
Packing Units
Unit Type of Package 1	1
Number of Units in Package 1	1
Package 1 Height	14.500 cm
Package 1 Width	11.000 cm
Package 1 Length	16.000 cm
Package 1 Weight	369.000 g
Unit Type of Package 2	2
Number of Units in Package 2	7
Package 2 Height	30.000 cm
Package 2 Width	30.000 cm
Package 2 Length	40.000 cm
Package 2 Weight	2.930 kg
Unit Type of Package 3	3
Number of Units in Package 3	56
Package 3 Height	75.000 cm
Package 3 Width	60.000 cm
Package 3 Length	80.000 cm
Package 3 Weight	33.468 kg
