SKU:

VZ20

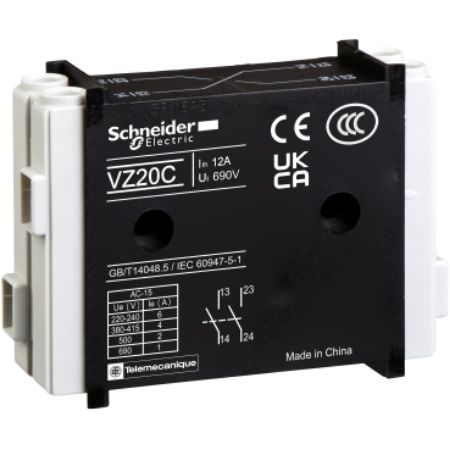

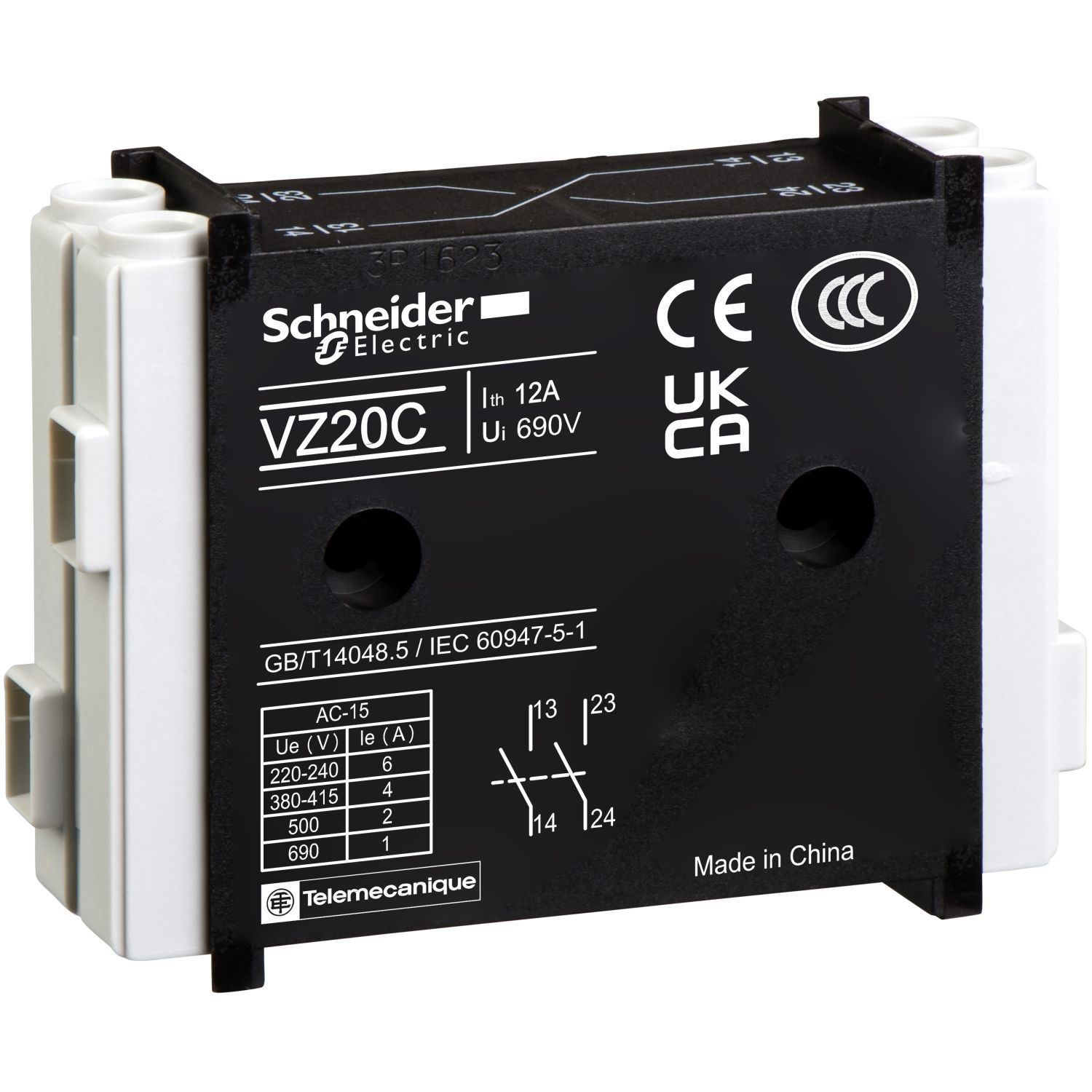

TeSys, TeSys VARIO - auxiliary contact block - 1 NO + 1 NO

$70.92

Qty:

Available for Shipping : 14-Nov-2024

TeSys, TeSys VARIO - auxiliary contact block - 1 NO + 1 NO

Auxiliary contacts is highly reliable

Simple mounting method and ready-to-use

Multi standards certified

Compliant with Green Premium

Be the first to review this product

Manufacturer: Schneider Electric

Catalogue

Product environmental

Instruction sheet

Product Page Link

Product Data Sheet

TeSys Vario add-on module, auxiliary contact block, for TeSys Vario V02 to V6 switch bodies. It provides 2NO contacts (late make) rated for AC operation until 12A/690V and DC operation until 8A/250V. To be mounted on one side of the switch body. A maximum of 2 additional auxiliary contact block modules VZ7 or VZ20 can be attached to the switch body, one in each side. Multi standards certified (IEC, UL, CSA, CCC, EAC), Green Premium compliant (RoHS/REACh).

Products specifications

Attribute name	Attribute value
Main
Device short name	VZ
Product compatibility	V02, V5, V1, V4, V6, V0, V2, V01, V3
Contacts type and composition	1 NO + 1 NO
Mounting location	right, left
Range	TeSys
Performance level	high performance
Product or component type	auxiliary contact block
Network type	AC, DC
Network frequency	50/60 Hz
Complementary
Depth	48.5 mm
Tightening torque	0.7-0.7 N.m - on screw clamp terminals
Width	20 mm
Compatibility code	auxiliary contact
Mechanical durability	100000 cycles
Electrical durability	100000 cycles AC-15, 30000 cycles DC-11
Connections - terminals	screw clamp terminals 2 cable(s) 1-2.5 mm² - solid, screw clamp terminals 2 cable(s) 0.75-1.5 mm² - flexible - with cable end
[Uimp] rated impulse withstand voltage	8 kV
Net weight	0.05 kg
[Ithe] conventional enclosed thermal current	10 A
[Ith] conventional free air thermal current	12 A
Height	65 mm
[Ue] rated operational voltage	690 V AC 50/60 Hz
Environment
Fire resistance	960 °C conforming to IEC 60695-2-1
Protective treatment	TC
IP degree of protection	IP20 conforming to IEC 60529
Standards	IEC 60947-5
Ambient air temperature for operation	-20-50 °C
Product certifications	UKCA, CSA, UL, GL
Packing Units
Unit Type of Package 1	1
Number of Units in Package 1	1
Package 1 Height	3.500 cm
Package 1 Width	5.500 cm
Package 1 Length	9.000 cm
Package 1 Weight	54.400 g
Unit Type of Package 2	2
Number of Units in Package 2	69
Package 2 Height	15.000 cm
Package 2 Width	30.000 cm
Package 2 Length	40.000 cm
Package 2 Weight	4.001 kg
