SKU:

VZ11

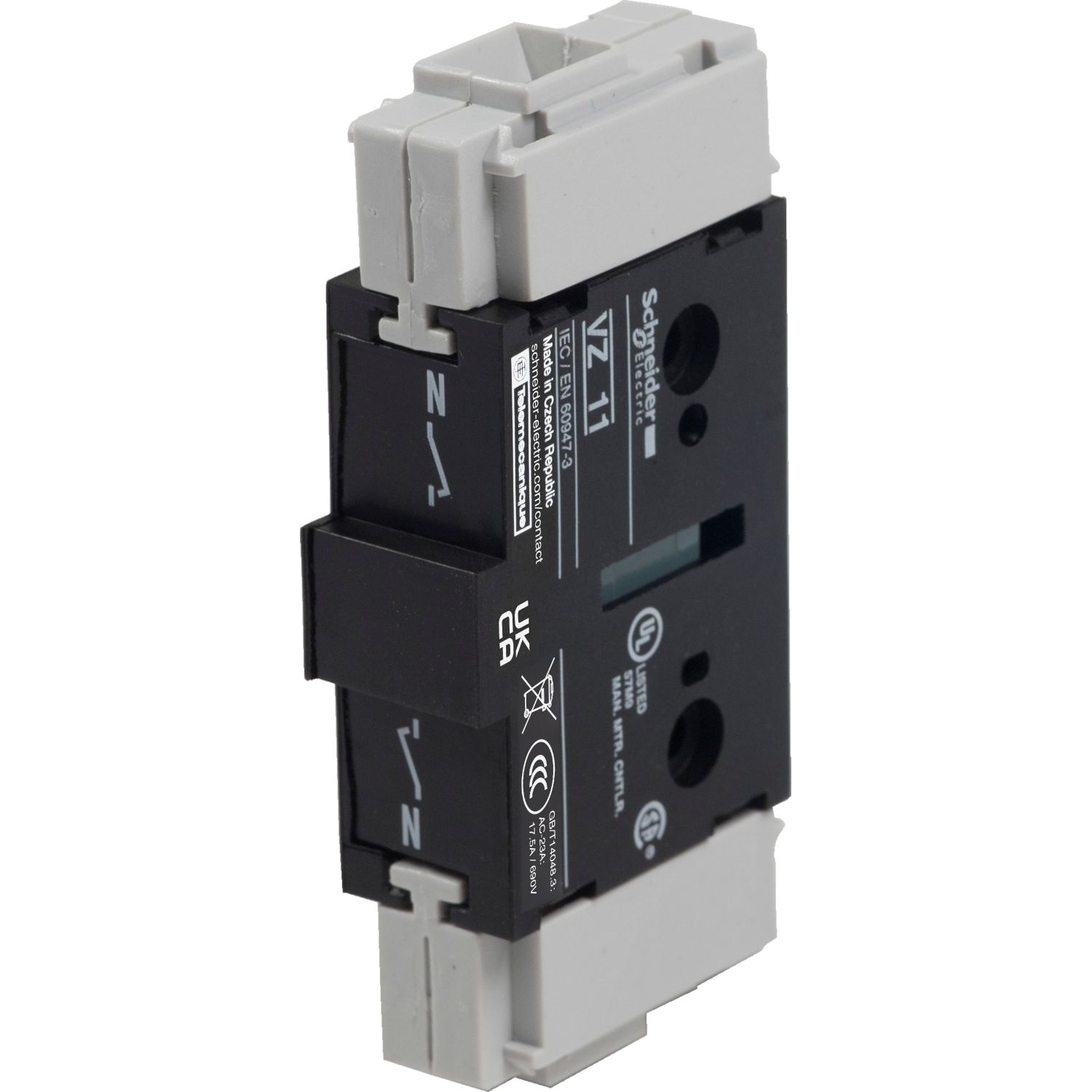

TeSys, TeSys VARIO - additional neutral block - 40 A - for V02...V2

$77.12

Qty:

Available for Shipping : 14-Nov-2024

TeSys, TeSys VARIO - additional neutral block - 40 A - for V02...V2

Good stability of contacts designed with early make and late break action

Compliance with multi standards and certified

Environmentally friendly product

Be the first to review this product

Manufacturer: Schneider Electric

Catalogue

Product environmental

Instruction sheet

Product Page Link

Product Data Sheet

TeSys Vario add-on module, neutral pole 12-40A 690V, for TeSys Vario switch-disconnector. To be used with V02 to V2 switch bodies. Contacts with early make and late break action. Multi standards certified (IEC, UL, CSA, CCC, EAC), Green Premium compliant (RoHS/REACh).

Products specifications

Attribute name	Attribute value
Main
Device short name	VZ
Product compatibility	V01, V0, V02, V2, V1
Poles description	1N
Contact operation	early make, late break
Contacts type and composition	1 NO
Range	TeSys
Performance level	high performance
Product or component type	additional neutral block
Range compatibility	TeSys TeSys VARIO switch disconnector
Network type	DC, AC
Network frequency	50/60 Hz
Complementary
Depth	35 mm
Tightening torque	2.1-2.1 N.m - on screw clamp terminals
Width	16 mm
Compatibility code	neutral pole module
Mechanical durability	100000 cycles
Electrical durability	100000 cycles AC-21, 30000 cycles DC-1...5
Connections - terminals	screw clamp terminals10-10 mm² - solid, screw clamp terminals6-6 mm² - flexible - with cable end
Mounting location	right, left
[Uimp] rated impulse withstand voltage	6 kV
Net weight	0.05 kg
[Ith] conventional free air thermal current	40 A
Height	74 mm
[Ue] rated operational voltage	690 V AC 50/60 Hz
Environment
Fire resistance	960 °C conforming to IEC 60695-2-1
Mechanical robustness	shocks 11 ms (15 gn) conforming to IEC 60068-2-27, vibrations 10...150 Hz (1 gn) conforming to IEC 60068-2-6
Protective treatment	TC
IP degree of protection	IP20 conforming to IEC 60529
Standards	IEC 60947-3
Ambient air temperature for operation	-20-50 °C
Product certifications	UKCA, UL, CSA, GL
Packing Units
Unit Type of Package 1	1
Number of Units in Package 1	1
Package 1 Height	3.7 cm
Package 1 Width	5.5 cm
Package 1 Length	9.0 cm
Package 1 Weight	48.0 g
Unit Type of Package 2	2
Number of Units in Package 2	69
Package 2 Height	15.0 cm
Package 2 Width	30.0 cm
Package 2 Length	40.0 cm
Package 2 Weight	3.582 kg
