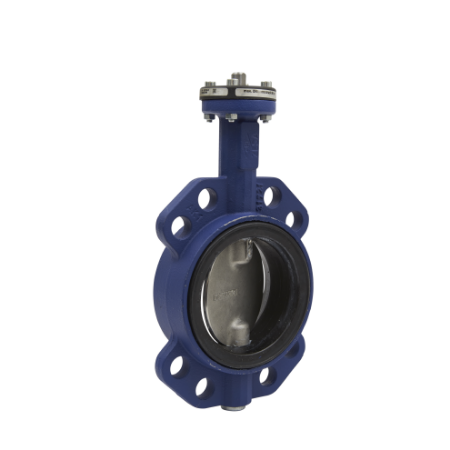

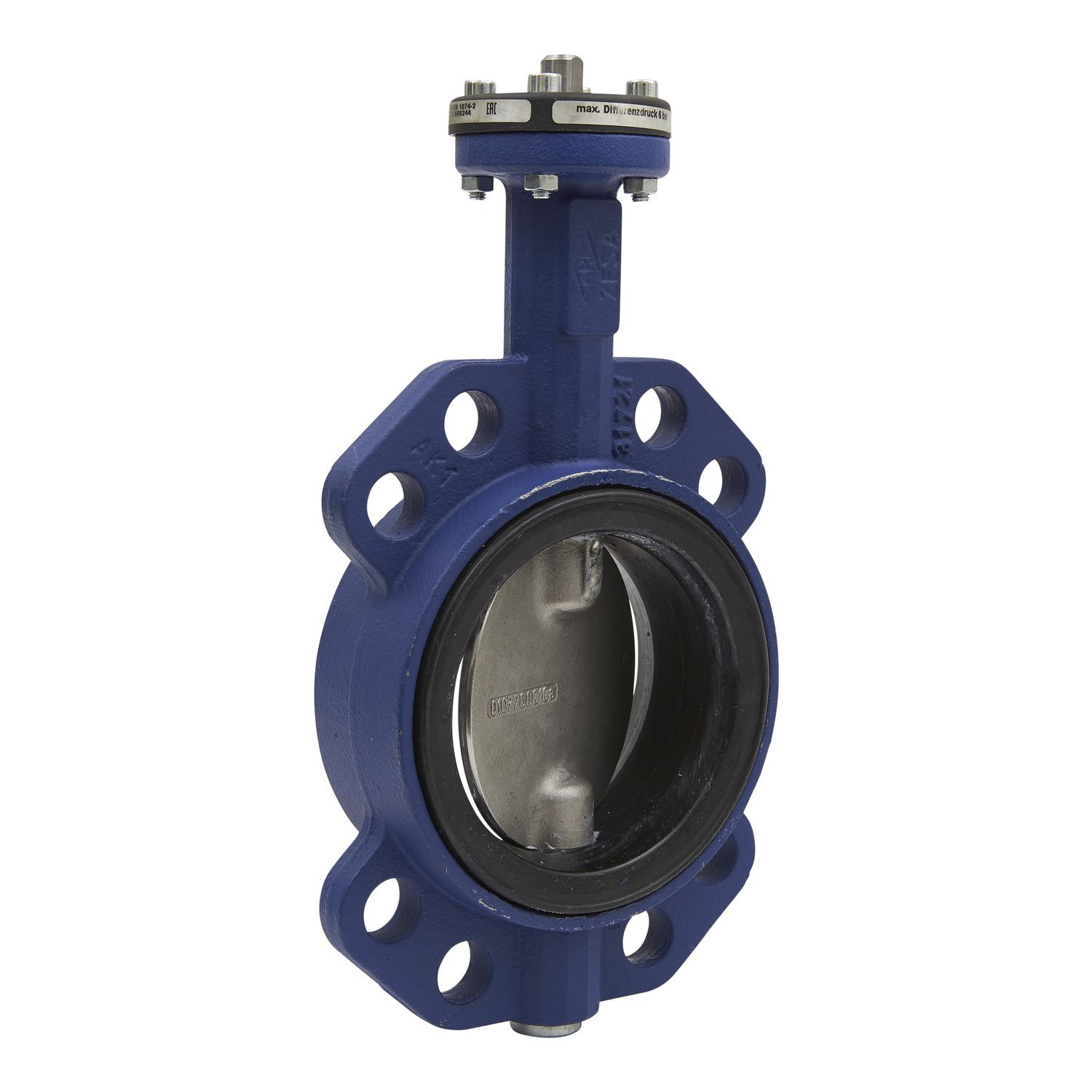

Picture of VF208W Butterfly Valve, 2-Way, DN125, Wafer Flanged, 316 Stainless Steel Disc, EPDM Liner, Kvs 1025m³/h, Max ∆P 600 kPa.
SKU:

VF208W-125NS

VF208W Butterfly Valve, 2-Way, DN125, Wafer Flanged, 316 Stainless Steel Disc, EPDM Liner, Kvs 1025m³/h, Max ∆P 600 kPa.

Please Contact Sales to buy this Product. click here
VF208W Butterfly Valve, 2-Way, DN125, Wafer Flanged, 316 Stainless Steel Disc, EPDM Liner, Kvs 1025m³/h, Max ∆P 600 kPa.
  • Butterfly valve for general duty HVAC applications
  • Condensation barrier reduces water build up on the external surface of the actuator
  • Can be hand actuated or driven under 2-position, floating or modulating control signals
  • Thick EPDM liner provides a tight close off for zero leakage
  • Stainless Steel Disc for suitability on many media solutions including glycol up to 50% concentration
  • Wafer Flange fits between pipe flange faces, PN6, PN10, PN16 bolt patterns
  • PN16, Max ∆P 600 kPa
  • Kvs 1025 m³/h
  • Suitable actuator: Type MF40
  • Suitable Hand Operator: 9150200000
Be the first to review this product
Manufacturer: Schneider Electric
Estimated Delivery Date: 12-Oct-2024
Catalogue
Product environmental
Product Page Link
Product Data Sheet
The VF28W is a new generation butterfly valve for the isolation and control of water for HVAC systems. The valve can be operated either by an electric actuator or hand using a handlever. Nodular iron construction provides a long life and high corrosion resistance. The EPDM soft seats provide tight shut off and zero leakge, for a better energy saving, maintenance free, double sealing of stem, centrical disc bearing. Valve size: DN125, Flange, uncharacterized flow, kvs: 125m³/h. Constructed and flanged to a PN16 pressure class. ΔPm of maximum 6 Kpa. EPDM seals provide a working temperature range of -1 °C to + 1 °C, the soft seat seal ensures a tight close off with no leakage. Uncharacterized flow characteristics provide a good flow control, integrated dew point barrier. No linkage kits required.

Related products

Picture of MF40 Butterfly Valve Actuator, 3-Wire Floating, 230Vac, 40Nm, Non-spring Return, IP54

MF40 Butterfly Valve Actuator, 3-Wire Floating, 230Vac, 40Nm, Non-spring Return, IP54

MF40-230F
Please Contact Sales to buy this Product. click here
View Detail

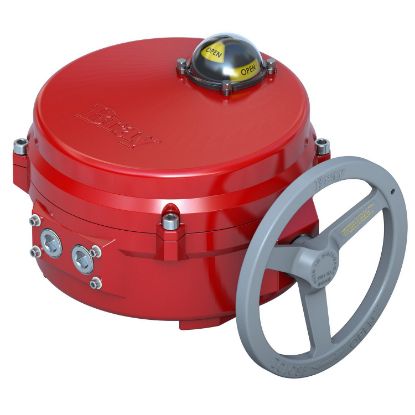

Picture of MF40 Butterfly Valve Actuator, 3-Wire Floating, 24Vac, 40Nm, Non-spring Return, IP54

MF40 Butterfly Valve Actuator, 3-Wire Floating, 24Vac, 40Nm, Non-spring Return, IP54

MF40-24F
Please Contact Sales to buy this Product. click here
View Detail
Picture of MF40 Butterfly Valve Actuator, Modulating, 2-10VDC, 24Vac/dc, 40Nm, Non-Spring Return, IP54

MF40 Butterfly Valve Actuator, Modulating, 2-10VDC, 24Vac/dc, 40Nm, Non-Spring Return, IP54

MF40-24M
Please Contact Sales to buy this Product. click here
View Detail
